Dongfeng 4x2 10,000Liters Sewage Suction Truck With Italy BP Pump
Engine:diesel cummins engine 190HP;
Driving model:LHD or RHD
Gear box:6-speed forward and 1 reverse
Sewage
pump:Italy Brand BP pump
Tank size:10cbm/10,000Liters
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 4x2 10,000liters sewage suction truck with italy bp pump in China. If you're going to buy high quality dongfeng 4x2 10,000liters sewage suction truck with italy bp pump, welcome to get more information from our factory. For price consultation, contact us.
Function
1. Purpose: It used for city and factory sewer cleaning, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning!
2. Main parts: Water pump,Pressure Gauge,Water Gas Separator,Oil and Gas Separator
3. Features: It can adopts high pressure water for flushing sewer.
4. 10,000 liters sewage vacuum suction truck .

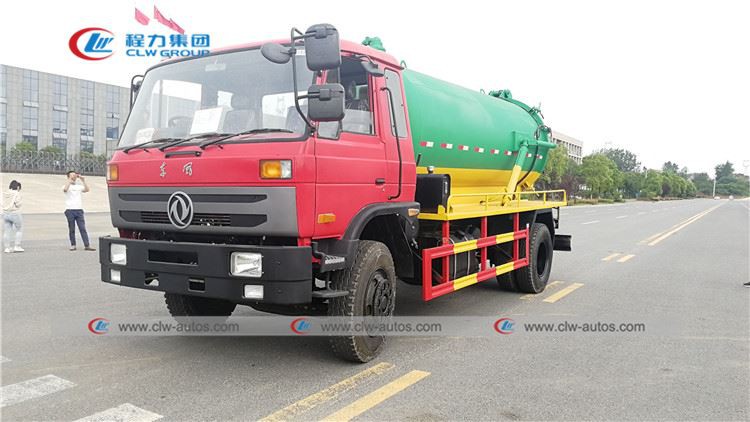

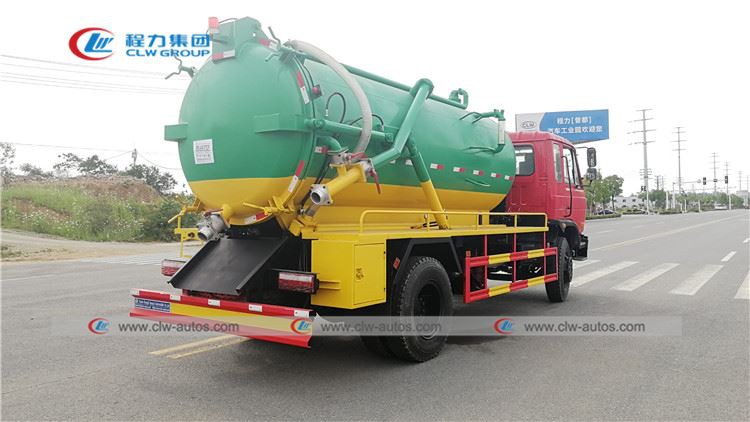

Reference picture
Truck Structure
working diagram
working show
Specification
Items | Descriptions | Specifications and Types |
General | Truck Name | Sewage suction truck |
Drive Type | 4*2 | |
Gross Vehicle Weight(kg) | 15800 | |
Curb Weight (kg) | 7300 | |
Overall Dimensions L*W*H(mm) | 7600*2490*3200 | |
Engine Brand | Cummins | |
Fuel Type | Diesel | |
Power | 190 HP | |
Emission Standard | Euro 2/ 3 | |
Displacement(ml) | 4500 | |
Engine Type | 6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
Chassis | Chassis Brand | Dongfeng |
Axle | 2 | |
Front/Rear Axle Load(KG) | 5000/10000 | |
Tire No. | 6+1 spare | |
Tire Specification | 10.00R20 | |
Wheelbase (mm) | 4500 | |
Gear Box | 6 speed forward with 1 reverse, manual | |
Steering Wheel | Left / Right hand drive with power-assisted | |
Brake | Oil brake | |
Radiator | Suitable for tropical climate | |
Sewage tank | Sewage tank Volume(L) | 10,000 |
Tank shape | Round | |
Tank Material | 5mm thickness carbon steel | |
Sewage pump | Quantity | 1 |
Brand | Italy BP Pump | |
Model | MEC/P 13500 | |
Speed(r/min) | 1400 r/min | |
Max vacuum - % | 95% | |
Vertical suction range(m) | ≥9m | |
Rate suction speed(m³/h) | 810 m³/h | |
Remarks | The color and Logo can be customized. | |
