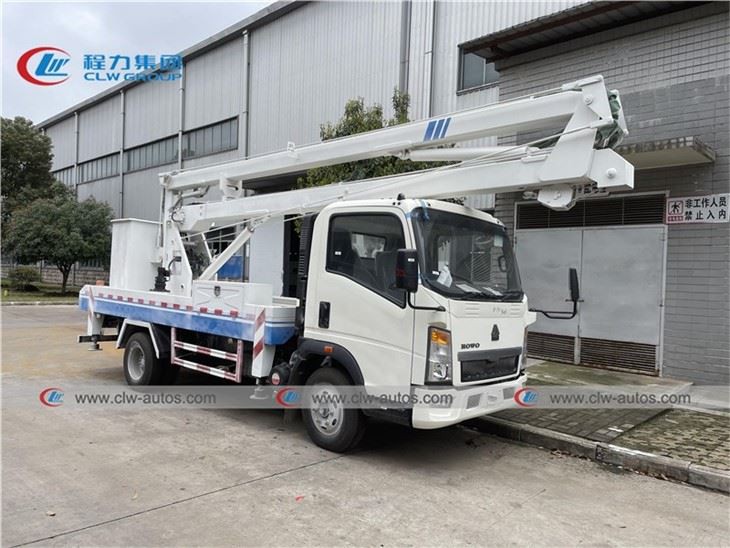

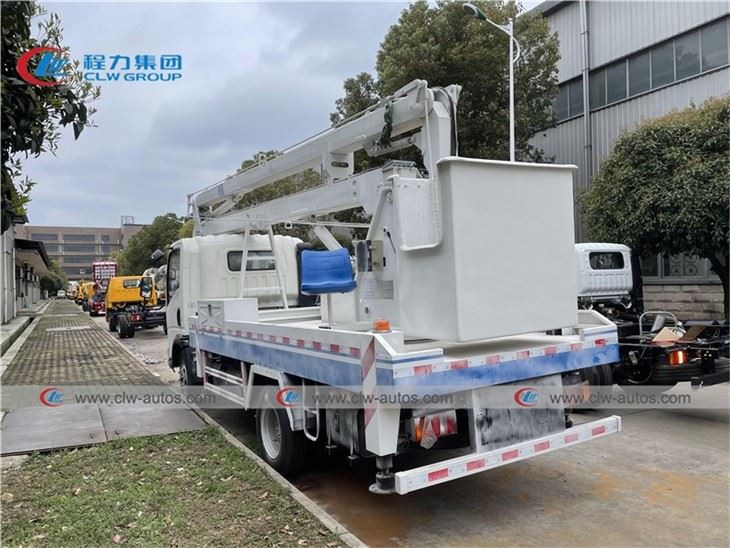

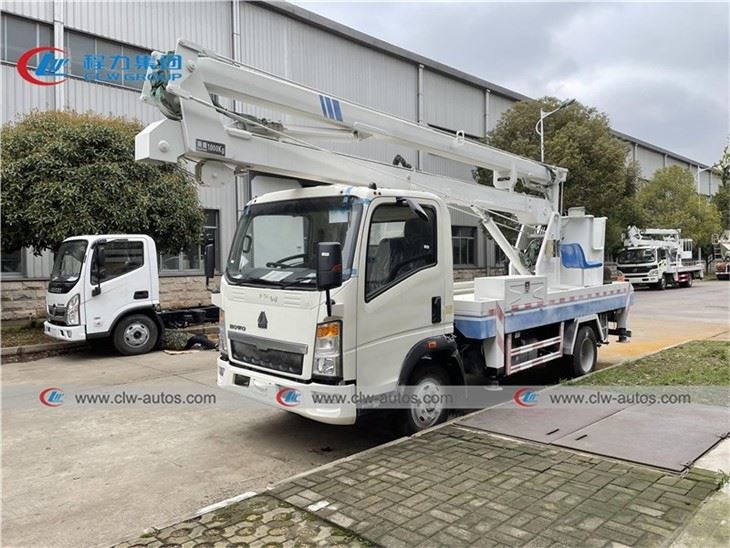

15Meter HOWO RHD Insulated Folding Boom Aerial Working Truck

1

Working height

15Meters

2

Main technical parameters of operation

The height of the platform from the ground ≥12m
Max operating range of the platform ≥10m
Operating height when the platform's max operating range is ≥14.3m
Max working angle of platform 80°
Rated load of working bucket: 200kg

3

Outrigger

Mode: Front outrigger: V type,rear outrigger: H type, individually adjustable
Quantity: 4
Control: individually adjustable or linked
Front leg lateral span: 3685mm
Inclination: 120°
Rear outrigger lateral span : 3780mm

4

Main operation

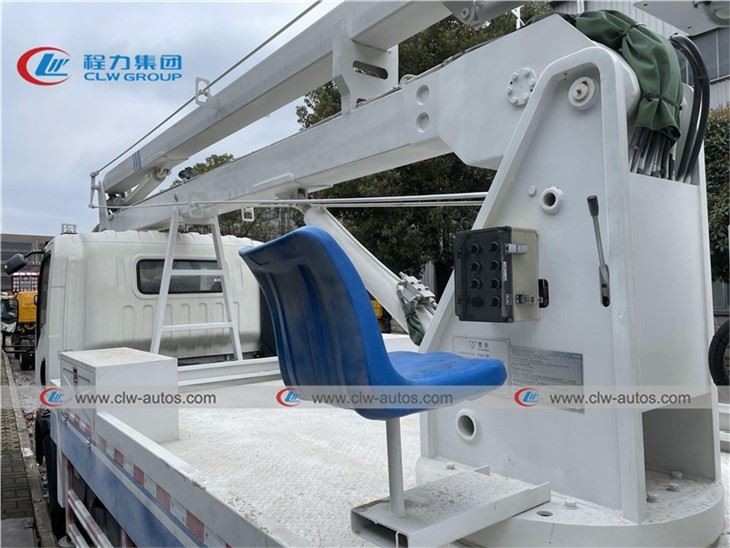

Operating position: turntable, remote control operation.
Control form: ZYK bus control system, electro-hydraulic proportional control system to realize stepless speed regulation

5

Hoarding and stepping board

Stainless steel fence and anti-skid stepping board

6

Boom structure

Five-section working arm, synchronized telescopic

7

Slewing device

Two-way 360-degree continuous rotation, 360-degree rotation of the hanging basket

8

Upper body  main configuration

A.Operating height 15 meters,
B.The whole truck has four hydraulic telescopic legs (up and down telescopic and horizontal telescopic), eight cylinders in total.
C.The outriggers are front V and rear H type,
D.Emergency pump, working bucket 360 degree rotation, wireless remote control, and others are factory standard configuration.
