Armored Riot Control Vehicle 10m3
HOWO chassis heavy-duty platform
6×6 all-terrain drive chassis
8–10 m³ explosion-proof tank
Diesel engine reliable power source
Explosion-proof ATEX electrical system
High-pressure water cannon 100m
360° infrared thermal imaging camera
Automatic cooling self-protection system
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of armored riot control vehicle 10m3 in China. If you're going to buy high quality armored riot control vehicle 10m3, welcome to get more information from our factory. For price consultation, contact us.

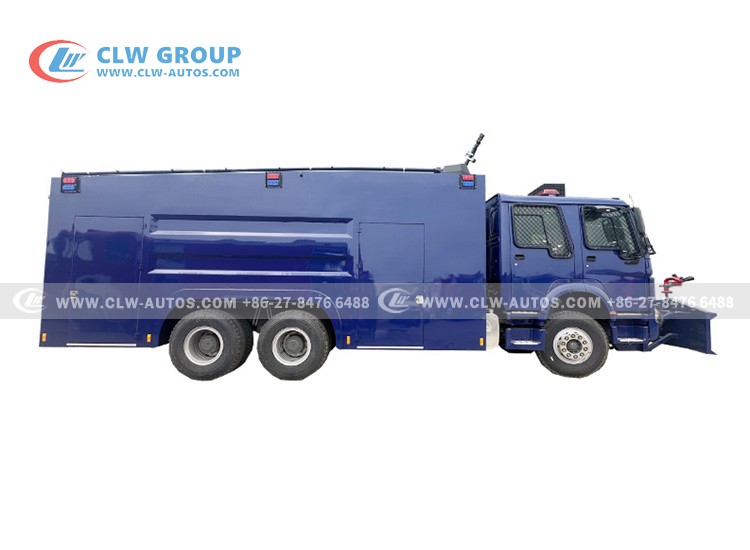

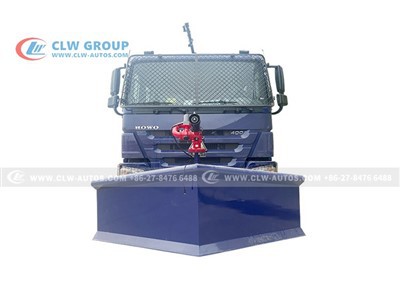

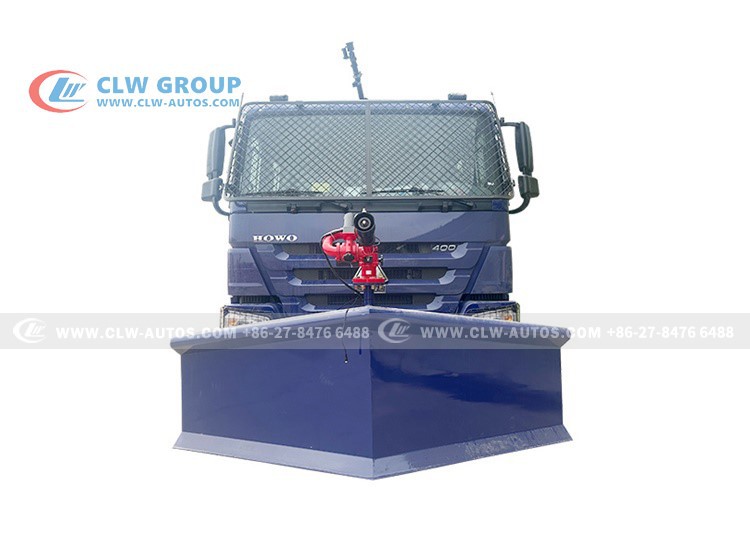

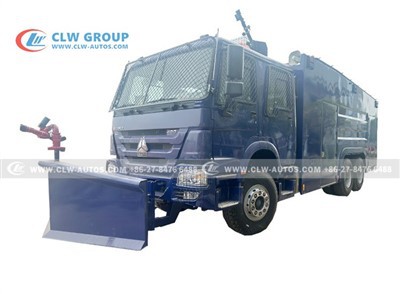

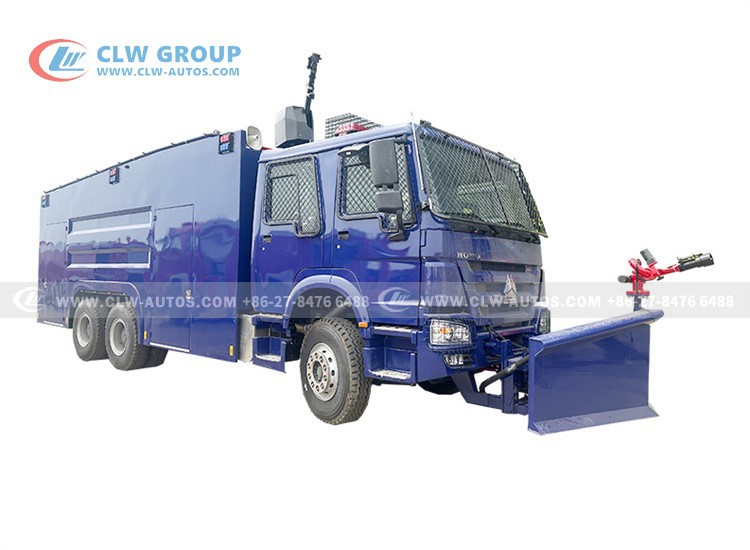

Armored Riot Control Vehicle 10m3 Description

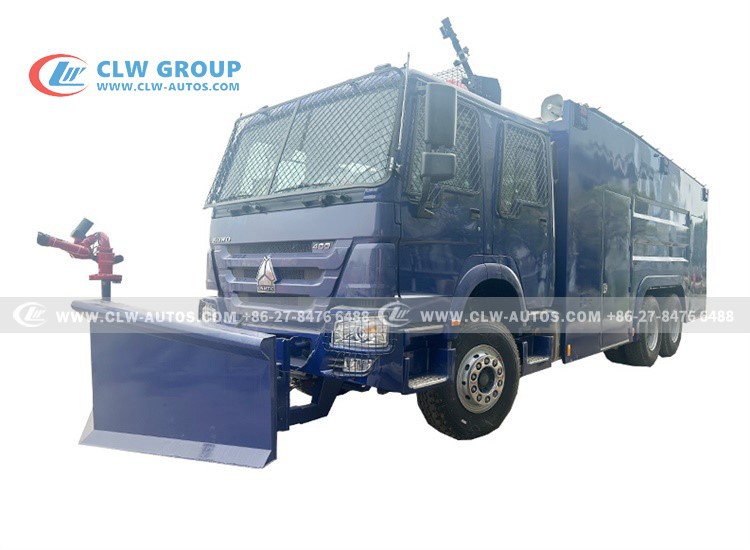

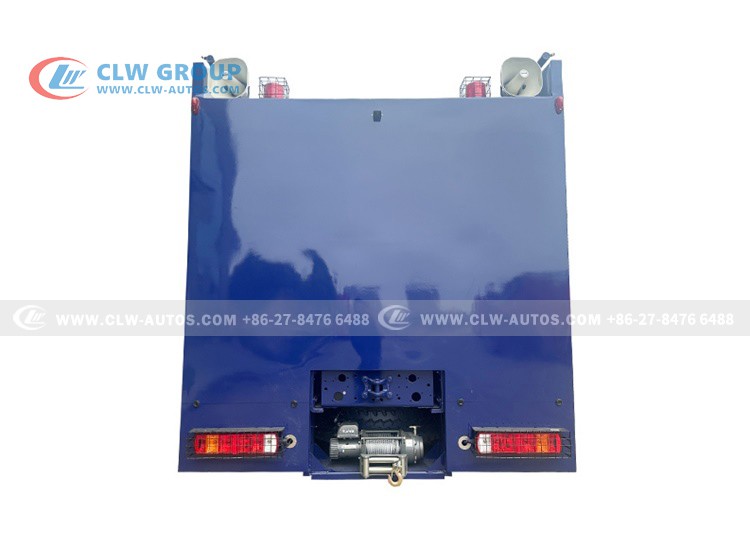

Developed by Hubei Chengli Special Automobile Co., Ltd, this specialized fire truck is engineered for high-risk environments such as petrochemical plants, hazardous material warehouses, and underground mines. Designed to operate safely in flammable and explosive conditions, it integrates explosion-proof breaching, high-efficiency fire suppression, and intelligent detection systems. With a core focus on "close-range assault and safe blast control," it serves as a mobile safety fortress in dangerous fire zones.
Video Introduction
🔧 Core Parameters at a Glance
| System | Parameter | Description |
|---|---|---|
| Chassis & Mobility | Drive Type: 6×6, CTIS | Full-time all-wheel drive, suitable for all terrains |
| Ground Clearance: ≥400 mm | High passability | |
| Fording Depth: 800 mm | Suitable for flood or tunnel rescue | |
| Water Tank | Capacity: 8–10 m³ | Explosion-resistant PE tank with anti-corrosion coating |
| High-Pressure Cannon | Flow Rate: 60–100 L/s | Electric cannon, straight/ fog dual mode |
| Range: ≥70 m | Long-range fire suppression | |
| Roof Water Monitor | Flow Rate: ≥300 L/s | Remote-controlled, 360° rotation, range ≥100 m |
| Explosion-Proof Features | Certification: ATEX (Ex d IIB T4) | Full-vehicle electrical explosion protection |
| Protection Level: STANAG 4569 Level 1 | Blast and debris resistant armored body | |
| Thermal Imaging System | Detection Range: -20°C to +1500°C | Multispectral + infrared camera |
| Communication | Sound & Video: 120dB loudspeaker, 5G + satellite link | Real-time scene transmission to command center |
| Self-Protection | Cooling System: Auto body spray | Activates in high-heat conditions to protect personnel & vehicle |
Key Functional Highlights
High-Risk Environment Combat Capability
- Blast Suppression Priority: Fog mode quickly dilutes flammable gases; optional nitrogen injection system further reduces explosion risk.
- Close-Range Assault: After obstacle removal with the explosion-proof shovel, firefighters can approach safely using optional side-mounted explosion-proof shields.
Intelligent Safety Management
- Environmental Monitoring: Integrated combustible gas sensors (methane, hydrogen, etc.) and oxygen detection dynamically linked to water cannon modes.
- Self-Protection System: Automatic body spray cooling system activates under high-temperature exposure, safeguarding the vehicle and crew.
Technical Advantages
Military-Grade Protection
- Positive pressure fresh air system in the cabin to prevent toxic gas infiltration, combined with EN 1063 BR6-grade bullet-resistant glass.
- Critical components (engine, fuel tank) reinforced with explosion-proof armor.
High Efficiency and Energy Saving
- Variable-frequency motor-driven water pump reduces energy consumption by 30% compared to traditional systems.
- Dual-compartment tank design (foam/water) increases extinguishing agent utilization by 50%.
Intelligent IoT Integration
- Real-time 3D fire scene modeling via LiDAR scanning to support tactical decision-making.
- Multi-vehicle network capability for shared situational awareness.
application of Armored Riot Control Vehicle 10m3
Petrochemical Plants

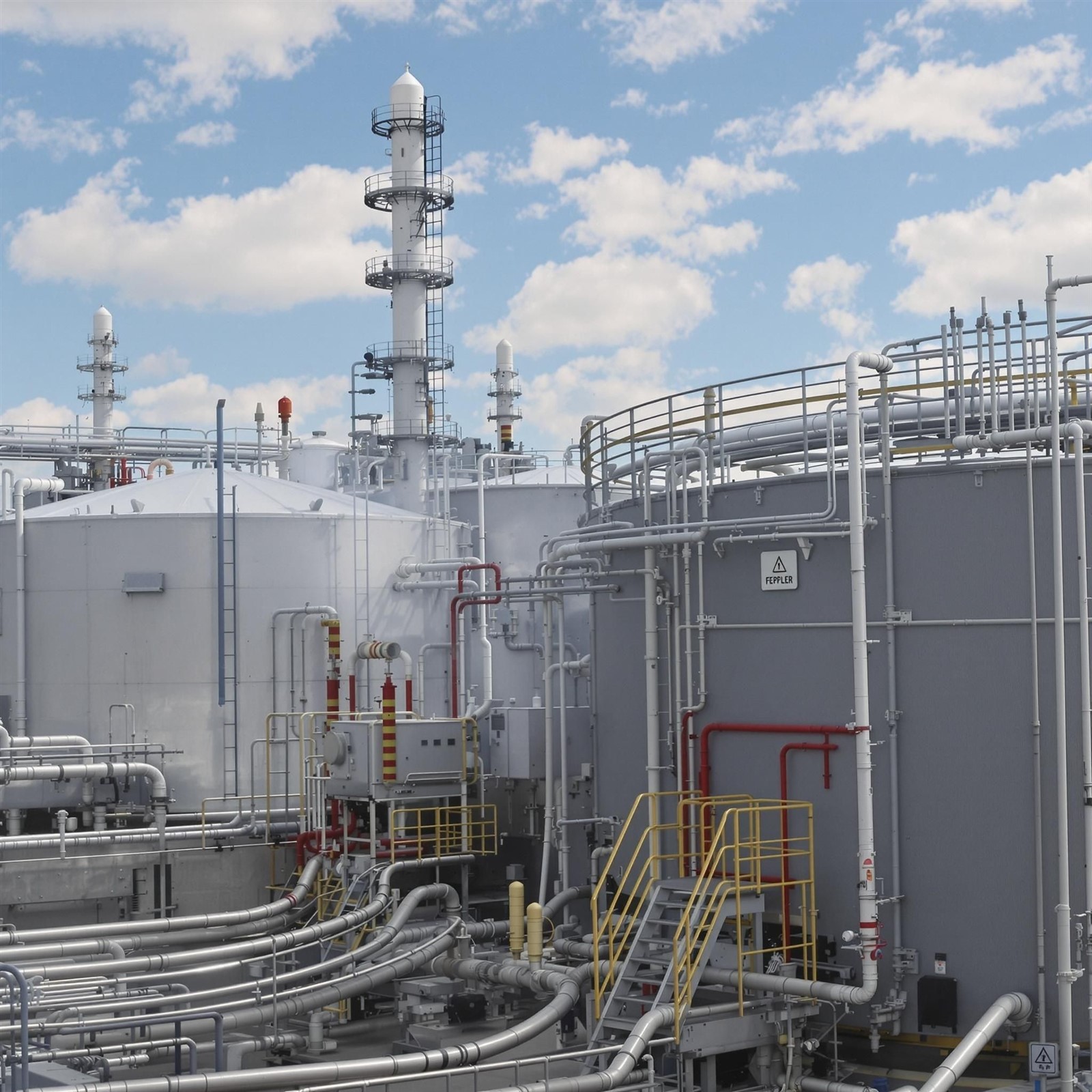

Fire suppression in refineries and storage tank areas.
Underground Mines
Post-gas explosion firefighting and rescue passage clearing.
Hazardous Chemical Warehouses
Containment of fires involving flammable liquids and gases.
Tunnel Incidents
Emergency response for subway and highway tunnel fires.
Optional Configurations
Functional Extensions:
- Dry powder extinguishing module (10-ton capacity) for metal fires.
- Robotic arm for remote handling of hazardous materials or breaching tasks.
- Unmanned reconnaissance vehicle platform for deep fire zone exploration.
Enhanced Safety Features:
- NBC (nuclear, biological, chemical) filtration system.
- Onboard emergency escape capsule (heat resistance ≥1000°C with independent oxygen supply for 30 minutes).
