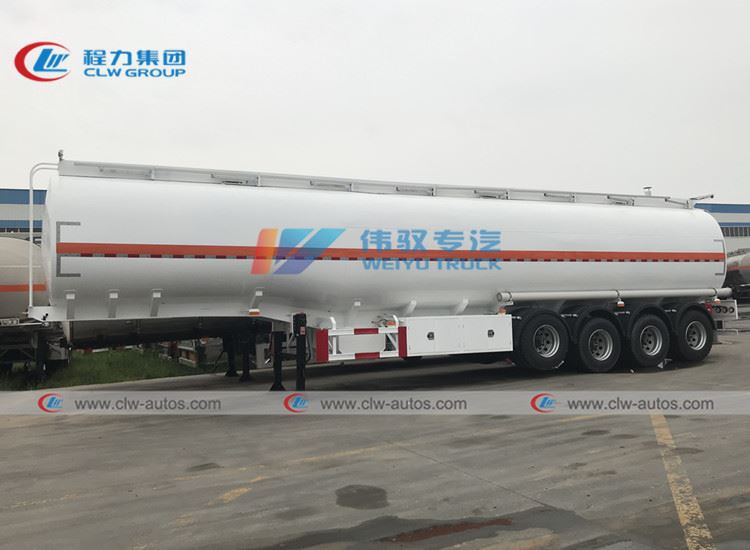

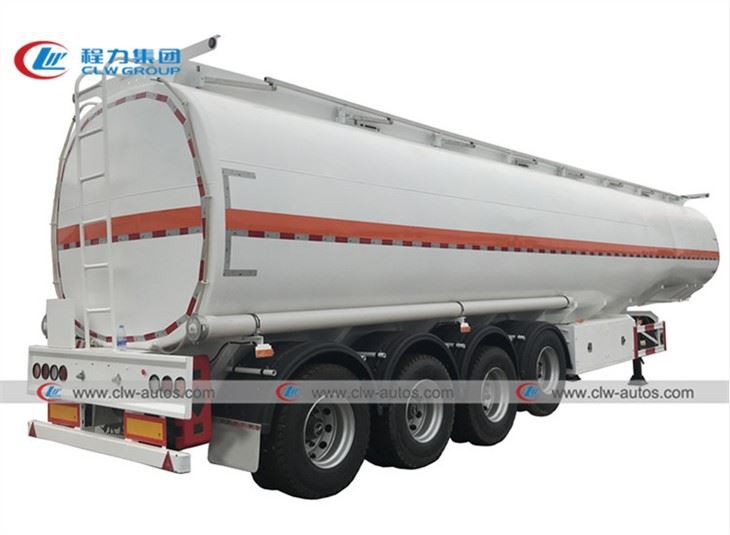

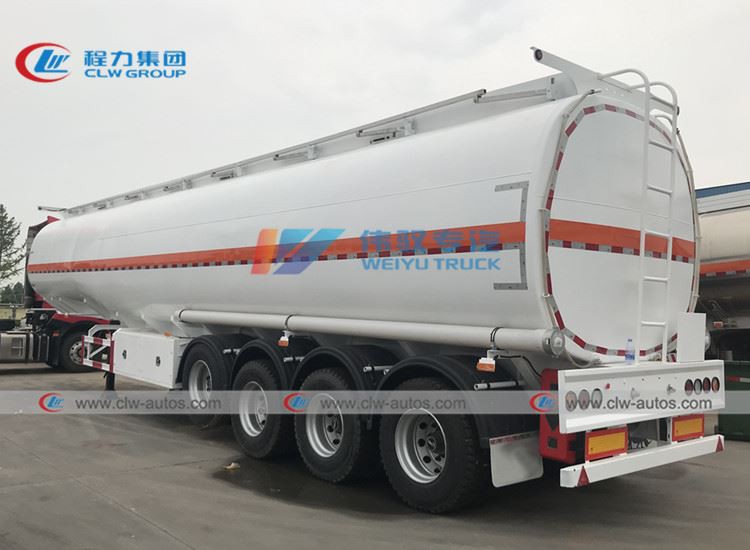

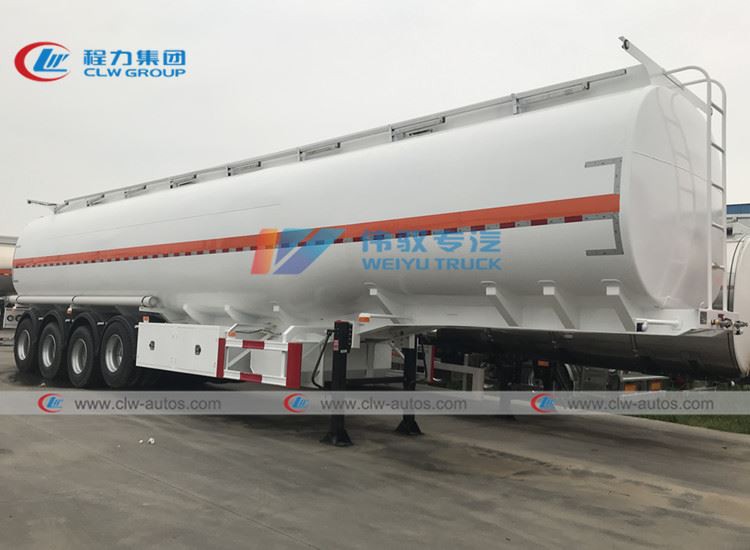

4 Axle 45000L Fuel Tank Trailer With Liftable Axle

Overall Length

Approx.11800mm

Overall Width

2500mm

Overall Height

Approx.3650mm

Tare Weight

Approximate 10900KGS

Loading Capacity

45m3

Tank Body

Shape

Mono block Cylinder

Total Volume（m3）

45CBM

Tanker Body Material

5mm Carbon Steel Q235

End plate

6mm Carbon Steel Q235

Lifting Ladder

Including Top walkway and backside steel material

Manhole cover

4 sets Aluminum alloy API manhole cover , ∮500mm , with breather valves and anti-Spillage valves

Bottom Valve

4 sets DN100 Pneumatic Bottom Valve,Pneumatic control for each compartment

Discharging valve

4 sets DN100mm API discharging valves

Discharging Pipe

4”rubber hose

Chassis

Main Beams

Special design I beam, Steel Saddle support 8 No’s each side.

Axle

4 axles, Front axle is liftable

BPW brand 13 Ton

Landing Gear

JOST brand

King Pin

JOST Brand 2’’ or 3.5” bolt-in king pin;interchangeable.

Suspension

heavy duty leaf spring type, Front axle with BPW brand air bag

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.

Tire

385/65R22.5 tubeless Single Tri-angle Brand tire with one spare tire, 9 pieces

TOTAL standard Lighting system

1. Electrical wires: Placed in leak tight sheathes,neither bare wire nor split sheathes

2. Back lights:Inserted inside rear bumpers and protected.

3. Stop light:Additional LED stop lighting.

4. Lighting repeaters:Turn,reverse and stop lights must be repeated on top left and

 right sides.

5. Indicator: In the rear side.

Other TOTAL Design and parts

1. Dust Board to Cover the Tires

2. Rear Ladder to access the top of the tanker. Well secured,with angle,not vertical,

linked to mechanism

for automatic handrail lifting.

3. Walkway with fold-able handrail. (air operated)

4. Tool Box

5. Double Spare Tire Carrier (Winch Type).

6. Anti-skid design on the whole available surface

7. 2 No’s of fire extinguisher holder. With 2 No’s 9KG extinguisher.

8. Drip collecting system(slope-by directing liquid to a on/off tap)

9. Earthing plots(Qty 4, front left/right+back left/right,in brass)

10. A yellow, reflective safety line 5cm wide shall be placed along both side of tank

 shell

11. With ABS System

12. Epoxy coated inside Tanker

13. Aluminum Alloy Pipeline suitable for transport JET A1
