Carbon Steel 42000L 42k Liters Fuel Tank Truck Trailer With Air Bag Suspension
Tanker size:42000L/42000liters/42k liters;
Tank material:Carbon steel Q235
Thickness:5mm at shell and 6mm at end plate
Axle brand:FUWA/BPW axle
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of carbon steel 42000l 42k liters fuel tank truck trailer with air bag suspension in China. If you're going to buy high quality carbon steel 42000l 42k liters fuel tank truck trailer with air bag suspension, welcome to get more information from our factory. For price consultation, contact us.
Function
--Fuel Tank Truck Trailer(also called oil tanker semi-trailer,oil truck trailer,fuel tanker trailer,crude oil tanker trailer,oil bowser semi trailer,ragid oil tanker trailer,petrol transport truck,diesel delivery tanker trailer) is a semi-trailer tanker connected with tractor. Compared with ordinary small tanker truck, semitrailer tanker can effectively improve the transport efficiency.
In the same tonnage loading,Fuel Tank Truck Trailer reduce the transportation cost and save fuel consumption.
-- Fuel Tank Truck Trailer can be divided into various types as follows,
★carbon steel Fuel Tank Truck Trailer,aluminum alloy Fuel Tank Truck Trailer,stainless steel Fuel Tank Truck Trailer;
★According to tank size,there are 20,000liters to 65,000liters Fuel Tank Truck Trailer for option;
★According to axles,there are double axle Fuel Tank Truck Trailer ,2-axle Fuel Tank Truck Trailer ,3-axle Fuel Tank Truck Trailer ,tri-axle Fuel Tank Truck Trailer
★According to suspension,there are mechanical suspension Fuel Tank Truck Trailer and air bag suspension Fuel Tank Truck Trailer
Feature
--High quality carbon steel from china top steel factory 4mm,5mm or 6mm tanker trailer thickness;
--Production strictly following china standard,ADR standard Fuel Tank Truck Trailer customized for saudi arabia is also optional.
--Fuel Tank Truck Trailer shape is optional for oval and squareround Fuel Tank Truck Trailer ;
--Compartment no. is customized,which can load different types of Fuel Tank Truck Trailer;
--Several baffles inside tanker trailer,a through hole at the bottom to reduce the impact of oil in the tank and improve the strength of the tank;
--Reliable quality axle brand BPW,FUWA,L1
--FUWA or BPW Aig bag suspension optional to improve driving performance.

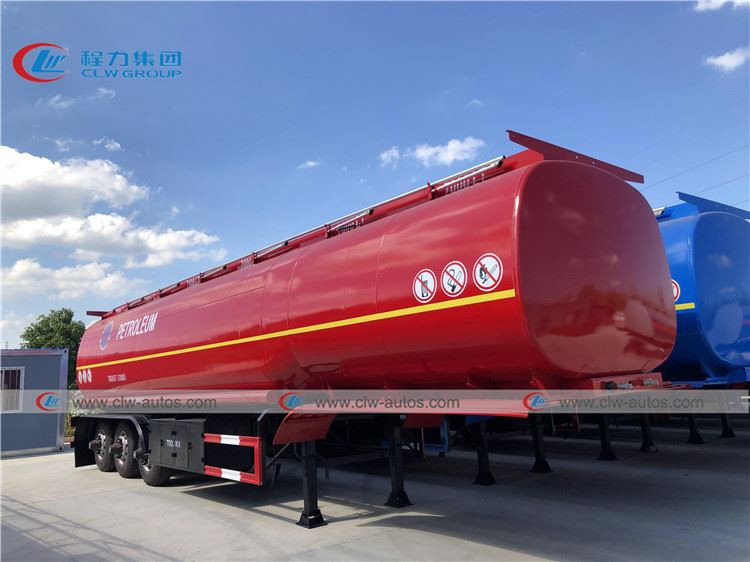

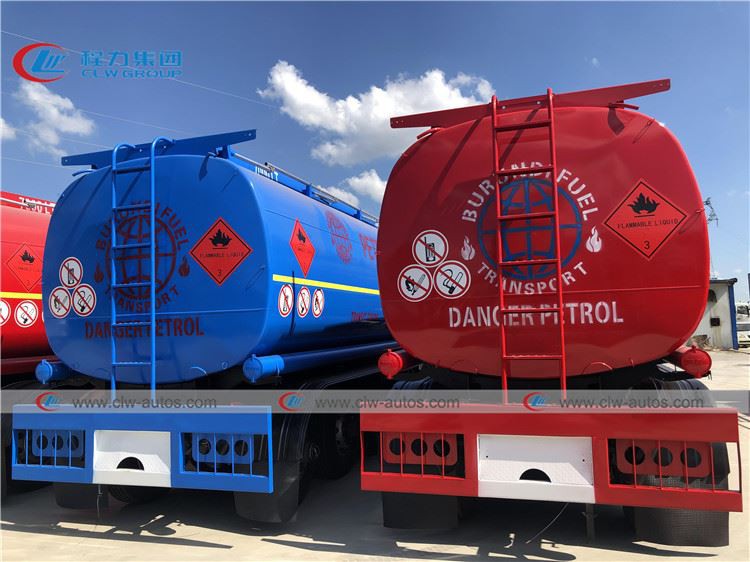

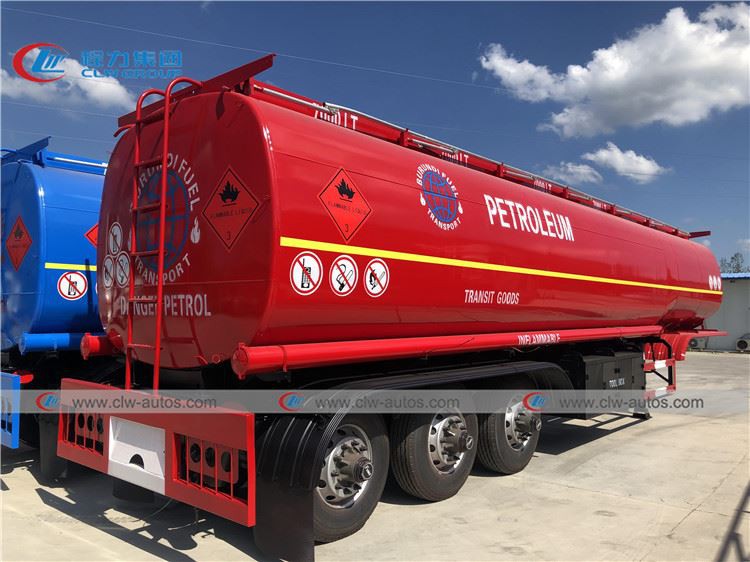

Picture of 42000liters fuel tank truck trailer

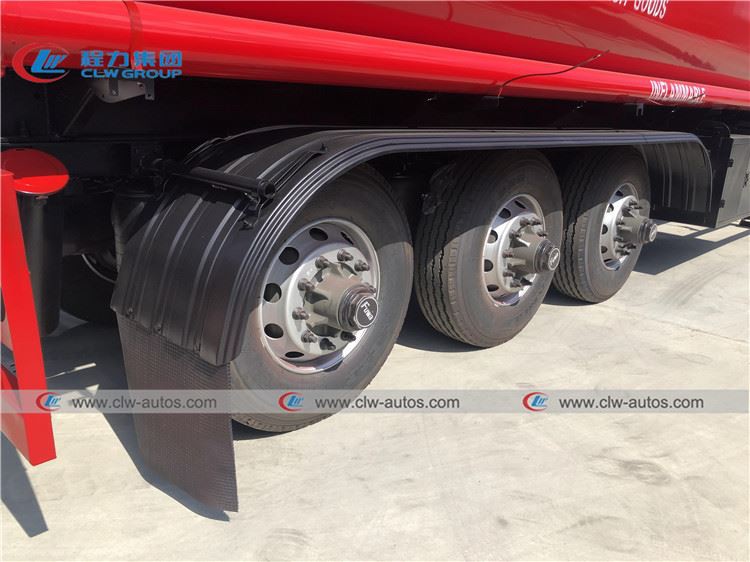

〔FUWA AXLES〕

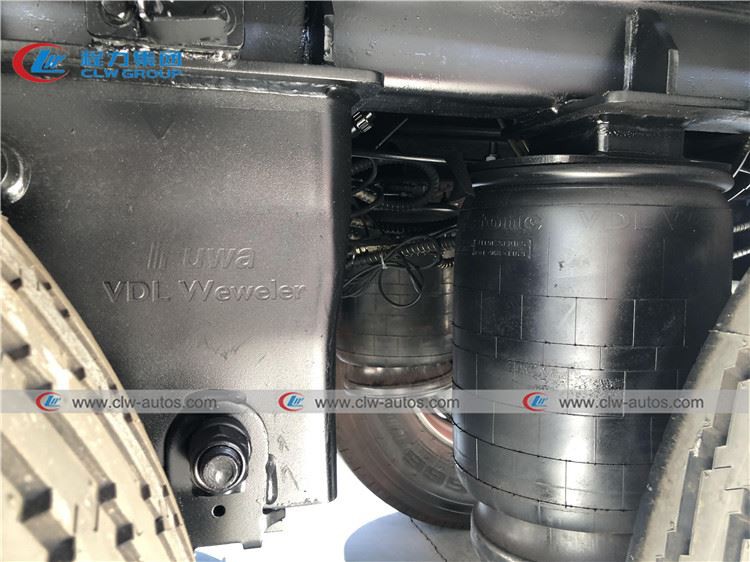

〔FUWA AIR BAG SUSPENSION〕

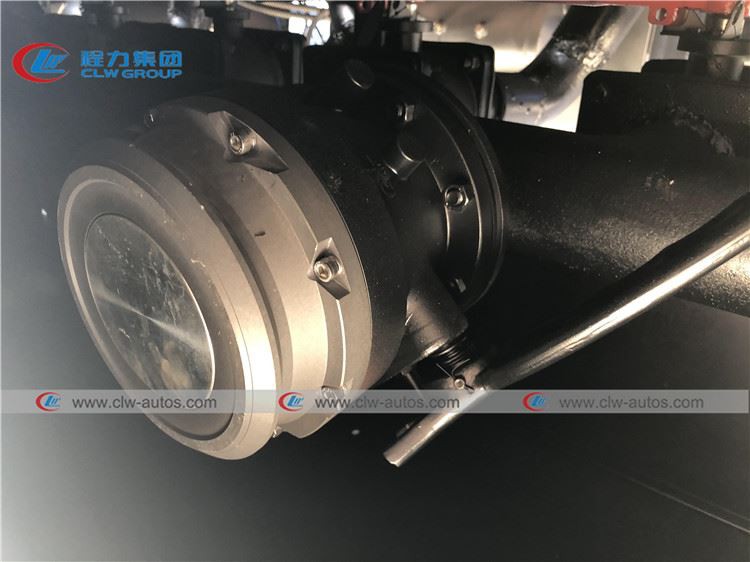

〔DISCHARGING VALVE〕

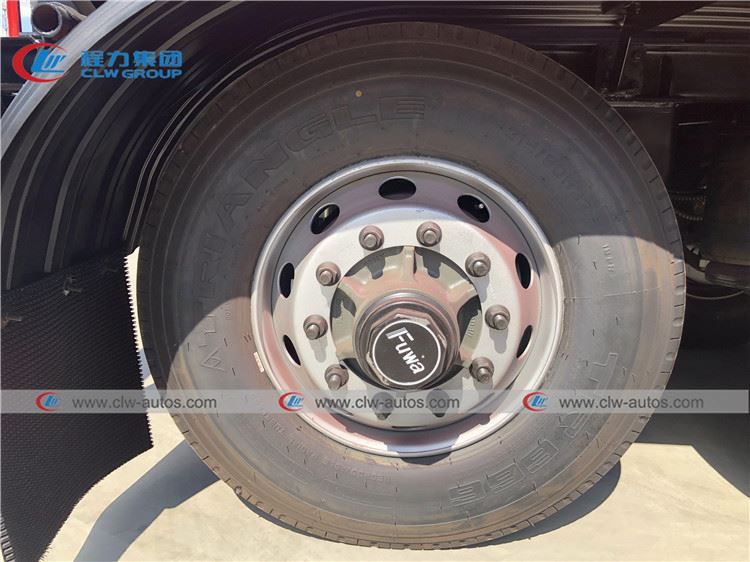

〔TRI-ANGLE 315/80R22.5 TUBELESS TIRE〕
Specification
| ||||||
Overall Length | 11500mm | |||||
Overall Width | 2500mm | |||||
Overall Height | 3880mm | |||||
Tare Weight | Around 10000KGS | |||||
Loading Capacity | 42m3 | |||||
Photo only for reference, final product can be made according to exact requirements | ||||||
| ||||||
Shape | Mono block Cylinder | |||||
Total Volume（m3） | 42 CBM | |||||
Tanker Body Material | 5mm carbon steel | |||||
End plate | 6mm carbon steel | |||||
Baffle | 5 Nos,4 mm carbon steel | |||||
Lifting Ladder | Including Top walkway and backside steel material | |||||
Manhole cover | 6 manhole covers, ∮500mm 6 sets with 6 breather valves | |||||
Bottom Valve | 6 sets of API Pneumatic Bottom Valve | |||||

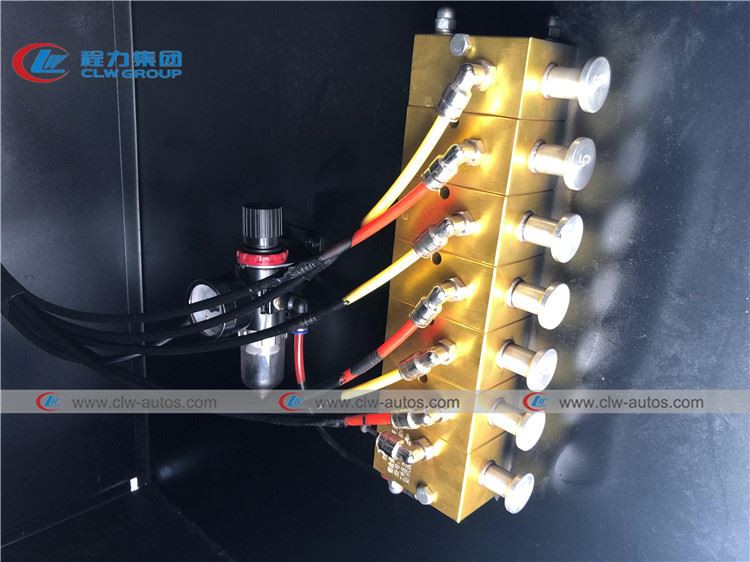

Top Safety Rail | 1 Set,Pneumatic control at two side | |||||
Discharging valve | 6 set ∮100mm discharging valves,optional for 3” | |||||
No.of Compartment | 6 | |||||
Discharging Pipe | 4”rubber hose, 2 pc, 6m long | |||||
| ||||||
Main Beams | Special design I beam, connected by bolts and nuts with tanker body | |||||
Axle | 3 FUWA axles,13 Tons | |||||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||||
King Pin | JOST brand 2” bolt-in king pin | |||||
Suspension | FUWA air bag suspension | |||||
Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |||||
Tire | 315/80R22.5 tubeless tire including one spare tire, 7pieces | |||||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |||||
Accessories | One standard tool box | |||||
