25Ton LPG Tank Trailer

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 25ton lpg tank trailer in China. If you're going to buy high quality 25ton lpg tank trailer, welcome to get more information from our factory. For price consultation, contact us.

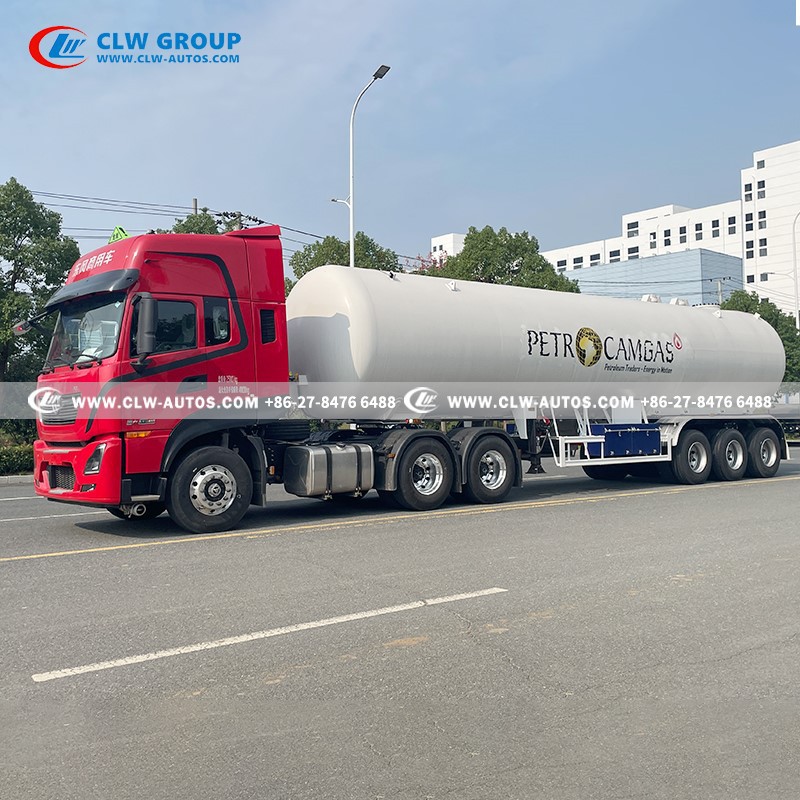

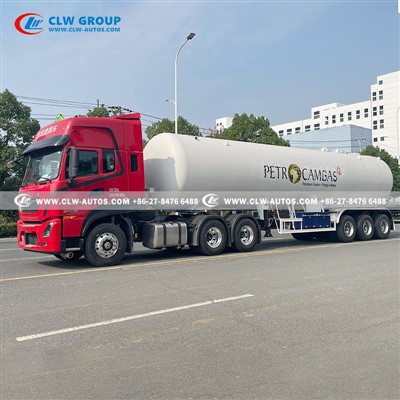

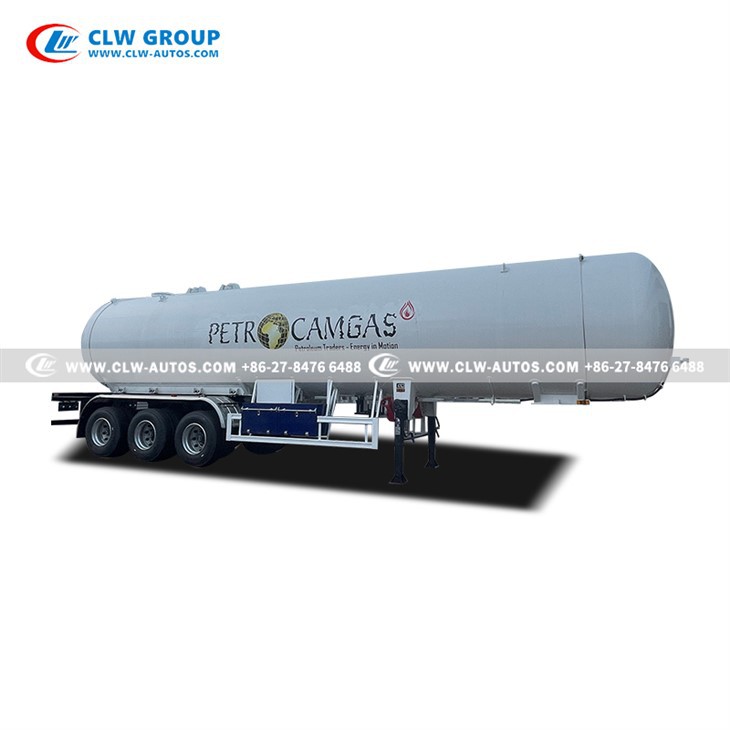

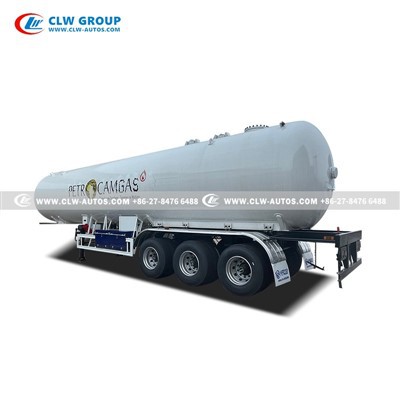

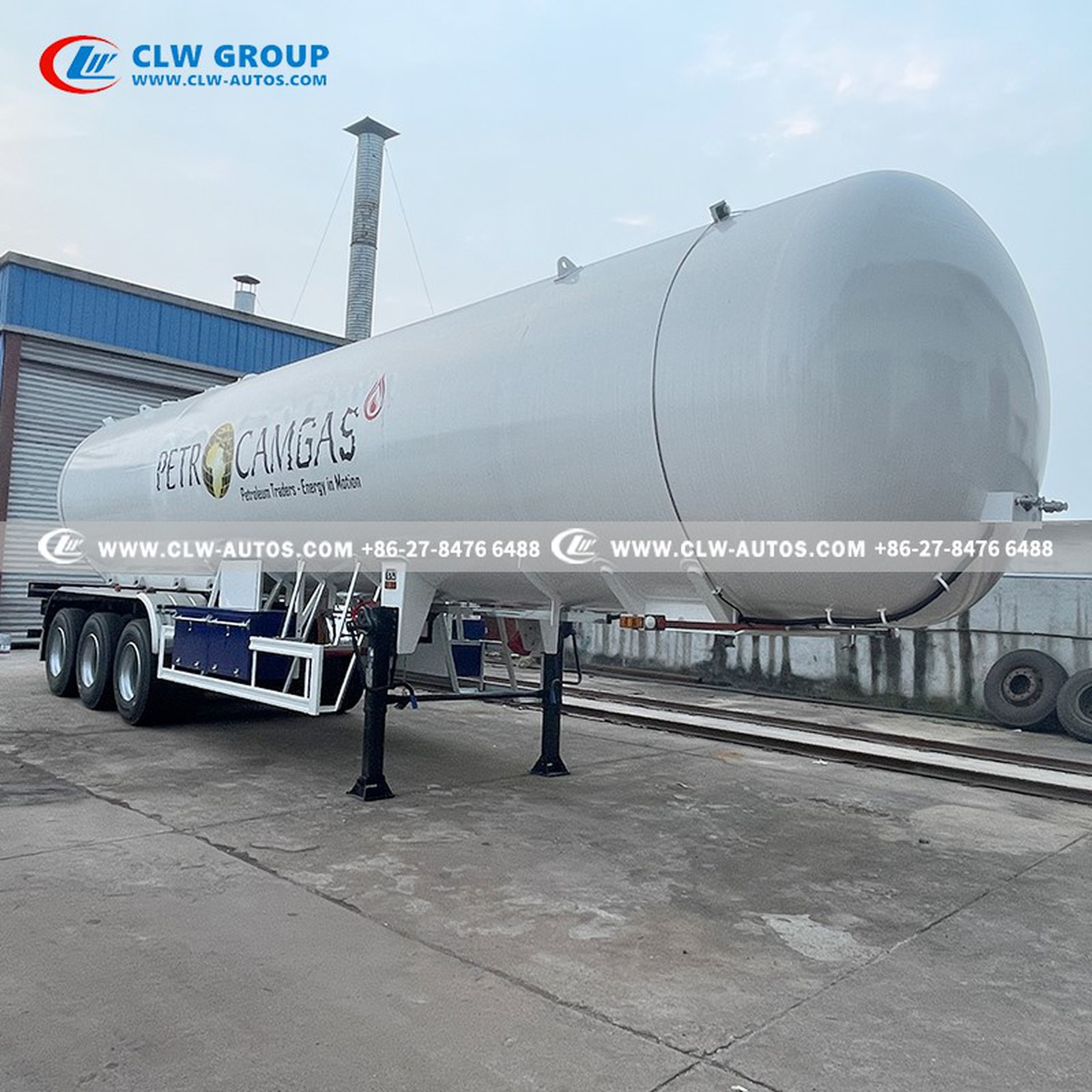

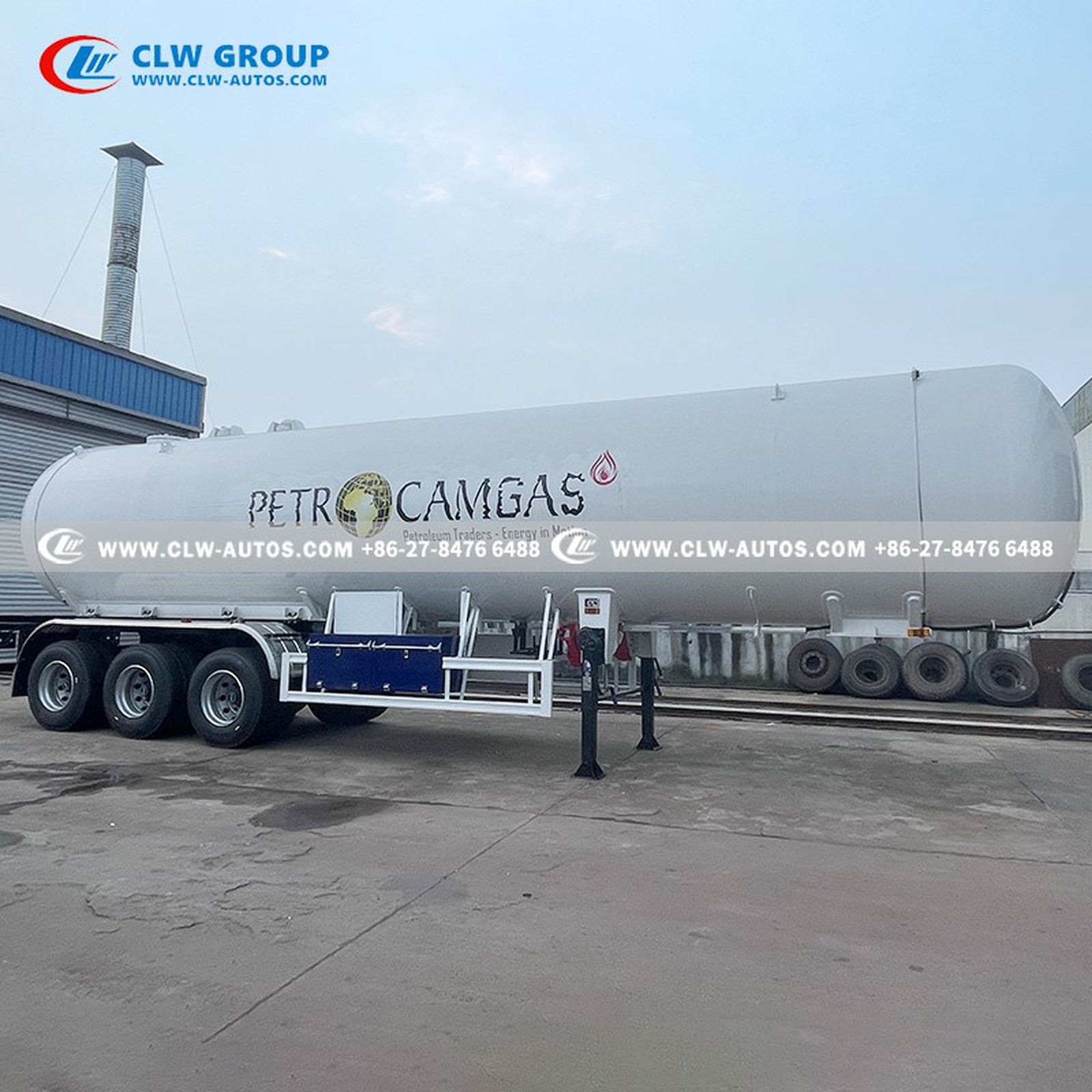

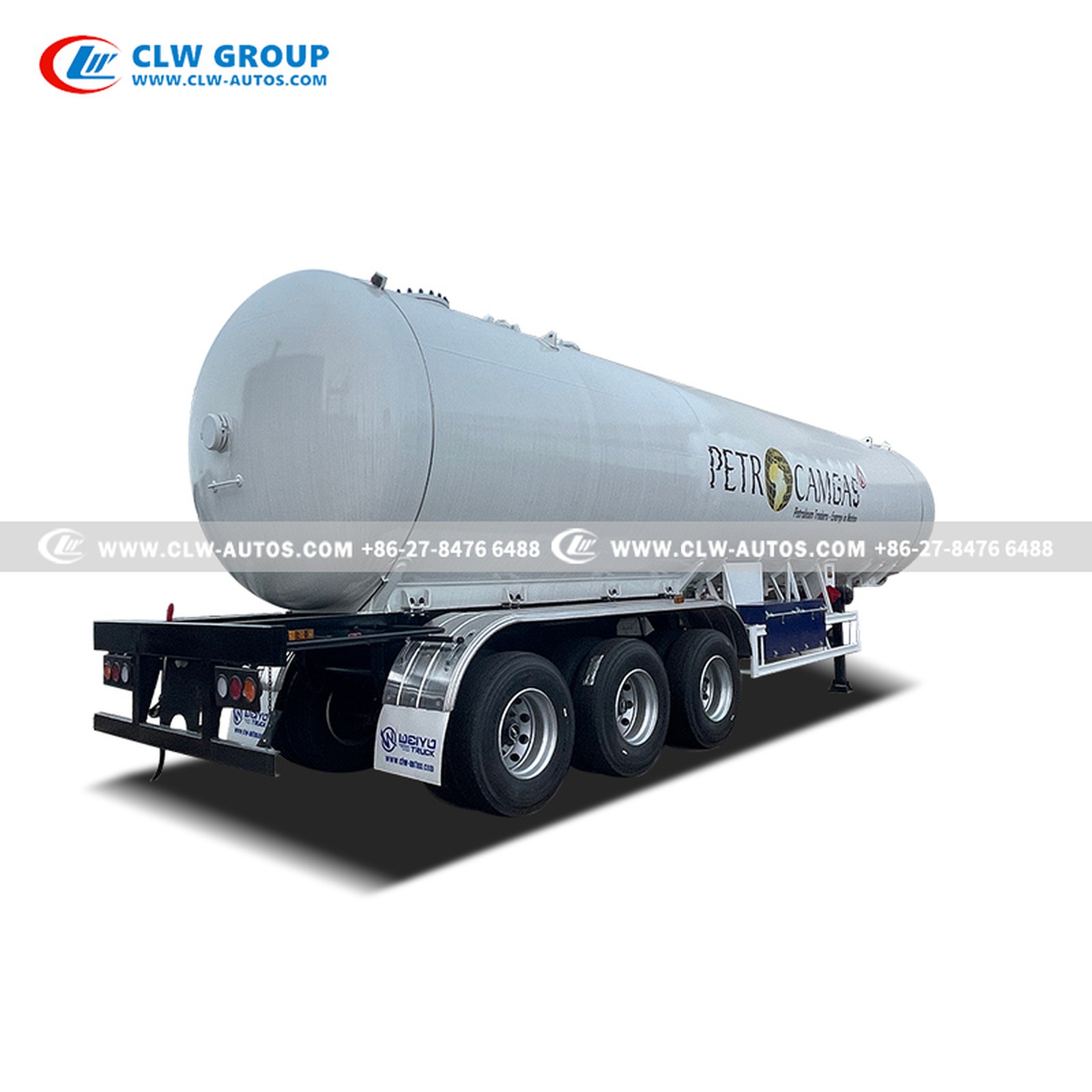

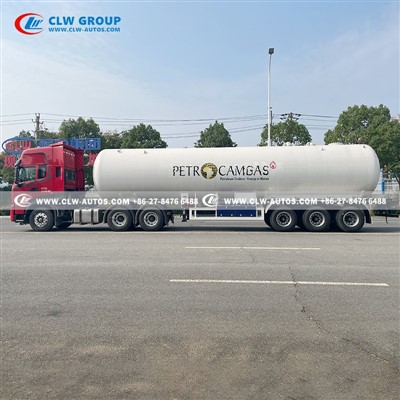

3 axle 25 Ton LPG Tank Trailer



We are Top 3 manufacturer of special purpose truck since 2004



The 25 Ton LPG Tank Semi-Trailer from CLW Group is a robust, purpose-built transport solution designed for the safe and efficient overland delivery of liquefied petroleum gas (LPG). Built to international pressure vessel standards, this tri-axle semi-trailer combines high-strength Q345R steel construction with precision-engineered safety and monitoring systems, making it the ideal choice for energy logistics firms, gas distribution companies, and petrochemical operators seeking reliable LPG road transport.



Key Features

• Heavy-Duty Tank Construction: The tank is fabricated from Q345R pressure vessel steel, with a 12mm thick cylindrical shell and 14mm thick elliptical heads, ensuring exceptional structural integrity and resistance to pressure and impact under long-haul operating conditions.
• Tri-Axle Heavy-Duty Chassis: Equipped with Fuwa 13-ton axles, Jost kingpin and landing legs, and 12R22.5 heavy-duty tires, delivering superior load-bearing capacity, stability, and durability for 25-ton payloads across diverse road conditions.
• Comprehensive Safety System: Integrated with critical safety components including an emergency shut-off valve, spring-loaded safety valves, pressure relief device, and temperature gauge, ensuring full compliance with China GB Standard LPG transport safety regulations.
• Precise Liquid Level Monitoring: Fitted with a percentage float-type level gauge for accurate, real-time monitoring of LPG volume, enabling operators to manage load levels and prevent overfilling during loading and unloading operations.
• Efficient Loading/Unloading: Designed with dedicated pipeline systems and quick-connect fittings, paired with emergency cut-off valves to enable safe, fast loading and unloading while minimizing the risk of gas leakage.



Application Scenarios

This LPG tanker semi-trailer is engineered to serve critical energy logistics use cases:

1. Long-Haul LPG Distribution: Transport bulk LPG from refineries, storage terminals, and import terminals to regional gas depots, cylinder filling plants, and industrial hubs across highways and intercity routes.
2. Industrial & Commercial Supply: Deliver LPG to large-scale industrial facilities, power plants, and commercial operations for use as fuel in heating, manufacturing, and power generation processes.
3. Residential Gas Grid Support: Supply LPG to rural or suburban communities not connected to natural gas pipelines, ensuring reliable access to clean cooking and heating fuel.
4. Petrochemical Logistics: Serve as a mobile storage and transport link in petrochemical supply chains, facilitating the transfer of LPG between production, storage, and end-user facilities.
5. Emergency Response & Resupply: Deployed to disaster zones or areas with disrupted energy infrastructure to provide emergency LPG supplies for essential services and relief operations.





















Tanker Essential Information
Volume of Tank (cbm)	49.6
Overall Dimensions(L*W*H)(mm)	12700*2480*3800
Tank Dimensions(Inner Diameter*thickness*Length)	2300*12*12351
Estimated Tare Weight (kg)	15550
Payload(kg)	23000
Total Weight(kg)	38650
Wheelbase(mm)	6800+1310+1310
Shell of Tanker
Products	Liquefied Petroleum Gas (propane)
Fluid Property	Flammable
Design Temperature(℃)	-19℃~50℃
Design Pressure(MPa)	1.61
Corrosion Allowance(mm)	1.00
Weld Joint Factor	1
Major Materials of Bearing Pressure	Tanker body:Q345R,12mm,
	End plate：Q345R,14mm,double ellipse
	Main beam:16Mn
Detection
Heat Treatment	Overall treatment in a furnace,600℃ to 640 ℃
Flaw Detection	100% Flaw detection
Hydraulic Test(MPa)	2.21
Manhole (As Customer's Requirement)
Quantity	1;on top,DN450
Safety Valve(As Customer's Requirement)
Quantity	2
Location	On the top of tanker
Size	DN50 or As Customer's Requirement
Level Gauge 3*13T Fuwa
Type	Manuel rotation type
Location	At the rear of the end plate
Running System
Axles	3*13T FUWA brand
Tire	12R22.5 Tubeless tire ,12 with one spare tire
Landing leg	JOST or Fuwa
King Pin	#90(3.5 inch) or #50(2.0 inch)
Control System
Emergency Cut-off Valves	2
Ball Valve	2
Liquid Gauge	1
Thermometer	1
Pressure Gauge	1
Accessories
Tool Box	2
Wheel Carrier	1
Fire Extinguisher	2
Fender	6
Testing	Overall treatment in a furnace,600℃ to 640 ℃ 100% Flaw detection of all plate 100% Hydraulic test pressure for tanker 100% X-ray welding seam detection for the tanker 100% Hydraulic test pressure for tanker 100% Air leakage test for piping and valves
Painting	Logo painting as Customer's Requirement
