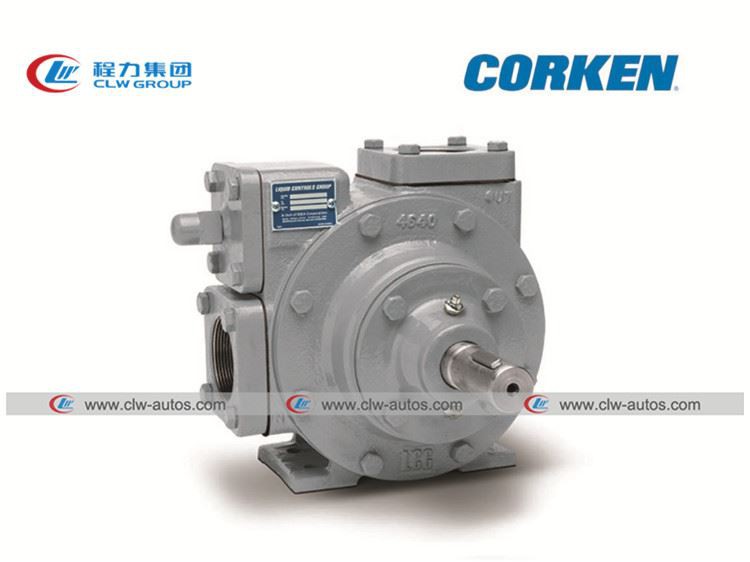

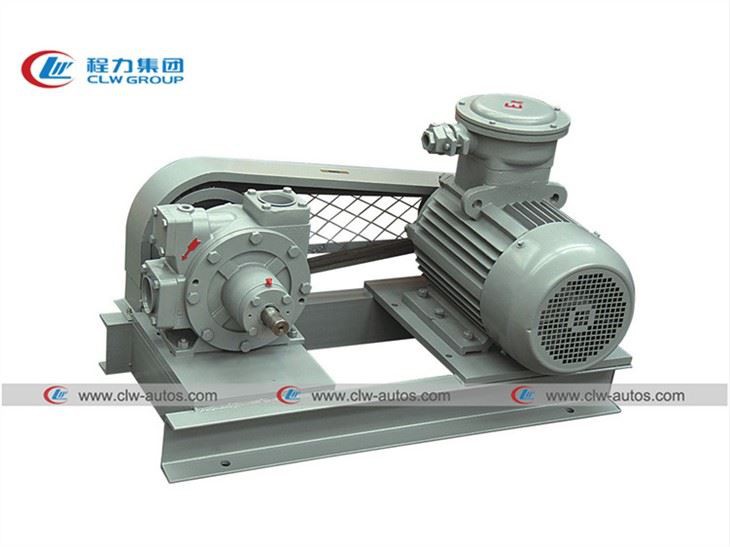

Corken Z2000 2 Inch LPG Propane Gas Vane Pump
Corken 2" Vane Pump
SIEMENS Motor 10HP
Corken Truck for Choice
Z2000 521 Model
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of corken z2000 2 inch lpg propane gas vane pump in China. If you're going to buy high quality corken z2000 2 inch lpg propane gas vane pump, welcome to get more information from our factory. For price consultation, contact us.
Coro-Vane® Pumps
Sliding vane positive displacement liquid pump.
Low pressure design with combination of O-ring construction
Mechanically sealed with silicon carbide seal seat
Six blades and blade drivers
Adjustable interal relief valve
Cam is not replaceable
Sideplates are reversible
Suitable for petroleum products and industrial solvents
Application:
Propane/butane bulk transferTruck/delivery application
Barge unloading
Tank/railcar unloading
Agricultural ammonia
Construction
Designed for high pressure applications with a maximum working pressure of 400 psi (27.6 bar)
Available in foot and truck mounted designs
O-ring construction
Six vanes/blades design with vane drivers
Mechanically seal design with silicon carbide seal seat
Depending on the model, available with NPT or Class 300 RF flanges
Approved by Underwriters' Laboratories (UL) for LPG and agricultural ammonia service
Hydraulic drive option available
Pump Materail:
Pump casing and heads: Ductile iron
Cam and sideplates: Gray iron
Rotor and flanges: Ductile iron
Seal seat: Silicon carbide
O-rings: Buna-N, PTFE, Viton®, Neoprene®. (Registered trademark of DuPont)
Blades: Advanced polymers
Deliverying Liquid
Agricultural ammonia
Butane
Propane
Natural gas liquids
Refrigerants
CO2
Many more liqueifed gases

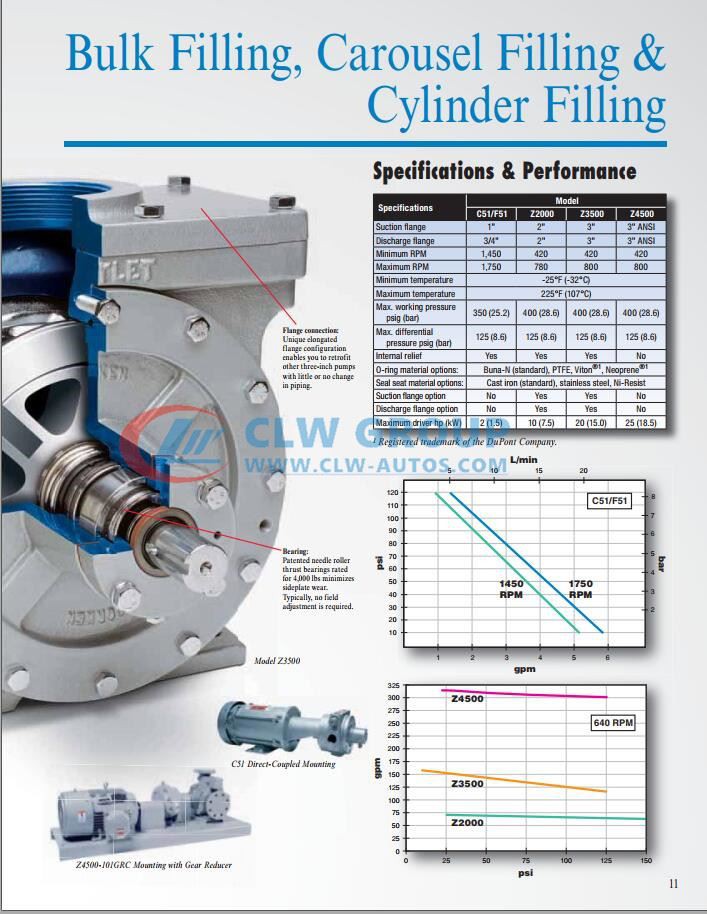

Model Z2000 / 521 Specification:
Model | Z2000 |
Suction flange | 2" |
Discharge flange | 2" |
Minimum RPM | 420 |
Maximum RPM | 780 |
Minimum temperature | -25°F (-32°C) |
Maximum temperature | 225°F (107°C) |
Max. working pressure psig (bar) | 400 (28.6) |
Max. Differential pressure psig (bar) | 125 (8.6) |
Internal relief | Yes |
O-ring material options: | |
Seal seat material options: | |
Suction flange option | Yes |
Discharge flange option | Yes |
Maximum driver hp (kW) | 10 (7.5) |
Photos of Corken Pump:

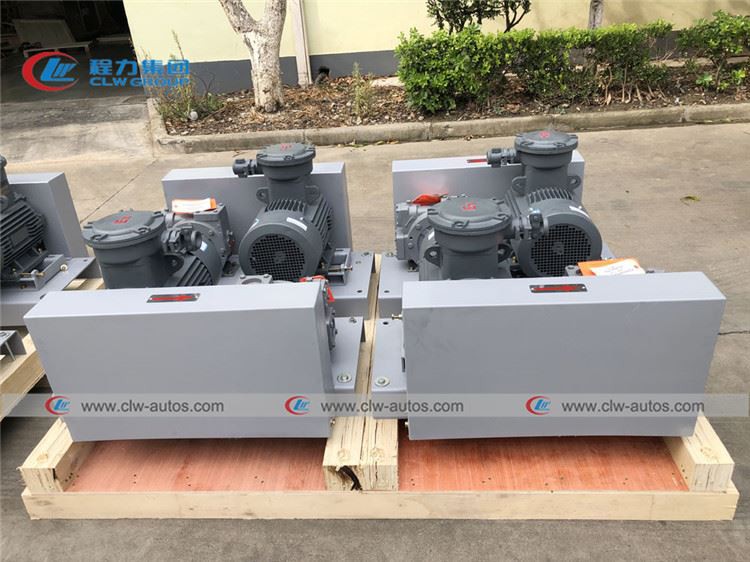

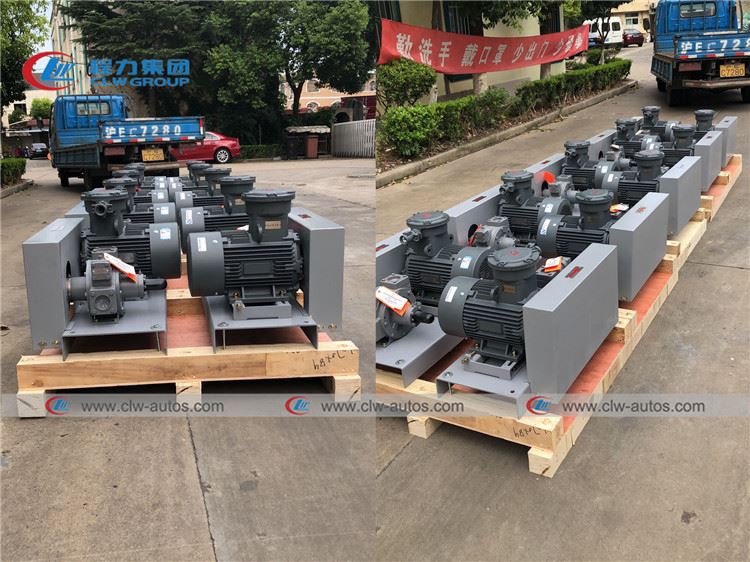

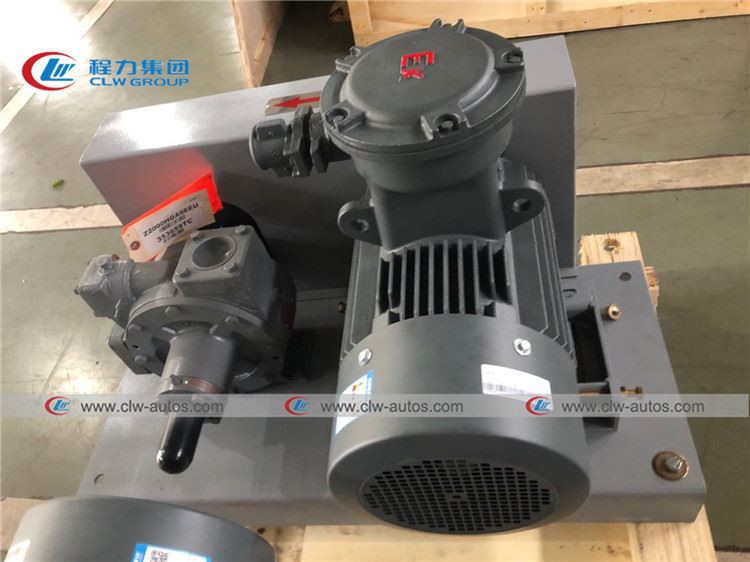

Corken Vane Pump 10Unit Batch Delivery
