【June.21st,2021】To Pakistan-15 units of Dongfeng RHD 12m3 Garbage Compactor Trucks
Garbage compactor truck/garbarge compression truck/Rear loader garbage truck is one of the most popular type of waste management trucks for collecting mucipal,residential disposal. Garbage compactor trucks from hubei chengli special automobile co., ltd is your best choice of keeping city clean.

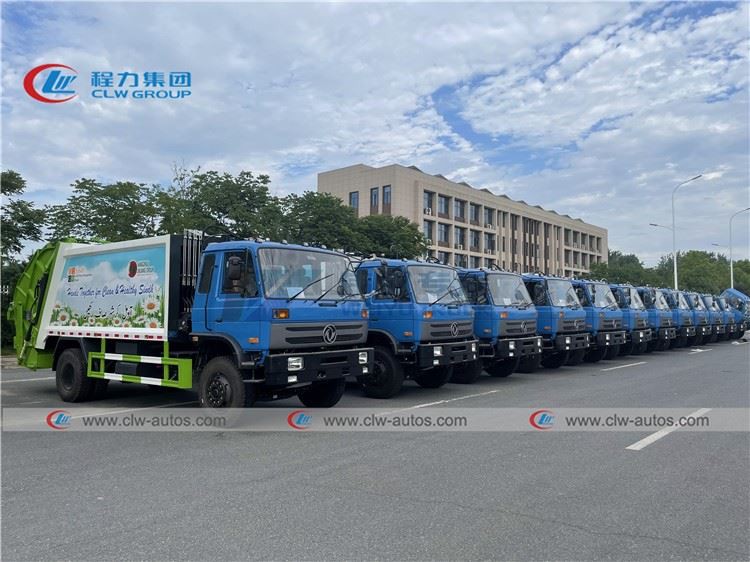

On June 21st,2021,15 units of right hand drive dongfeng compactor garbage trucks from hubei chengli special automobile co., ltd are lined neatly and waiting to be dispatched to shanghai port and they will be load on bulk ship to Karachi port soon.

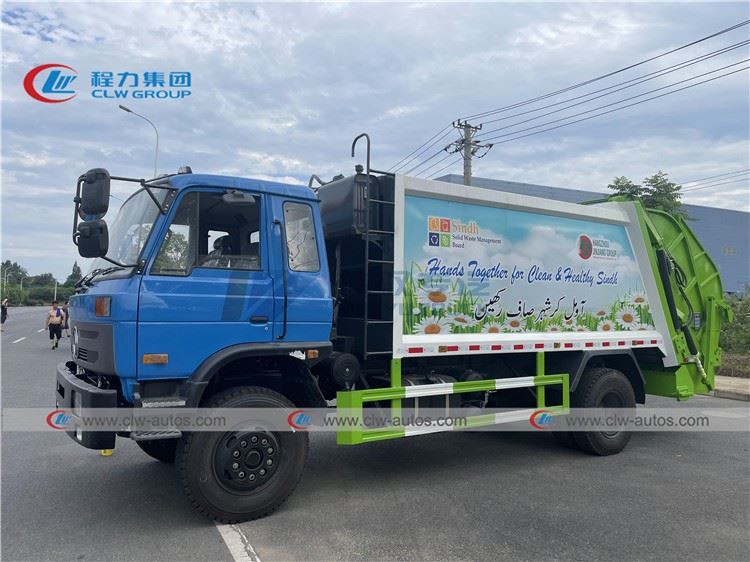

15 units of Dongfeng 12m3 refuse Compactor Trucks to Pakistan
Client: Sindh Soild Waste Mangement Board and Hangzhou Jiujiang Group
project: 12m3 garbage compactor truck
Year: 2021.06

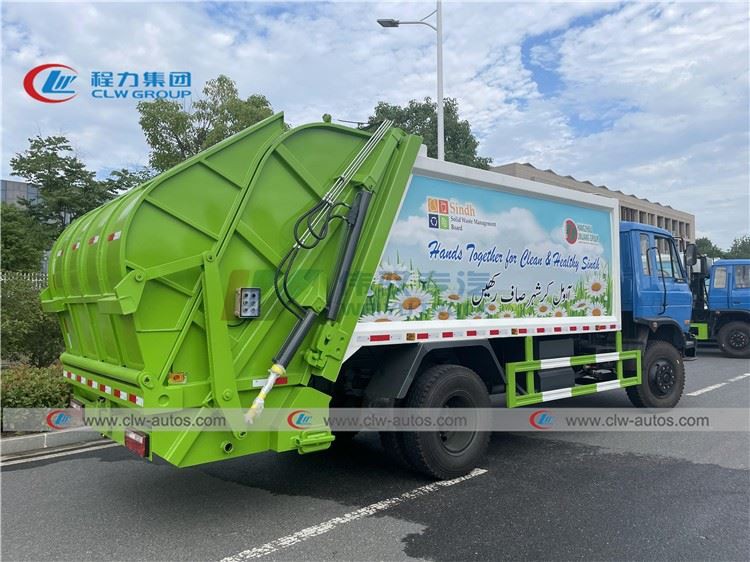

The volume of the compactor garbage box is 12m3 and with the wastes loading capacity of about 9~10tons. The wastes van of CLW compactor garbage truck adopts high quality carbon steel, solid arc-shape box body of strengthen beam and steel plate weled.
--Operation system:PLC control system;
--loading and discharging way: rear loading wastes bins mechanism;
--compacting way: Bi-directional compression;
--wastes compacting density≥0.8T/m³;
--one working circle time for loading and discharging ≤30s;
--max compressing force≥150KN;
--max passing force≥180KN.
--Driver cab color: white color;
--wastes van color: white.
1 | Truck model | Dongfeng brand 4*2 RHD garbage compactor truck for sale |
2 | Truck chassis model | EQ1161 |
3 | Engine model | B190 33 |
4 | Engine power/displacement | 140KW/5900cc |
5 | Engine model | 6 cylinders in line, inter-cooling diesel engine |
6 | Engine brand | Cummins |
7 | Engine emission standard | Euro Ⅲ |
8 | Oil consumption(L/100km) | 18L |
9 | Max speed | 90kw/h |
10 | mini turning diameter | 18m |
11 | Max Gradability | 25﹪ |
12 | Truck wheelbase | 4500（mm） |
13 | Wastes van volume | 12m3 |
14 | Fuel type | Diesel |
15 | Wastes hopper lifting angle | ≥45° |
16 | Loading and discharging way | Overturning hopper/wastes bins mechanism |
17 | compacting way | Bi-directional compression; wastes compacting density≥0.8T/m³ |
18 | one working circle time for loading (s) | ≤22 |
19 | one working circle time for discharging (s) | ≤30 |
20 | Overall dimension(L*W*H) (mm) | 8380,8150×2500×3320(mm) |
21 | max compressing force | ≥150KN, |
22 | max compressing force | ≥180KN |
