Australian 20tons 3-Axle Oz Side Tipper Dump Semi Trailer
Australian 20tons 25t 30t 3-Axle Oz Side Tipper Dump Semi Trailer Product Description 1. earth-moving side tipper; 2. end tipper;3. grain end tipper;4. water tanker;5. quad-axle lowloader deck-widener;6. tri-axle lowloader deck-widener;7. 45ft dropdeck extendable;8. 45ft flatdeck extendable;9. 45ft sliding lowloader;10. dolly trailer;11. pig trailer/Tagalong Truck...
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of australian 20tons 3-axle oz side tipper dump semi trailer in China. If you're going to buy high quality australian 20tons 3-axle oz side tipper dump semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
We are specilized in designing and building many kinds of OZ ADR standard trailers, such as:
1. earth-moving side tipper;
2. end tipper;
3. grain end tipper;
4. water tanker;
5. quad-axle lowloader deck-widener;
6. tri-axle lowloader deck-widener;
7. 45ft dropdeck extendable;
8. 45ft flatdeck extendable;
9. 45ft sliding lowloader;
10. dolly trailer;
11. pig trailer/Tagalong Truck, etc.
Product Specification
| SPECIFICATIONS | |||
| Tare Weight | Approx.8500kgs | ||
| Payload | 40000kgs | ||
| Overall Length | 10000mm | ||
| Overall Width | 2480mm | ||
| Overall Height | 2840mm | ||
| Final produce can be made according to exact requirements and our drawing confirmed from the buyer; | |||
| DUMPER BODY | |||
| Volume | Appox 25m3 | ||
| Bin and door | 5mm thickness by hardox 450 or Chinese NM450 | ||
| SPECIFICATION | |||
| Chassis | Heavy duty and extra durability designed Fabricated I-Beam - 345 MPA welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. | ||
| Axle | 3 axles | ||
| FUWA K-Hitch brand 11.5ton | |||
| Cylinder | two set of hydraulic tip cylinder Ø 150mm , door cylinder Ø 80mm Single Stage, Double Acting, Externally Mounted to each end | ||
| Hydraulic system | One (1) Air-Operated Directional Control Valve with manual over ride. Two (2) 1" Hydraulic hoses fitted to front of subframe with 1" BSP compatible couplings | ||
| Suspension | mechanical with 10-piece leaf spring. Air bag is optional | ||
| King Pin | JOST brand 2'' or 3.5'' Two bosses with 90mm Kingpin to suit Tandem or Tri Axle Dolly | ||
| Landing Gear | Jost brand Two Speed, Manually operated, with Rubber Flap Guard to front | ||
| Wheel Rim | 9.0R22.5 10 stud steel rim 13 pieces PCD 335; alloy rim is optional | ||
| Tyre | Chengshan brand 12R22.5 tubeless tire, 13 pieces | ||
| Spare Tire Rack | Dual Swinging type | ||
| Braking System | 3 sets of T30/30 Spring brake chamber; 40L air tanks with Wabco air controlled system. | ||
| Mud guard | Spring Tension Rubber over Tri Group | ||
| Finish | Sandblasted to grade 2.5; 2k Primer and Painted in 2-Pack to required color | ||
| Light & wire | LED Combination Rear Lights, and LED Side lights. with ADR standard wire and 7-pin socket | ||
| Others | Road Train Spec. | ||

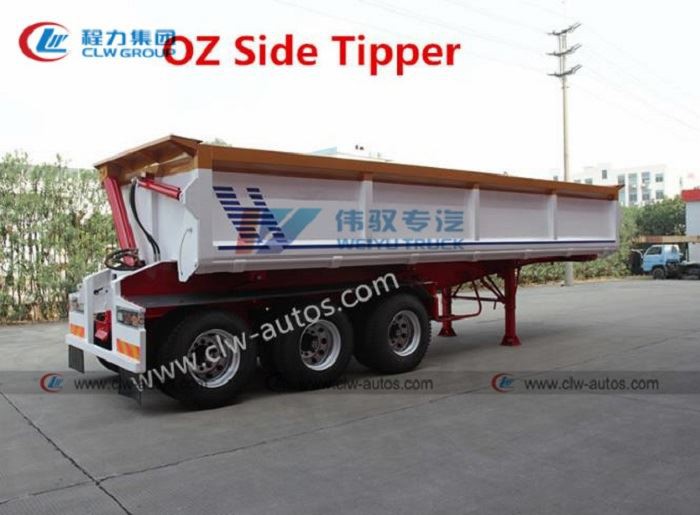

Reference Photos
