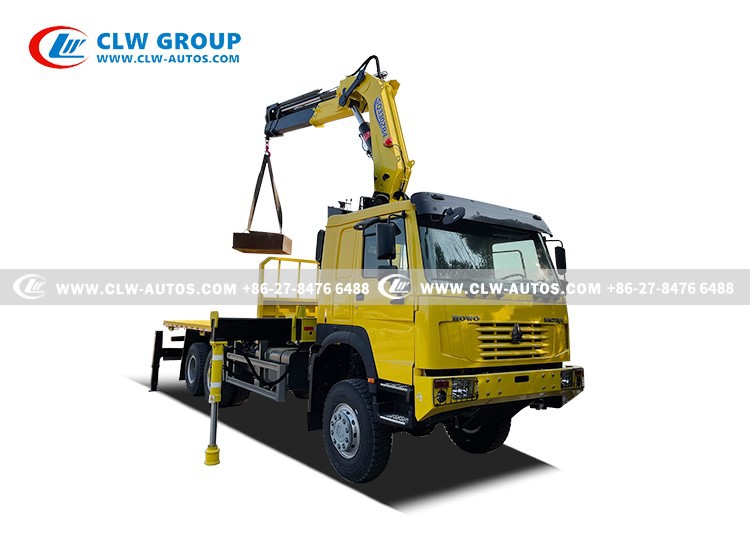

HOWO 6x6 Flatbed Truck With 16 Tons Knuckle Boom Crane

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 6x6 flatbed truck with 16 tons knuckle boom crane in China. If you're going to buy high quality howo 6x6 flatbed truck with 16 tons knuckle boom crane, welcome to get more information from our factory. For price consultation, contact us.







HOWO off road flatbed truck with 16 tons kunckle boom crane for transport 20GP/feet container.

knuckle boom crane,referred to as truck-mounted crane,truck with crane,crane mounted on truck, is a kind of equipment that realizes the lifting, turning and lifting of goods through a hydraulic lifting and telescopic system.

whatsapp for quick inquiry +86 135 45064324

--generally composed of a truck chassis, a cargo compartment, a power take-off, and a crane.
--The truck chassis can be selected from Dongfeng, FAW,FOTON, SHACMAN,I-SUZU,SINOTRUK HOWO and so on
--The truck can be 4x4,6x6,8x8 off road truck with crane or normal 4X2 6X4 8X4 crane
 --According to the type of crane, they can be divided into straight arm type and folding arm type.
--according to the tonnage is divided into 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 20 tons.

Application of HOWO 6X6 off road 16 tons crane mounted on truck:
Transporting container,landscaping, power construction, high-speed rail, wind power bridges, plant relocation, material transportation, equipment relocation, road rescue etc.

Product advantages:
--light weight design to improve the truck's carrying capacity,
--save fuel, improves transportation capacit
--higher annual investment recovery rate
--hydraulic winch technology, higher efficiency, more convenient maintenance, and more economical to complete the same work.

Feature
--The whole truck is fully controlled by hydraulic, with large working range.
--360 degrees full hydraulic full rotation.
--new type of H-type outrigger, which can adapt to slope and irregular site operations.
--main components such as boom and outrigger are all high-strength and high-quality.
--Hydraulic valve locks are internationalized brand, and other accessories are all domestic well-known brands, which are safer and more reliable.

















Truck Chassis
Condition	New condition/left hand drive/6x4
Chassis	Brand			Sinotruk Howo
	Curb weight(kg)			14300 kg
	Wheelbase(mm)			4600+1400 mm
	Dimensions(mm)			10500X2500X3450 mm
	Front/Rear Axle loading(kg)			9500kg 16000kgX2；
	Max. driving speed(km/h)			95
	Clutch			Reinforced diaphragm clutch
	Brakes			Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
	Steering Gear			Power steering, hydraulic steering with power assistance
	Tire		Quantity	10 pcs with one spare tire
			Specifications	12.00R20
	Fuel box		400L with lockable cap
Transmission	Manual type HW19710, 10 Forwards and 2 reverse
Cab	HW76 cabin with single sleeper White color With Air Conditioner With front protection device
Engine	Brand			SINOTRUK
	Model			WD615.47
	Fuel type			Diesel
	Displacement(ml)			9726 ml
	Power(kw)			273kw
	Horsepower(HP)			371HP
	Max. Torque(N.m)			1500
	Fuel consumption at full load(g/kw.h)			193
	Cylinder number			In-line 6 cylinders,water cooling,four-stroke,super-charge and middle cooling,direct-injection
	Emission standard			Euro II
Crane
Model		SQ332ZB4
Capacity		16 Tons and 10 tons at 3 meters extension
Flatbed Size		6500X2450 mm

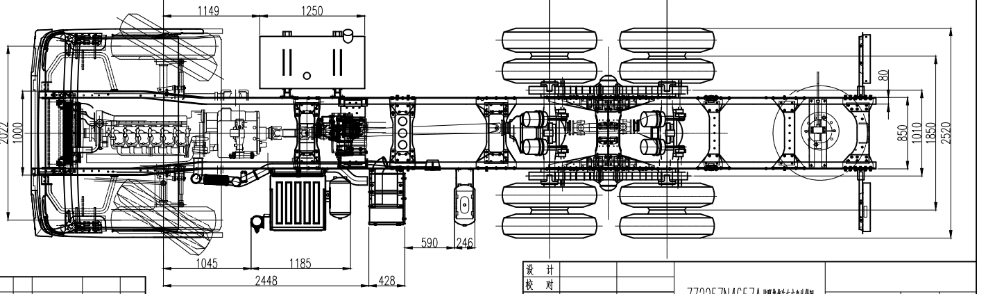

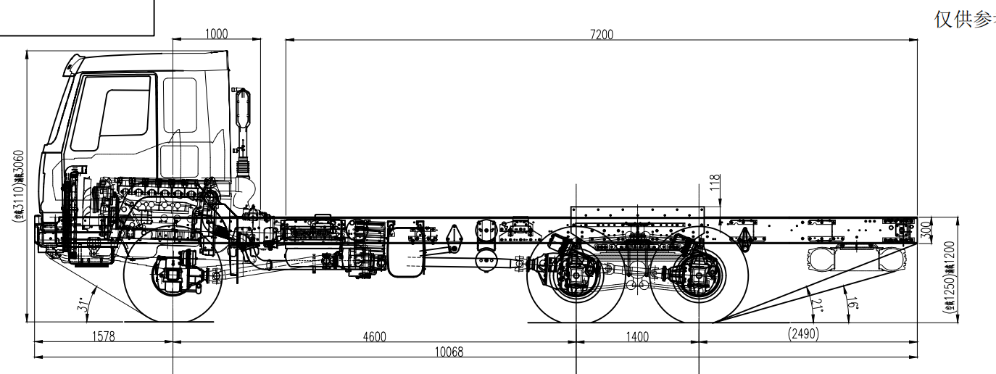

Drawing of HOWO 6X6 Truck Chassis

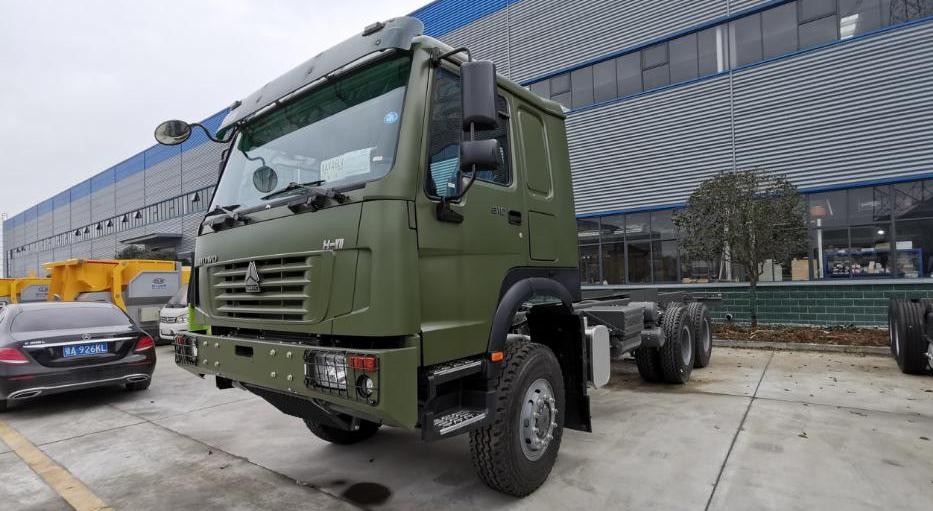

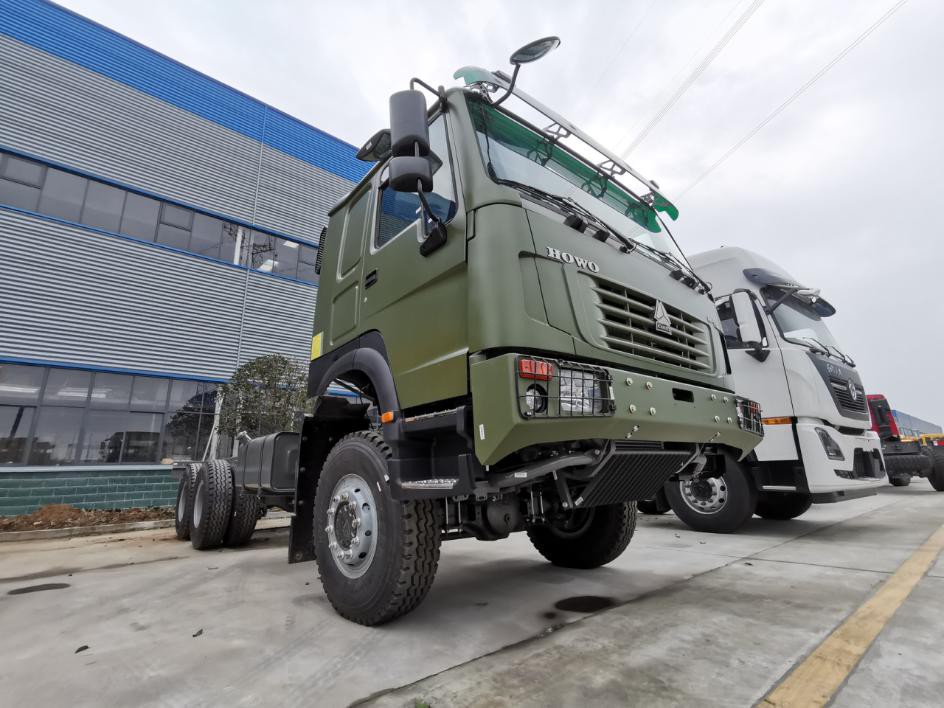

Picture of Howo 6X6 Truck Chassis
