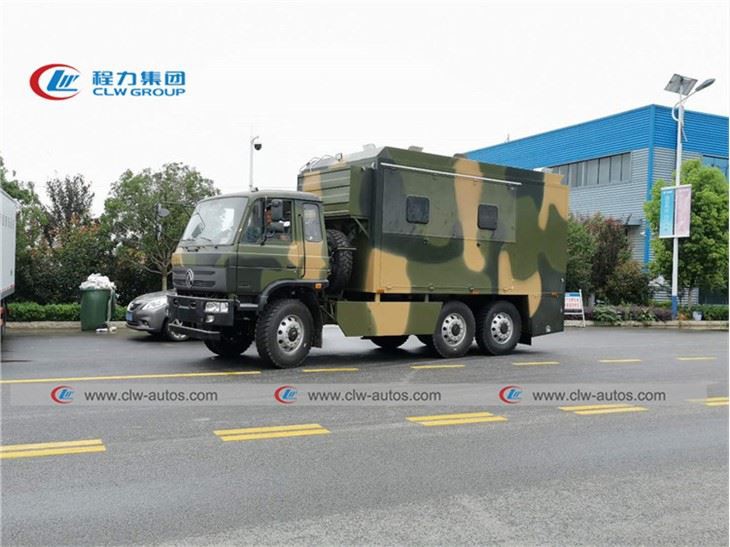

Dongfeng 6x6 Mobile Kitchen Truck
Cooking capacity:Finish 100 Solider meal within 1 hour;
Driving model:LHD or RHD
Gear box:6-speed forward and 1 reverse
Engine:Famous Cummins power Diesel engine.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6x6 mobile kitchen truck in China. If you're going to buy high quality dongfeng 6x6 mobile kitchen truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Mobile Kitchen Truck(also called Mobile Cooking Truck, Movalble Kitchen Truck and Movable Cooking Truck) is used for movable cooking meal for troops and public security when they carrying out the task in outside and it can improve the logistic support ability and improve the living conditions.
--Mobile Kitchen Truck can be divided into various types as follows,
1) according to truck brands, there are Dongfeng and SINOTRUK HOWO for optional.
2) according to driving model: 4x4 and 6x6 Mobile Kitchen Truck.
Feature
--Powerful engine: International US Cummins engine, six-cylinder, water cooled, turbocharged, after cooled, diesel engine.
--Heavy duty mechanical suspension system
--The inside cooking equipment is optional according to client's demands.
--6x6 all wheel drive truck chassis for off road condition.

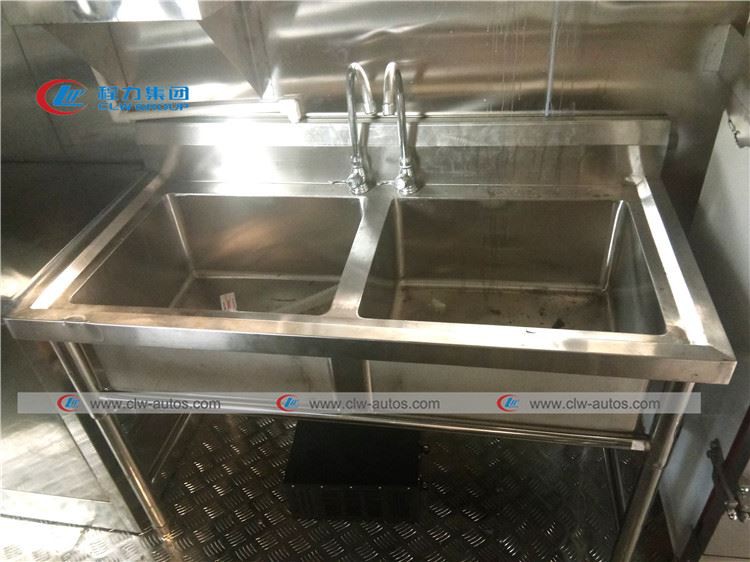

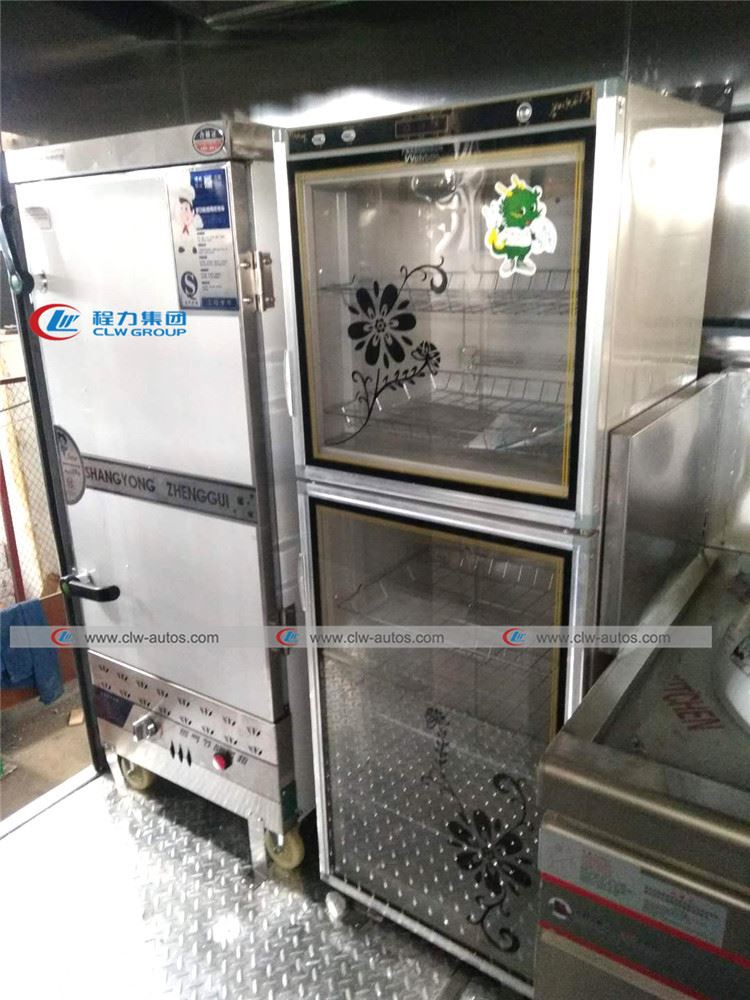

Reference picture
Specification
Condition | New condition/Left hand drive/6x6 | |||
Main details | Brand | Dongfeng | ||
Model | EQ | |||
Curb weight(kg) | 6200 kg | |||
Wheelbase(mm) | 3500+1250 mm | |||
Dimensions(mm) | 7800*2480*3660 mm | |||
Front/Rear Axle loading(kg) | 3500/4000/4000 kg | |||
Wheel track (front/rear) (mm) | 1250/1850 mm | |||
Front/Rear overhang(mm) | 1876/1870/1870mm | |||
Approach/Departure angle(°) | 35/20° | |||
Max. driving speed(km/h) | 80 km/h | |||
Clutch | Reinforced diaphragm clutch | |||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy,compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | |||
Steering Gear | Power steering, hydraulic steering with power assistance | |||
Tire | Quantity | 6 pcs with one spare tire | ||
Specifications | 12.5R20 Tubeless tire | |||
Transmission | Manual type, 6 Forwards and 1 reverse | |||
Cabin | It can accommodate three people. With Air Conditioner | |||
Engine | Brand | DONGFENG CUMMINS | ||
Model | B190 33 | |||
Fuel type | ||||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
Displacement(ml) | 5900 ml | |||
Power(kw) | 125 kw | |||
Horsepower(HP) | 190 HP | |||
Emission standard | Euro 3 | |||
Upper & Equipment | ||||
Food van body | Van body size(mm) | 4800*2300*(2000+22) mm | ||
Van body material | 1.0mm Cold-rolled plate material on the surface, fireproof insulation layer in the middle, stainless steel for inner layer. | |||
Floor material | Aluminium checkered plate | |||

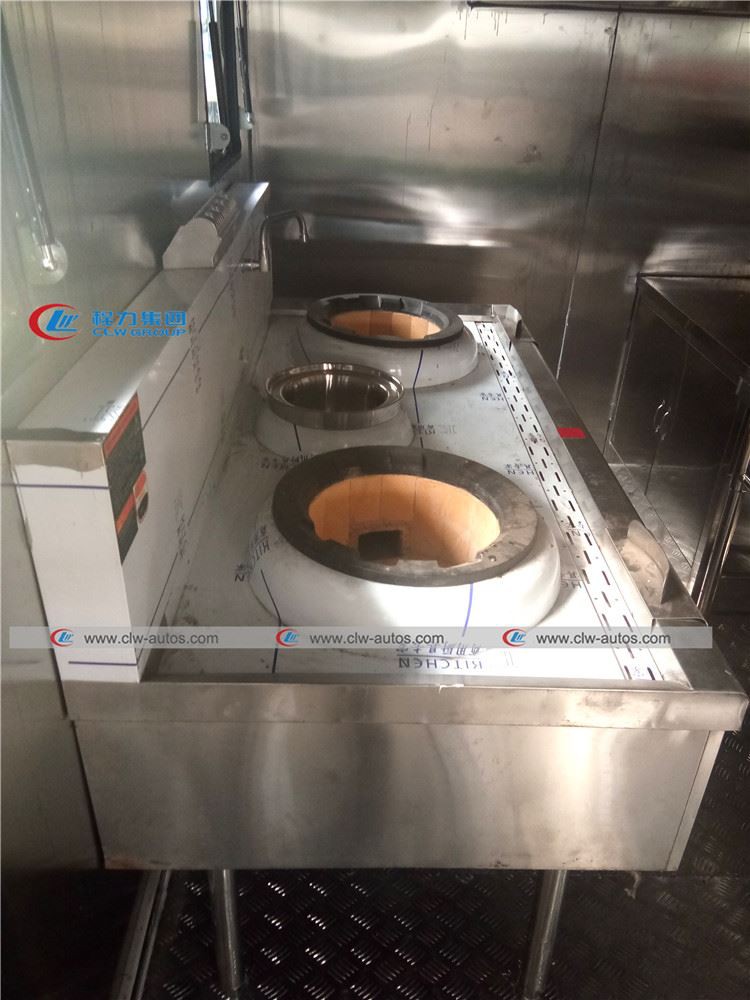

Kitchen Equipment | 1. Cooking bench | Double stove | 1 unit | |
Single stove | 1 unit | |||

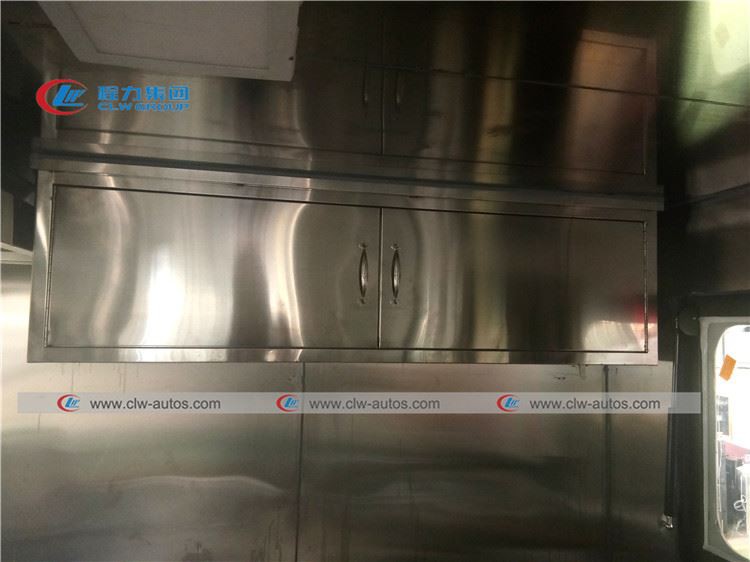

2. Top wall cabinet | 1 set | |||
3. Smoke exhaust ventilator | 1 set | |||
Remarks | 1. Fire extinguisher 1 set 2. Side windows 6 pcs 3. External light 4 pcs 4. Hidden type ladder 1pc 5. Tool box 1 unit | |||
