🌐 Chengli Group Launches New CL9408GYYLV 50m³ Aluminum Alloy Fuel Tank Semi Trailer

Hubei Chengli Special Automobile Co., Ltd, a leading special vehicle manufacturer in China, proudly announces the launch of its new generation CL9408GYYLV Aluminum Alloy Fuel Tank Semi Trailer, setting a new benchmark in safety, performance, and lightweight design for hazardous liquid transport.

This newly released model embodies Chengli's commitment to innovation, quality, and customer-focused solutions for the global logistics market.



🆕 Product Overview

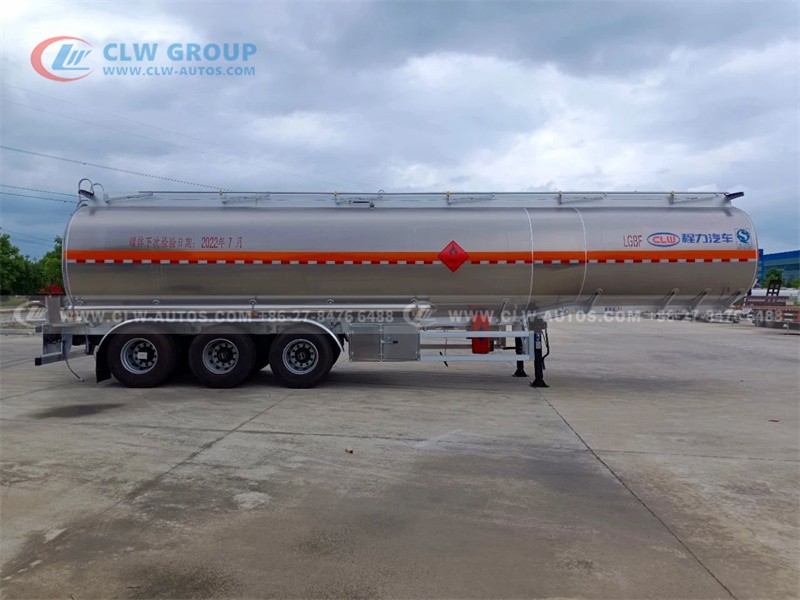

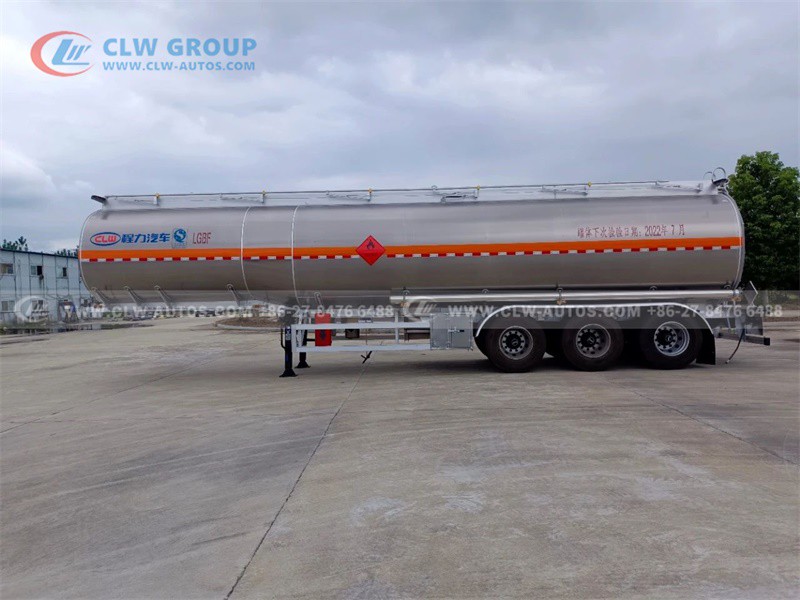

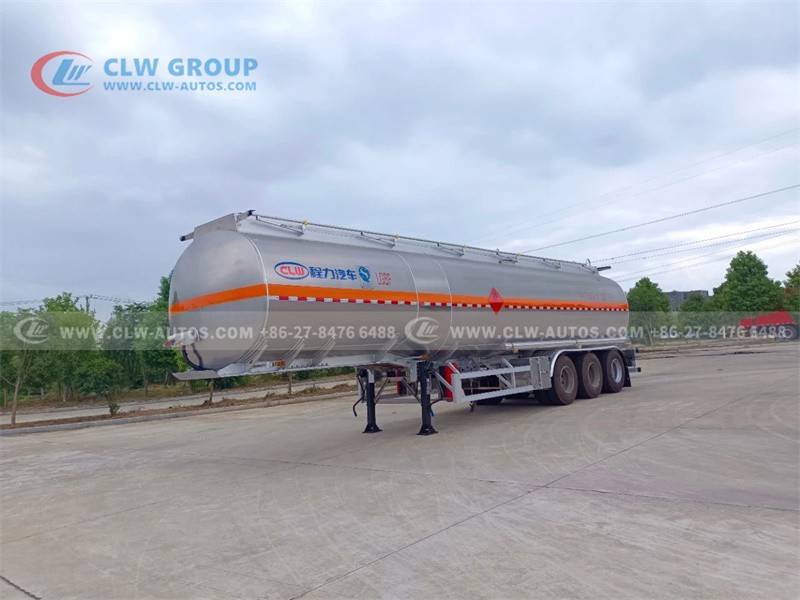

The CL9408GYYLV is engineered to transport gasoline and diesel safely and efficiently. With an effective volume of 48.3 m³, this semi trailer leverages advanced materials and processes to deliver superior performance.

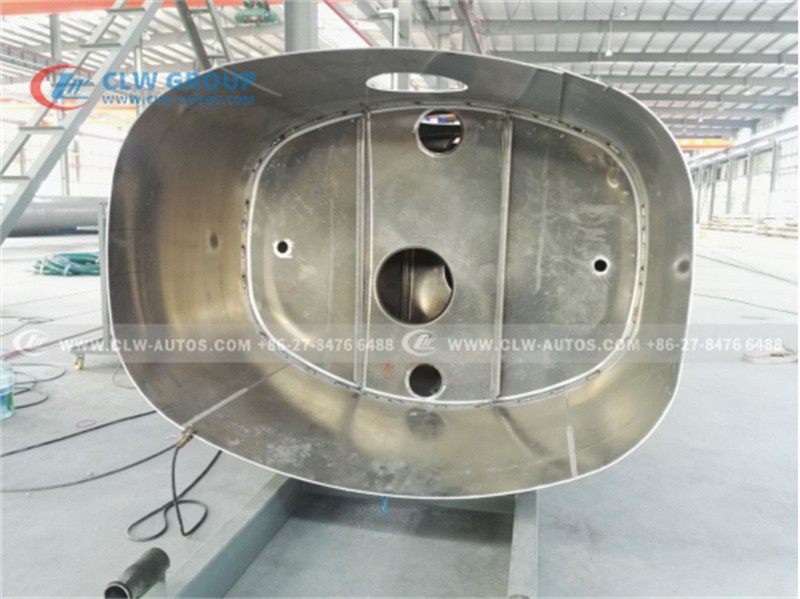

Chengli's new factory production line adopts domestic leading technology, significantly reducing vehicle curb weight while enhancing overall durability and aesthetics. The tank body uses high-grade 5182 aluminum alloy, with 6mm thickness for shell, heads, and baffles.

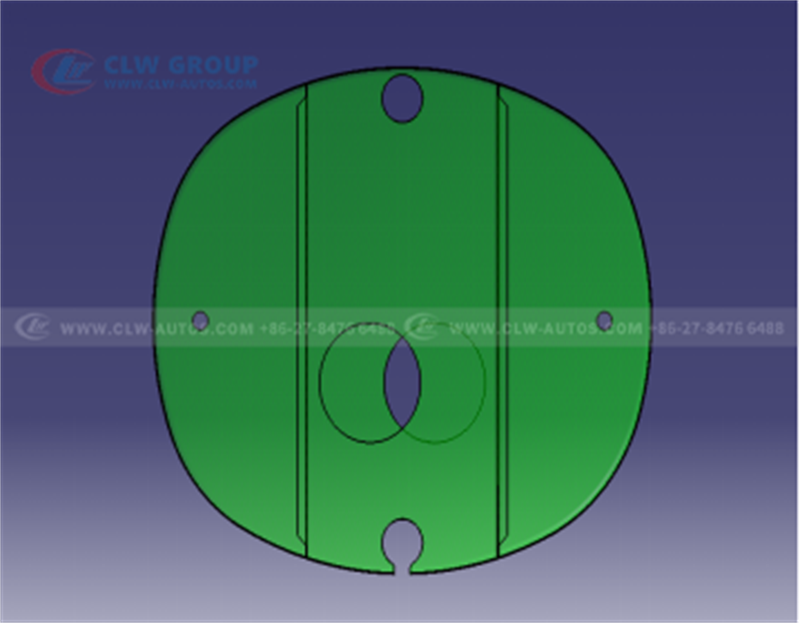

According to feedback from long-term users, the upgraded one-piece rolled baffle design increases structural strength and prolongs service life.



🎯 Application Scenarios

This model is ideal for:

• National fuel distribution networks
• Highway bulk oil transportation
• Refueling operations in industrial and mining sectors
• Hazardous goods logistics under strict safety regulations



🔧 Key Technical Specifications

Specification	Details
Model	CL9408GYYLV
Standard	GB18564.1-2006 (Technical Requirements for Road Tankers Carrying Dangerous Liquid Goods)
Medium	Gasoline
Loading/Unloading	Bottom loading/unloading & top filling
Overall Dimensions (mm)	12400 × 2500 × 3750
GVW (kg)	40,000
Curb Weight (kg)	6,200
Payload (kg)	33,800
Effective Volume	48.3 m³
Tank Material	5182 Aluminum Alloy (6mm shell, 6mm heads, 6mm baffles)
Compartments	Single compartment
Manhole Covers	2 European standard aluminum manholes
Bottom Valve	1 aluminum alloy valve with voice alarm
Discharge Valves	Two discharge outlets
Vapor Recovery	Equipped
Overfill Protection	Equipped

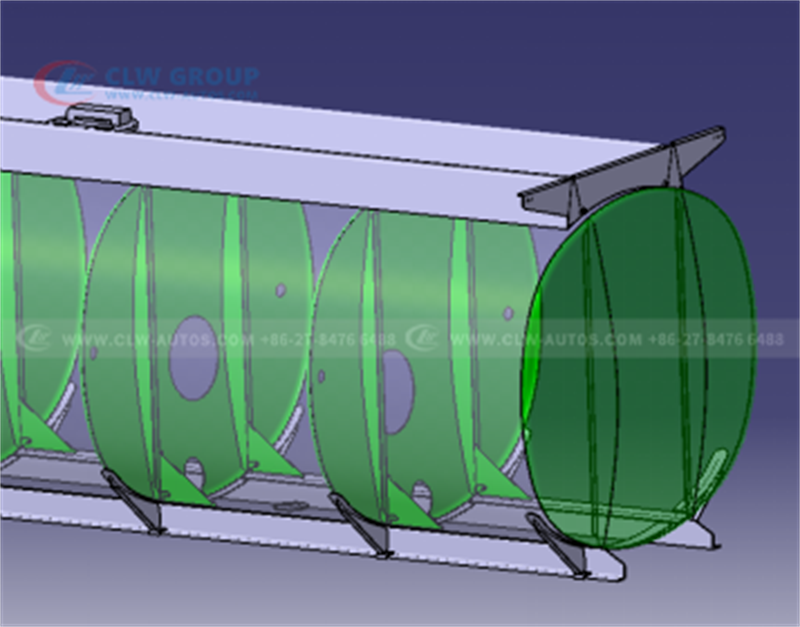

Anti-wave Baffle	Innovative one-piece rolled design
Chassis	High-strength steel sub-frame
Axles	3×10T FUWA axles with disc brakes
Suspension	Air suspension with EBS
Landing Gear	28T single-action
Tires	12×12R22.5 vacuum tires
Kingpin	50#
Tool Box	1 aluminum toolbox
Spare Tire Carrier	Included
Accessories	All aluminum alloy components
Certificates	Vehicle Certificate, Tank Inspection Report
Discharge Pipe	L=6000mm, 3" threaded pipe
Fire Extinguishers	Two 8kg dry powder units
Anti-static Reel	1 anti-static grounding reel with socket



🛡️ Competitive Advantages

• Significantly lighter structure, reducing fuel consumption and improving payload capacity
• State-of-the-art safety systems: vapor recovery, anti-overfill probe, anti-static grounding
• Superior aluminum alloy craftsmanship ensures corrosion resistance and longer service life
• Elegant appearance with high-quality modular accessories
• Custom options available upon request



🏭 Chengli Group's Technological Edge

Chengli Group has established advanced automated production lines, attracting high-caliber technical and management talent, and adopting innovative manufacturing processes to meet the demands of the aluminum alloy hazardous materials transport sector.

The aluminum tankers from Chengli's new facility are built using leading domestic technologies, achieving significant weight reduction, exceptional durability, and enhanced safety and practicality.



📢 Market Significance

The release of the CL9408GYYLV underscores Chengli's strategy to deliver next-generation logistics solutions that combine technology, quality, and environmental performance.

This product is poised to help fuel distributors, logistics providers, and industrial operators improve efficiency and safety while lowering operating costs.



💼 For detailed quotations, configurations, or dealer inquiries, please contact our sales team.

Hubei Chengli Special Automobile Co., Ltd/ Hubei Weiyu Special Vehicles Co.,Ltd/ Zaoyang Huayue Special Vehicle Co., Ltd
🌐 Leading Manufacturer of Aluminum Fuel Tank Semi Trailers in China
