🌐 Chengli Group New All-Electric CL5187TDYBEV Multifunction Dust Suppression Truck
Hubei Chengli Special Automobile Co., Ltd officially announces the release of the CL5187TDYBEV all-electric multifunction dust suppression truck, designed to set new standards in sustainable dust control and environmental protection.
This vehicle is engineered for effective dust suppression on railways, highways, construction sites, mining areas, quarries, coal yards, ports, and urban roads, helping reduce airborne particles and improve air quality.
Through a high-capacity water tank and advanced fog cannon, the truck atomizes water into fine mist to quickly bring suspended dust particles down to the ground. Additionally, front and rear sprinklers wet the road surface to prevent dust from rising, enhancing cleanliness and safety in high-traffic environments.
🚚 Product Highlights

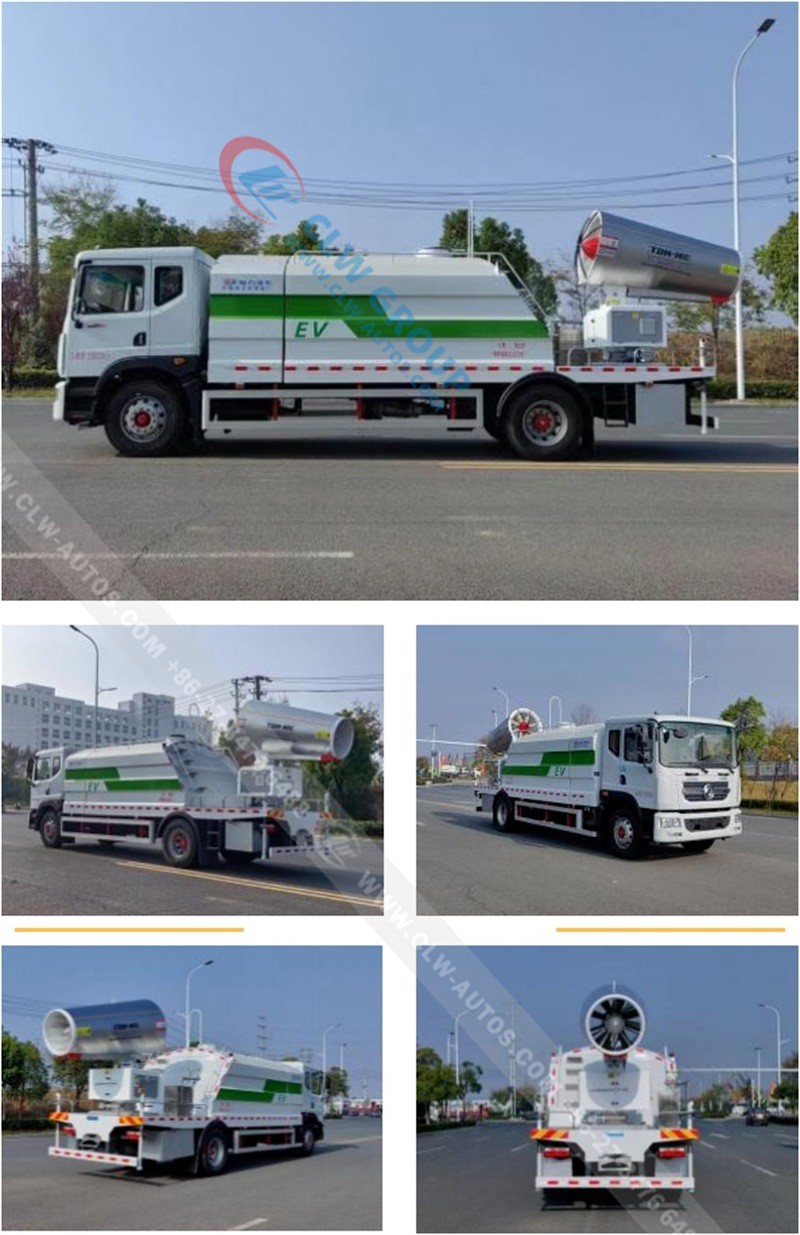

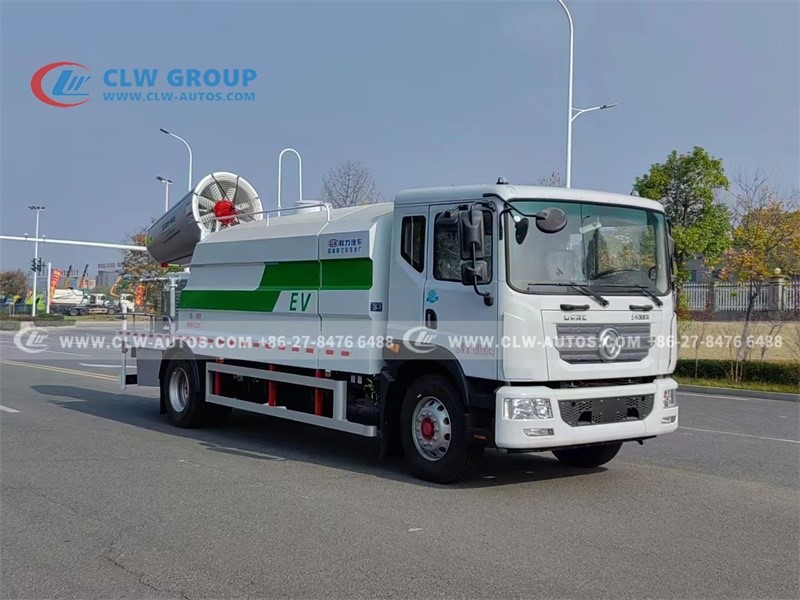

The CL5187TDYBEV is built on the Dongfeng D9 KaiPuTe original electric chassis, equipped with a permanent magnet synchronous motor and Lithium Iron Phosphate battery, delivering quiet, zero-emission operation.
To ensure reliable and efficient performance, the vehicle comes standard with:
- Front flushing, rear sprinkling, side spray, and a rear work platform
- Greenery water cannon (360° rotation), adjustable spray patterns (column, mist, rain)
- Self-priming, high-flow water pump, capable of drawing water directly from rivers or ponds
- National-standard valves, thickened flanges, oversized ball valves
- Anti-corrosion tank with dual-sided welding and epoxy glass flake coating
- Integrated cab controls with T-type pneumatic valves
- Removable side and rear protection structures for easy maintenance
⚙️ Technical Specifications
| Item | Specification / Model |
|---|---|
| Vehicle Model | CL5187TDYBEV New Energy Dust Suppression Truck |
| Battery Capacity | 282 kWh |
| Battery Type | LFP (Lithium Iron Phosphate) |
| Drive Motor Model | TZ342XSSFY02 |
| Drive Motor | Permanent Magnet Synchronous Motor |
| Peak Power | 110 / 180 kW |
| Peak Torque | 500 / 1000 Nm |
| Peak Speed | 2100 / 4000 rpm |
| Transmission | Fastt Gearbox |
| Tire Size | 295/80R22.5 18PR |
| Wheelbase | 5,300 mm |
| Gross Weight | 18,000 kg |
| Curb Weight | 10,290 / 10,690 kg |
| Payload | 7,515 / 7,115 kg |
| Dimensions (mm) | 8,930/9,580/9,830 × 2,550 × 3,800 |
| Tank Volume | 11.5 m³ |
| Fuel Type | New Energy (Electric) |
| Water Pump Model | 50 / 110 |
| Tank Material | Q235 Carbon Steel |
🛠️ Chassis and Body Features
- Original Dongfeng D9 KaiPuTe EV chassis, equipped with Fastt electric drive motor, Inovance controller, Ningde Times battery, ABS, and air brakes
- Fully enclosed cab with air conditioning, electric windows, and central locking
- Durable Q235 carbon steel tank, internal epoxy coating for corrosion resistance
- Optional 80–100 m fog cannon for high-reach spraying
- Front flushing, rear sprinkling, and side spray controlled via cab switches
- Aluminum alloy anti-slip platform and lightweight plastic mudguards
- Standard red clearance lights, safety rails, and removable guards

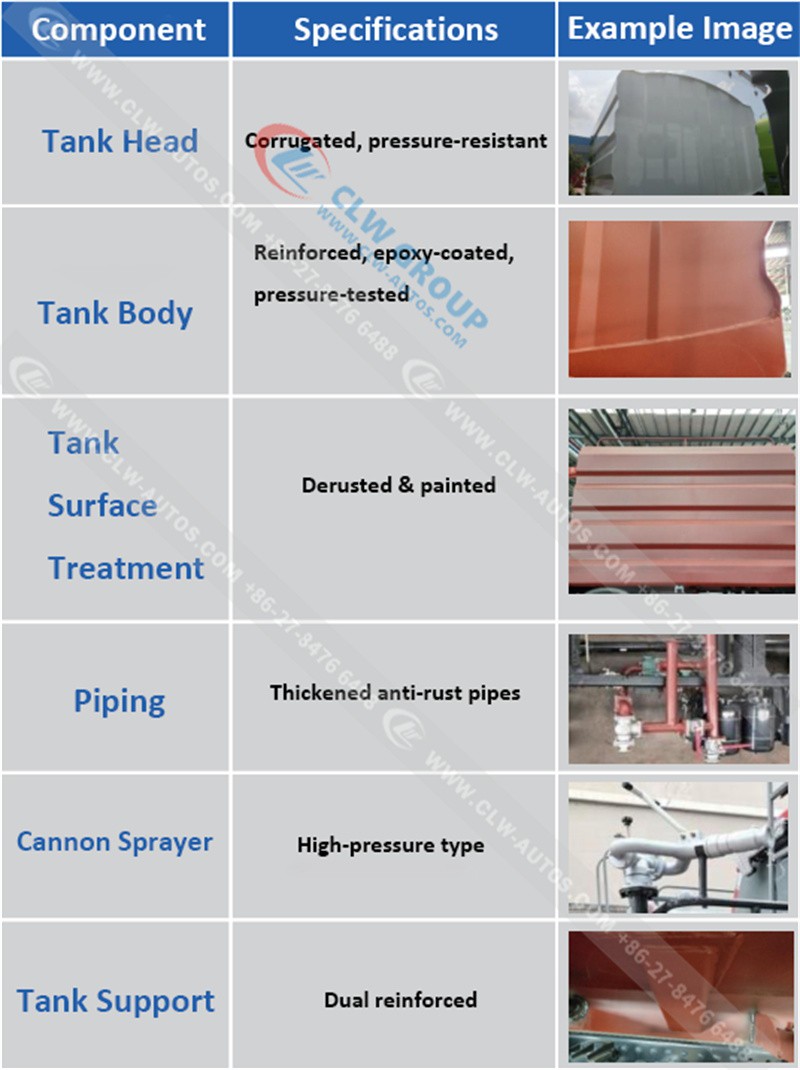

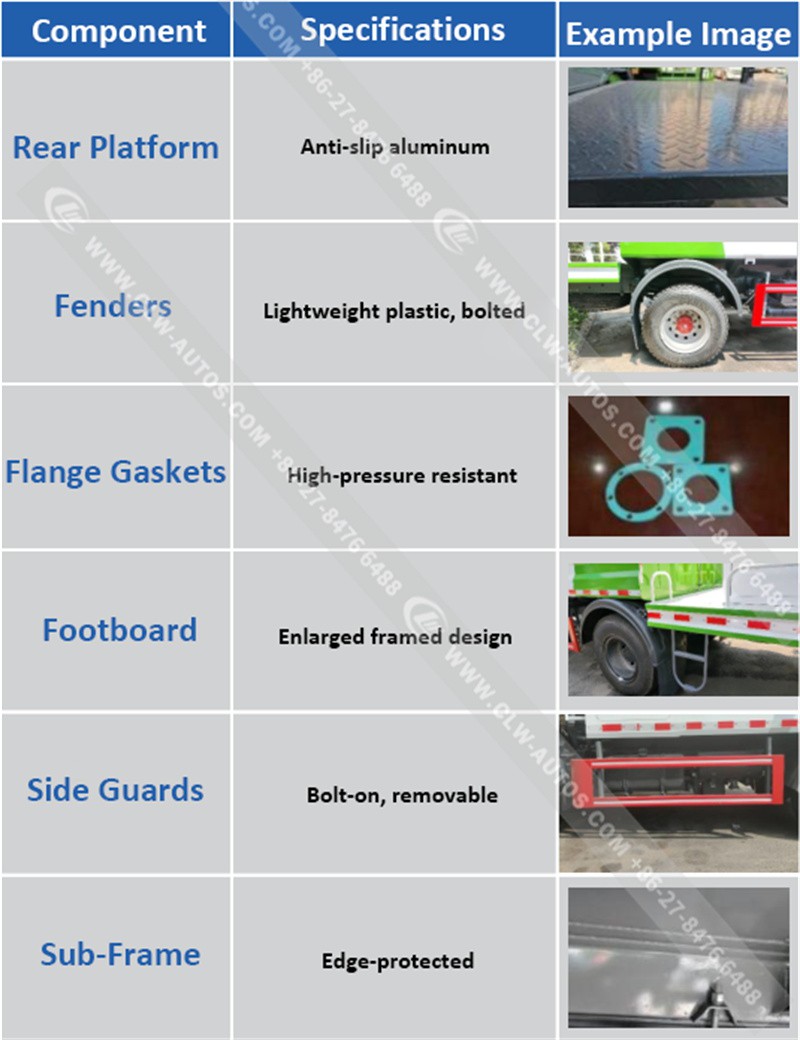

Product Process Introduction

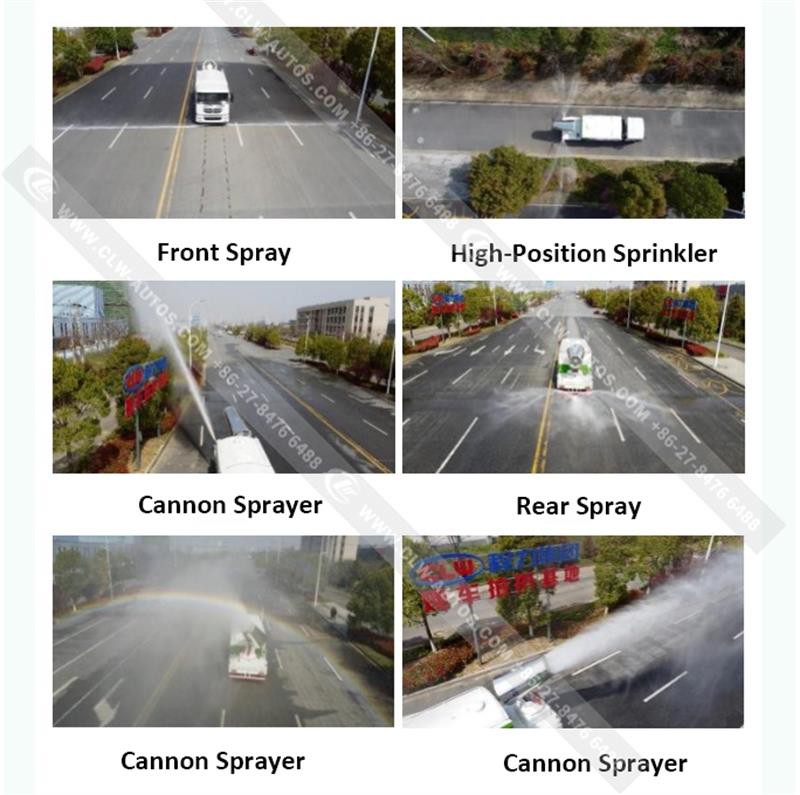

Product Function Display
🏆 Market Significance
As industries and cities prioritize dust control and environmental protection, this new energy dust suppression truck provides a cost-effective and sustainable solution. It reduces air pollution, lowers operating noise, and contributes to cleaner, healthier surroundings.
The product integrates innovative technologies and refined craftsmanship, offering operators enhanced safety, high efficiency, and easy maintenance.
For inquiries, quotations, or technical consultations, please contact Chengli Group sales representatives.
