FAW 5000Liters 5Tons Fuel Refueller Truck
  • FAW 5000Liters 5Tons Fuel Refueller Truck
  • FAW 5000Liters 5Tons Fuel Refueller Truck
  • FAW 5000Liters 5Tons Fuel Refueller Truck
  • FAW 5000Liters 5Tons Fuel Refueller Truck

FAW 5000Liters 5Tons Fuel Refueller Truck

Tank material:Carbon steel 4mm
Tank Size:5,000Liters/5m3
Oil pump: Chinese Top brand
15meter hose Reel with filling nozzle

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 5000liters 5tons fuel refueller truck in China. If you're going to buy high quality faw 5000liters 5tons fuel refueller truck, welcome to get more information from our factory. For price consultation, contact us.




DescriptionFuel Refueller Truck(also called fuel refilling truck,oil dispenser truck,oil tanker truck,oil transport truck,oil tank truck,oil delivery truck,fuel dispenser truck,fuel tanker truck,fuel transport truck,fuel tank truck,fuel delivery truck) is used to transport petroleum,diesel,gasoline,kerosene,crude oil and it can be used to refill cars,trucks or machinery at construction site,farm, boilers,hotels and other units distribution of fuel vehicles.

Why do you choose FAW fuel refueller truck?



Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.

★High safety: equipped with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head

   ★
Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.

   ★Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.

   ★Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.

  ★Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.

  ★Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.


★Tank material of Fuel Refueller Truck: we can provide carbon steel Fuel Refueller , stainless steel Fuel Refueller , manganese steel Fuel Refueller , aluminum Fuel Refueller , steel with plastic (or rubber) Fuel Refueller  and plastic Fuel Refueller.


Specifications


Condition

Brand new/left hand drive or right hand drive /4X2


Chassis

Brand

FAW

Wheelbase(mm)

3360 mm

Dimensions(mm)

5995X2370X2900 mm

Front/Rear Axle loading(kg)

2400/5000 kg

Wheel track (front/rear) (mm)

1805/1870 mm

Front/Rear overhang(mm)

1240/1950 mm

Approach/Departure angle(°)

17/16

Max. driving speed(km/h)

95 km/h

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Quantity

6 pcs with one spare tire

Specifications

7.00R16


Transmission

Manual type, 6 Forwards and 1 reverse


Cab

It can accommodate three people with cabin width 2080mm and with Air Conditioner


Engine

Brand

Weichai engine

Model

WP2.3Q110E50

Fuel type

Diesel

Displacement(ml)

2290 ml

Power(kw)

81kw

Horsepower(HP)

110HP

Cylinder number

4

Emission standard

Euro II,III,IV,V for option


Fuel Tank


Fuel tank

Capacity(cbm/liters)

5 cbm/5,000 liters

Tank material

Tank material:Q235 high tensile strength steel.

Thickness(mm)

5mm of tank and 6mm of end plate


Compartment No.

1


Fuel Dispenser

Censtar brand,flow rate at 70L/min


Oil Pump

1No


Filling hose

15 meters


Filling hose reel

1 No


Filling Nozzle

1 No


Manhole cover

∮500mm 1 set with breather valve


Bottom Valve

1 set of API Pneumatic Bottom Valves


Discharging valve

1 set ∮100 discharging valves


Handrail

Pneumatic control at tank two sides


Ladder

At rear of tank


Painting

Color and design as customer’s requirement


Reference picture

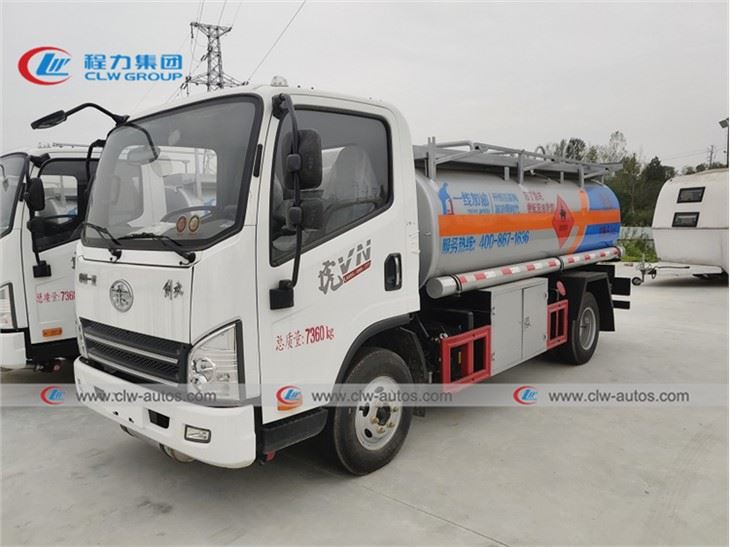

★Finished FAW 5000Liters 5Tons Fuel Refueller Truck

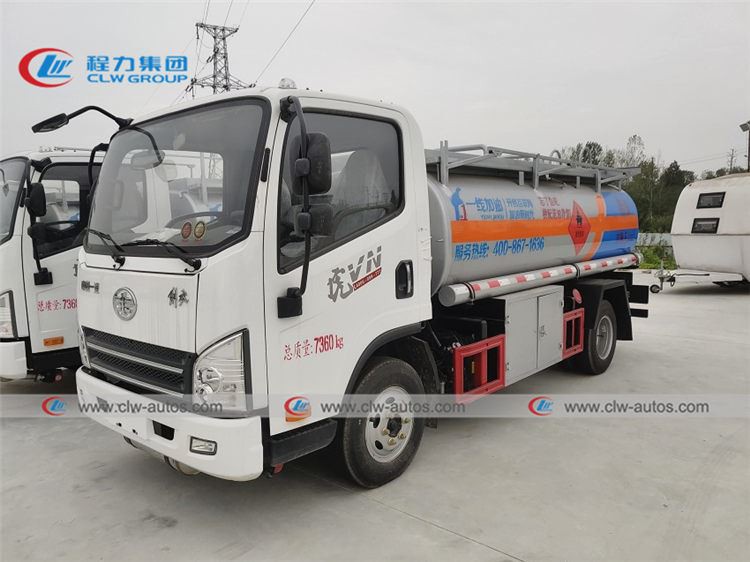

FAW 5000liters 5tons fuel refueller 6

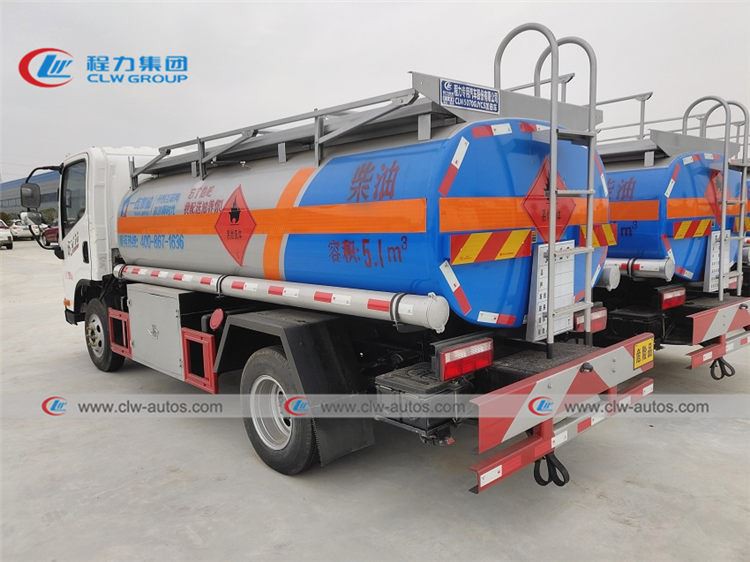

FAW 5000liters 5tons fuel refueller 7

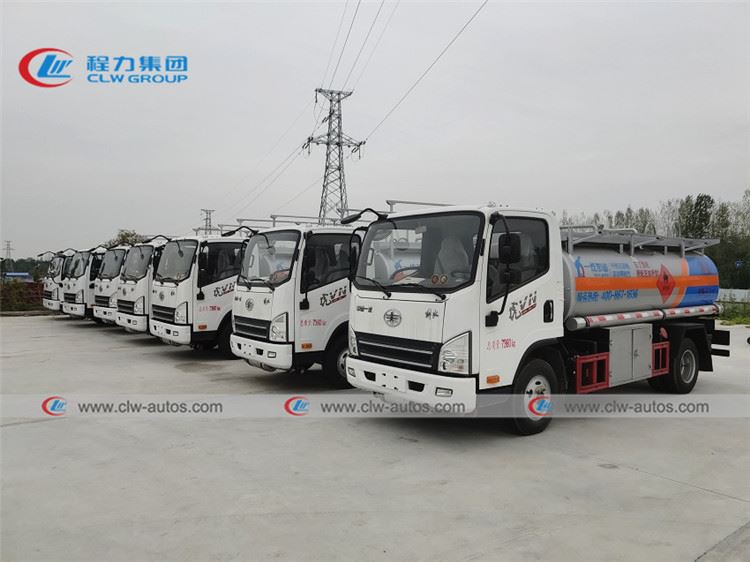

★Delivery of 7 units of FAW 5000Liters 5Tons Fuel Refueller Trucks

FAW 5000liters 5tons fuel refueller 9
