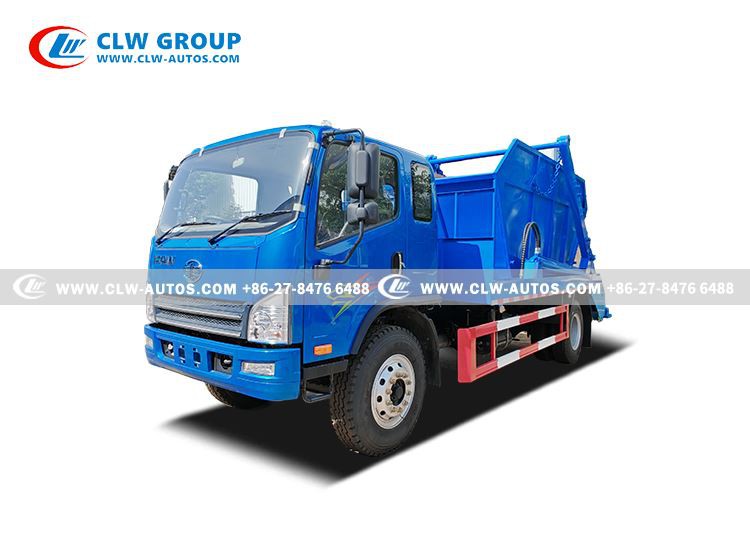

FAW 3T Swing-arm Refuse Collection Truck
FAW Tiger VH 4x2 3T Swing-arm Garbage/Refuse Collection Truck YC4D130-33, 130HP, EURO-3. Diesle Engine Transmission: WLY6TS55, 6 Forward & 1 reverse. Manual control. Swing-arm Waste Container / Swing-bin: 5CBM, Good Quality Hydraulic System.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 3t swing-arm refuse collection truck in China. If you're going to buy high quality faw 3t swing-arm refuse collection truck, welcome to get more information from our factory. For price consultation, contact us.
Products Description
FAW Tiger VH 4×2 3T Swing-arm Garbage Truck/Refuse Collection Truck
Model : FAW Tiger VH Truck Chassis (4×2 Drive)
Type : Hydraulic Swing-arm Garbage Truck
Key Features :
Chassis & Powertrain :
Chassis Model : FAW Tiger VH light/Light-duty truck chassis (4×2 configuration).
Engine : High-efficiency diesel engine YC4D130-33, 130HP –160 HP, compliant with Euro II/III emissions. Mechanical Injection
Transmission : 6-speed manual Control Gearbox.
Swing-arm System :
- Hydraulic Swing Arm : 360° rotatable with a lifting capacity of 1.5–3 metric tons .
- Container Compatibility : Designed for standardized waste bins (660L–3m³ dumpsters).
- Payload & Dimensions :
- Max Payload : 3 metric tons (GVW ~7–8 tons).
- Loading Height : Adjustable arm reach (typically 3–4 meters).
- Hydraulic System :
- Integrated high-pressure pump and cylinders for smooth operation.
- Safety overload protection and emergency stop functions.
- Dumping Mechanism :
- Tilts containers vertically (up to 70° angle) for waste discharge.
- Optional compaction system (enhances waste density).
Cab & Comfort :
Tiger VH Cab : Ergonomic design, air conditioning, and modern dashboard.
Low noise/vibration for operator comfort.
Applications :
Urban/rural solid waste collection.
Recycling centers, industrial parks, or municipal services.

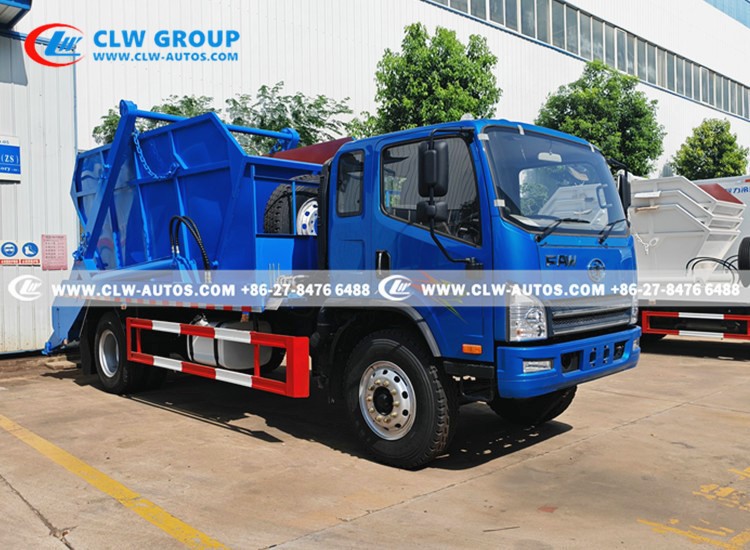

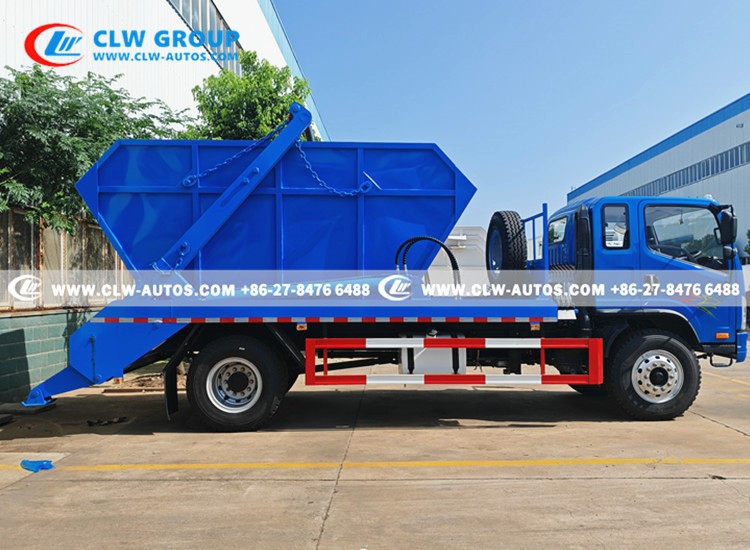

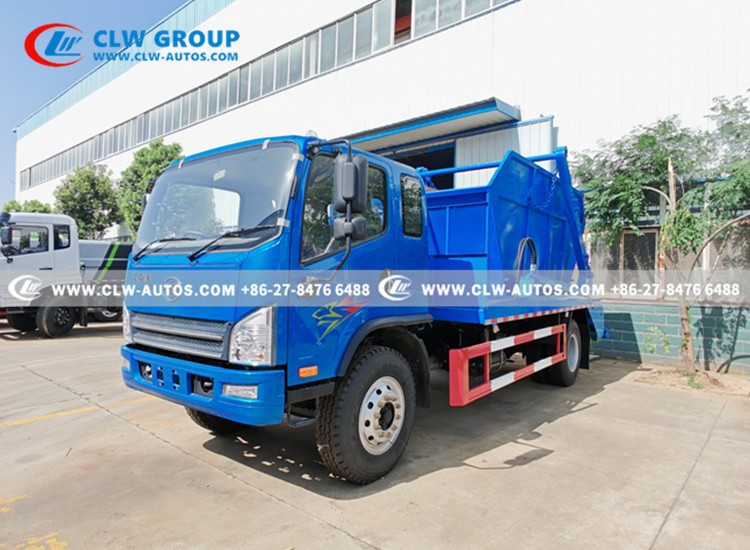

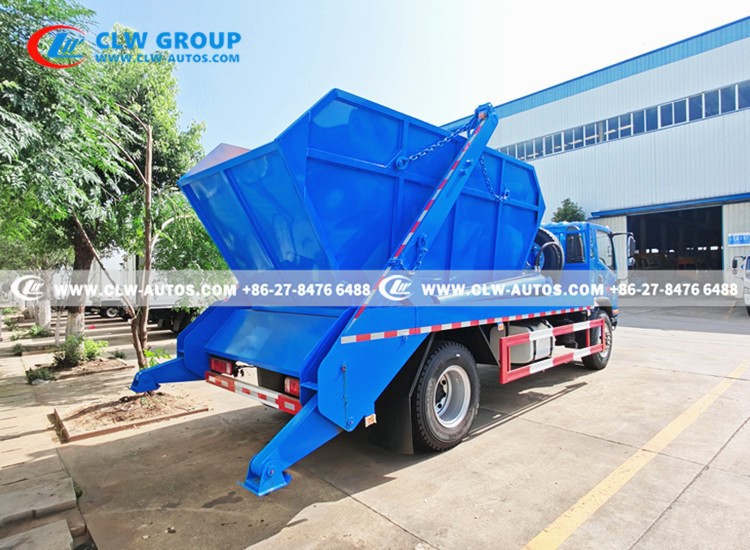

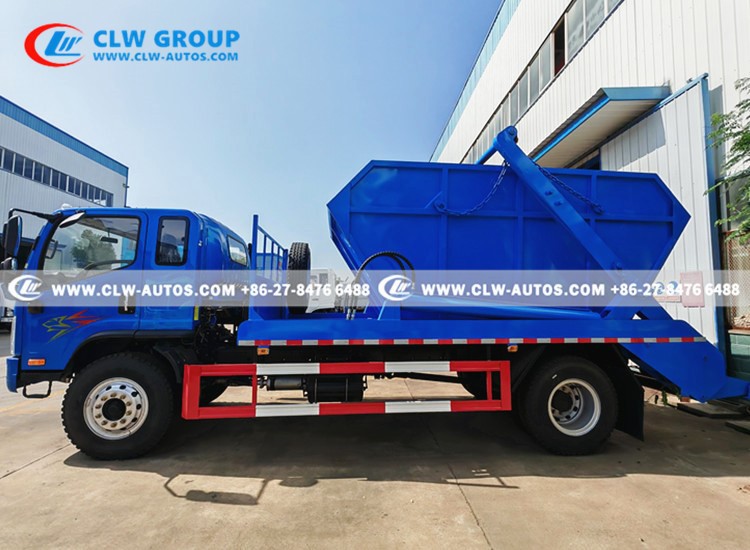

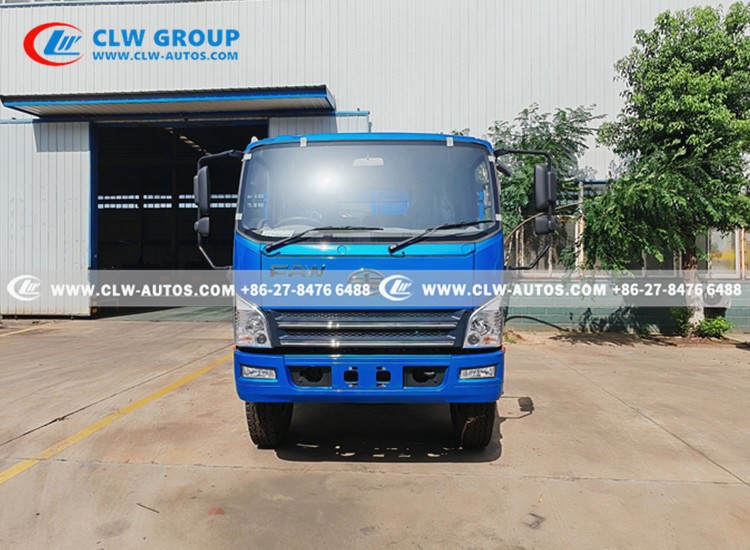

Referebce Pictures
Products Parameters
| Manufacturing Company | FAW | |
| Drive wheel | 4x2 | |
| Engine | Model | YC4D130-33, 130HP, EURO-3 |
| Manufacturing Company | YUCHAI Motors | |
| Maximum output | 160HP | |
| Emission standard | Euro III | |
| Number of cylinder | 4-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Transmission | WLY6TS55, 6 Forward & 1 reverse. Manual control. | |
| Clutch | Ø 380mm | |
| WABCO valve, WABCO clutch booster, maintenance-free battery | ||
| Front Axle | 8E | |
| Rear Axle | 378 (rate:4.875) | |
| Chassis | Frame | 237*75*7mm |
| Front suspension | 9 | |
| Fuel tank | 120L | |
| Steering | POWER ASSISTANT | |
| Brakes | Drum | |
| Wheel Base(mm) | 3800 | |
| Wheels&Tires | Tire:275/70R22.5 | |
| Driver's cabin | Model, description | tTiger VH, RHD/LHD |
| Sleeper | 1 | |
| Air Conditioner | Yes | |
| Electrics | Operating voltage | 24v |
| Starter, Alternator | China brand | |
| Overall Dimensions | Overall Length | 7973mm |
| Overall Width | 2396mm | |
| Overall Heigth | 3150mm | |
| Weigth | Gross vehicle weigth | 12000kg |
| Performance | Maximum driving speed | 75 km/h |
| Arm skip lift | 6-8 cbm | 3-5 tons |
Key Features
Advantages :
Fuel Efficiency : Optimized engine for lower operational costs.
Durability : Reinforced steel frame + anti-corrosion treatment.
Customization : GPS, onboard scales, or automated control available.
Good Quality 5-8CBM Swing-arm Waste Container / Swing-bin
(Also called "Swing-arm Garbage Bucket" or "Hook-lift Dumpster" )
Hydraulic Swing-arm Mechanism
- Equipped with a powerful hydraulic lifting arm that hooks and lifts standardized waste containers (e.g., 3–20 cubic yards ) onto the truck bed for transport.
- The arm swings laterally (left/right ) to position the container accurately.
- High Efficiency & Versatility
- Designed for rapid loading/unloading of waste containers (e.g., dumpsters, roll-off bins), reducing manual labor.
- Compatible with multiple container sizes (adjustable hooks/arms).
- Durable Construction
- Reinforced chassis and heavy-duty steel body to handle high-capacity waste (e.g., construction debris, municipal solid waste).
- Corrosion-resistant coatings for long-term use.
- Safe Operation
- Stabilizer legs prevent tipping during lifting.
- Automatic locking systems secure containers during transit.
- Applications
Ideal for municipal waste collection , construction sites , and industrial zones .
Often used with hook-lift dumpsters or sealed waste containers .
