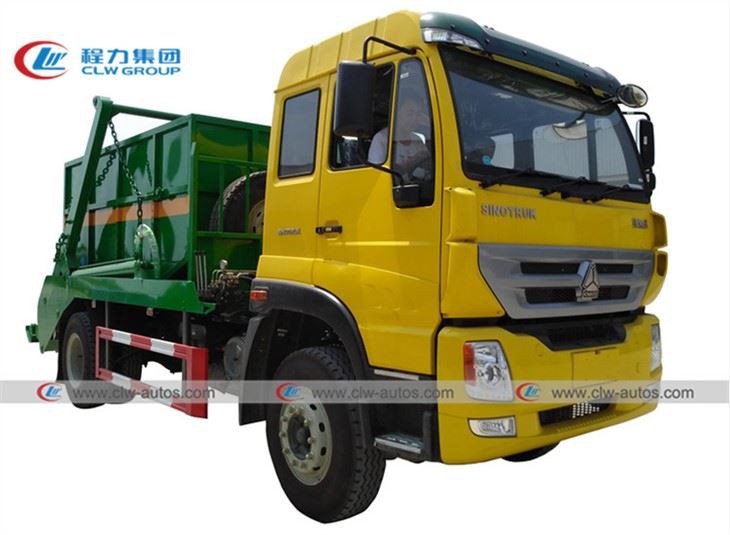

Sinotruk HOMAN 10CBM Swing Arm Garbage Truck
Sinotruk HOMAN 10CBM Swing Arm Garbage Truck Garbage Bin/Box/Container: 10CBM, 12CBM, 14CBM.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk homan 10cbm swing arm garbage truck in China. If you're going to buy high quality sinotruk homan 10cbm swing arm garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description:
Sinotruk HOMAN 220HP truck Chassis configuration: new half-row cab, thickened high-strength front bumper, front fog lights, wide-angle rearview mirror, front road mirror,
DC6J65TC, 6 forwards &1 reverse 6-speed gearbox,YC6J220-33 220 hp YUCHAI diesel engine, Wheelbase 4200mm 4500mm, 9.00R20 10.00R20 tires, 6 tons front axle, 12 tons rear axle, intercooled supercharged.
Sinotruk HOMAN 10CBM to 12CBM swing arm truck Model configuration:
The effective volume of the car body is 10-12 cubic meters. The loading cycle of the car is one-key operation.
It is equipped with 9 hydraulic cylinder brakes and no auxiliary pressure plate.
The hydraulic system can be controlled electrically or manually. Rear flip mechanism, can choose to hang plastic bucket, iron bucket, or bucket type. Sewage collection box at the bottom of the filler, the sewage in the car box can flow into it, and can be discharged through the ball valve when unloading garbage.

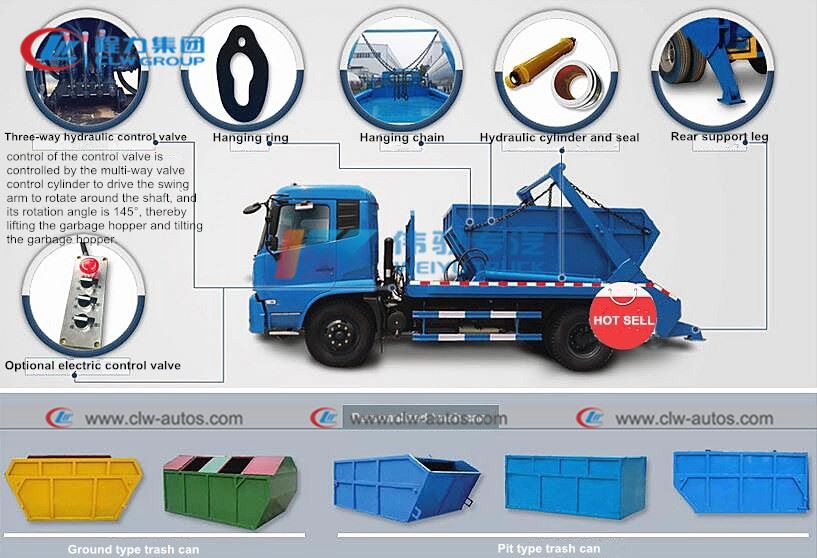

Structures of Swing Arm Garbage Truck:
Detailed Specifcation for Sinotruk HOMAN 220hp swing arm garbage truck:
Cabin | Driving type 4x2 | |
H5 Cabin with two seats,with A/C. Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8000x2500x3500 |
Wheel base (mm) | 4200 | |
Wheel track (front/rear) (mm) | 1980/1860 | |
Approach/Departure angle(°) | 24/15 | |
Weight in KGS | Tare Weight | 8000 |
Loading Capacity | 10000 | |
Front axles loading capacity | 1×6000 | |
Rear axles loading capacity | 1x12000 | |
Max. driving speed（km/h） | 90 | |
Engine | Brand | YUCHAI |
Model | YC6J220-33 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 220 HP | |
Emission standard | Euro Ⅲ | |
Gearbox | DC6J65TC, 6 forwards &1 reverse | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF steering, hydraulic steering with power assistance | |
Fuel tank (L) | 300 L | |
Tire | 10.00R20 tires with one spare, totally 7 pcs. | |
Swing arm system with cargo box | ||

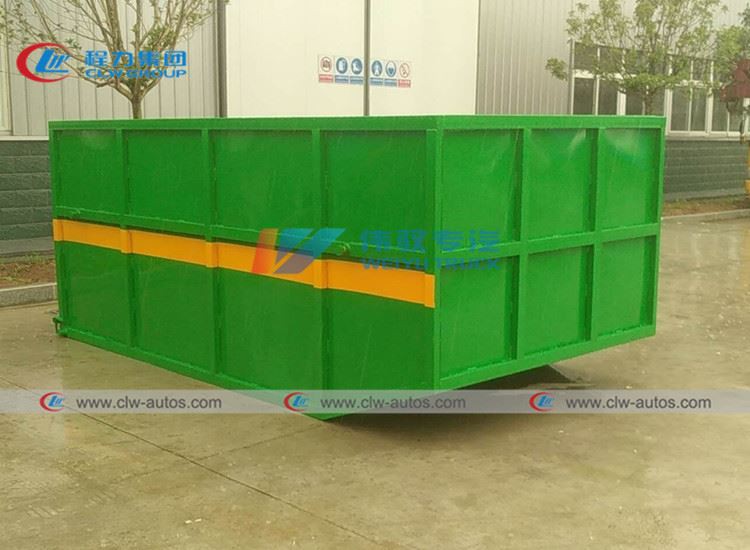

l Garbage cargo box :10CBM , Carbon steel material , underground type or aboveground type can be optional. l PTO motivated hydraulic system, two hydraulic cylinders with lifting arm and two hydraulic cylinders with landing leg l Swing arm maximum pivot angle 145 ; hoisting time 30s ; Unloading time 50s. | ||
