10Ton Swing Arm Skip Loader Garbage Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10ton swing arm skip loader garbage truck in China. If you're going to buy high quality 10ton swing arm skip loader garbage truck, welcome to get more information from our factory. For price consultation, contact us.

Dongfeng Swing Arm Garbage Truck Chassis Specification

Model 1:

Ø  3950mm Wheel Base

Ø  Dongfeng 153 Half Row Cabin with A/C

Ø  Yuchai Engine 160HP, 6 Cylinder

Ø  Dongfeng Gear 6 Forward & 1 Reverse

Ø  3.9Ton Front Axle, 8Ton Rear Axle,

Ø  Air Brake, Exhaust Brake,

Ø  Hydraulic Assistant,

Ø  9.00R20 Radial Tires, 6 Pieces with 1 Spare

Model 2:

Ø  4500mm Wheel Base

Ø  Dongfeng 153 Half Row Cabin with A/C

Ø  Cummins 180HP, 6 Cylinders

Ø  FAST Gear 8 Forward & 1 Reverse

Ø  4.5Ton Front Axle, 10Ton Rear Axle,

Ø  Air Brake, Exhaust Brake,

Ø  Hydraulic Assistant,

Ø  10.00R20 Radial Tires, 6 Pieces with 1 Spare

【Swing Arm System Structure】

The swing arm mechanism is composed of a steel plate to form a box-shaped structure. Its main function is to drive the swing arm to rotate around the axis by a multi-way valve control oil cylinder. The rotation angle is 145°, which can lift the hopper and tilt the hopper.

【Swing arm garbage truck hopper:】

The hopper is a metal welded part, and it has two forms: open and sealed. After the bulk cargo is loaded into the hopper, hang the hoisting chain, and the hopper can be hoisted onto the truck by operating the swing arm. When unloading, operate the swing arm to lift the hopper, and after landing, remove the hoisting chain at one end to operate the hopper to discharge. The tipping angle of the hopper can reach 86°.

【Hydraulic operating system:】

It is composed of hydraulic oil tank, hydraulic oil pump, multi-way reversing valve, hydraulic cylinder, balance valve, hydraulic lock, oil filter and pipeline. , The whole system is powered by the automobile gearbox and power take-off, and the manual multi-way reversing valve controls the outrigger cylinder and the swing arm cylinder for telescopic movement. The displacement of the oil pump of this system can be controlled by the manual throttle under the vehicle. The manual reversing valve handle controls the stroke of the valve rod to control the movement speed of the cylinder piston rod. The system pressure can be set by the safety relief valve. If the system exceeds the set pressure, the safety will overflow. Overflow valve.

Major Feature:

1.      Detachable garbage hopper

2.      1 Truck can carry multiple garbage hopper.

3.      Large volume garbage delivery each day

4.      Design to collect & transfer garbage in cities & towns.

Swing-arm garbage trucks

ground-type swing-arm garbage trucks

pit-type swing-arm garbage trucks

Garbage Hopper Type：

Ø  Trapezoidal bucket

Ø  Boat bucket

Ø  Square bucket

Ø  Sealed bucket.

Pictures of details：

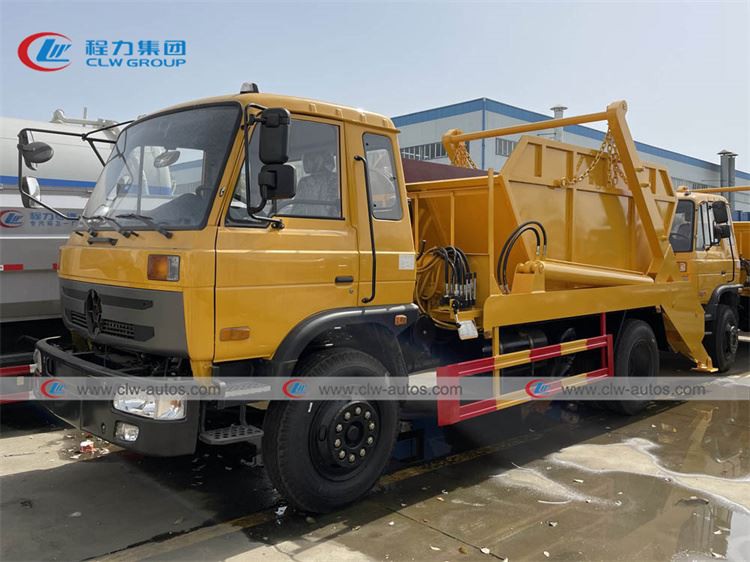

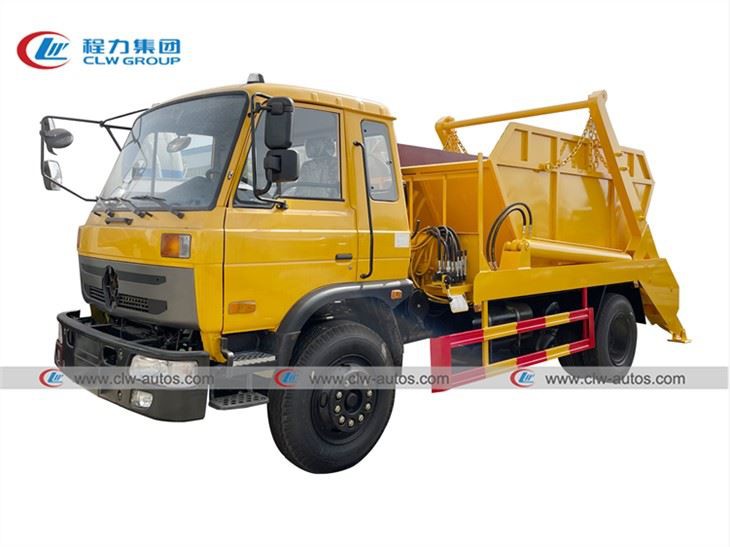

Pull Arm Garbage Truck--Front View

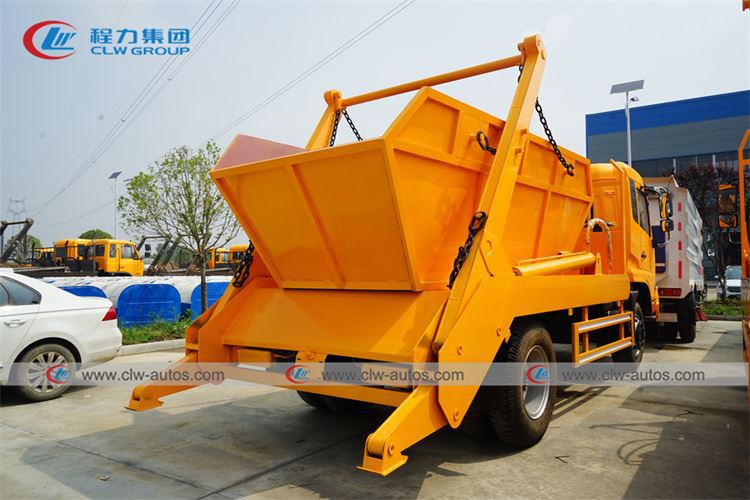

Pull Arm Garbage Truck--Rear View

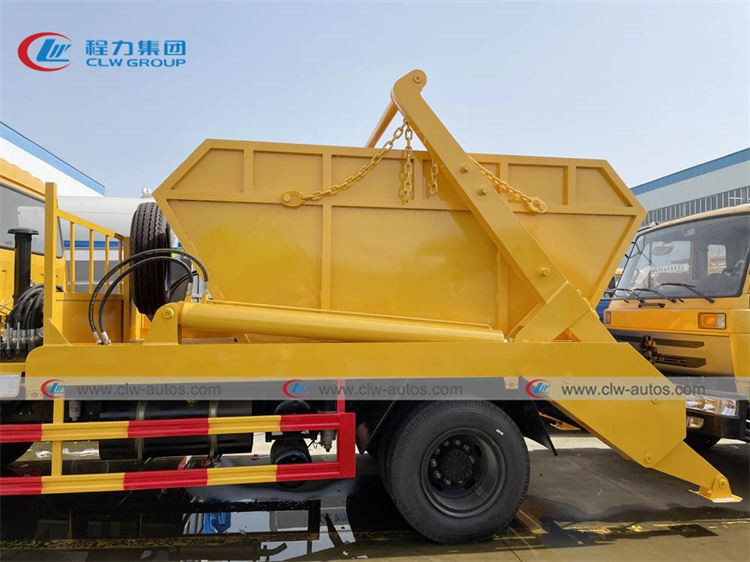

Pull Arm Garbage Truck--Details

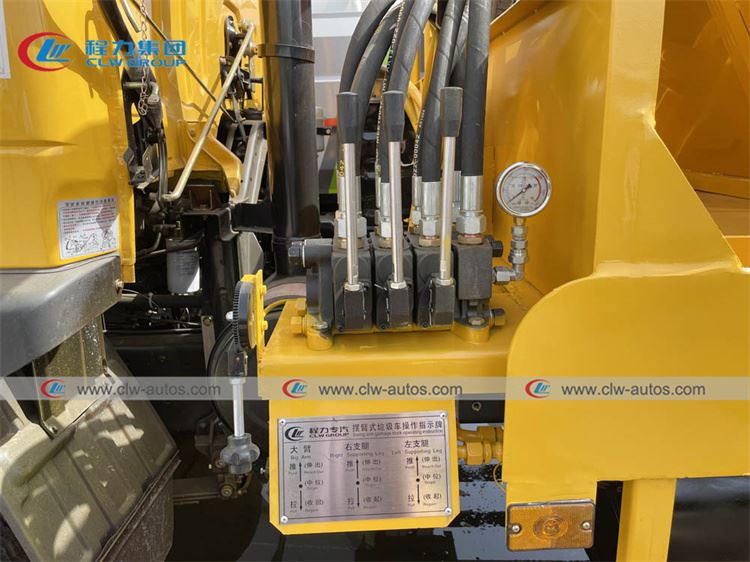

Pull Arm Garbage Truck--Control Handles

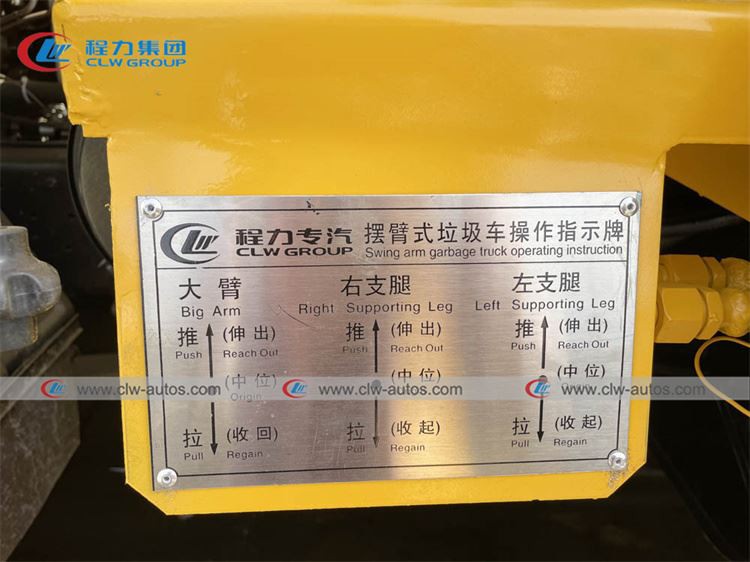

Pull Arm Garbage Truck--Operation Instruction

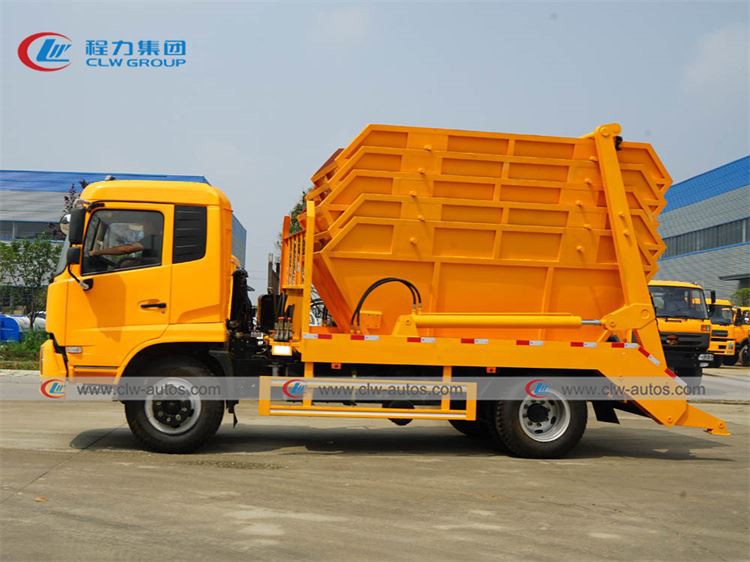

Pull Arm Garbage Truck--Muliply Loading for Shipping
