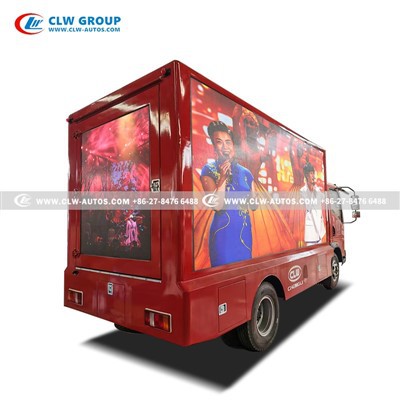

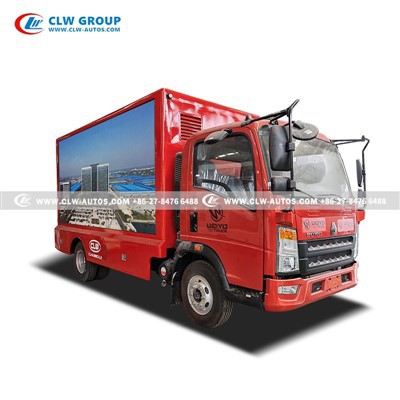

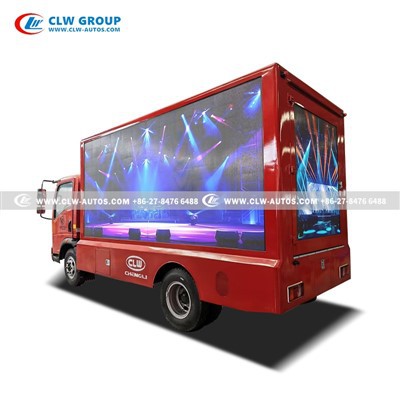

HOWO P3 LED Advertising Truck
Chassis model:HOWO ZZ1047D3415C145 VR
Engine:Diesel,Yuchai 116HP, Euro 3
3 side LED Screen
Mobile stage and hydraulic lifting sreen
Top quality diesel generator
Computer and amplifier speakers
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo p3 led advertising truck in China. If you're going to buy high quality howo p3 led advertising truck, welcome to get more information from our factory. For price consultation, contact us.

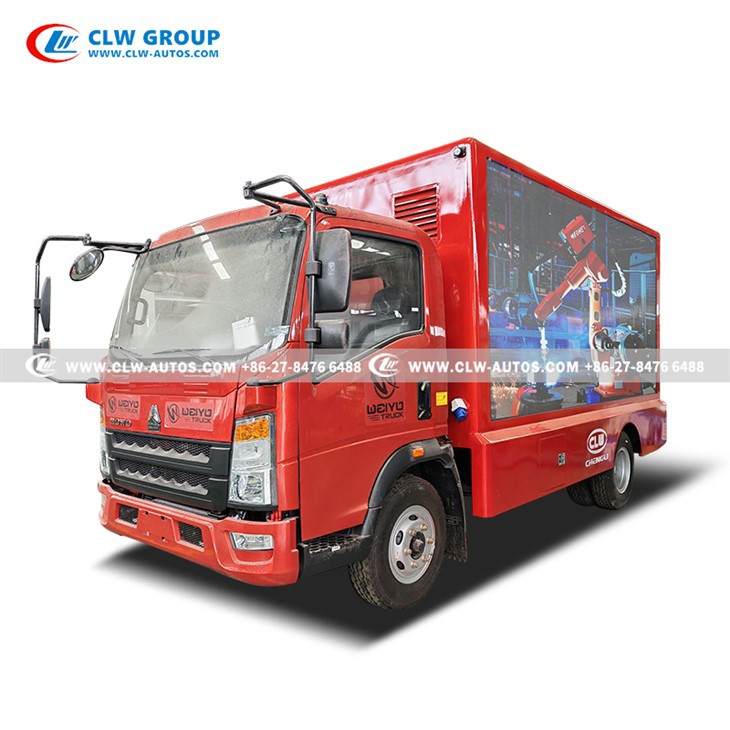

HOWO P3 LED Advertising Truck
We are Top 3 manufacturer of special purpose truck since 2004
Products Description
HOWO Light Duty LED Mobile Advertising Truck from CLW Group is a versatile, road-ready mobile media solution built on the reliable HOWO light-duty truck chassis. Designed to turn any location into a dynamic advertising platform, this vehicle combines robust commercial truck performance with high-brightness LED display technology, making it ideal for brands, event organizers, and local businesses to deliver engaging visual content directly to target audiences.
Key Features
- High-Definition LED Display: Equipped with a large, weatherproof P4/P5/P6 outdoor LED screen (customizable size), the truck delivers vibrant, clear visuals with 160° wide viewing angles, ensuring excellent visibility in direct sunlight or low-light conditions.
- Flexible Content Management: Supports real-time content updates via Wi-Fi, 4G/5G, or USB, allowing seamless switching between videos, images, and text ads-perfect for time-sensitive promotions or live event broadcasts.
- Durable Chassis & Build: Based on the HOWO WEIYA light-duty truck chassis, it features a reinforced frame, reliable engine, and stable handling, ensuring safe operation on urban roads, highways, and event sites.
- Energy-Efficient System: Integrated with a quiet, fuel-efficient generator or optional lithium battery pack, the system provides continuous power for the LED screen and on-board equipment without disrupting nearby environments.
- Compact & Maneuverable: Its light-duty design offers easy navigation through city streets, parking lots, and pedestrian zones, maximizing exposure in high-traffic areas.
Application Scenarios
This mobile LED advertising truck excels in a wide range of commercial and public scenarios:
- Outdoor Marketing & Brand Promotion: Drive through busy urban areas, shopping districts, or residential communities to showcase product launches, brand campaigns, and promotional offers.
- Event & Entertainment Support: Serve as a mobile stage screen for concerts, festivals, sports events, and fairs, broadcasting live feeds or event highlights.
- Public Service Announcements: Deploy by government or non-profit organizations to share public safety messages, emergency alerts, or community information.
- Retail & Local Business Ads: Target high-foot-traffic locations (e.g., near malls, stadiums, or transit hubs) to drive foot traffic for restaurants, retail stores, and service providers.
- Political & Campaign Events: Use during election cycles or advocacy campaigns to deliver candidate messages and rally public support in key neighborhoods.

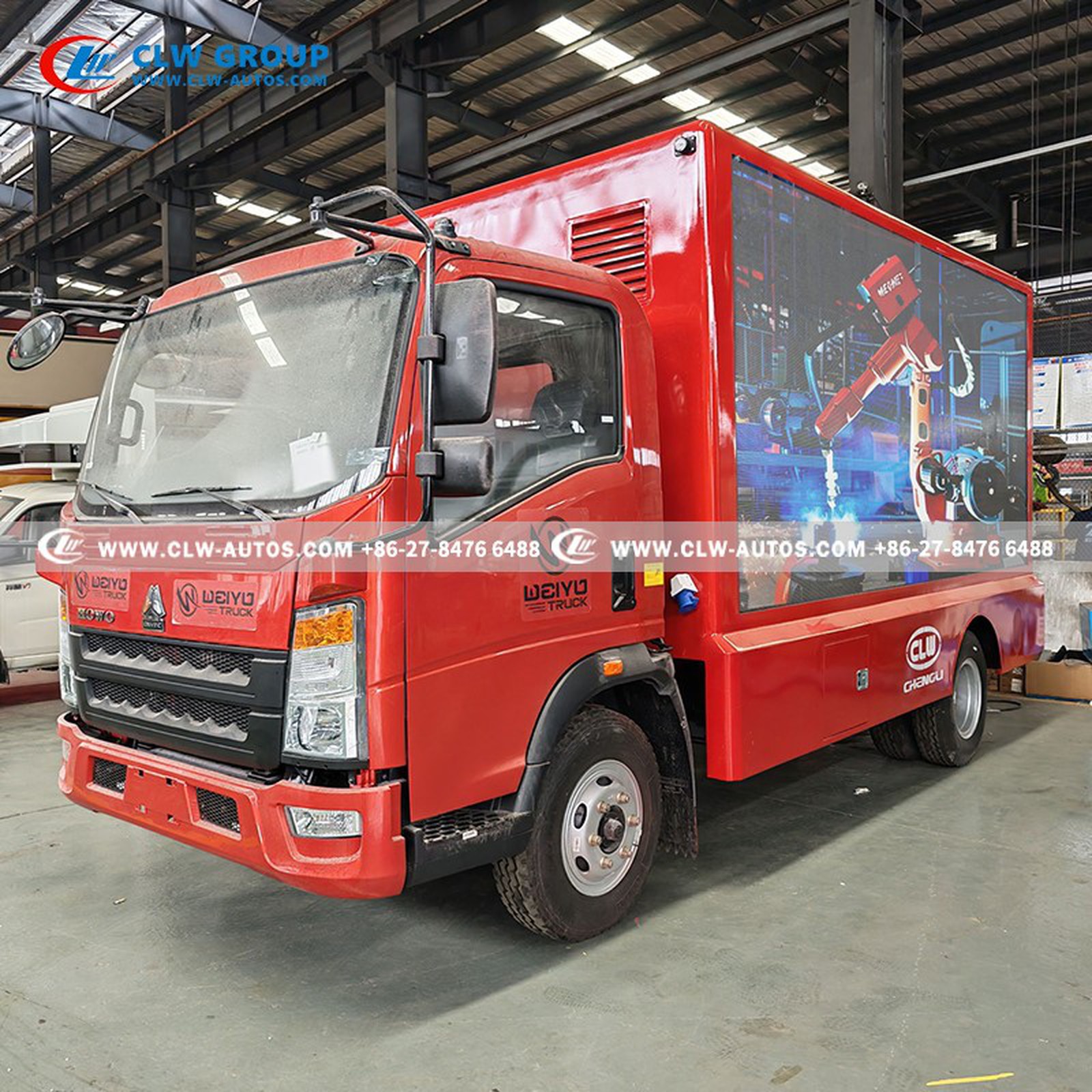

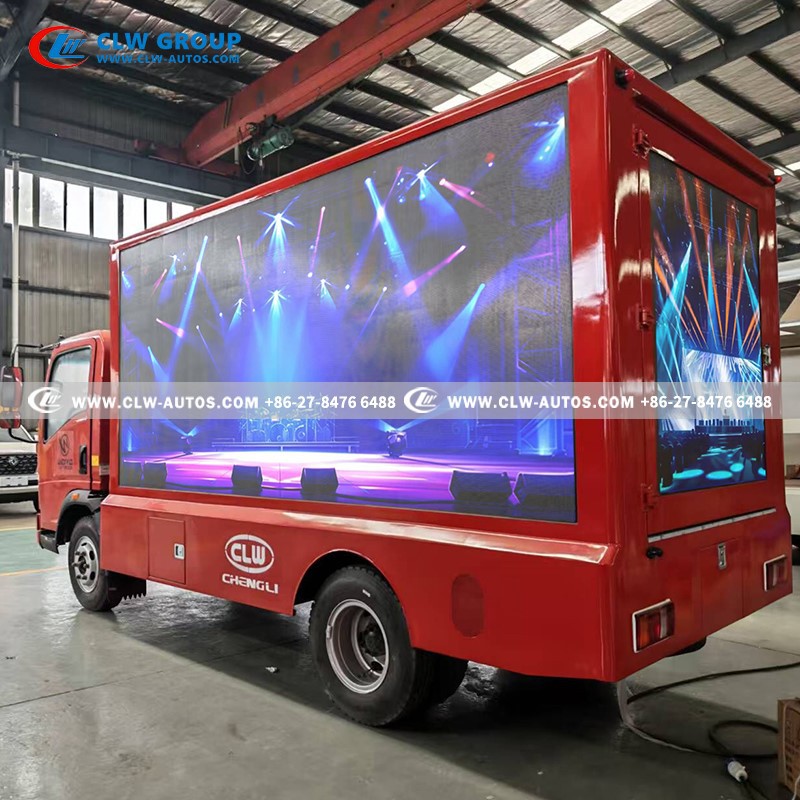

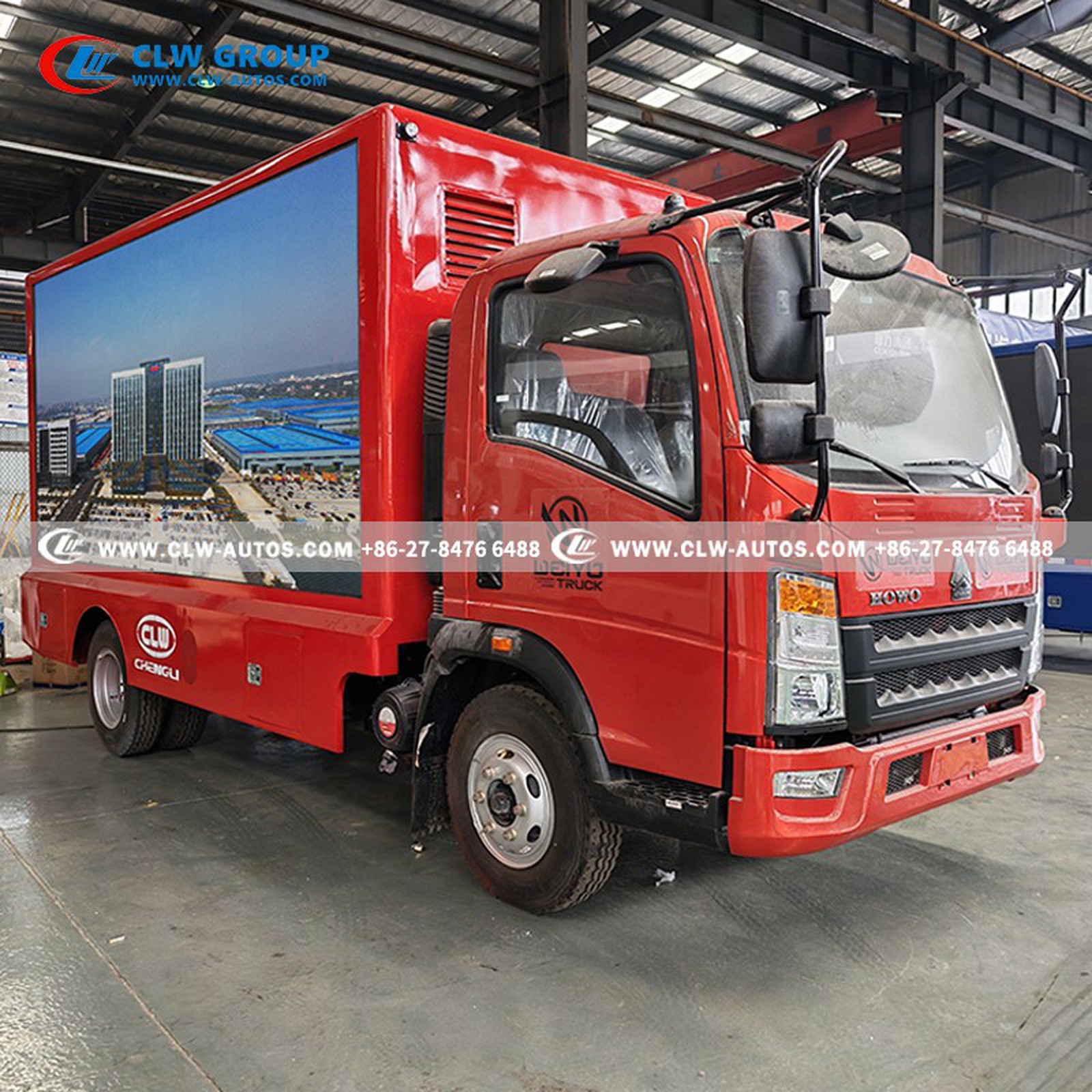

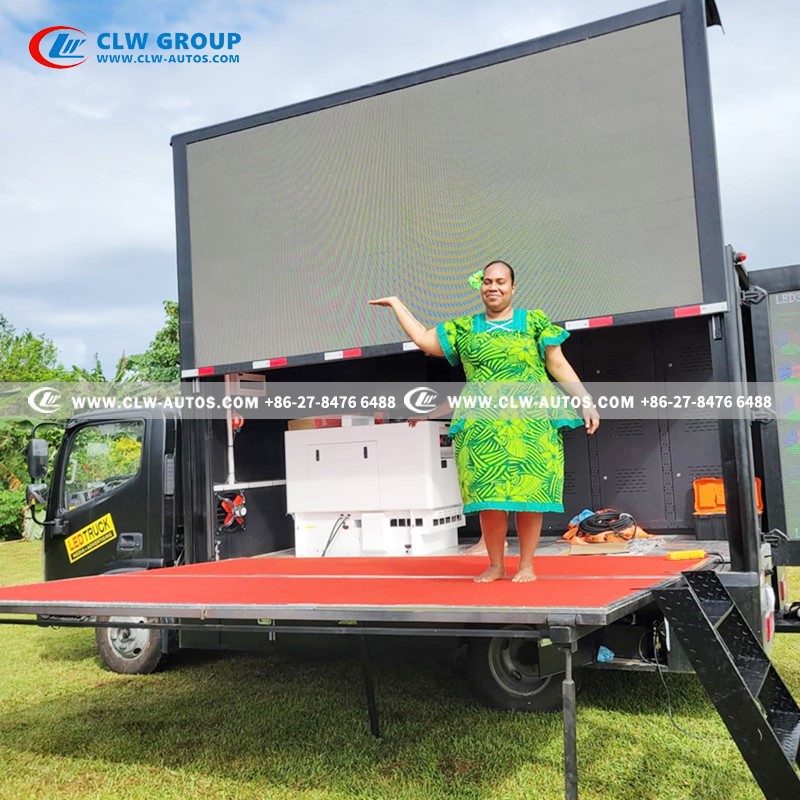

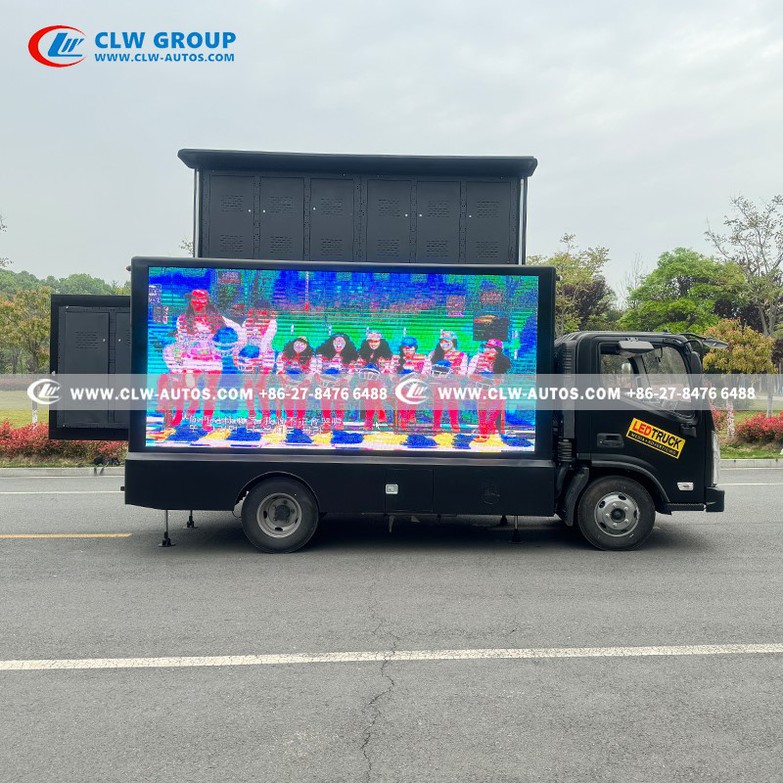

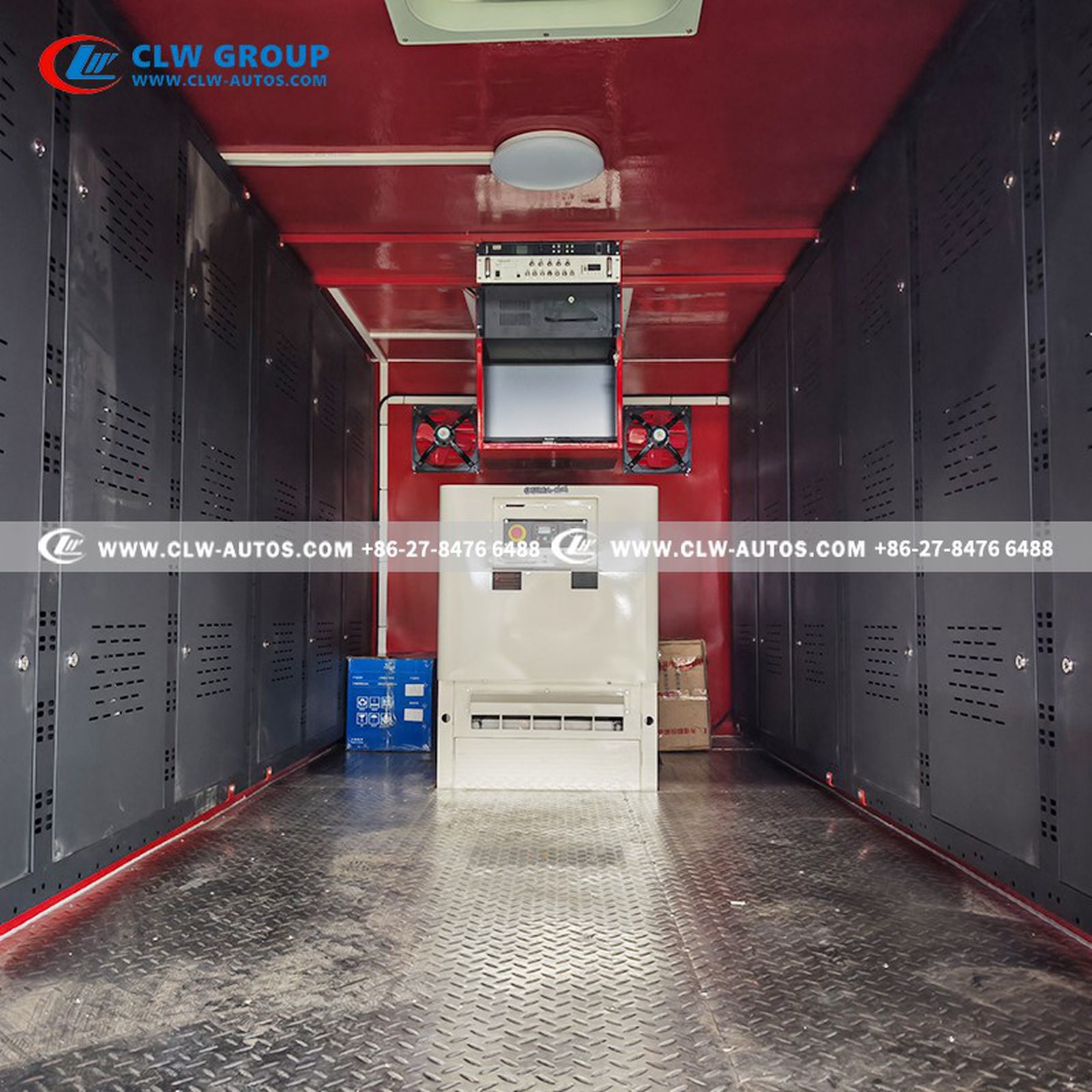

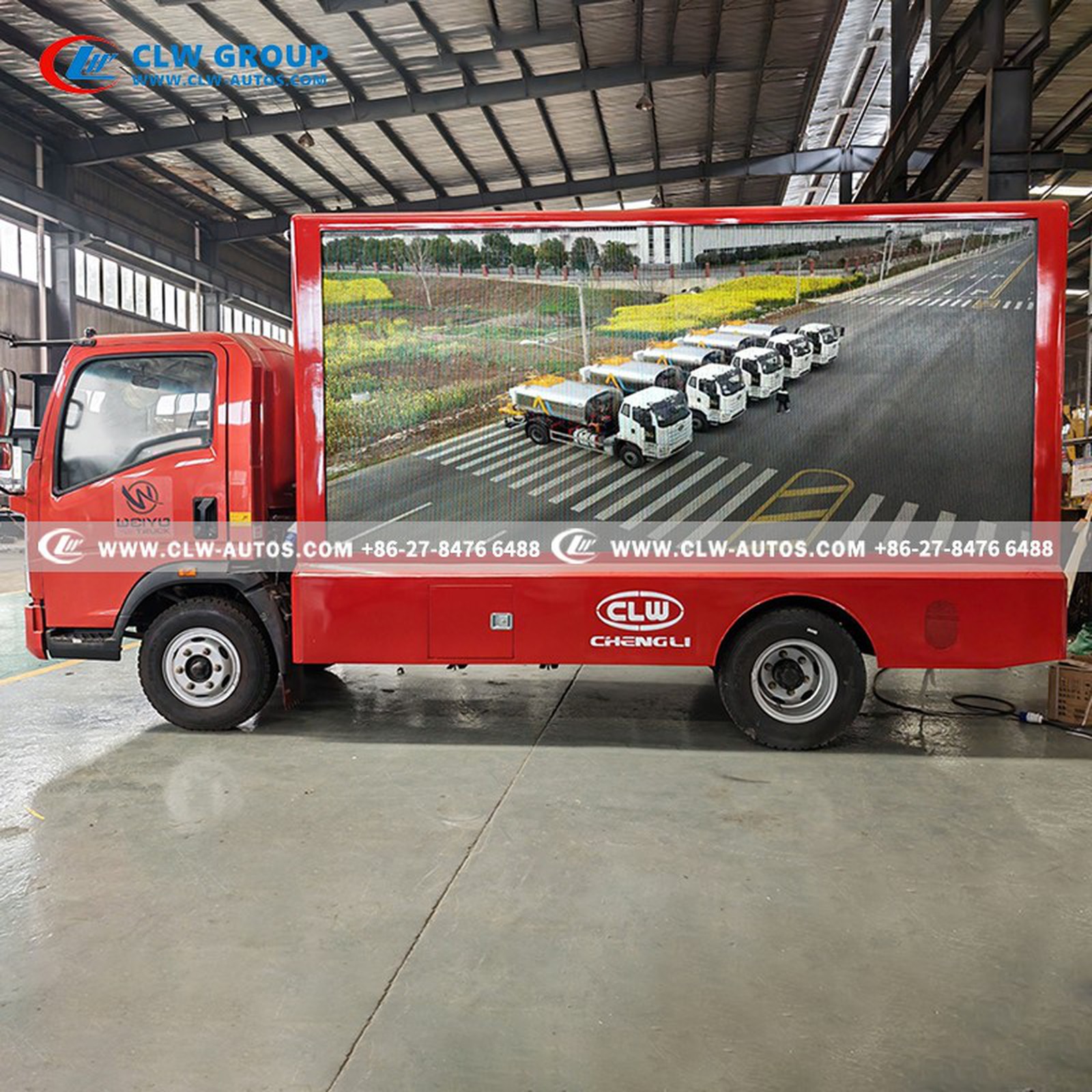

Reference photo
Products Parameters
| HOWO P3 Led Advertising truck | ||||
|
Part I Truck chassis |
||||
|
Chassis |
Brand |
SINOTRUK HOWO |
||
| Model | ZZ1047D3415C145 | |||
|
Curb weight(kg) |
4650 kg |
|||
|
Wheelbase(mm) |
3300 mm |
|||
|
Dimensions(mm)(Whole truck) |
5995×2350×3300 mm |
|||
|
Front/Rear axle loading(kg) |
2400/4200 kg |
|||
|
Max. driving speed(km/h) |
90 km/h |
|||
|
Brake |
Air brake |
|||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|||
|
Tire |
Quantity |
6pcs with one spare tire |
||
|
Specifications |
7.50R16 |
|||
|
Transmission |
Manual type, WLY6TS55C, 6 Forwards and 1 reverse |
|||
|

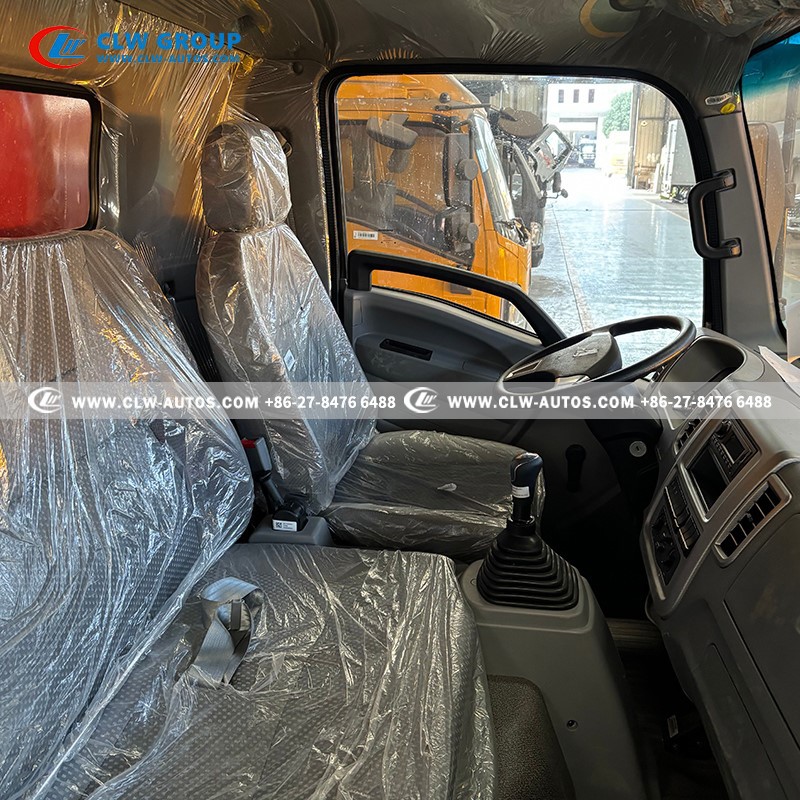

Cabin |
2080 cabin, single cabin, left hand driving, It can accommodate two people. With Air conditioner. With air deflector. |
|||
|
Engine |
Model |
YN4102QBZL |
||
|
Fuel type |
Diesel |
|||
|
Displacement(ml) |
3.76L |
|||
|
Power(kw) |
85kw |
|||
|
Horsepower(HP) |
116HP |
|||
|
Emission standard |
Euro III |
|||
|
Fuel tank |
120L iron fuel tank |
|||
|
Upper & Equipment |
||||
|
LED Advertising Screen System |

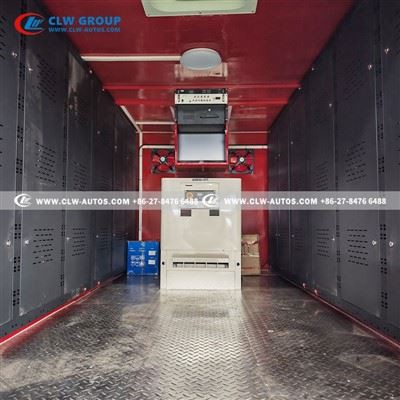

4. Internal and external electrical distribution box; 5. Circulating ventilation and cooling systems; 6. One unit 15 KW China famous brand silent diesel generator set 7. One set industrial computer with control system,sound system included 4 pieces 60W loudspeaker; 8. Waterproof box 4pcs, 360W amplifier 1pc, Control Panel 1pc; 9. Landing leg 4 pcs 10. Aluminum patterned floor. |
|||
|
Remarks |
|
|||
Products details

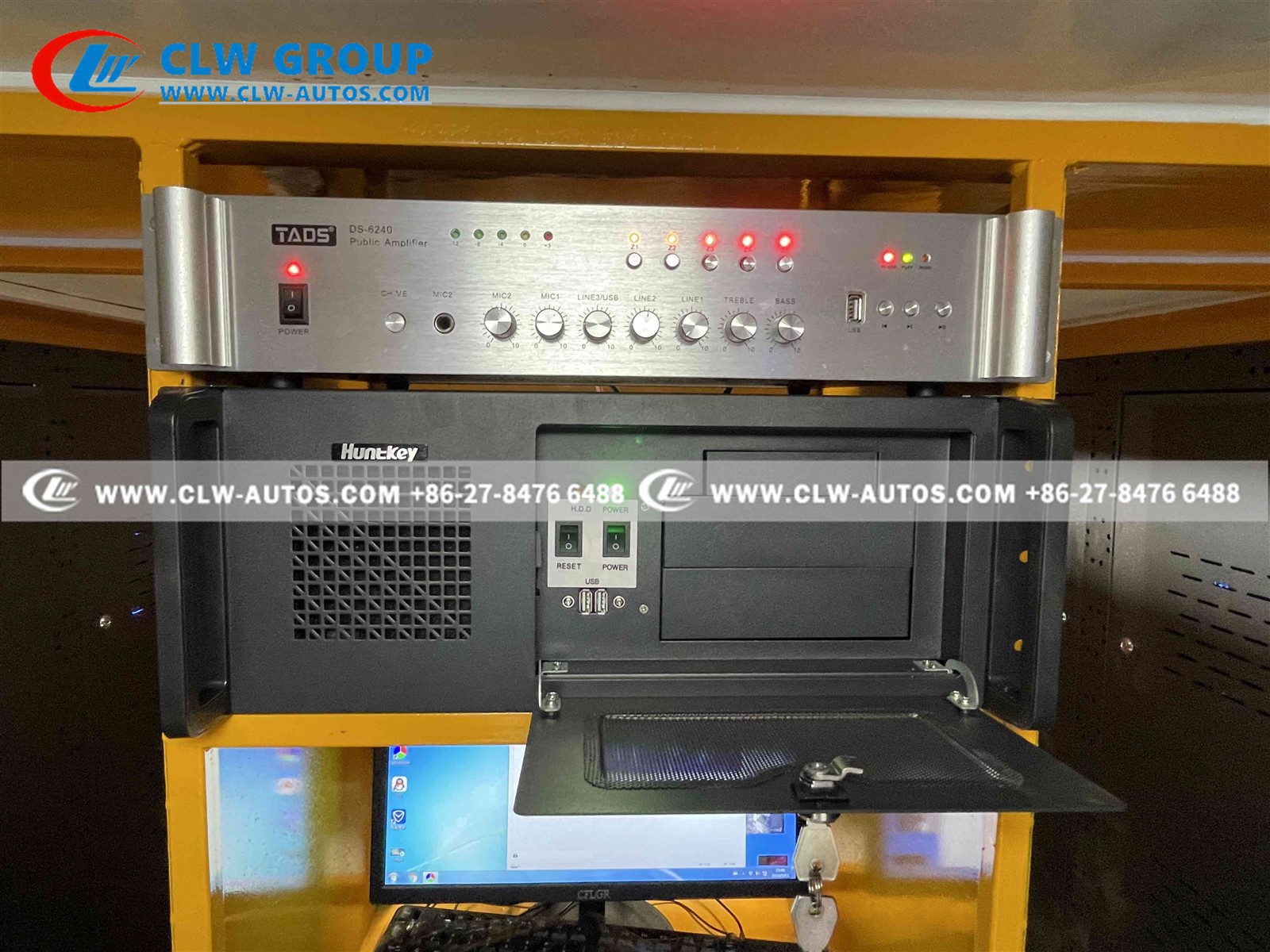

Public Amplifer
Volume adjustment, with Microphone interface
Industrial Computer

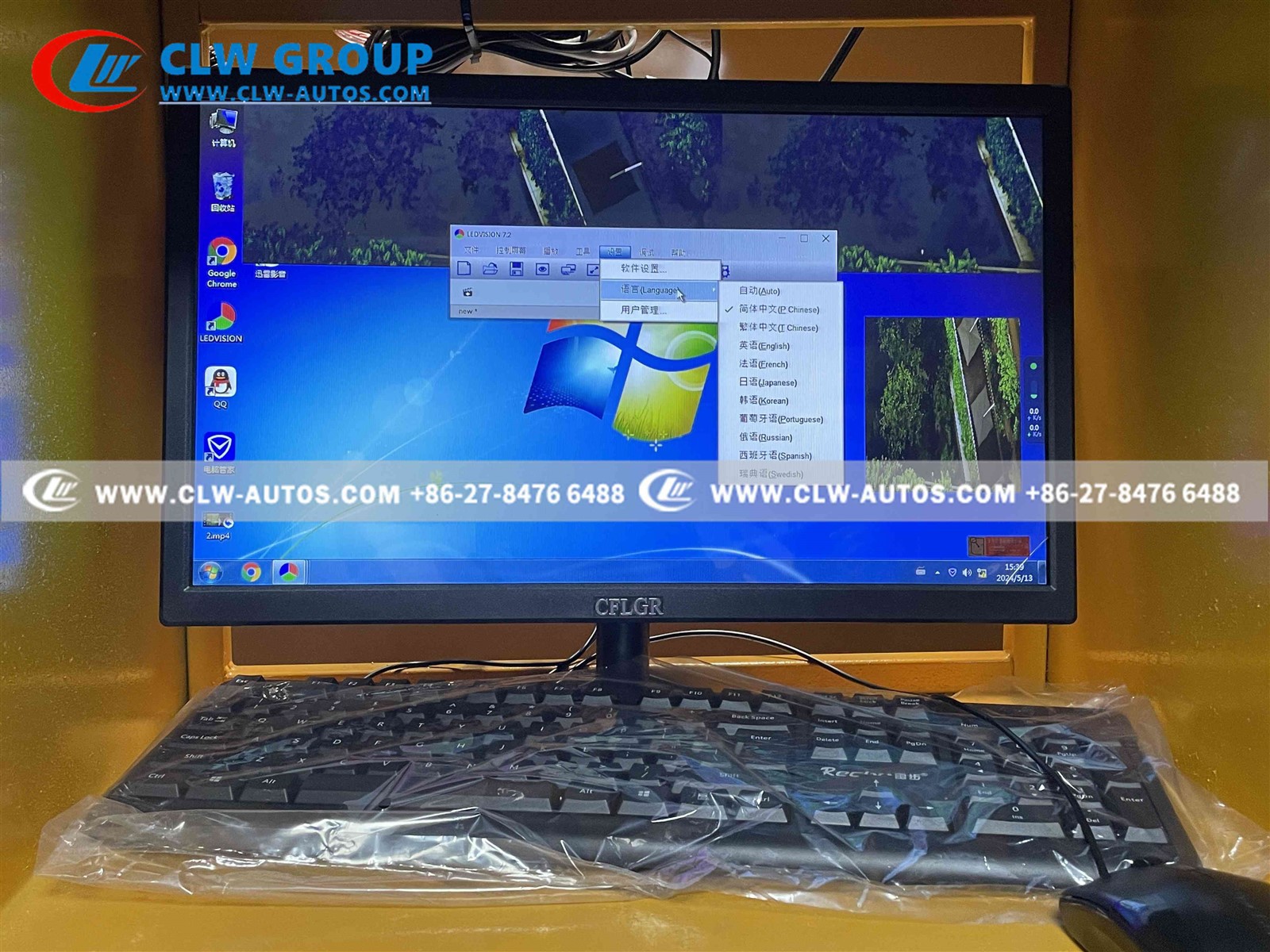

LED Control Software: LEDVISION
The operation interface of LEDVISION support different languages: Chinese, English, French, Japanese, Korean, Portuguese, Russian, Spanish, Swedish.

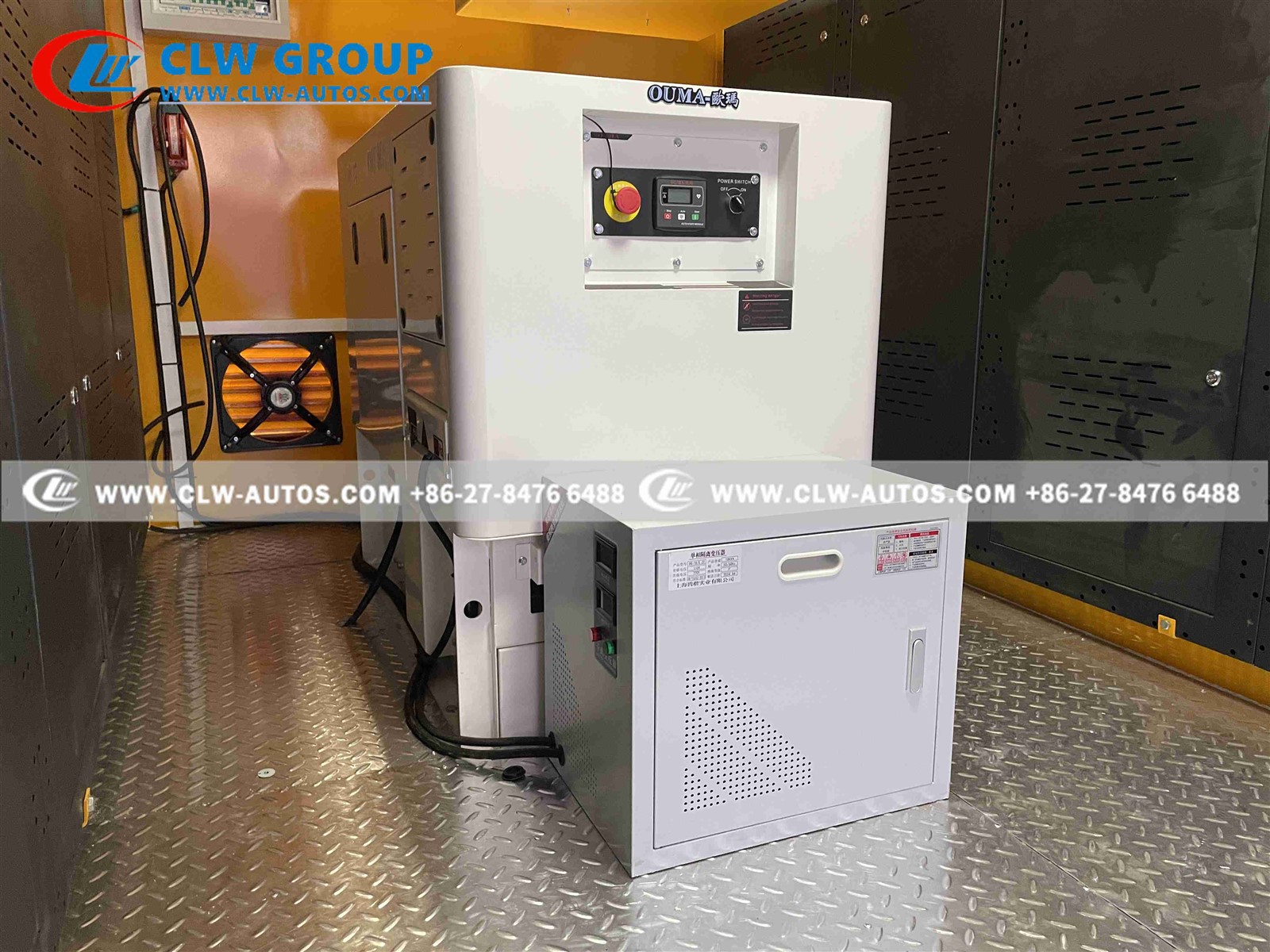

electric Generator And transformer
China famous brand OUMA 15KW diesel electric generator with single-phase isolating transformer, supply power to the LED screen when driving.

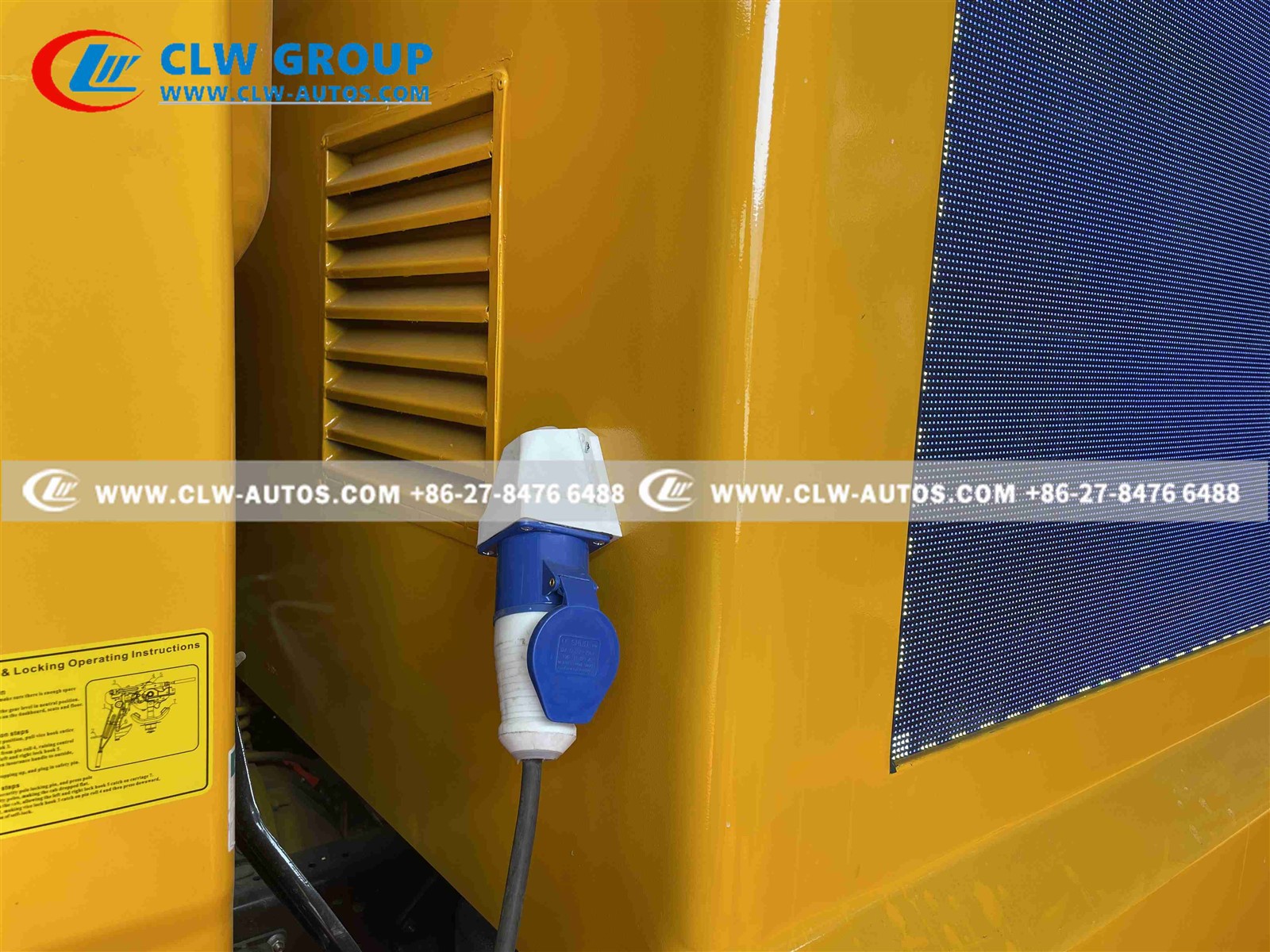

Household Power Supply
LED screens can be powered by household electricity when parking.

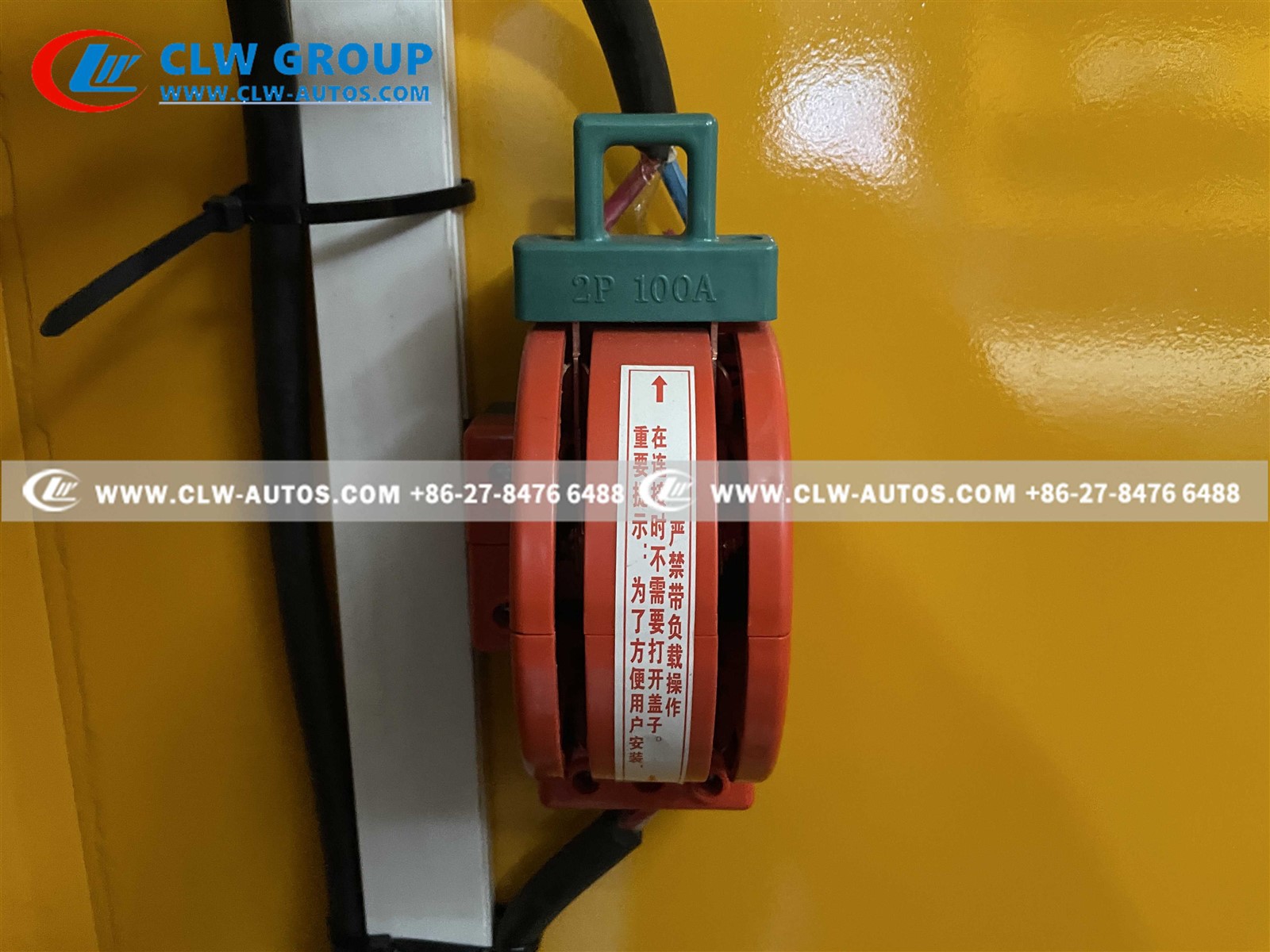

Generator and Domestic power switch

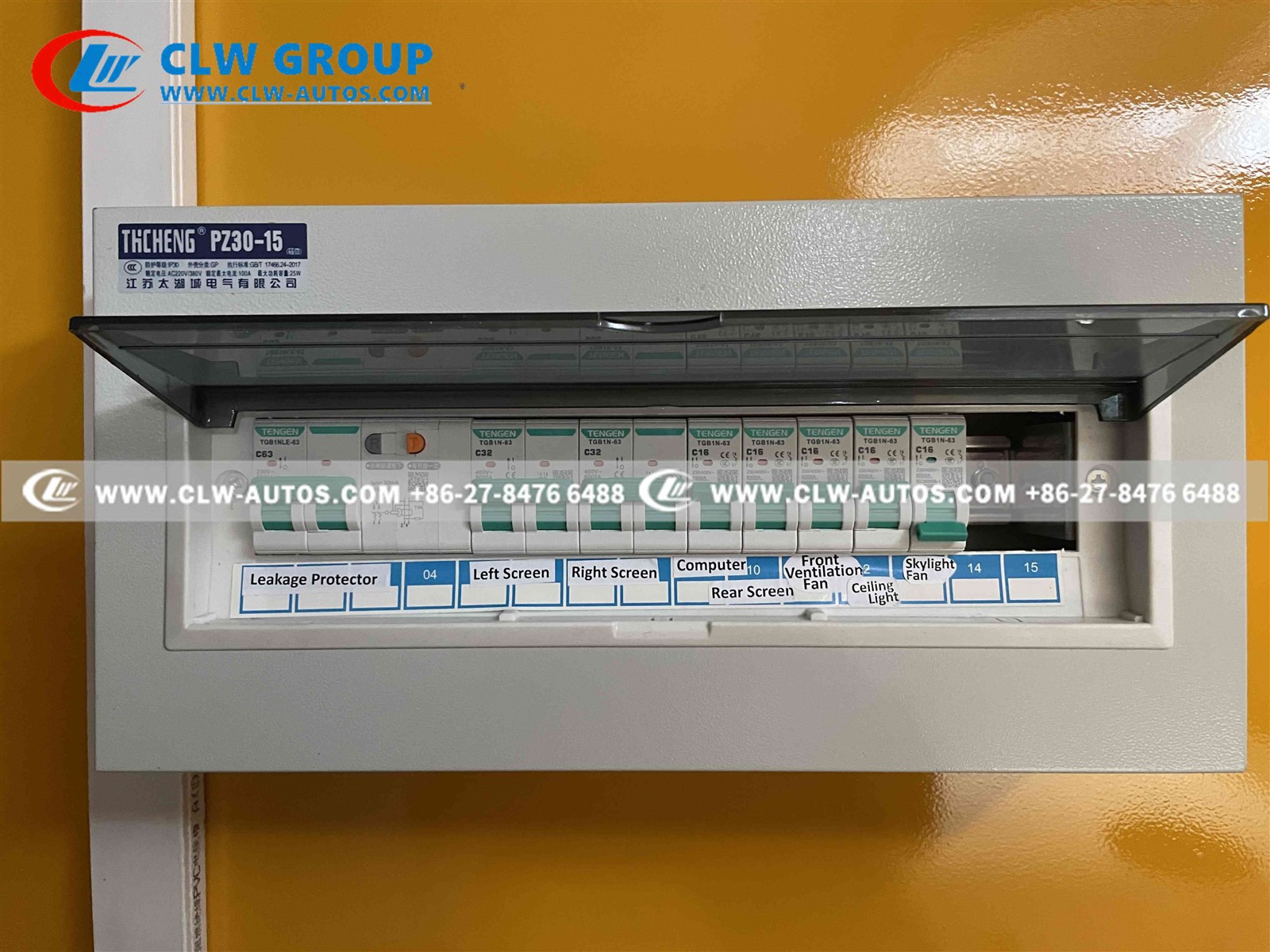

Electric Control Box

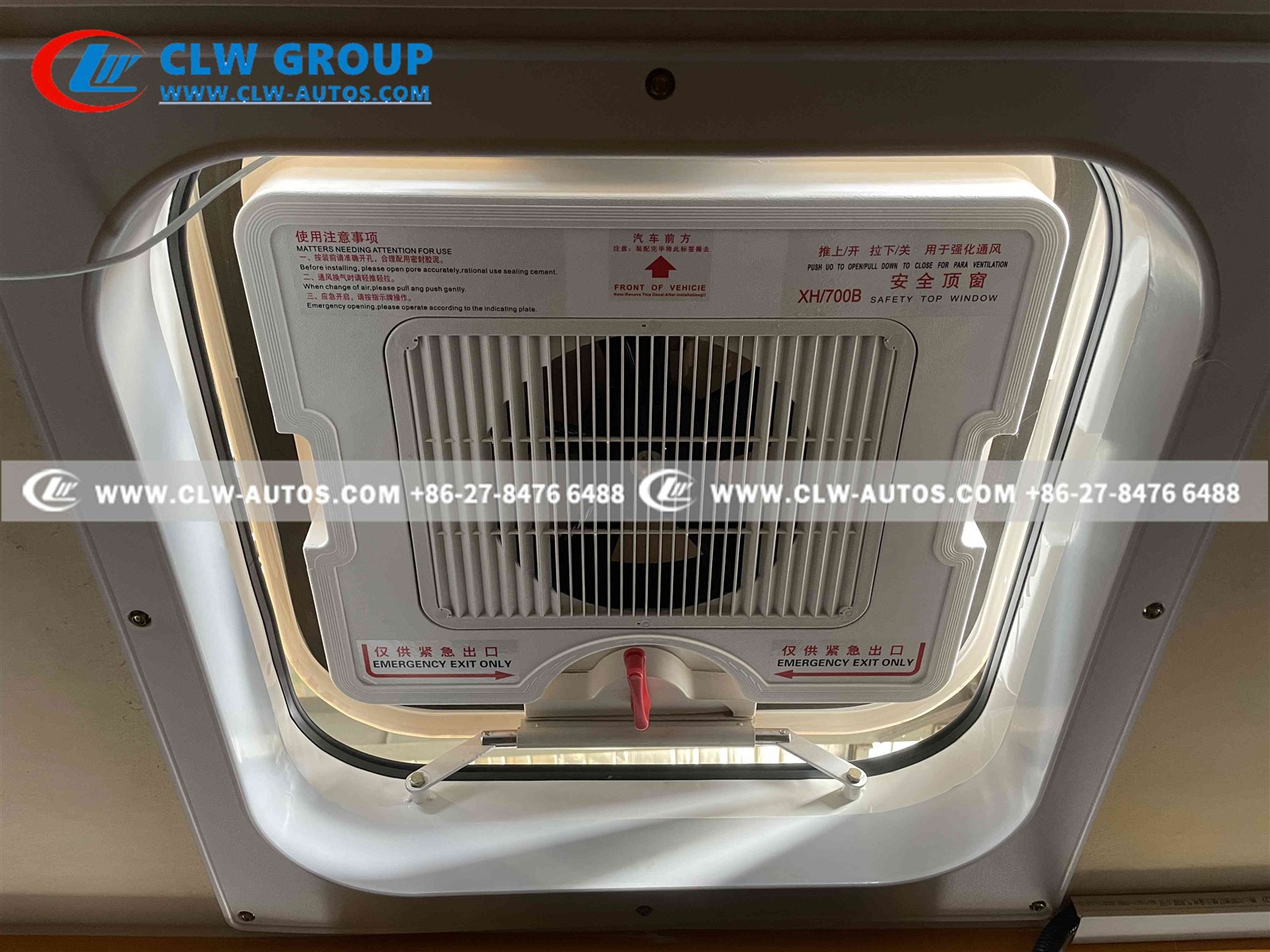

Ventilation Fan And Emergency Exit

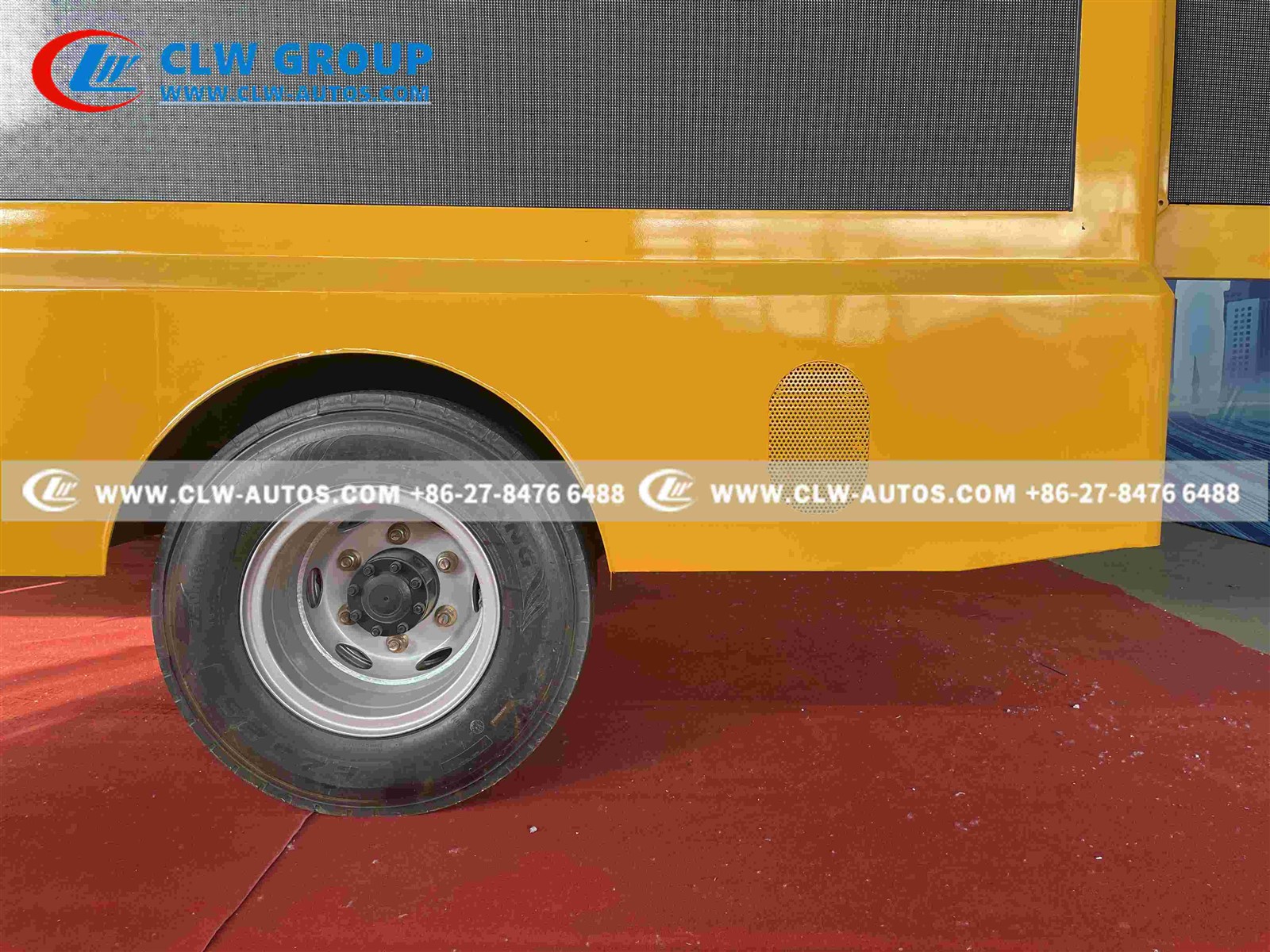

Waterproof Speaker
4 units 40W speaker intergrated in the van body.

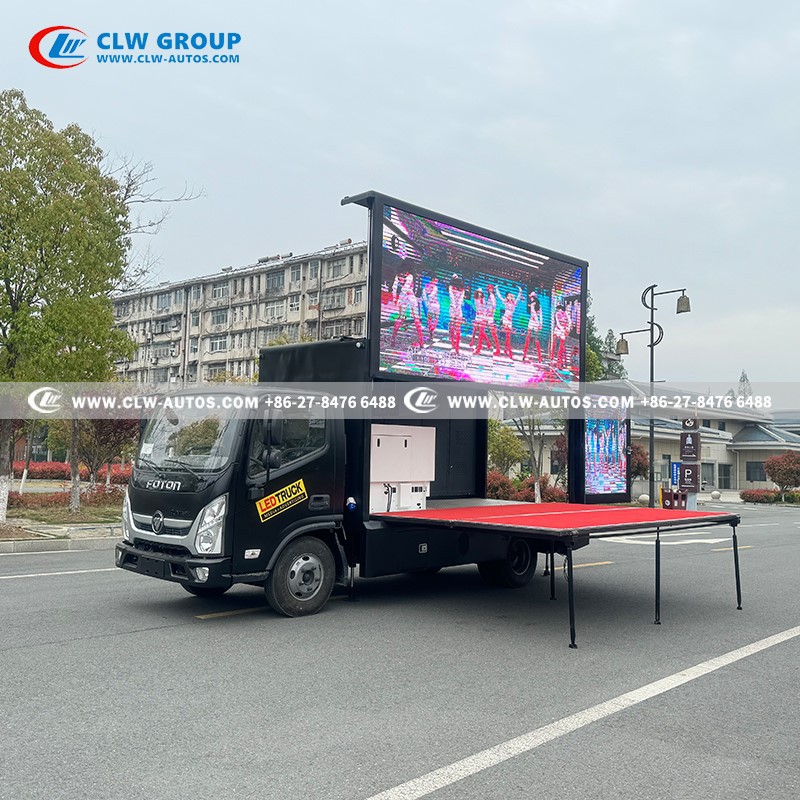

Sucessful Case
As a leading manufacturer of special-purpose vehicles with 20+ years of experience, CLW Group ensures strict quality control, customizable configurations, and global after-sales support.
