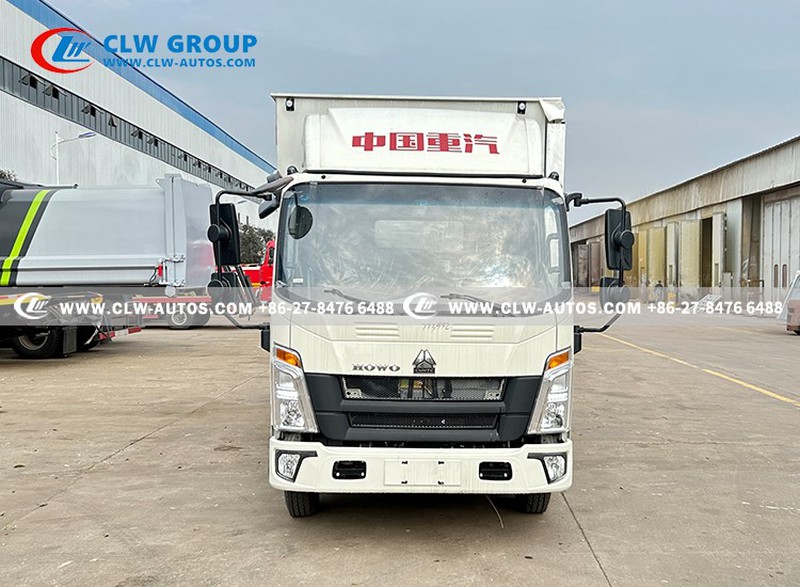

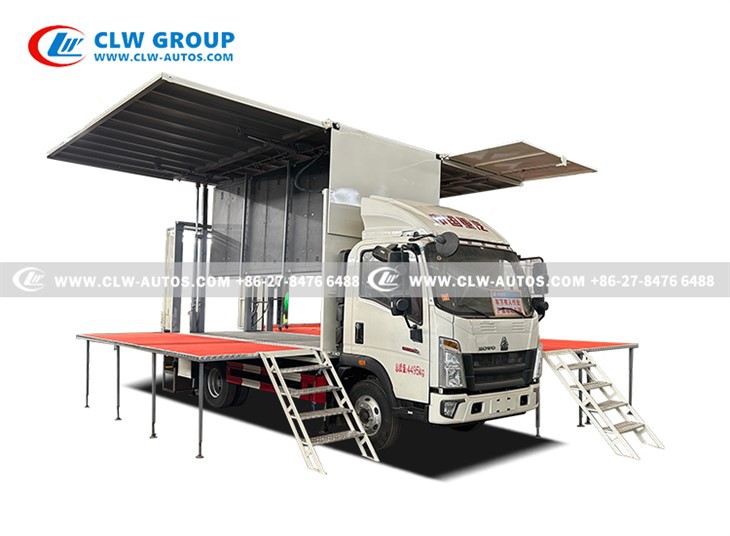

4.2m Hydraulic LED Mobile Stage Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4.2m hydraulic led mobile stage truck in China. If you're going to buy high quality 4.2m hydraulic led mobile stage truck, welcome to get more information from our factory. For price consultation, contact us.





4.2m Hydraulic Mobile Stage Truck--Integrated Professional Mobile Performance & Promotional Solution





We are professional Special Truck in China since 2004 | Brand new truck factory price for sale



Quick communication, please contact Yang
Email: info@clw-autos.com
Wechat/WhatsApp: +86 199 4767 5585





This 4.2m hydraulic mobile stage truck features an integrated design that combines a professional stage, LED display system, audio equipment, and lighting controls into one cohesive unit. Constructed with a rectangular tube frame structure and clad with 1.2mm cold-rolled steel panels, it includes dual-side hydraulic expansion and four independent hydraulic outriggers, enabling rapid transformation from transport to performance mode. Standard configuration includes an 11.79㎡ LED display, 1300W professional audio system, and programmable lighting equipment, making it suitable for various outdoor events and commercial applications.



Core Advantages

Integrated System Design: Stage structure, audio, lighting, and display systems are designed as a unified whole, minimizing compatibility issues

Rapid Deployment Capability: Hydraulic system enables stage setup within 10 minutes, improving operational efficiency

Professional Performance Standards: Industrial-grade equipment meets professional performance specifications

All-Weather Adaptability: Anti-rust treatment and professional vehicle paint provide excellent environmental resistance



Technical Highlights

Main stage dimensions: 4×3 meters, expandable to 7.4 meters width

LED display resolution: 4mm pixel pitch, 11.79㎡ display area

Audio system: American FONY brand, 1300W rated power

Lighting system: 4×260W beam lights + 24×LED par lights

Control system: 256-channel lighting console + 12-channel mixer



Application Areas

Government cultural promotion and community performances

Corporate product launches and brand roadshows

Commercial promotions and shopping mall events

Tourist attraction regular performances

Festival celebrations and community cultural activities





Item	Specifications
Manufacturer's Standard Superstructure
Body Dimensions	4200 × 2200 × 2300 mm

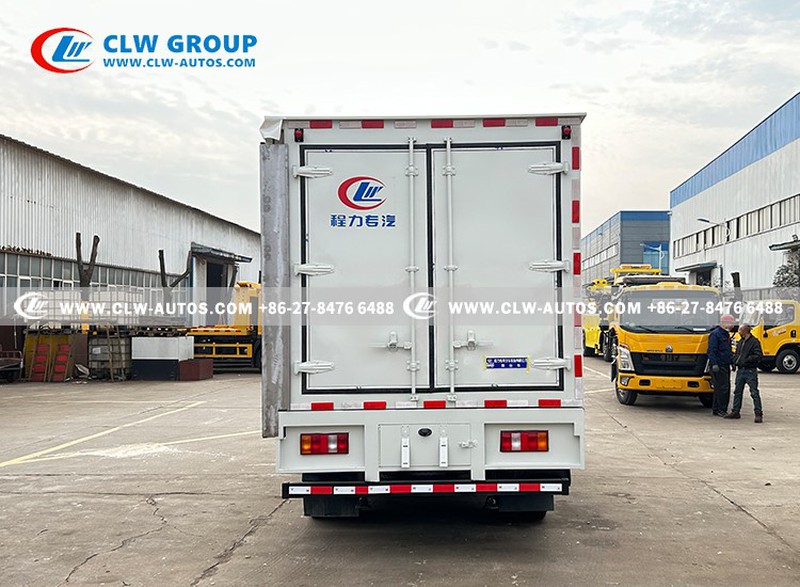

Deployment Method	Hydraulic unfolding on both sides; hydraulic lifting roof; rear double doors
Body Material	Rectangular tube frame; outer cladding with 1.2mm cold-rolled steel sheet; floor with 1.5mm anti-slip patterned plate; base anti-rust paint; exterior white special vehicle paint; body gray paint
Stage Material	Rectangular tube grid structure; 1.2mm bamboo plywood base; covered with red carpet

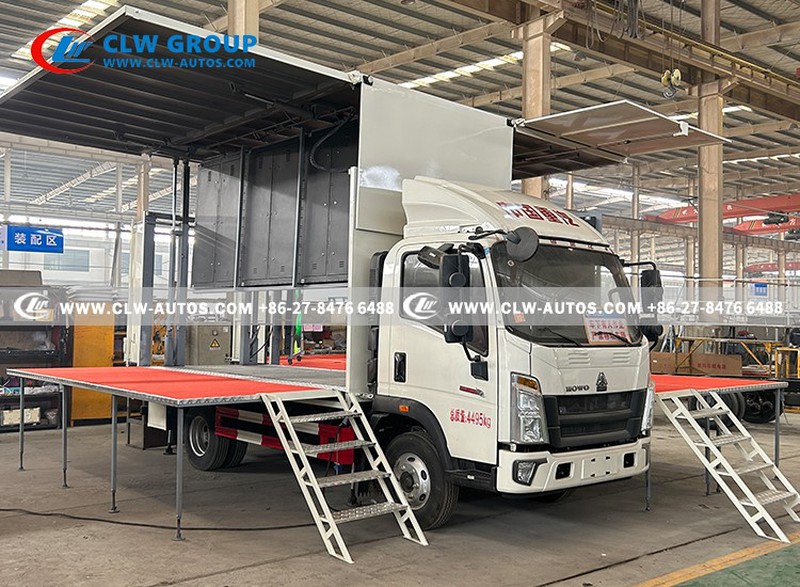

Stage Dimensions	Main stage: 4000 × 3000 mm; front/rear manually foldable extensions: 1700mm; total stage width: 7400mm
	Backstage: 4000 × 1700 mm (for dressing, makeup, equipment operation)
Ladders	Iron ladders, quantity: 2
Toolbox	Iron toolbox, quantity: 1
Hydraulic Outriggers	Hydraulic outriggers at four corners, independently controlled
Hydraulic Operation	Power take-off (PTO) driven; manual hydraulic lever control
LED Display Screen	Brand: Haijia Cailiang Pixel pitch: 4mm Type: Indoor full-color Module size: 256 × 256mm

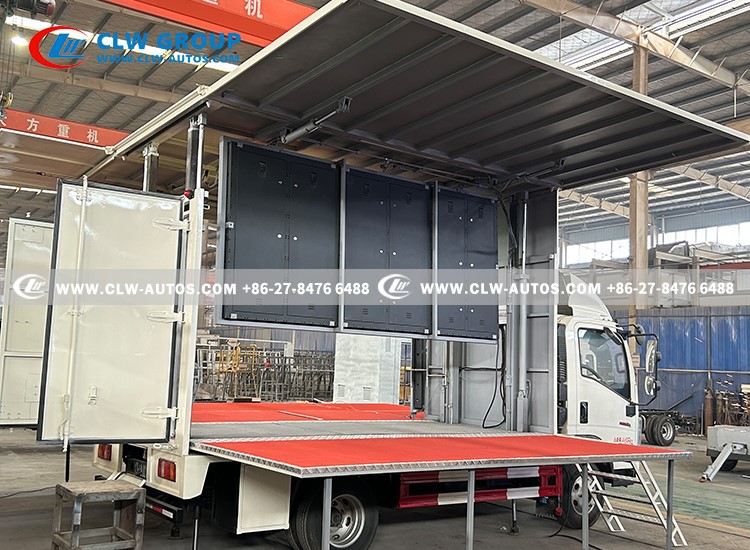

	Configuration: One main screen + two side screens; top 768mm section manually foldable
	Main screen: 3072 × 2304 mm; Side screens: 1024 × 2304 mm (2 pcs); Total screen area: 11.79 m²

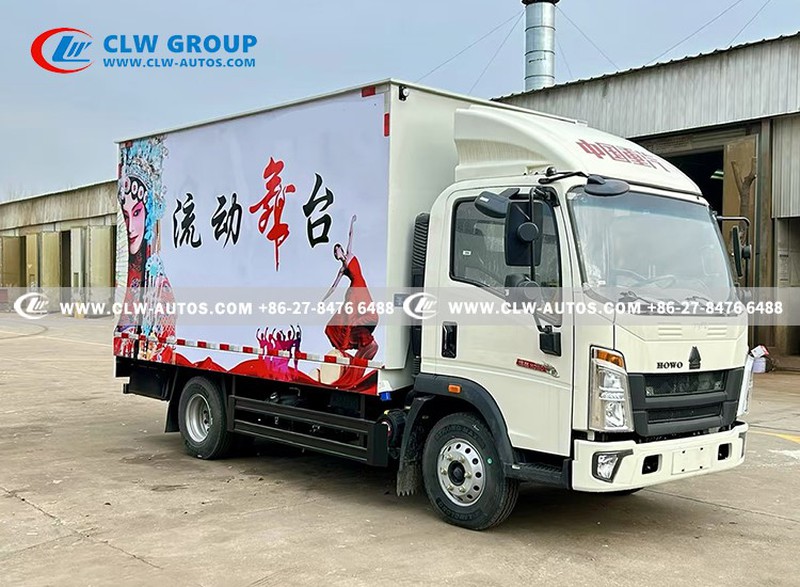

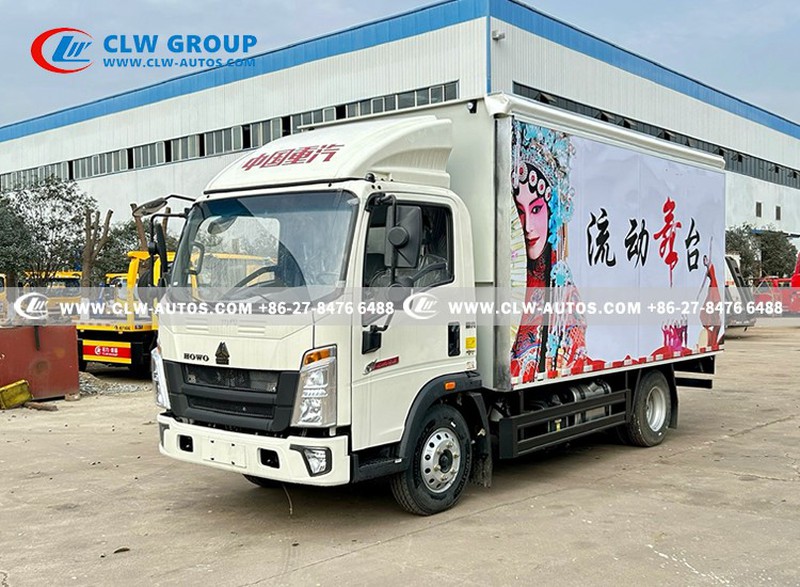

Vehicle Decals	Outdoor adhesive decals on both sides (design provided by customer)
External Electrical Equipment (Optional)
Control Equipment	Laptop, Lenovo I5
Audio System	Main speakers: 2 pcs; Brand: FONY (USA); Dual 15″; Front-ported; AES rated power: 1300W; peak power: 5200W
	Main amplifier: 1 pc; Brand: FONY; Rated bridged power (8Ω): 2700W;
	Monitor speakers: 2 pcs; Brand: FONY; Single 12″; Rated bridged power (8Ω): 2700W
	Monitor amplifier: 1 pc; Brand: FONY; Rated bridged power (8Ω): 1300W
	Mixer: 1 pc; Brand: FONY; 12 channels; USB/Bluetooth; 32 effect modes; ≤40W power
	Feedback suppressor: 1 pc; Brand: FONY; Auto feedback suppression; Input: 220V±10%, 50Hz
	Wireless microphones: 2 pcs; Brand: FONY; Battery: 2×AA alkaline
Power Sequencer	1 pc Brand: FONY; 8 outputs; standard 3-pin sockets; Input: AC220V/50Hz; Total output: 6600W; Single output: 2200W
Lighting Equipment	Beam lights: 4 pcs; Voltage: AC90V-240V; Power: 260W; Source: 260W; Dimming: 0-100%; Zoom: electronic; Strobe: dual-blade; Optics: high-precision lens; Pattern: 1 fixed pattern wheel (13 patterns + white); Color: 1 fixed color wheel (13 colors + white); Prism: two prism effects combinable; Pan: 540°; Tilt: 270°; Control: DMX512/auto/sound; Par lights: 24 pcs; 54×3W LED; Voltage: AC110-240V; Power: 200W; Beam angle: 45°/60°; LED work lights: 4 pcs; 100W; White light Lighting console: 1 pc; 256 channels
Flight Cases	Control console case: 1 pc (custom); Main speaker cases: 2 pcs (custom); Monitor speaker cases: 2 pcs (custom)





Q: How many operators needed?
A: 2-3 people for standard operation.



Q: Site requirements?
A: Level paved surface, minimum 12×8 meter area.



Q: Power solution?
A: Can connect to grid or use generator (optional).



Q: Training provided?
A: Complete operation training and technical guidance included.
