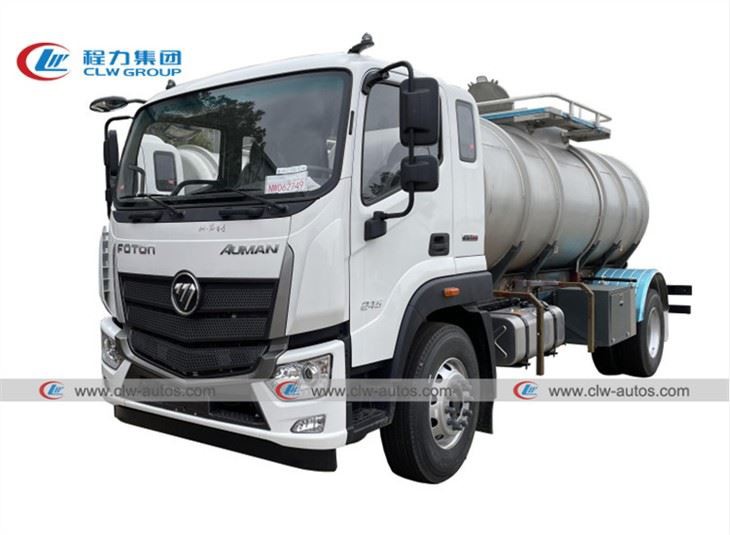

FOTON 10Tons Potable Drinking Water Transport Tank Truck

FOTON Potable Drinking Water Transport Tank Truck Tank Material: Food Grade Stainless Steel 304. Loading Capacity: 10000Liters, 10Tons, 10CBM

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton 10tons potable drinking water transport tank truck in China. If you're going to buy high quality foton 10tons potable drinking water transport tank truck, welcome to get more information from our factory. For price consultation, contact us.

Goods Description:

Potable Water Truck equipped on FOTON Auman Chassis, 270HP Power Engine, 11.00R20 Tire
With Gasoline Pump
The chassis power is sufficient,
The tank body is made of food-grade stainless steel, which is used for drinking water of residents.
The tank body is fully automatic welded, which is beautiful and firm. The strengthening hoop on the tank body increases the shipping strength of the tank body.
The vehicle has a beautiful appearance and strong practicability. The cab has a sleeper, which is also suitable for long-distance transportation.

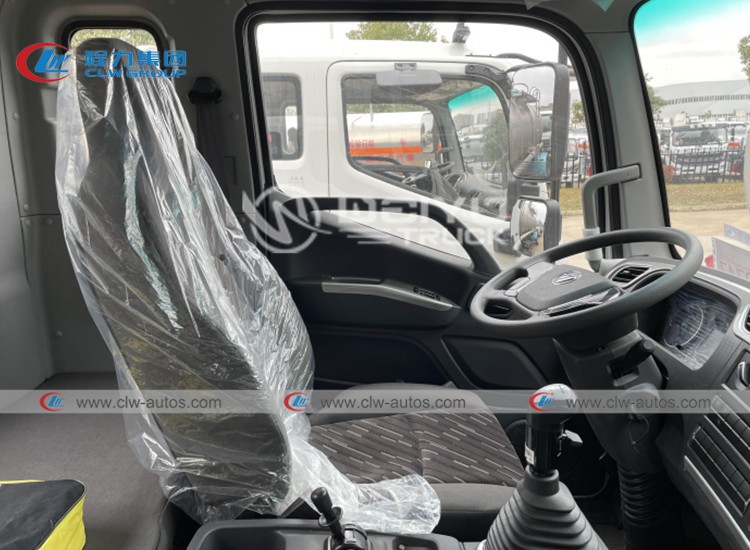

The driver's gas spring seat increases the comfort of the driver's cabin and reduces the fatigue of the driver's cabin.
With air condition in the cabin.

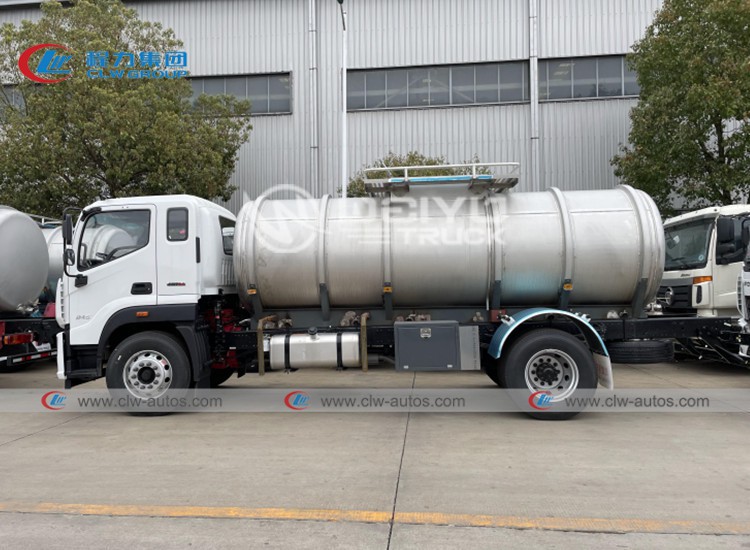

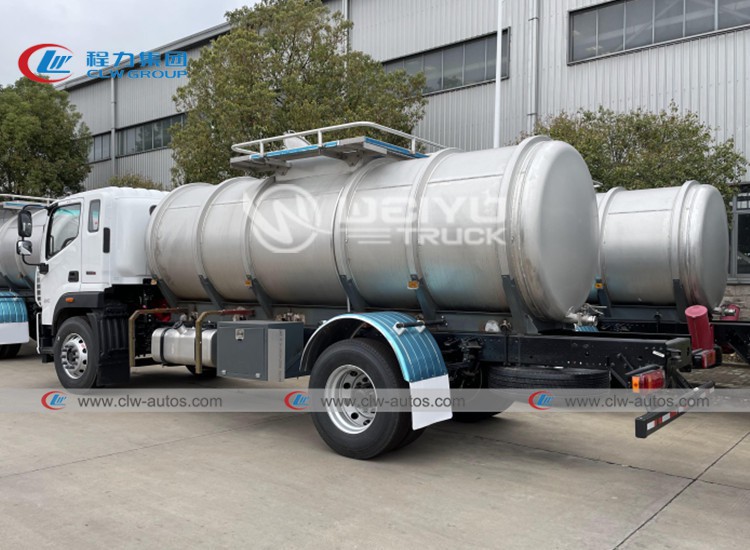

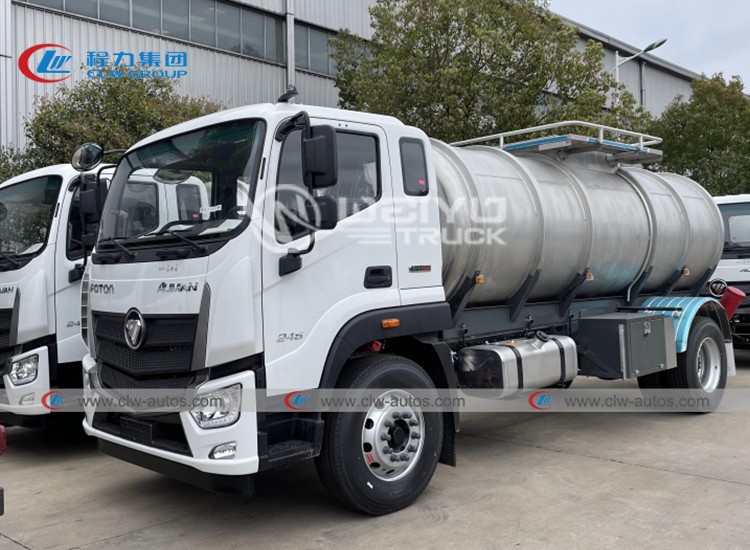

More Pictures for FOTON 10Tons Potable Drinking Water Transport Tank Truck:

10_

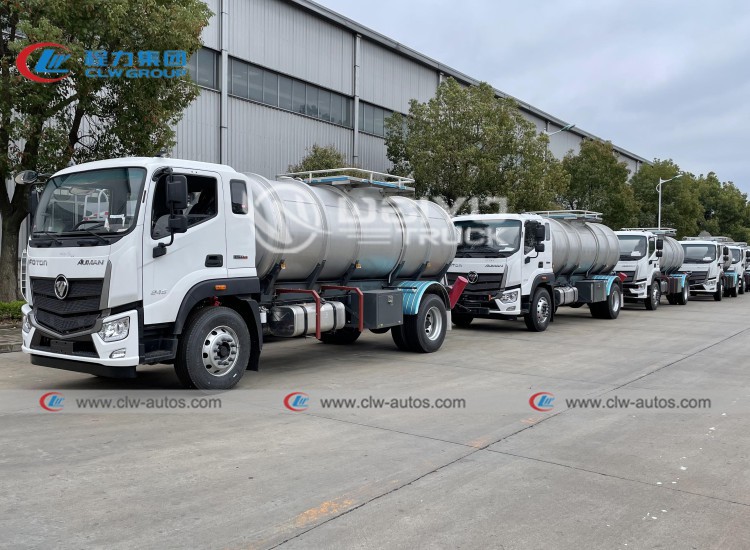

11_

Parameters for FOTON 10Tons Potable Drinking Water Transport Tank Truck:

Detailed specifications For FOTON AUMAN10000liters Potable water Transport Tank Truck
Chassis parameters
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	8310×2500×3200
	Drive Type	4×2
	Wheel Base(mm)	4600
	Wheel Track(Front/Rear)mm	2010/1865
Weight data	Tare Weight(kg)	7004
	Capacity(kg)	10866
	Persons in cab	3
	Total weight(kg)	18000
Whole vehicle main performance	Max.driving speed(km/h)	89
	Max.climbing degree(%)	38
Engine	Model	WP10.270E32
	Displacement(L)	9.726
	Rated Power(kw/rpm)	199/270(2200)
	Max torque(N.m/rpm)	1100(1200-1600)
Gearbox	Model No.	9JS119T-B(Q)
Clutch	Type	Reinforced diaphragm clutch, diameter 430mm
Rear Axle	Type/Mainreducetion ratio	13T/4.8
Suspension	Front suspension/Leaf spring number	9
	Rear suspension/Leaf spring number	9+6
Steering Gear		AM75L
Brake system	Service brake	dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
	Auxiliary brake	engine exhaust valve brake
Wheels and tyre size		6+1/11.00R20
Fuel Tank(L)		380
Cabin		Manual, cab lift, airbag seat, manual rearview mirror glass lifter, air conditioner
Upload parameters
A.TANK BARREL
1. Tank Profile	Round shape
2. Test pressure	Hydrostatic test to5 psi (35 Kpa) on each compartment.

3. Working pressure	Atmospheric.
4. Capacity	10000L plus 3~5% ullage.
5. Compartments	Single compartment.
6. Interior weld finish	Not polished or grinded (W-0).
7. Exterior weld finish	Not polished or grinded (W-0).
8. Shell material	Stainless steel 304 2B.
a) Top	3.7mm nominal.
b) Sides	3.7mm nominal.
c) Bottom	3.7mm nominal.
9. End Plate	Stainless steel 304 2B, 3.7mm nominal.
	All single heads dished and flanged.
10. Bulkhead	Nil.
11. Baffle / Surge Heads	Stainless steel 304 2B, 3.7mm nominal.
	Dished with flap.
	2 pcs
12. Spill molding and rollover protection	Stainless steel around the dome with drain hose.
13. Spill molding lids	Nil.
14. Outer rings	304-2B stainless steel, 60mm height, 3mm nominal, continuously welded.

15. Frame	Carbon steel independent.
16. Loaders and brackets	Carbon steel.

15. Isolation	Nil.
16. Exterior lining	Nil.
B. TANK FITTINGS AND PIPING

1. Manholes	20" diameter with 6 stainless steel wing nuts, located at the top center
2. Pressure Vacuum Vent	Two per compartment. 6~12 kPa pressure, 2~4 kPa vacuum.
	Chinese Brand
3.Foot valve	Nil.

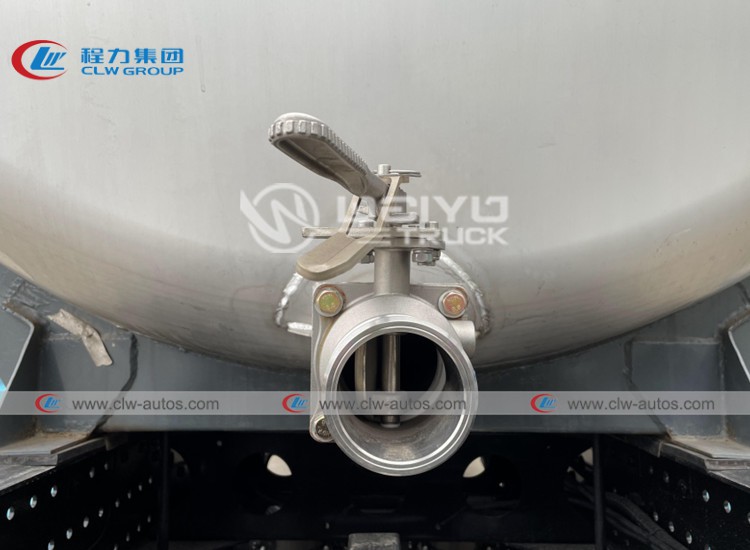

4 Discharge system	3" diameter discharge with 3" diameter butterfly valve, 3" stainless steel male camlock coupling and quick cap, located at the back of the tank.

5. Piping	Nil.
6. Thermometer	Nil.
7. Steam trace	Nil.
8. Overfill Prevention	Nil.
9. Tow Hook	Nil.
10. Product Indicators	Nil.

C. ACCESSORIES

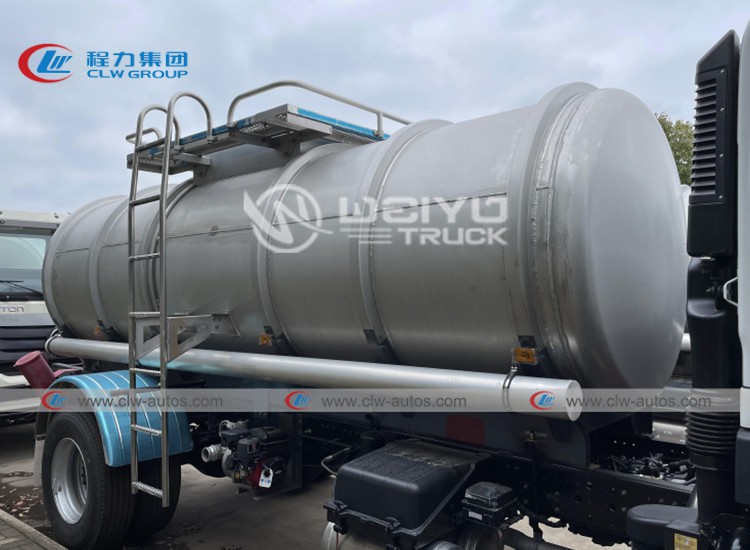

1. Ladder	Stainless steel, 400mm wide, with non skid rungs and lateral handles, mounted at right middle of tanker.
2. Walkway	Extruded aluminium around dome.
3. Hose Carries	1 no, hose carrier (round tubes) to fit Ø159 x 6meter (236") hose close type complete with brackets to be installed at the right side.
4. Hose	Firemen type flexible discharge hoses, 30m 2.5" for discharge. and flexible plastics suction hoses, 5.9m 3"for suction, 3" female camlock coupling at both ends.
5. Motor Pump	BRIGGS & STRATTON Gasoline motor , 4 stroke motor, fuel tank capacity 4.0 liters of gasoline, WB30 pump with a 3" input and outlet diameter, 7m suction head, discharge capacity 900L/min (238Gal/min) pump head pressure 33 m, weight 30kg.
6. Toolbox	Nil.
7. Rear Bumper	Aluminium member to accommodate light assembly and number plate to cover full width of the tank.
	Steel bumper with ground clearance 500mm approx.
8. Hazchem Plate	Nil.
9. Mudguard	Aluminum over suspension and the upper coupler.
	Mud flaps rigid plastic at the rear.
10. Lights & Wiring	24V. ISO 1185 7 pin socket.
	Harness: oil and vapour proof cable.
	Front: nil.
	Side:
	Mark lamp 3Pcs/side, LED.
	Reflector 3Pcs/side
	Turning lamp 1Pcs/side, LED.
	Rear Bump:
	Reverse lamp R-L 2Pcs, LED.
	Turning lamp R-L 2Pcs, LED.
	Brake lamp R-L 2Pcs, LED.
	Register plate light
	Rear top: nil.
	Brand of Wiring:
11. Reverse alarm	Nil.
12. Connector Box	At the center in the front dishend
13. Sticker	50mm wide red-white reflective sticker, mounted at both sides and rear bump.
14. Hand rail	Nil.
15. Fire Extinguisher	8kg , 2Pcs.
	Carbon steel extinguisher holder located on the landing gear on the curb side.
16. Drains hose	water drains hose 2", installed at the back of spill molding

17. Wheel chocks	Nil.
18. Traffic cone	Nil.
19. Spare wheel bracket	1set
	Carbon steel, basket type, located behind the landing gear.
20. Painting	Polyurethane medium Aluminium gray, applied over epoxy primer on carbon steel elements
