ISUZU GIGA Potable Water Tanker

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga potable water tanker in China. If you're going to buy high quality isuzu giga potable water tanker, welcome to get more information from our factory. For price consultation, contact us.







 ISUZU GIGA 6x4 Stainless Steel Potable Water Tanker

with Sprinkler System







• This highly functional vehicle is built on a robust Isuzu GIGA 6x4 chassis featuring the spacious and durable VC61-grade cab.
• Powered by a reliable 380 horsepower engine compliant with stringent Euro 6 emission standards, it delivers both performance and environmental responsibility.
• The core of the truck is its high-capacity potable water tank, expertly crafted from certified SUS 304 stainless steel to ensure the highest quality and safety for transporting drinking water, meeting all relevant potable water standards.
• Integrated directly into the system is a dedicated sprinkler pump capable of delivering water at approximately 20 liters per minute (5.3 US GPM).
• The chassis configuration features a functional 3985 + 1370 mm wheelbase and comes equipped with essential safety systems including ABS (Anti-lock Braking System) and air-actuated parking brakes (Spring Brakes).

















1. Municipal Drinking Water Supply: Safe, reliable transport and distribution of potable water to communities, remote areas, or during infrastructure maintenance/shutdowns.
2. Emergency & Disaster Relief: Critical delivery of clean drinking water in areas affected by natural disasters, contamination events, or pipeline failures.
3. Construction Site Support: Providing potable water for worker welfare facilities (drinking, cooking, sanitation) and dust suppression on work areas using the sprinkler function.
4. Agricultural & Livestock Watering: Transporting water for irrigation in remote fields or providing clean drinking water for livestock.
5. Street Cleaning & Dust Control: Utilizing the integrated sprinkler system to clean urban streets, control dust on unpaved roads, or dampen surfaces.
6. Event & Facility Support: Supplying water for large events, campsites, parks, or industrial facilities.







Chassis Technical Specification
Chassis brand	ISUZU GIGA
Driving mode	6x4
Gross vehicle weight	25,000kg
Curb weight	5,000kg
Loading weight	20,000kg
Wheelbase	3985+1370mm
Cabin	ISUZU VC61 cabin; Left hand driving; With PTO control devise; Electrical doors and windows; With air conditioning; Power steering, central lock;
Engine	Engine brand	ISUZU, 6UZ1-TCG61
	Horsepower	380 hp
	Displacement	9.839 L
	Emission standard	Euro Ⅵ
Transmission	FAST, Manuel, 12 forward gears and 2 reverse
Clutch	Ф430
Front axle loading	7,500kg
Rear axle loading	13,000kg *2
Tyre	12R22.5 , 10 pieces with 1 spare tire
Max. Driving speed	89km/h
Brake system	ABS air brake off
Superstructure Parameters
Water tank volume	20,000 liters; 18,000 liters
Loading medium	Potable water
Water tank mterial	Stainless steel 316
Tank thickness	5mm, 6mm,7mm as requested

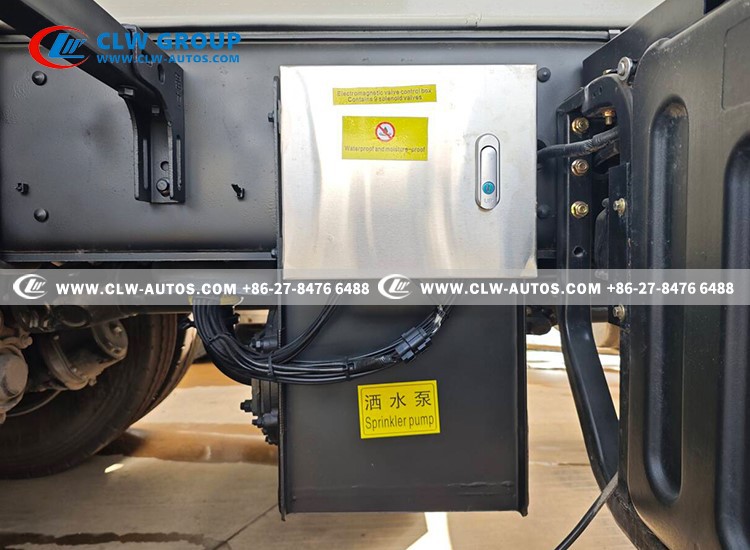

Water pump	Chinese famous sprinkler pump
Water flow rate	60m3/h
Sprinkling system	Suction height of truck pump ＞7m Full tank suction time ＜15 mins Sprinkling width of front/rear/side sprinkler ≥14m Range of water cannon ≥35m

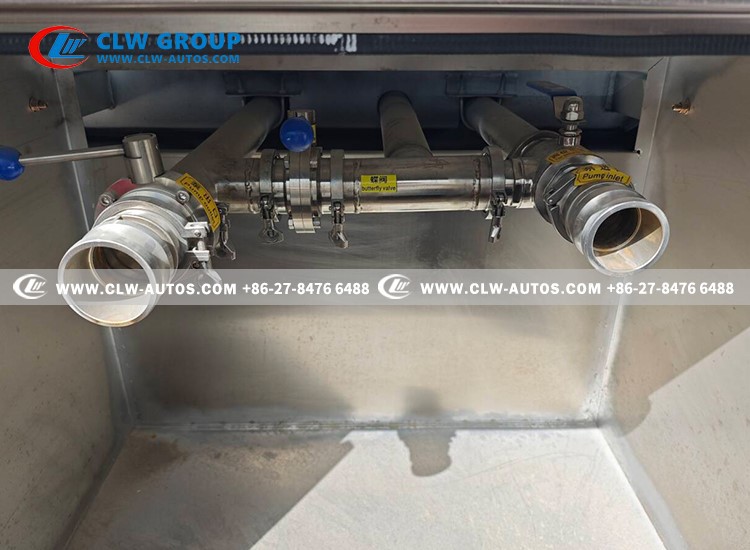

Other devices	Self-flow valve 1pc; Fire joint 1pc; Water pipe 2 pcs; DN450 manhole; Fence and ladder; Vice-beams, anti-wave clapboard; Level gauge at rear of truck.
