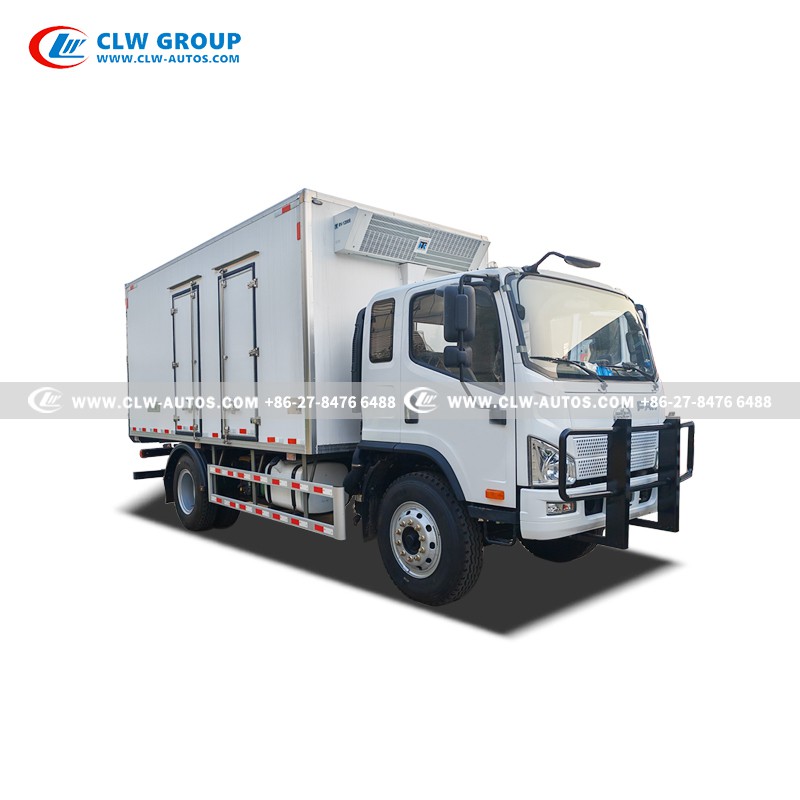

FAW 1.5Tons Live Fish Transport Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 1.5tons live fish transport truck in China. If you're going to buy high quality faw 1.5tons live fish transport truck, welcome to get more information from our factory. For price consultation, contact us.

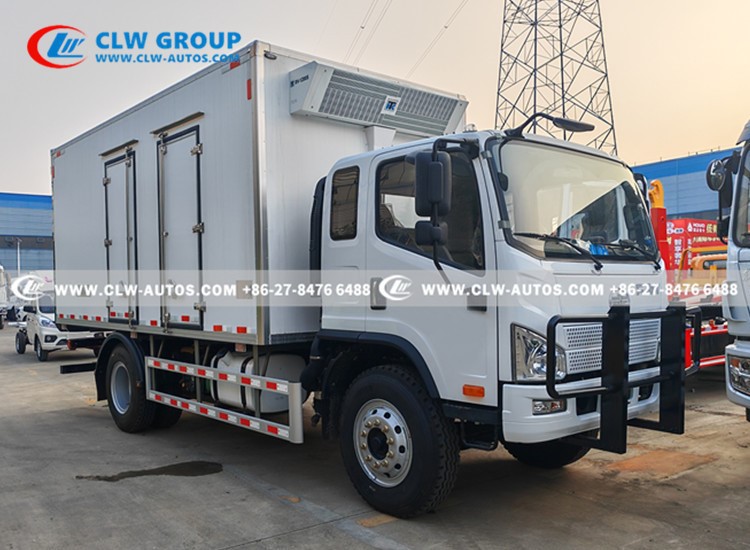

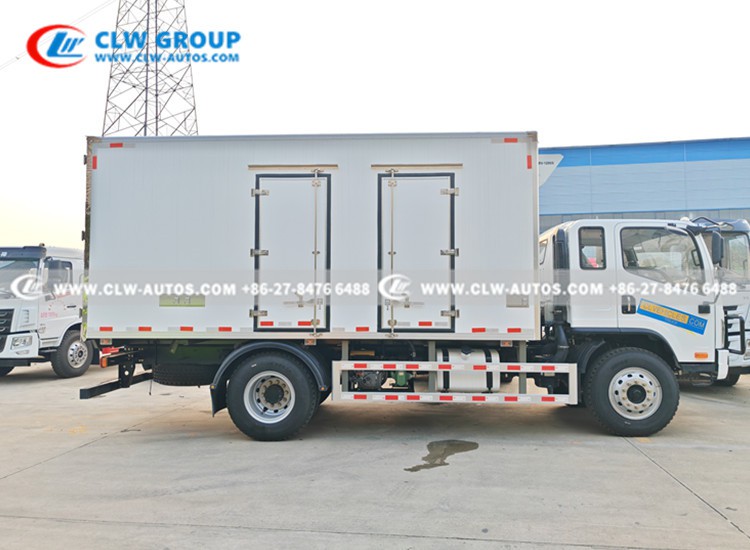

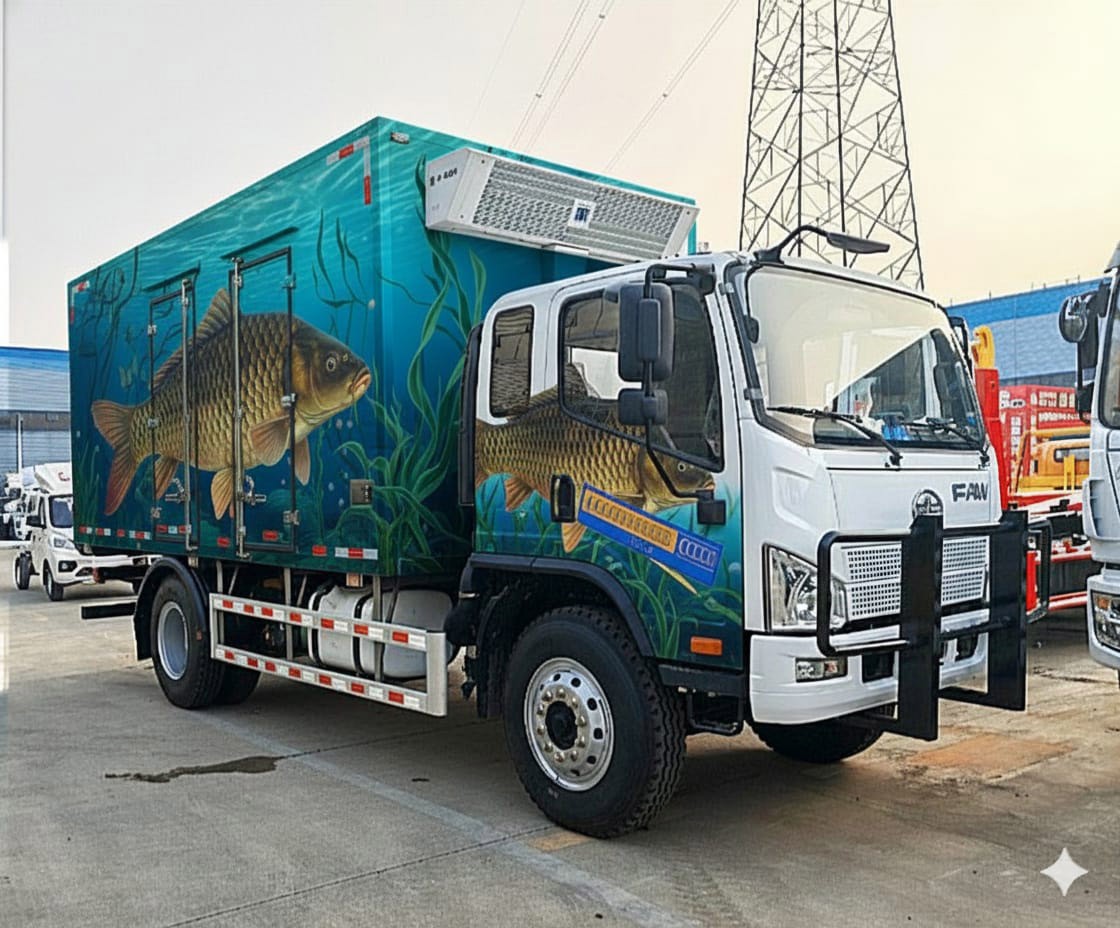

FAW Tiger VH Live Fish Transport Truck is a specialized temperature-controlled, oxygenated mobile aquarium designed for the high-density, low-stress transport of live aquatic organisms. Its core purpose is maintaining vital water parameters (oxygen, temperature, ammonia) to make sure high survival rate during transit.



It is with a premium Thermo King refrigeration system and a custom-designed insulated cargo van body, this truck provides precise temperature management, humidity control, and optional live fish life-support systems to ensure maximum product quality and viability from source to destination.













1. FAW Tiger VH Light-Duty Truck Chassis

• Model: FAW Tiger VH Series
• Engine: 2.2L / 2.5L turbo diesel, 160 HP, YUCHAI Diesel Engine, compliant with Euro II, III,  V/VI emissions
• Transmission: 5-speed or 6-speed manual transmission; optional automatic
• Cab: Comfortable 2-3 person cabin, ergonomic design, air conditioning, power steering, digital dashboard
• GVWR (Gross Vehicle Weight Rating): 4,495 - 7,995 kg (supports body + payload)
• Payload Capacity: 1,500 kg nominal (1.5 metric tons, configurable up to 3 tons) live fish
• Wheelbase: 3,300 - 4,200 mm (customizable for body length)
• Suspension: Heavy-duty leaf spring, optimized for payload stability



2. Thermo King Refrigeration System

• Model: Thermo King SB-III Series / V-500 Series (light/medium-duty)
• Cooling Capacity: 6,000 - 9,000 BTU/hr (matched to body volume and insulation)
• Temperature Range: -25°C to +25°C (adjustable, typically set at -18°C for frozen, 0°C to +4°C for chilled)
• Control: Digital Smart Reefer Controller with color touchscreen, real-time monitoring, alarm system, data logging

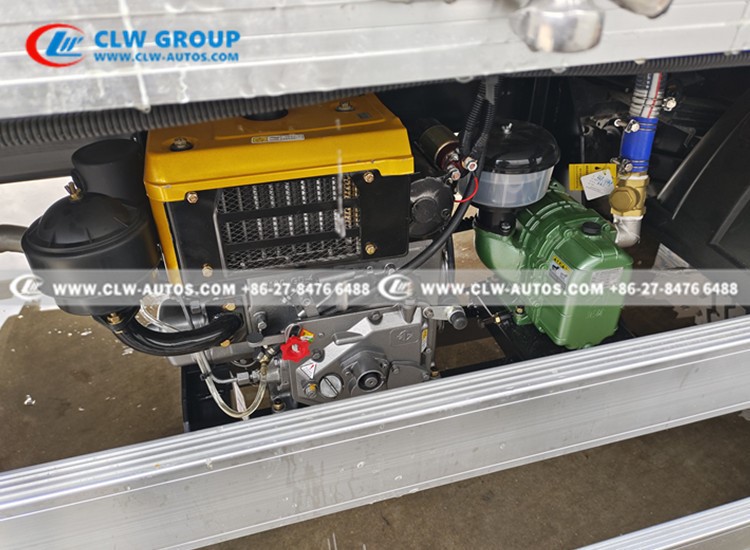

• Power Source: Independent diesel-powered unit (with electric standby option)
• Features: Automatic defrost, humidity management (optional), multi-zone control capability, self-diagnostics



3. Insulated Cargo Body

• Body Type: Fully insulated monocoque sandwich panel construction
• Internal Dimensions: 4.0m - 5.2m (L) × 2.1m (W) × 2.1m (H) (≈ 15 - 22 cubic meters)
• Insulation Material: Polyurethane foam (PU) injected, 100-120mm thickness, thermal conductivity ≤ 0.025 W/m·K
• Inner Lining: Food-grade 304 stainless steel (smooth, non-porous, corrosion-resistant) or FRP (fiberglass reinforced plastic)
• Floor: Aluminum alloy anti-skid plate with drainage channels and central drain valve

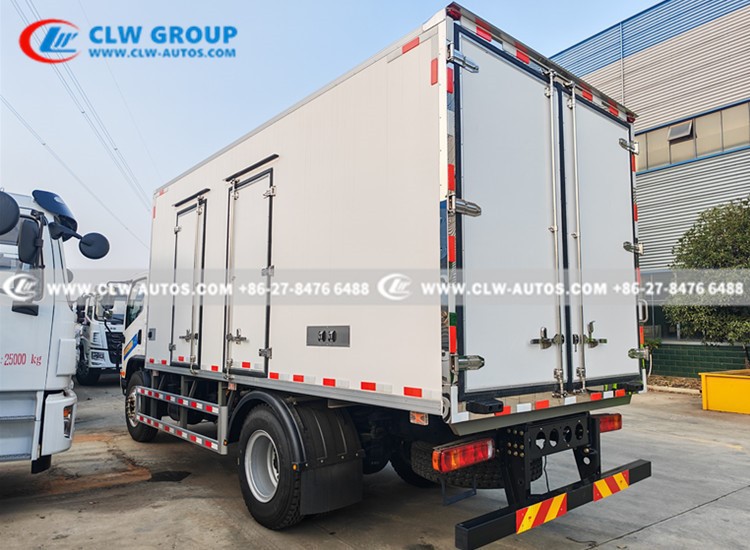

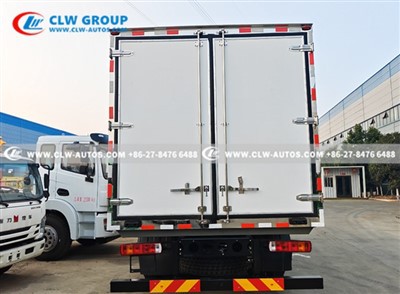

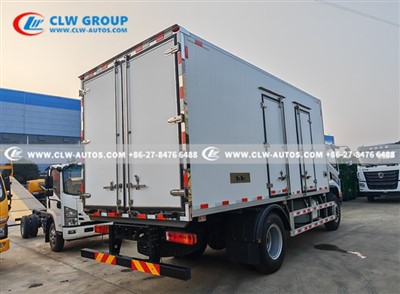

• Door: Rear roll-up door with high-density rubber seals; optional side access door
• Sealing: High-performance door seals and airtight body joints to prevent cold loss



4. Specialized Configurations

A. For Chilled/Frozen Seafood:

• Temperature Zones: Single or dual-temperature zones (e.g., frozen section at -18°C, chilled section at 0°C to +4°C)
• Cargo Management: Adjustable stainless steel rails, E-track systems for securing insulated containers
• Containers: Compatible with standard plastic fish tubs or insulated seafood crates



B. For Live Fish Transport:

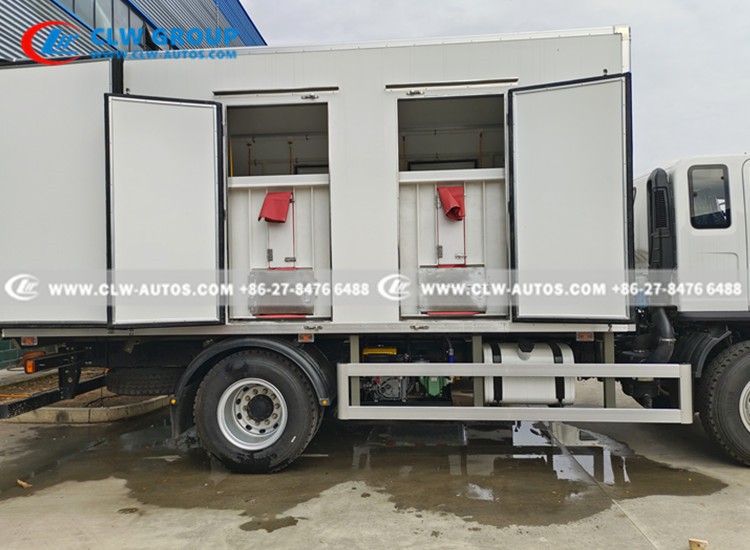

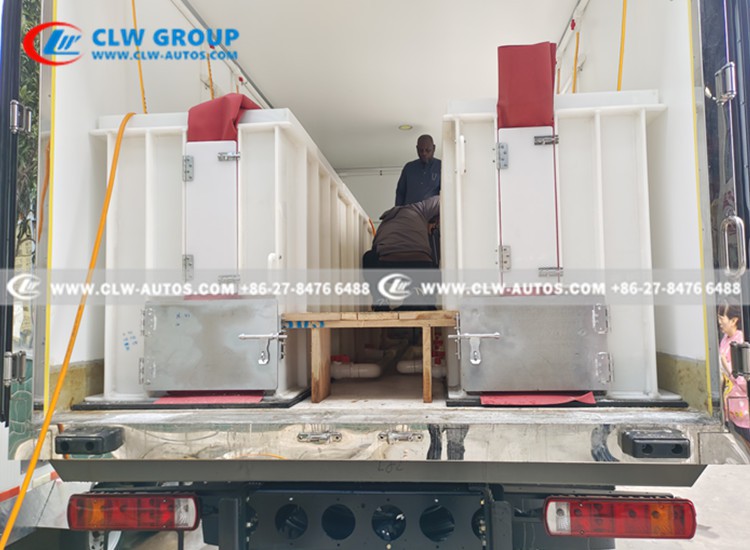

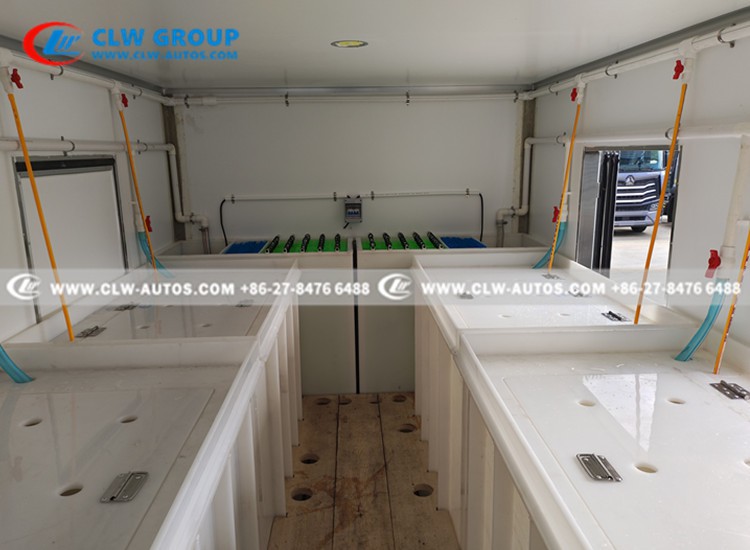

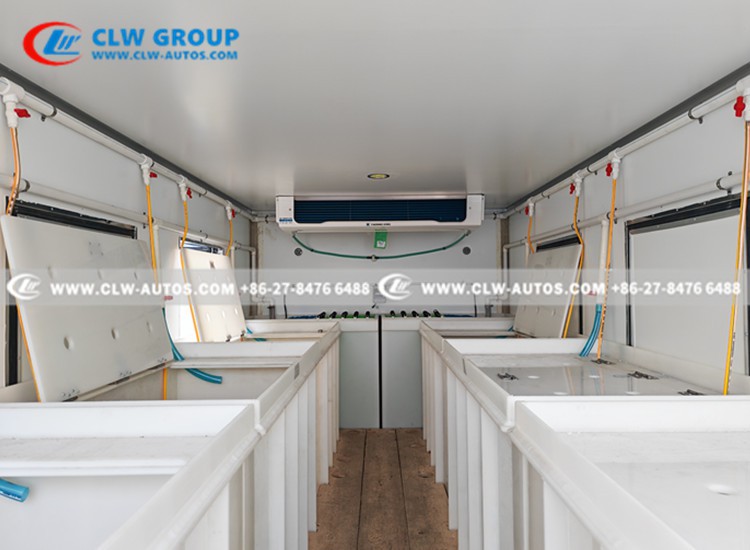

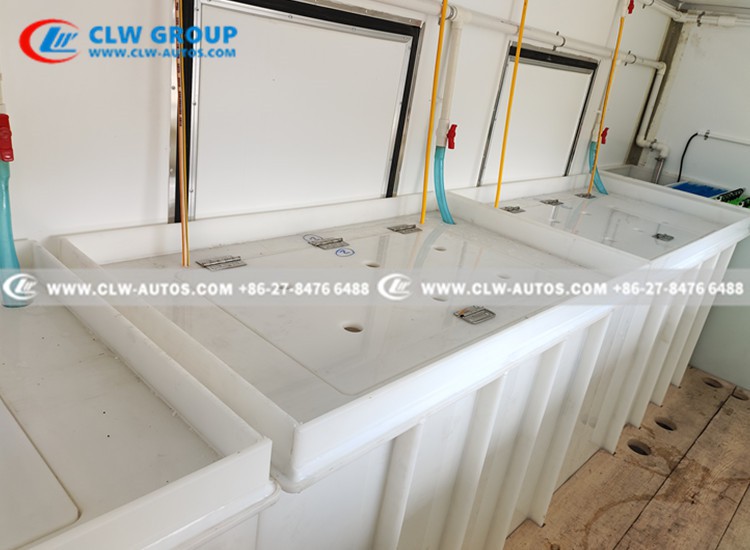

• Life-Support System: Insulated fiberglass/PE tanks (500L - 2,000L total capacity), partitioned

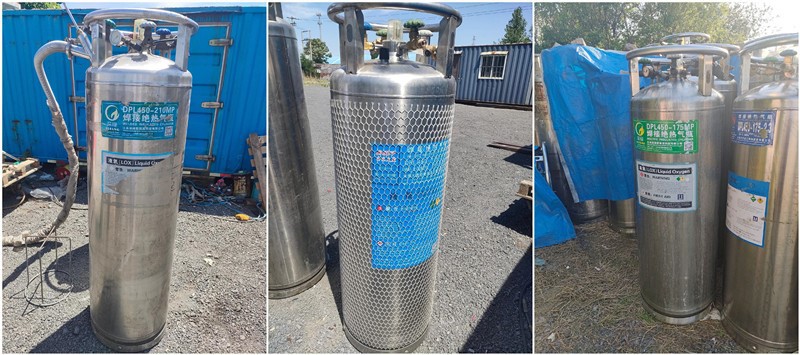

• Oxygenation: Pure oxygen cylinders with regulator and diffuser stones/venturi injectors

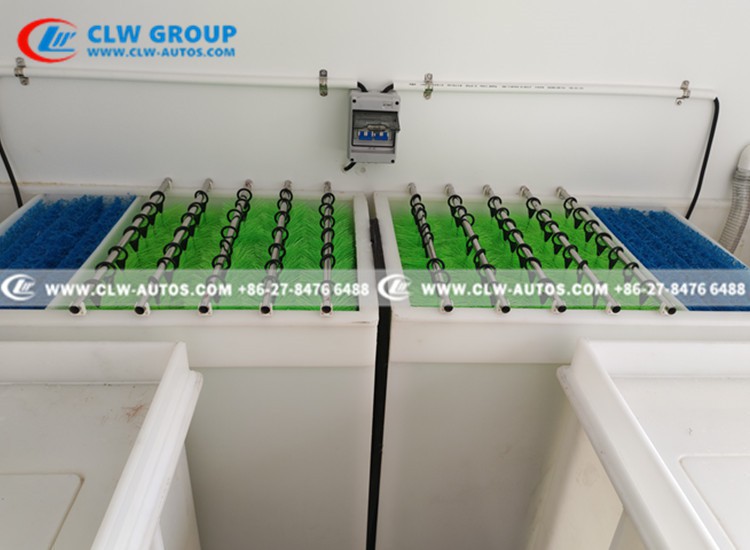

• Water Management: Circulation pump, temperature control via refrigeration unit heat exchanger, optional bio-filter
• Monitoring: Dissolved oxygen (DO) meter, temperature probe, pH monitor (optional)
• Backup: Battery-powered aerator for emergency power loss











Parameter	Specification
Chassis Model	FAW Tiger VH (
Engine	2.5L Diesel, 160 HP, EUO-III
Transmission	6-Speed Manual
GVWR	6,500 kg
Payload Capacity	1,500 - 2,000 kg, for 1500KGS / 1.5Tons Live Fish Transport Deivery
Cargo Body Volume	17.6 m³ (Insulated), Size: 4.0*2.1*2.1 meters
Body Internal (LxWxH)	4,000mm × 2,100mm × 2,100mm
Refrigeration Unit	Thermo King V-580 (8,500 BTU/hr)
Temperature Range	-18°C to +25°C
Insulation Thickness	110 mm PU Foam
Live Fish System	1 x 175L or 210L Tanks, O₂ System, Circulation Pump
Overall Length	~7,200 mm
Fuel Capacity	130 Liters





1. Seafood Distribution: Transport of chilled/frozen fish, shellfish, and crustaceans from processors to wholesale markets, supermarkets, and restaurants.
2. Live Fish Haulage: Delivery of live fish (e.g., salmon, cod, lobster, grouper) to high-end restaurants and specialty fish markets.
3. Aquaculture Operations: Transport of fry, fingerlings, and broodstock between hatcheries and grow-out facilities.
4. Cold Chain Logistics: General temperature-sensitive goods, including premium foods and pharmaceuticals (with validation).

5. Aquaculture Transport: Moving fish from hatcheries to grow-out farms or to processing plants alive.

6. Live Seafood Delivery: Transporting high-value species like lobster, crab, finfish, or prawns to restaurants and markets.

7. Sport Fish Stocking: Transporting fingerlings or adult fish for release into public waters.

8. Ornamental Fish Transport: Moving tropical fish for the aquarium trade, often in sealed bags within climate-controlled trucks.



Keywords: FAW Tiger VH Refrigerated Truck, Thermo King Seafood Transport, Live Fish Delivery Truck, 1.5 Ton Insulated Van, Cold Chain Logistics Vehicle, Aquatic Product Haulage, FAW Refrigerated Fish Truck.



                                                     From Sea to Sale, in Perfect Condition.

The FAW Tiger VH 1.5-Ton Seafood Transport Truck with Thermo King refrigeration is engineered to meet the exacting demands of the modern seafood supply chain. It delivers unmatched reliability, precise climate control, and flexible configuration to ensure that high-value aquatic products-whether frozen, chilled, or alive-arrive at their destination in optimal condition, safeguarding quality, safety, and profitability.
