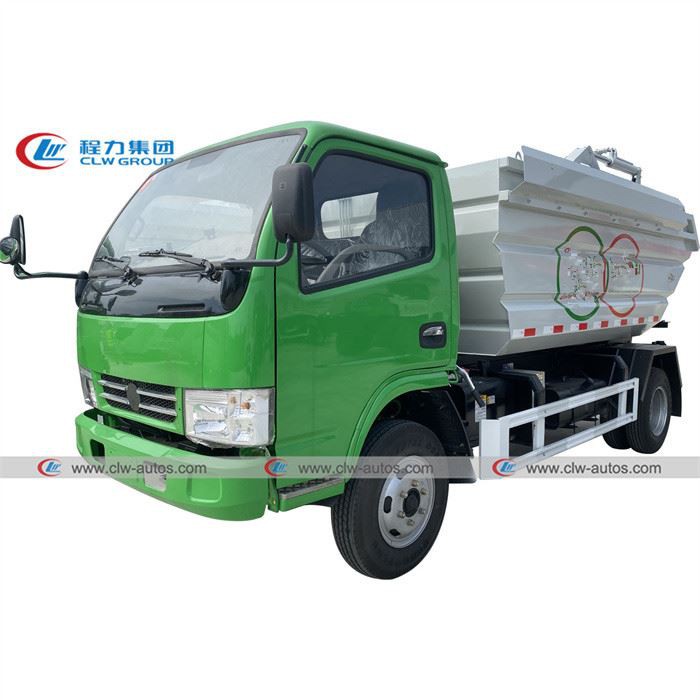

Dongfeng 7cbm 7000Liter Sealed Dump Garbage Truck
Sanitation truck type: sealed dump garbage truck
Garbage Tank Size:7cbm/7,000L
Chassis brand:Dongfeng
Chassis engine: Yuchai 130HP
Gear box:5-speed forward and 1 reverse
Loading capacity: 3-5tons
Garbage Compact Ratio:1/3-1/4
Logo and color:Can be customized
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 7cbm 7000liter sealed dump garbage truck in China. If you're going to buy high quality dongfeng 7cbm 7000liter sealed dump garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Product Advantages
-1. Airtight performance: The sealed dump garbage truck has good airtight performance, ensuring that there will be no dust or leakage during transportation, which is the basic requirement for installing the roof system.
-2. Safety performance: The sealed dump garbage truck has good safety performance. Actually, the closed box cover cannot exceed the truck body too much, which will affects normal driving and poses a safety hazard. The changes to the entire vehicle should be reduced to ensure that the center of gravity remains unchanged when the vehicle is loaded. The service life of the entire closed garbage box cover system will be much longer than other types of garbage trucks, and the maintenance cost will be much less.
-3. Use performance: The sealed dump garbage truck is easy to use, and the roof system can be normally opened and retracted in a relatively short period of time, and the cargo will not be affected during the loading and unloading process.
-4. Appearance performance: The sealed dump garbage truck is small and light, not occupy the internal space of the garbage box, and has high transportation efficiency.
Product Specification
| General Technical Parameter | ||||||
| Product Name | Garbage Truck | Gross Weight(Kg) | 6010 | |||
| Rated Payload(Kg) | 5865 | Axle No. | 2 | |||
| Curb Weight(Kg) | 3500 | Overall Dimension(mm) | 5650x2000x2250 | |||
| Cab Allowed Persons )ab Allowed PersonsTrucky Truck | 2 | Box Inner Dimension(mm) | 3600x2380x3500 | |||
| F/R Suspension(mm) | 1032/1168 | Wheelbase(mm) | 3300 | |||
| Axle Load(Kg) | 2280/3730 | Top Speed(Km/h) | 90 | |||
| Chassis Technical Parameter | ||||||
| Chassis Name | Truck chassis | Manufacturer | Dongfeng Automobile Co.,Ltd | |||
| Overall Dimension(mm) | 5820×1940×2080 | Tyre No. | 6 | |||
| App./ Dep. Angle(º) | 19/15 | Tyre Specification | 7.00-16 | |||
| Spring leaf No. | 8/9+5 | Front /Rear Track(mm) | 1506 /1466 | |||
| Engine Technical Parameters | ||||||
| Engine Model | YC4120-C3F | Manufacturer | Dongfeng Chaochai Power Co., Ltd | |||
| Displacement(ml) | 3856 | Power( HP/ Kw) | 120HP/95KW | |||
| Fuel Type | Diesel | Emission Standard | Euro II | |||
| Box Technical Parameters | ||||||
| Box inner dimension(mm) | 3600x1750x1100 | Box Material | High quality carbon steel | |||

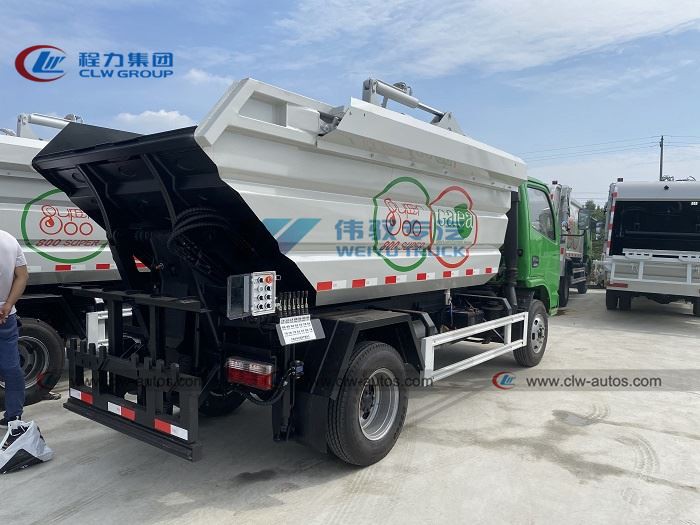

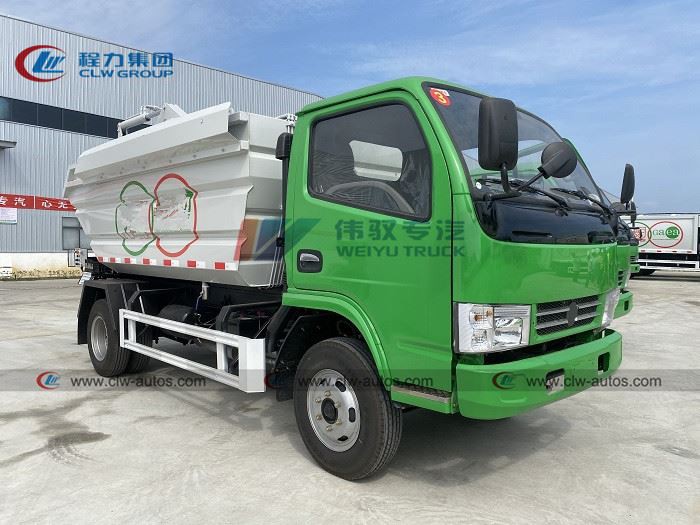

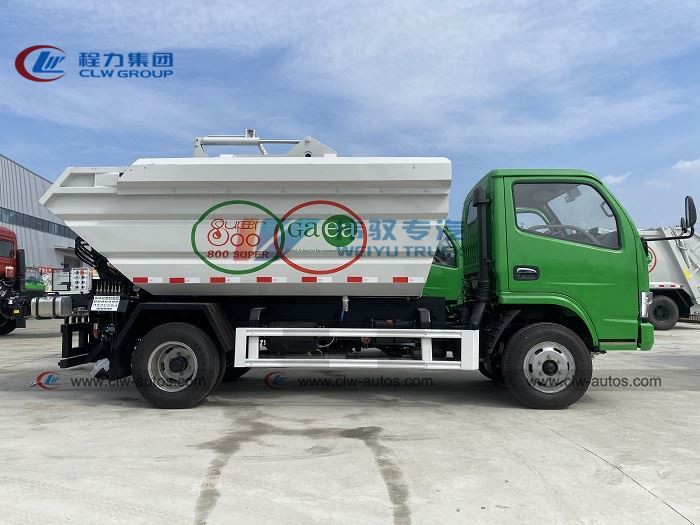

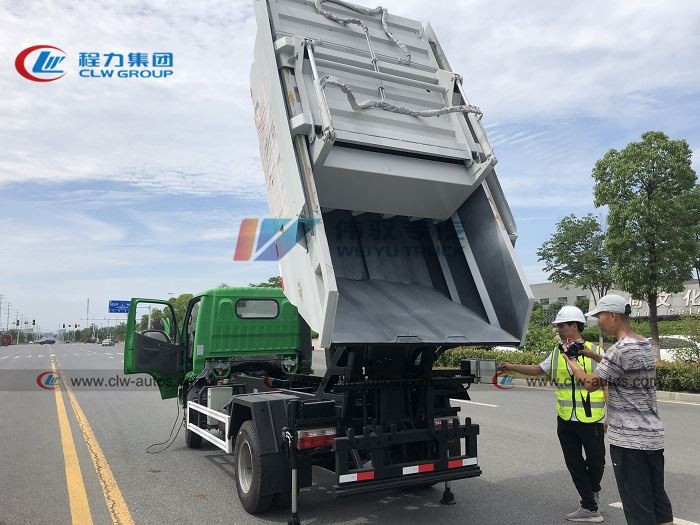

Reference Photos

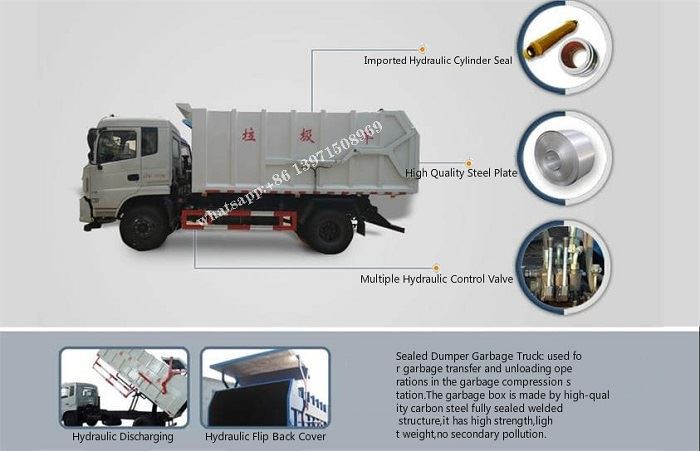

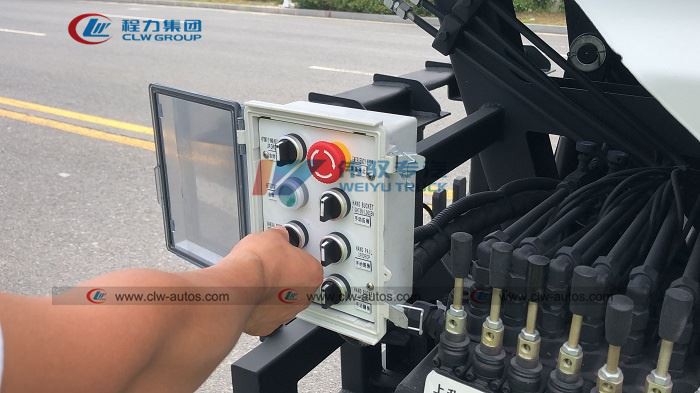

Main Details
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.
Key word: Sealed dump garbage truck, 7cbm garbage truck, Dongfeng 7,000L sealed garbage dump truck, 7000 liters garbage sealed dump truck, waste collection truck, 7000L refuse recycling truck, China Dongfeng 4*2 garbage recycling vehicles, Dongfeng self compression garbage truck, Chinese rear dump garbage trucks, Hydraulic waste collection trucks, Garbage truck, Sanitation trucks, etc.
