6x6 Dongfeng 10tons Military Truck Troops Carrier
Engine:diesel cummins engine 190HP;
Driving model:LHD or RHD
Gear box:6-speed forward and 1 reverse
Tire:12.5R20 Tubeless tire
Payload: 10000kgs
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6x6 dongfeng 10tons military truck troops carrier in China. If you're going to buy high quality 6x6 dongfeng 10tons military truck troops carrier, welcome to get more information from our factory. For price consultation, contact us.
Function
--Military Truck(also called Army Truck, Army Use Vehicle, Army Transport Truck, Troops Carrier.) is used for transporting staff and light weapons, light artillery and light anti-tank missiles, anti-aircraft missiles and other transport and launch platforms.
-- Military Truck can be divided into various types as follows,
1) according to truck brands,there are dongfeng and faw military truck;
2) according to driving model: 4X4 and 6X6 military truck;
3) according to purpose: Army transport and command unit military truck.
Feature
--Powerful engine: B190 33, four-cylinder, water cooled, turbocharged, after cooled, diesel engine.
--6x6 all wheels drive and strong trafficability

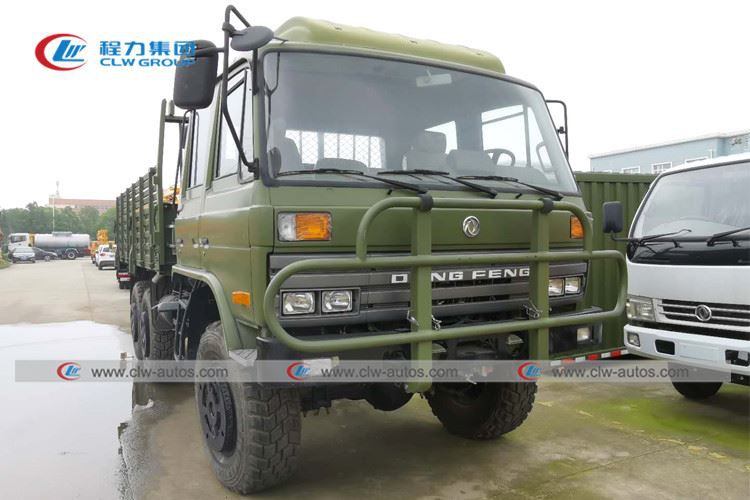

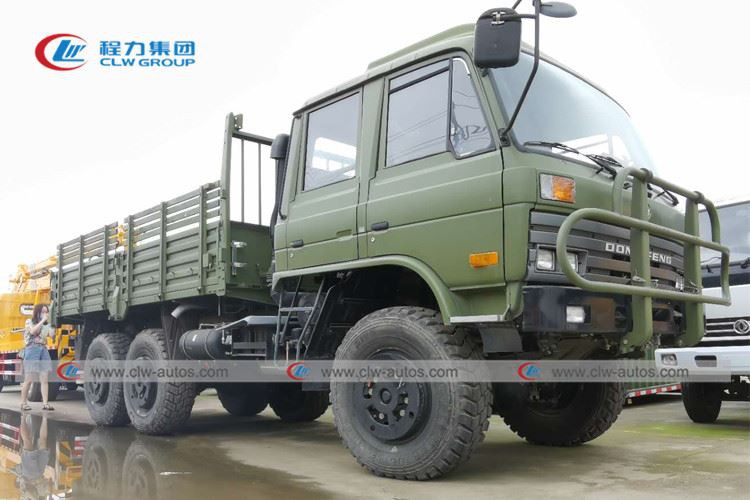

Reference picture
Specification
Parameters | |||
Chassis | |||
Drive Model | 6X6, Left hand drive | ||
Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 8050*2500*3200 mm | |
Wheelbase (mm) | 3500+1250 mm | ||
Overhang (front/rear) (mm) | 1250/1850 mm | ||
Wheel track (front/rear) (mm) | 1876/1870/1870mm | ||
Approach/Departure angle(°) | 35/20° | ||
Weight in KGS | Curb Weight (kg) | 5600 kg | |
Front/Rear axle loading(kg) | 3500/4000/4000 kg | ||
Max. driving speed(km/h) | 80 | ||
Engine | Model | B190 33 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 190 HP | ||
Displacement (ml) | 5900 ml | ||
Emission standard | Euro III | ||
Brakes | Service brake: Dual circuit compressed air brake Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake. | ||
Cabin | It can accommodate three people, With Air conditioner | ||
Gearbox | 6 forwards & 1 reverse | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | 12.5R20 Tubeless tire, 6 + 1(spare tire) | ||
Upper | |||
Super Structure | Size(L*W*H) | 4800*2300*2050 | |
Material | Carbon steel and Iron corrugated plate | ||
