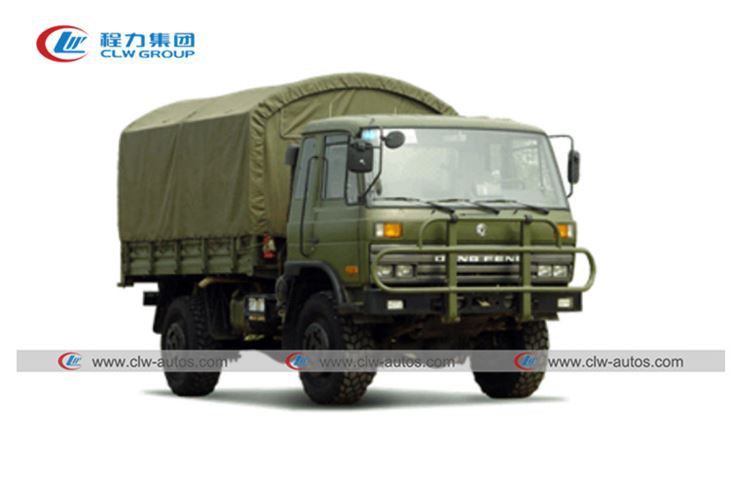

4x4 Dongfeng 5tons-10tons Military Truck Troops Carrier
Engine:diesel cummins engine 190HP;
Driving model:LHD or RHD
Gear box:6-speed forward and 1 reverse
Tire:10.00R20
Payload: 5000kgs
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4x4 dongfeng 5tons-10tons military truck troops carrier in China. If you're going to buy high quality 4x4 dongfeng 5tons-10tons military truck troops carrier, welcome to get more information from our factory. For price consultation, contact us.
Function
--Military Truck(also called Army Truck, Army Use Vehicle, Army Transport Truck, Troops Carrier.) is used for transporting staff and light weapons, light artillery and light anti-tank missiles, anti-aircraft missiles and other transport and launch platforms.
-- Military Truck can be divided into various types as follows,
1) according to truck brands,there are dongfeng and faw military truck;
2) according to driving model: 4X4 and 6X6 military truck;
3) according to purpose: Army transport and command unit military truck.
Feature
--Powerful engine: B190 33, four-cylinder, water cooled, turbocharged, after cooled, diesel engine.
--4x4 all wheels drive and strong trafficability

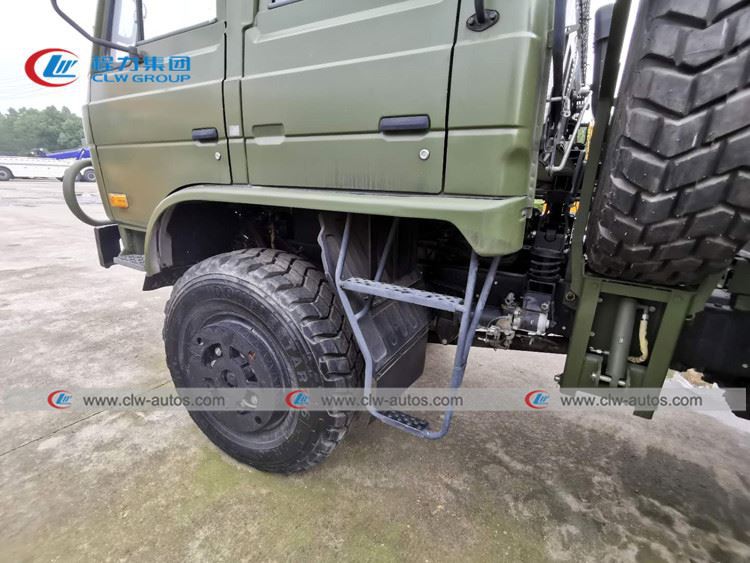

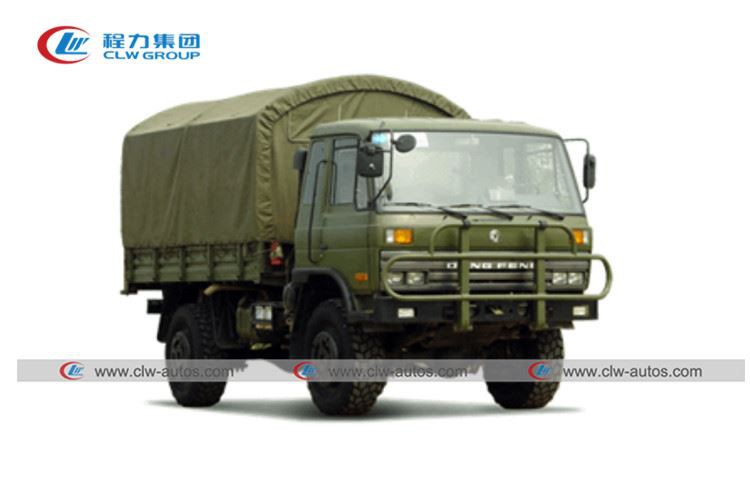

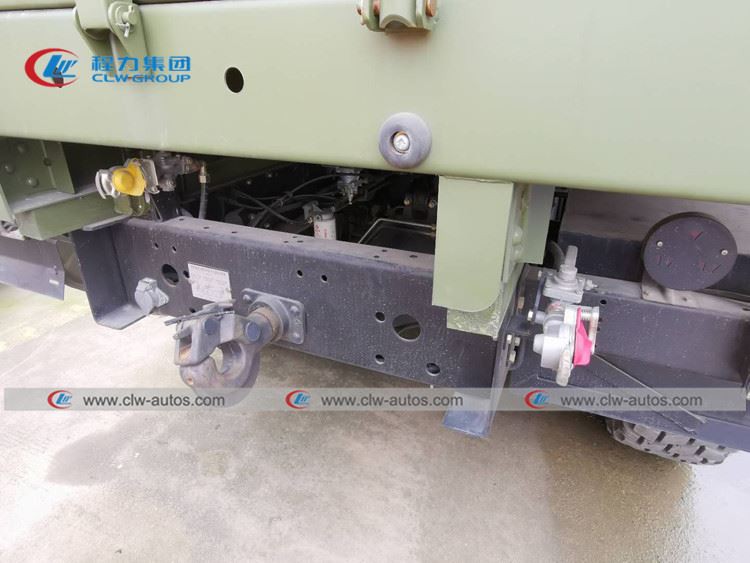

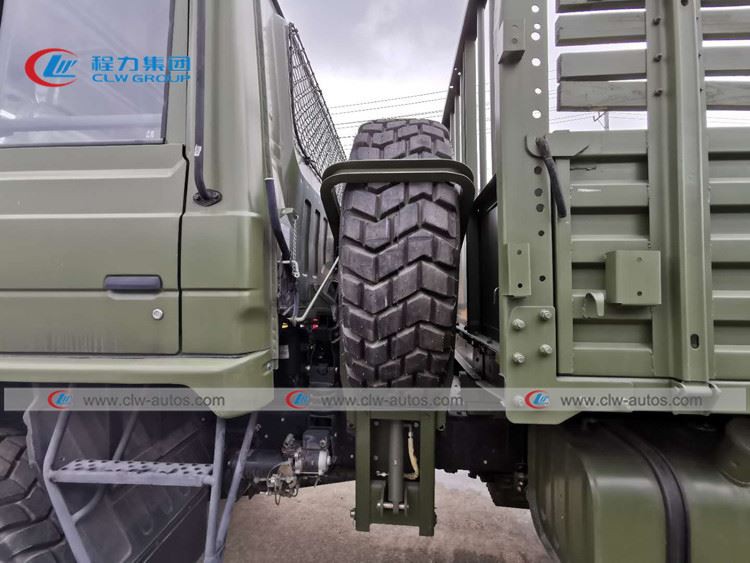

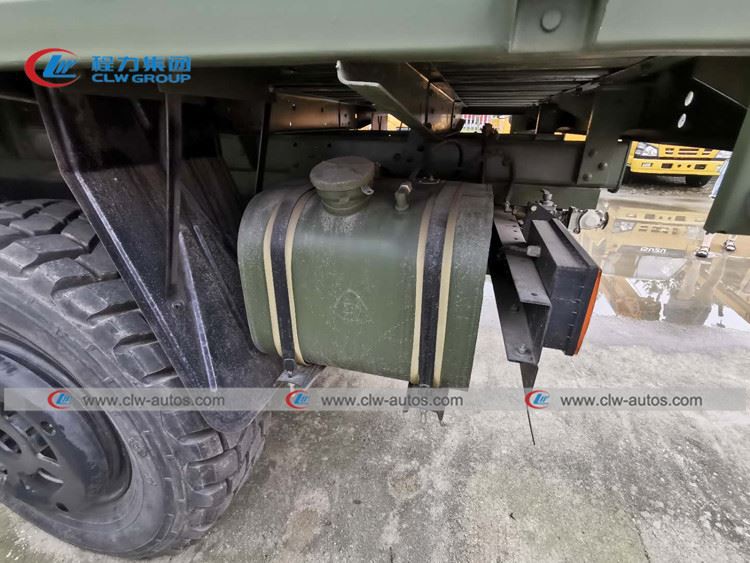

Reference picture
Specification
Parameters | |||
Chassis | |||
Drive Model | 4X4, Left hand drive | ||
Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 7800*2500*3200 mm | |
Wheelbase (mm) | 4500 mm | ||
Overhang (front/rear) (mm) | 1245/1900 | ||
Wheel track (front/rear) (mm) | 1880/1860 | ||
Approach/Departure angle(°) | 34/18 | ||
Weight in KGS | Curb Weight (kg) | 5300 kg | |
Front/Rear axle loading(kg) | 4500/10000 | ||
Max. driving speed(km/h) | 80 | ||
Engine | Model | B190 33 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power(HP) | 190 HP | ||
Displacement (ml) | 5900 ml | ||
Emission standard | Euro III | ||
Brakes | Service brake: Dual circuit compressed air brake Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake. | ||
Cabin | It can accommodate three people, With Air conditioner | ||
Gearbox | 6 forwards & 1 reverse | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | 10.00R20 tire , 6 + 1(spare tire) | ||
Upper | |||
Super Structure | Size(L*W*H) | 4800-5200*2300*1900-2050 | |
Material | Carbon steel and Iron corrugated plate | ||
