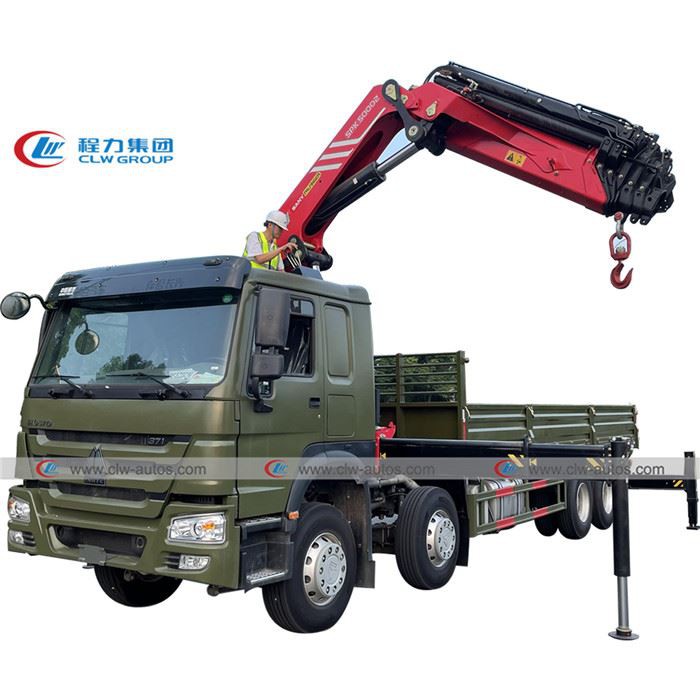

Sinotruk 25t SANY Folding Arm Crane Truck
Heavy Duty Sinotruk Howo Crane truck
Mode:8*4
Driving Type:LHD or RHD
SANY Palfinger SPK50002-E,25tons folded arm crane;
Diesel engine 371hp
12R22.5 or 12.00R20
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk 25t sany folding arm crane truck in China. If you're going to buy high quality sinotruk 25t sany folding arm crane truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
Crane Truck (also called a truck mounted crane) is a kind of special truck that can realize the lifting, turning, and lifting of cargos through a hydraulic lifting and telescopic system. It is usually assembled on a truck. Its advantages are good mobility, rapid transfer, can integrate lifting and transportation functions, and improve resource utilization.
Main parts: Truck chassis, Crane, cargo box. (Different lifting capacities match different chassis and cargo boxes.)
Sany Palfinger crane trucks always have been stocked with hydraulic straight and folding arms types, can be matched with Isuzu, Sinotruk, Dongfeng, FAW, Hongyan, Shackman and other major brands of chassis.
Product Specification
| Technical Parameters | |||
| Drive Model | 8X4, Left hand drive or right hand drive | ||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 10500*2500*3850 mm | |
| Wheelbase (mm) | 1800+4600+1350 mm | ||
| Max. driving speed(km/h) | |||
| Engine | Model | WD615.47 | |
| Type | 6-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 371 HP | ||
| Displacement (ml) | 9726 ml | ||
| Emission standard | Euro II | ||
| Brakes | Service brake: Dual circuit compressed air brake. Parking brake:(emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake. | ||
| Cabin | HW76. It can accommodate three people, With Air conditioner | ||
| Gearbox | 10 forwards & 2 reverses | ||
| Steering Gear | ZF, Power steering, hydraulic steering with power assistance | ||
| Fuel tank (L) | 400 | ||
| Tire | 12R22.5 Tubeless tire , 12 + 1(spare tire) | ||
| Flatbed | Loading Capacity(tons) | 30-40tons | |

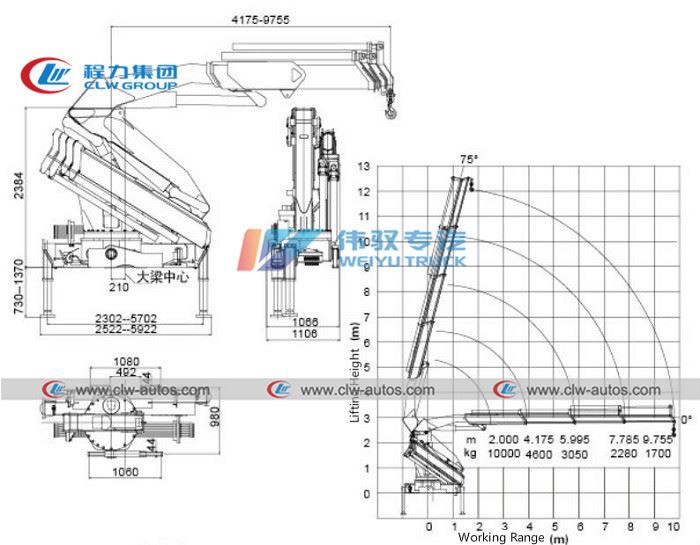

| Crane | Brand | PALFINGER | |
| Working Platform | 400°turning(left or right), H-shape legs 360° | ||
| Material | Q235 Carbon steel | ||
| Boom Type | Folded type | ||
| Max. Lifting Weight(kg) | Theoretical max.: 25000kg Effectively: 16500kg | ||
| Max. Working Radius(m) | 16.8 m | ||
| Max. Lifting height(m)(Hydraulic boom) | 20.5 m | ||
| Max. Lifting height(m)(With mechanic boom)(Optional) | 27.2 m | ||
| Max. Lifting Moment(T.M) | 49.0 T.M | ||
| Max. Oil Flow of Hydraulic System(L/min) | 80-100L/min | ||
| Max. Pressure of Hydraulic System(MPa) | 33.0 MPa | ||
| Crane Weight(kg) | 5400kg | ||

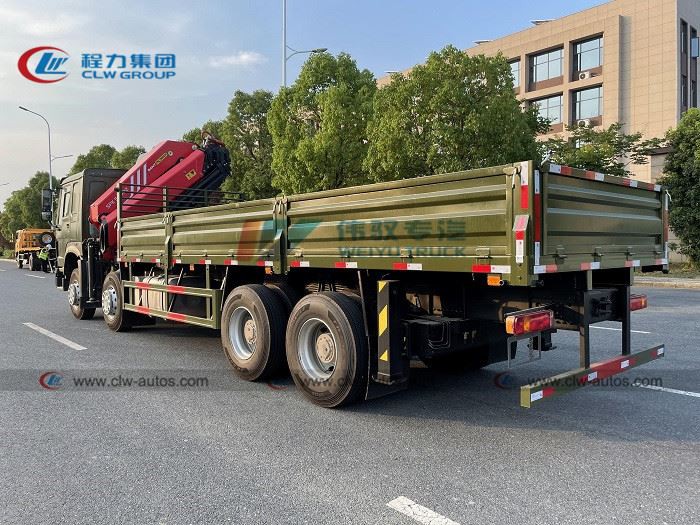

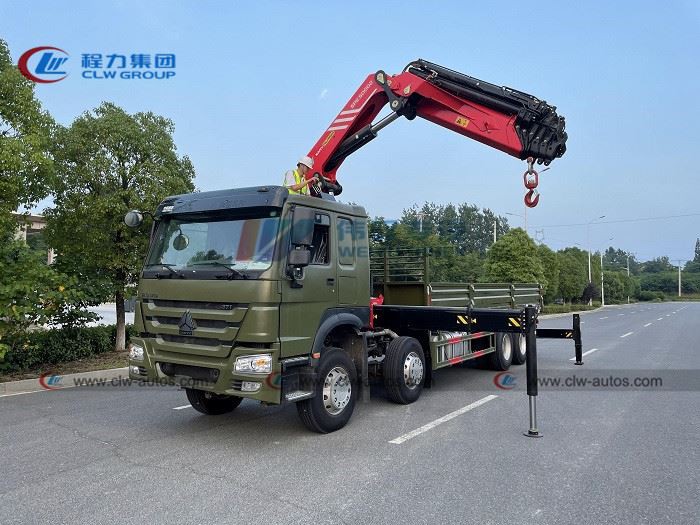

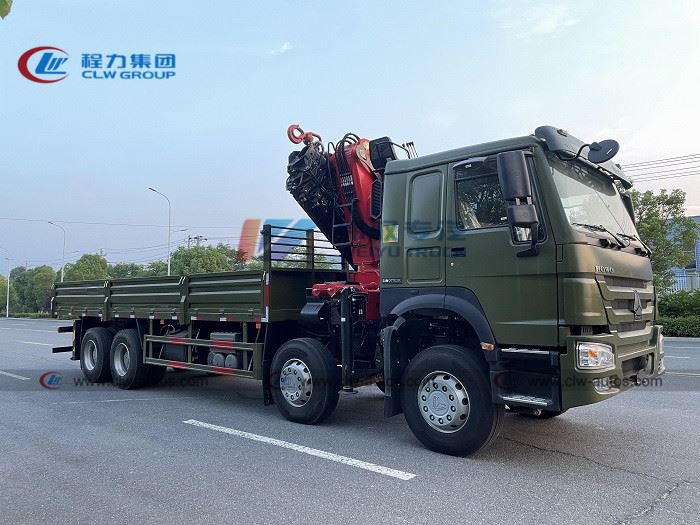

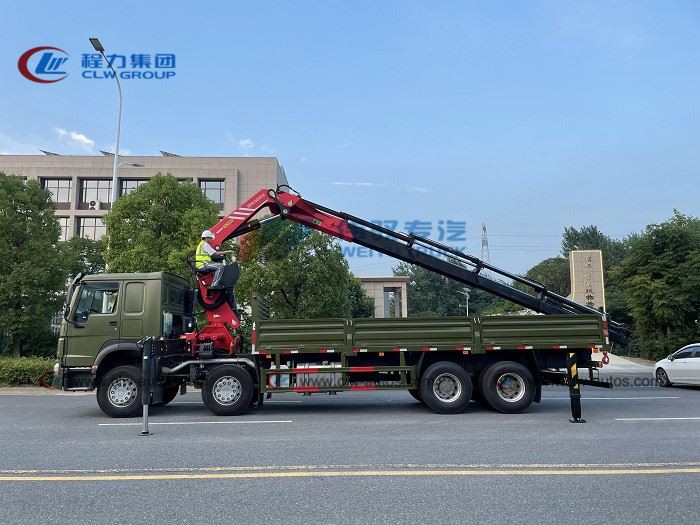

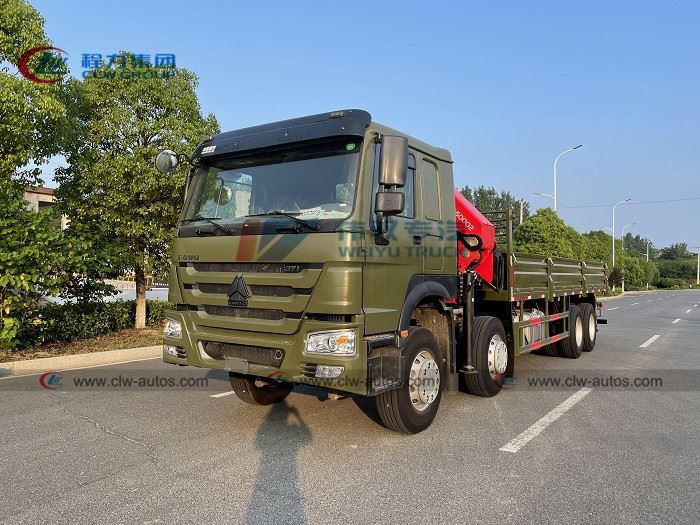

Reference Photos
Why do you choose palfinger crane?
★Accurate positioning: smooth movement, accurate positioning, can complete high difficulty, high precision lifting tasks
★Fuel saving: crane is 500-1000 kg light, and can be lifted under the state of engine idle, 30% fuel saving
★Save trouble: the crane has a low failure rate and adopts a large number of maintenance-free designs. The maintenance is economical and simple, reducing the use cost by 30%
★Save worry: timely and thoughtful service, one call to solve problems, save 30%-50% of maintenance cost
★Strong operation capacity: the strongest lifting capacity, the extra-long lifting range, the operation capacity is increased by 10%-20%
★Continuous operation: continuous operation under high temperature and heavy load environment, the operation efficiency can be increased by more than 30%.
whatsapp Flora +86 13971508969
We supply package solution for crane trucks, and provide lots of crane brands for your choice
