CAMC 90T Mining Dump Truck
Engine:CAMC 420HP 460HP engine;
Driving model:LHD or RHD
Gear box:10-speed forward and 2 reverses
Tire:14.00-25
Model: 6x4.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of camc 90t mining dump truck in China. If you're going to buy high quality camc 90t mining dump truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Mining Dump Truck(also called Mining dumper, Heavy duty dump truck, Heavy duty dumper) is used for transporting different kinds of cargo such as coal, mineral and stone in mining area.
--Mining Dump Truck can be divided into various types as follows,
1) according to truck brands,there are CAMC and SINOTRUK HOWO Mining Dump Truck;
2) according to loading weight: 50tons 60tons 70tons 80tons 90tons 100tons Mining Dump Truck;
Feature
--Power CAMC 420HP 460HP 550HP engine for optional;
--Elliot type, I beam section front axle, Hub reduction rear axle;
--Front heavy duty 13-Leaf spring and rear heavy duty 15-Leaf spring;
--Emission standard: Euro2/Euro3/Euro4/Euro5/Euro6 for optional.

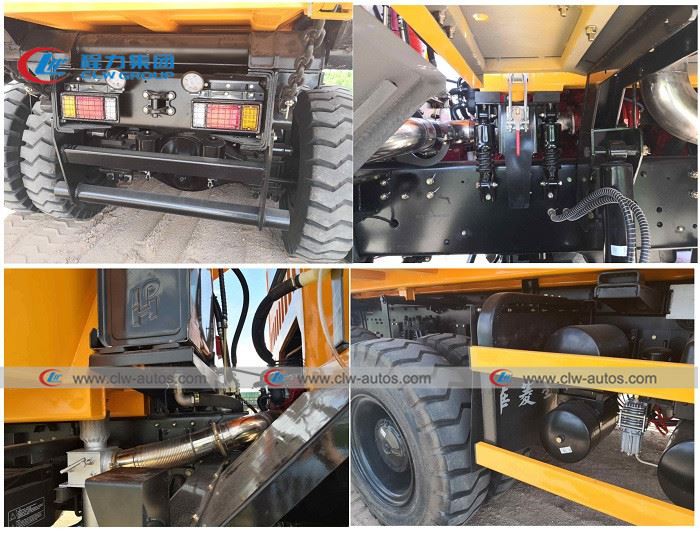

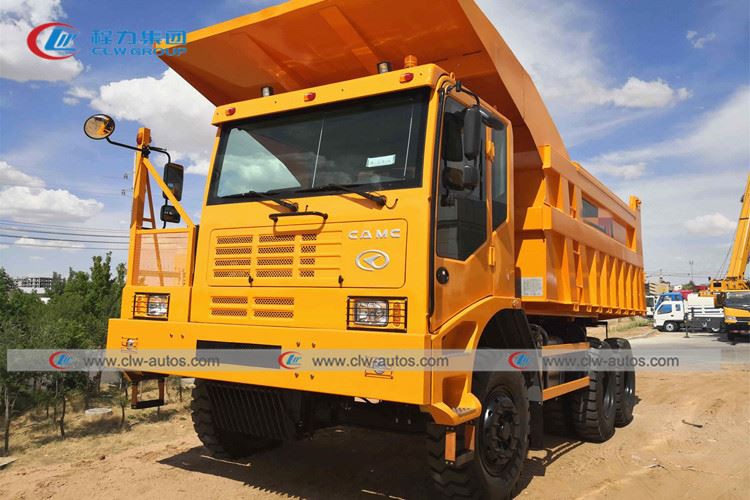

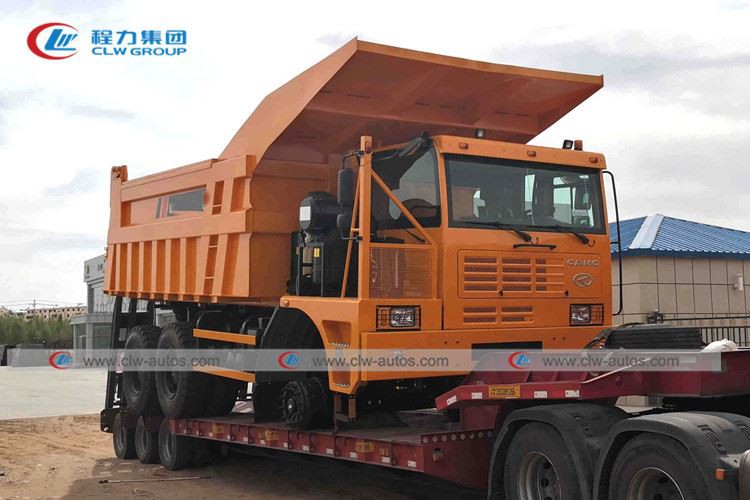

Reference picture
Specification
Cabin | Driving type 6x4(Left hand drive/Right hand drive) | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8900*3400*4200 | |
Wheel base (mm) | 3500+1500 | ||
Weight in KGS | Tare Weight | 30,000 | |
Front axles loading capacity | 1x20000 | ||
Rear axles loading capacity | 2x35000 | ||
Max. driving speed（km/h） | 80 | ||
Engine | Brand | CAMC | |
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
Horse Power（HP) | 420 HP | ||
Emission standard | Euro III | ||
Gearbox | Manual Transmission, 10 Forwards & 2 reverses | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Steering Gear | Hydraulic steering with power assistance | ||
Fuel tank (L) | 400 | ||
Tire | 14.00-25,11 pieces including one spare | ||
Brakes
| Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
