Off Road FAW 30Ton Minning Tunnel Dump Truck
  • Off Road FAW 30Ton Minning Tunnel Dump Truck
  • Off Road FAW 30Ton Minning Tunnel Dump Truck
  • Off Road FAW 30Ton Minning Tunnel Dump Truck
  • Off Road FAW 30Ton Minning Tunnel Dump Truck
  • Off Road FAW 30Ton Minning Tunnel Dump Truck

Off Road FAW 30Ton Minning Tunnel Dump Truck

2500mm Overall Height
For Mining Tunnel Design
30Ton Loading Weight
Weichai 375HP Engine

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of off road faw 30ton minning tunnel dump truck in China. If you're going to buy high quality off road faw 30ton minning tunnel dump truck, welcome to get more information from our factory. For price consultation, contact us.



Off Road FAW 30Ton Minning Tunnel Dump Truck


FAW Jiefang mining Tunnel Dump trucks, also known as the King in China, are widely used in transportation operations such as ramps in major shafts. The mine dump truck with offset cab has passed the national safety standard review and has a national safety mark certificate.



Major Advtange:

1.       Low Top Design: overall height low to 2500mm

2.       Big Loading Weight: up to 25-30Ton

3.       Special Humudity Design Engine

4.       375HP Weichai Diesel Engine

5.       Humudity Resistant electrical system

6.       No main beam box Design.



Tunnel Dump Truck Data:

Overall Size: L7800 x W2480 x D2500mm

Engine: Weichai 375HP or Xichai 300HP, Euro 2.

Wheel Base: 3850+ 1350mm

Front Axle: 6.5Ton, 45degree Turning Radius

Rear Axle: 16TON MAN, Wheel Reductor

Tire: 10.00R20 Special Engineer Tire.

Maximum Gradeability: 35% above

Fuel Tank: 240Liter



Box Size: 4950 x 2300 x 1450mm

Box Volume: 16.5 cubic meter / 583 CUFT

Box Material: Q345B, 10mm Side 16mm Bottom.

Tipping Cylinder: Front Tipping,

Tipping Angle: 45°



Photos of Trucks------------------------------------------------------------------

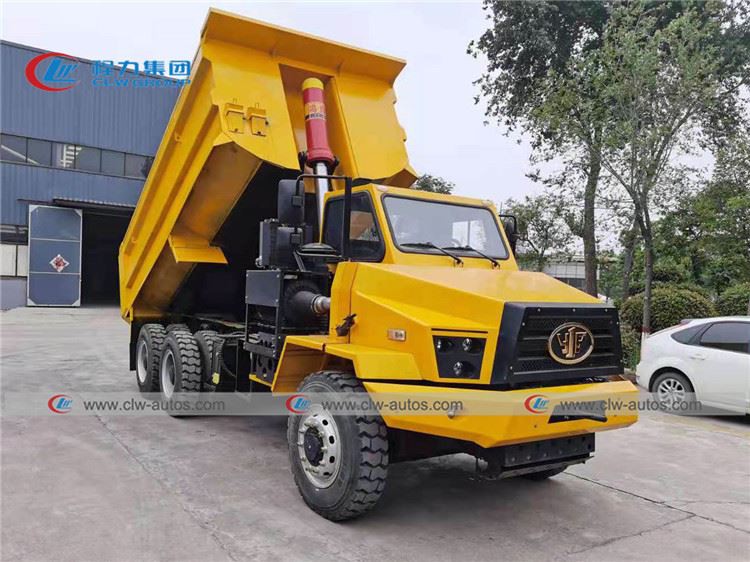

FAW Minning Tunnel Dump Truck in Front Tipping

Optional HYVA Cylinder


Heavy Duty Design boxes, with high tension steel, thickness up to 10mm-20mm

Loading Weight up to 25Ton to 30Ton.

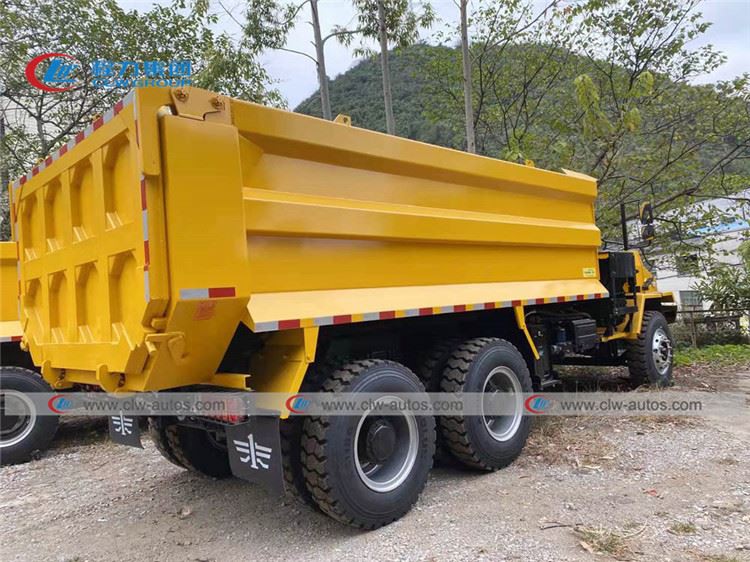

FAW Tunnel Dump Truck 2-1


10.00R20 Special Design Off Road Tires Suitable for Mining Area Transport

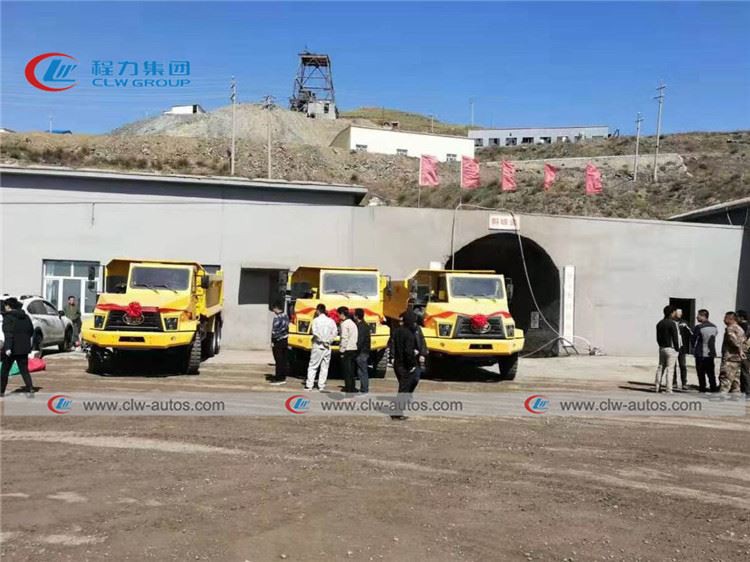

New Truck Working In front of Mining Tunnel

Overall Height is about 2500mm, much lower than normal dump truck.

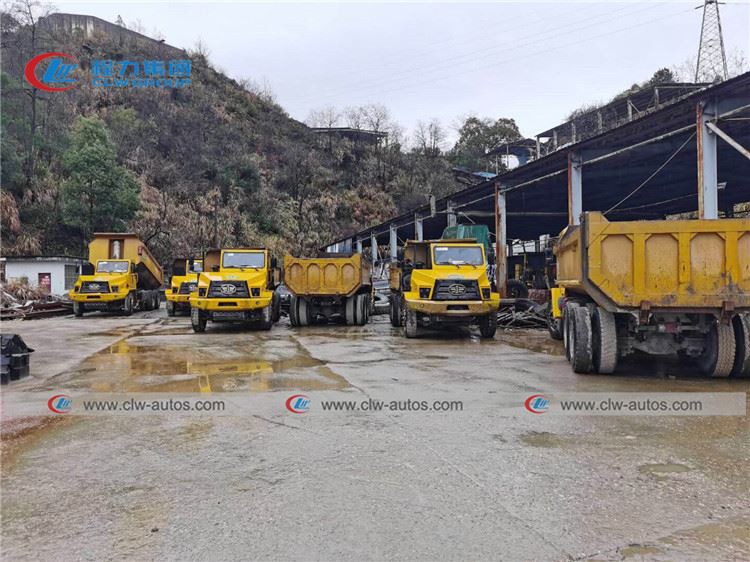

Mining Tunnel Dump Truck in Parking Lot.

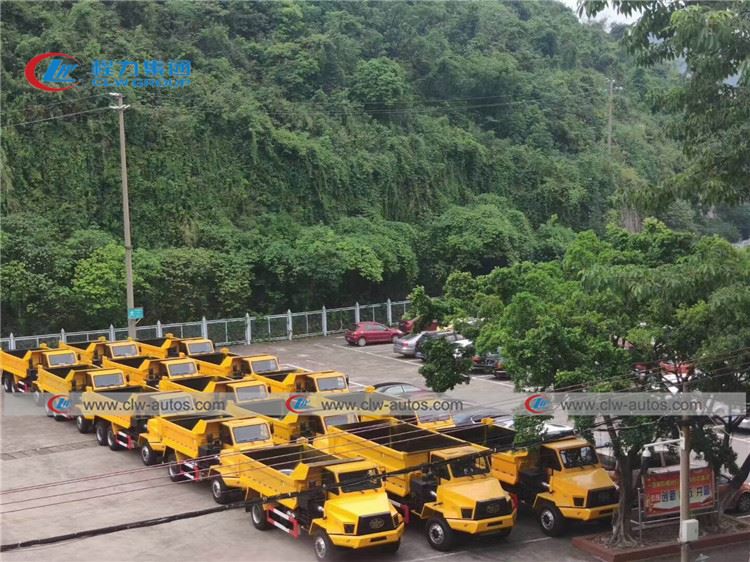

Batch Tunnel Dump Truck Ready for Delivery.
