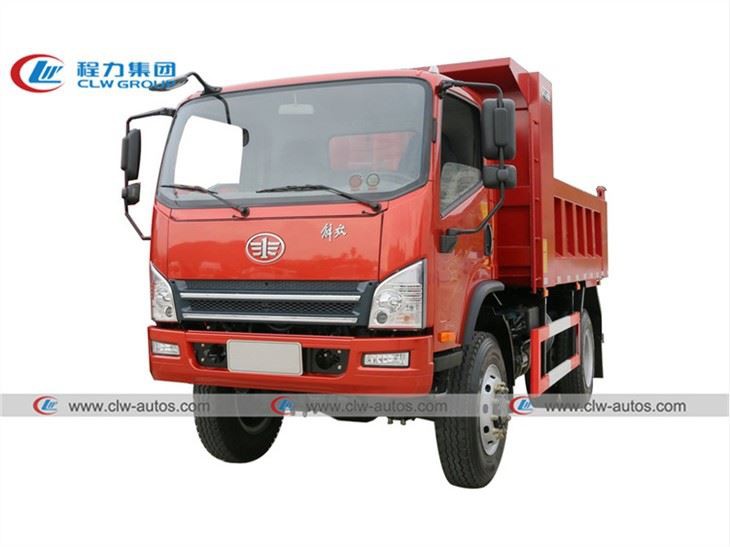

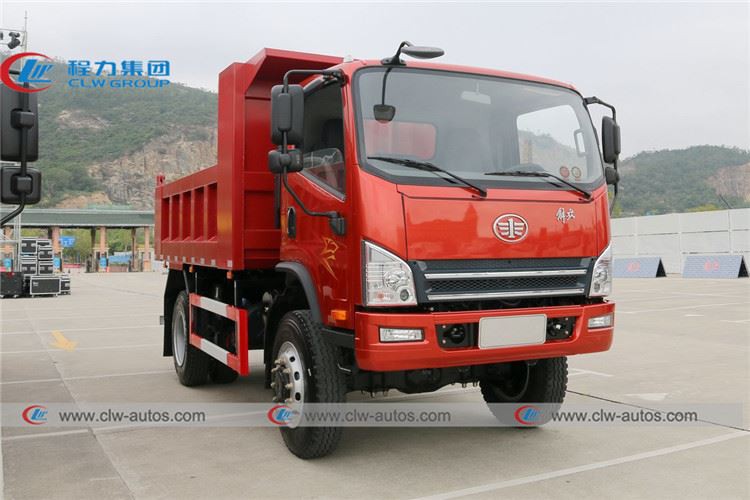

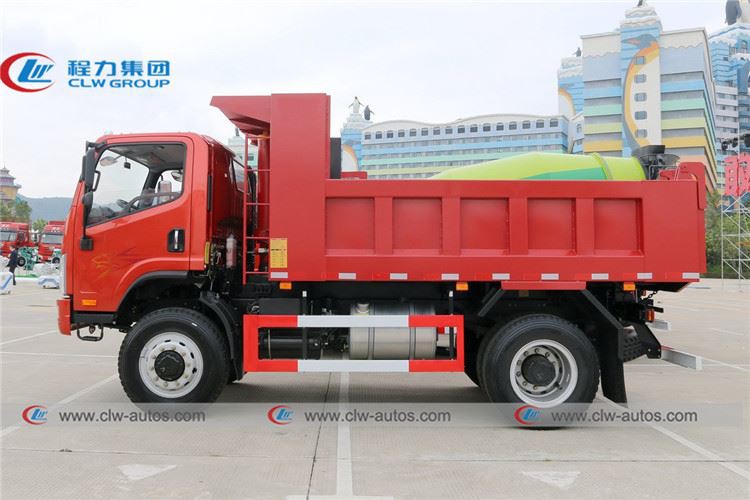

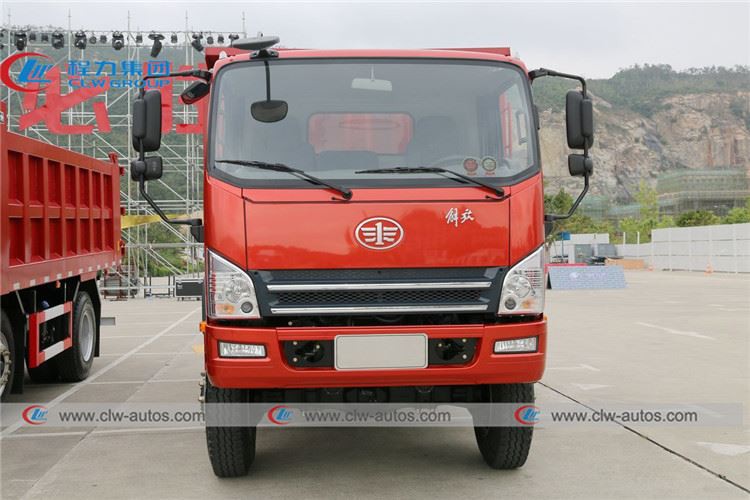

FAW Tiger V 6Ton 4X4 Offroad Mini Tipper Dump Truck

This mini 4x4 dump truck has a capacity of 6tons, can work on bad road conditions.

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw tiger v 6ton 4x4 offroad mini tipper dump truck in China. If you're going to buy high quality faw tiger v 6ton 4x4 offroad mini tipper dump truck, welcome to get more information from our factory. For price consultation, contact us.

Product Description:

1) Truck chassis brand of dump truck: FAW, SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model of dump truck: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand of dump truck: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper material of dump truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.

Product Specification:

Brand and model	FAW Tiger V 4x4 left hand drive

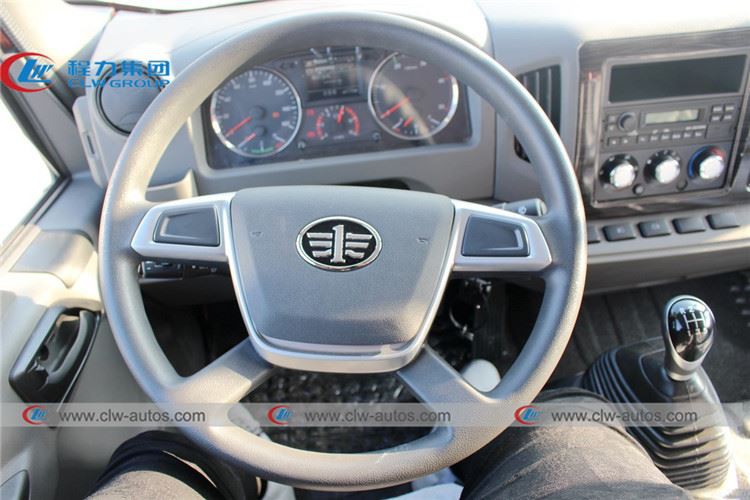

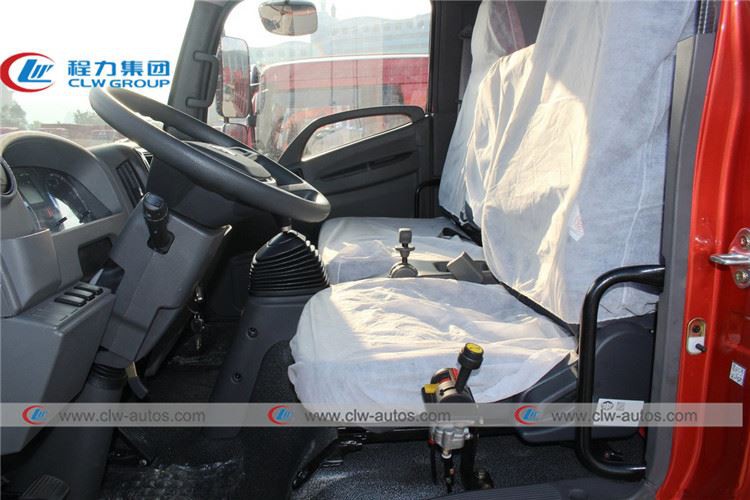

Driver's Cab	Single cab, with two seats, with air conditioner
Engine	Diesel, 4 Sylinder in-line, turbo charged innter cooler
	Engine model: YC4D140-48 , Euro IV emission standard
	6-cylinder in-line with water cooling, turbo-charging and intercooling
	Power: 140 hp
	Displacement: 4.2L
Max torque	450N·M
Cluch model	ф325
Transmission	WLY 5T46, Manual, 5 forwards and 1 reverse

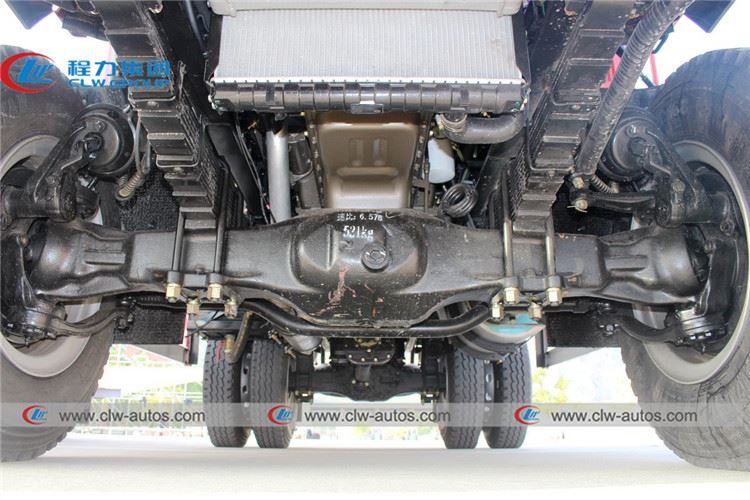

Type of rear axle	QING TE 205 Hub reduction axle
Speed ratio of rear axle	6.578
Chassis	Frame: U-profile parallel ladder frame and reinforced subframe,all cold riveted cross members, Manganese steel
	Front suspension: leaf spring
	Rear suspension:leaf spring
	Aluminium fuel tank: 100 L capacity with locking fuel cap, fitted to the off side of the chassis
Wheels & Tyres	Tire: 9.00R20, 6pcs+1 spare tire
Frame	237×65×(7+4)
Dimensions	Wheel base	3300MM
	Overall dimension	590023002660mm

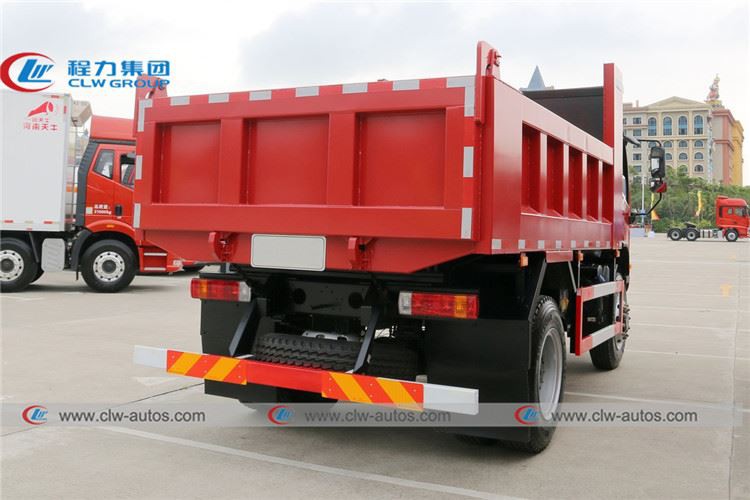

	Dump box	36002100650mm
Weight	Loading Capacity	6200KG
	Curb weight	5840KG
