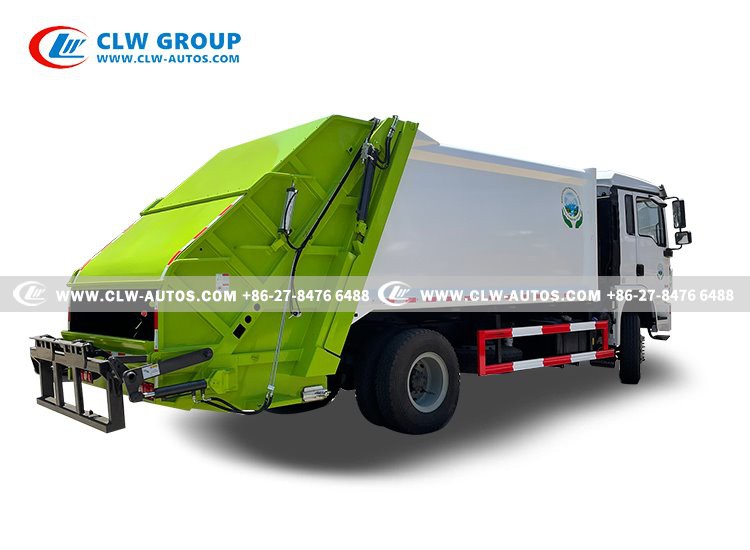

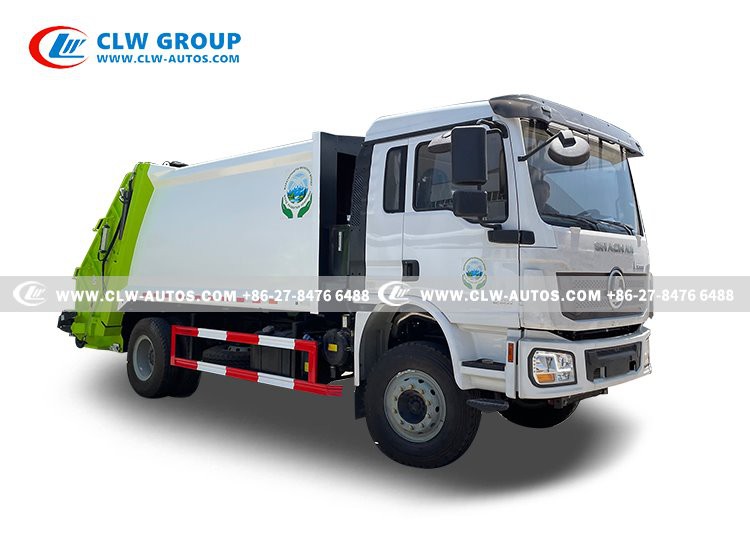

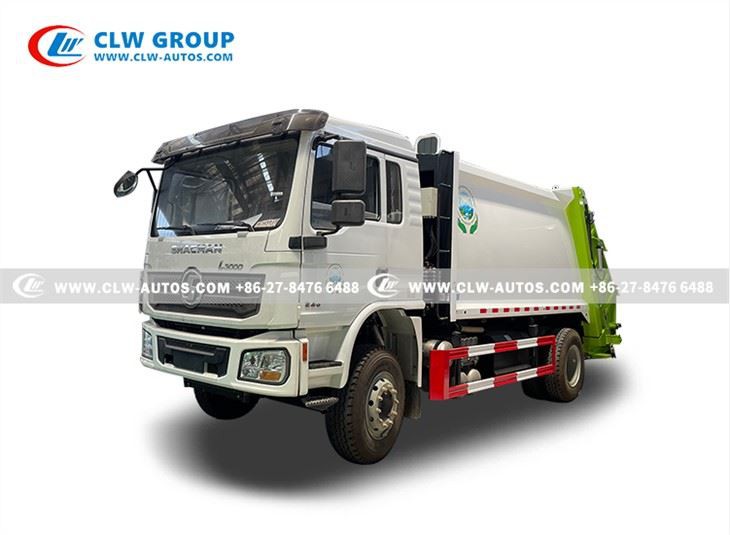

Shacman L3000 240HP 10 Tons Refuse Compactor Truck
SHACMAN L3000 Garbage Truck
Engine: 210HP/240HP
Emmission:Euro III/V
Garbage box size:12/14/16CBM
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman l3000 240hp 10 tons refuse compactor truck in China. If you're going to buy high quality shacman l3000 240hp 10 tons refuse compactor truck, welcome to get more information from our factory. For price consultation, contact us.
Description:
Euro V 240HP Shacman L3000 garbage truck for Uzbekistan/Kyrgyzstan/Kazakhstan
Refuse compactor truck,also called compressed garbage truck,shacman waste recycling truck,shacman L3000 waste management truck,disposal collection truck.
Why do you choose shacman L3000 garbage compactor truck?
Shacman L3000 cabin with Rich, flexible and diverse storage space to facilitate the storage needs of drivers on the way
Strong axle with higher loading capacity
Low fuel consumption 18L/100 km
Wider sleeper 645mm
Front fixed rear hydraulic mount
1700mm leaf spring
Standard hydraulic seat, optional airbag seat
Standard synchronizer
300L aluminum alloy fuel tank, bigger, lighter and more beautiful
Body capacity 12/14/16CBM
High strength Protector
high strength steel garbage box
side plate is whole plate bending molding,without welding to ensure long service life.
Germany Siemens CAN BUS System(more convenient operation)
ISO Certified Hydraulic Cylinders
Patented Design with Balance Valve for safety
CE Standard Hydraulic Oil Pipeline
Specification of Shacman L3000 Rear loader compactor refuse truck
Specification of Truck Chassis | ||
Driving Model | 4 X 2 | |
Cab | l Original SHACMAN L3000 cabin with one sleeper l Left Hand Driving/RHD l with air conditioner l Central lock l Electric window | |
Wheel Base | 5000mm | |
Axle Loading (front/rear) | 4,500/10,000 kg | |
External Dimensions (L x W x H) | 9580×2500×3250mm | |
Max. driving speed | 95 km/h | |
Engine | Model | WP6.240E32 |
Type | WEICHAI diesel engine,6-cylinders in a line,Water cooled,turbocharged,after cooled , cold start. | |
Horse Power | 240Hp | |
Max output power | 176kW | |
Emission standard | Euro II/Euro V | |
Displacement | 6750ml | |
Rated Speed | 2500 rpm | |
Gearbox | l Manual type, l FAST 8JS85TM, l 8 forward gears & 2 reverse | |
Clutch | Reinforced diaphragm clutch | |
Tire | 10.00R20, 6 pieces with 1 spare tire. | |
Fuel box | 200L | |
Garbage Truck Body(6m3) | ||
Tanker body material | Quality high tensile Q345 carbon steel | |
Shape | rectangular box, arc-shaped rear | |
Thickness | Side 5mm, Bottom 5mm | |
Garbage Container Size | 14 CBM | |
Filling hopper volume | 1 CBM | |
Left sewage box size | 180 L | |
Sewage box of filling hopper | 300 L | |
Working rotation speed | 1400 r/min | |
Compaction ratio | 0.7-0.85T/m³ | |
Compacting cycle time | ≤35 s | |
Loading cycle time | ≤15 s | |
Unloading cycle time | ≤55 s | |
Oil pump displacement | 63 ml/r | |
Hydraulic oil box size | 120 L | |
System pressure | 16 Mpa | |
PTO operation method | Pneumatic | |
Operation and Control | Both Automatic(Electrical) and Manual (hydraulic) | |
We supply customized waste collection method and design as follows,
Flip type with 120L/240L/660L/330L garbage bucket
Rear Triangle bucket,
Rear swing arm system.
Sealing large waste collection container
Pneumatic sealing cover
