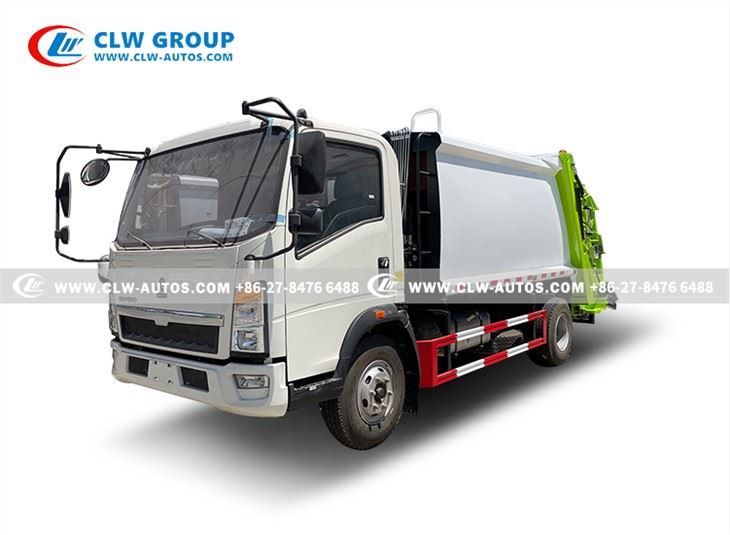

HOWO 8cbm Waste Collection Truck Garbage Compactor Vehicle
SINOTRUK HOWO:3800mm wheel base
Gearbox : 5 forward and 1 reverse
Tire: 7.50R16
garbage bin : 8cbm
Compression rate: 0.6-0.8
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 8cbm waste collection truck garbage compactor vehicle in China. If you're going to buy high quality howo 8cbm waste collection truck garbage compactor vehicle, welcome to get more information from our factory. For price consultation, contact us.
Garbage compactor truck is the most popular type for waste management companies. CLW Group has more than 18 years experience on design and produce garbage trucks which including garbage compactor truck, hook lift garbage truck, swing arm garbage truck.
Main feature
1. Truck chassis: ISUZU,Dongfeng, HOWO,Foton, Shacman, JAC, JMC, FAW, CAMC etc.
2. Garbage bin box size various from 5cbm, 6cbm,8cbm,10cbm, 12cbm, 14cbm, 16cbm, 18cbm, 20cbm, 22cbm.
3. Garbage bin box material: high intense carton steel, from Well-known steel mills in China.
4. PLC control system from driver cabin and rear side of truck, easy operate by the workers.
5. multi type rear loading type for choice, customized design based on user's need.
6. High efficient compression rate 0.6 to 0.8 depends on the waste type.

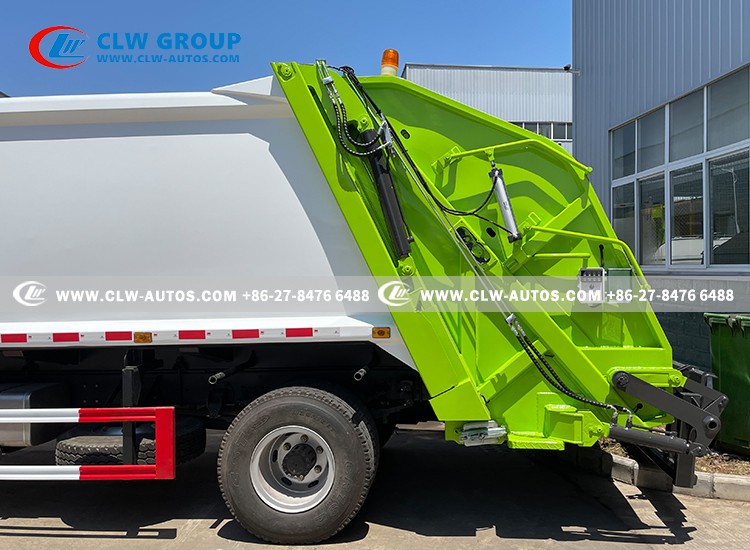

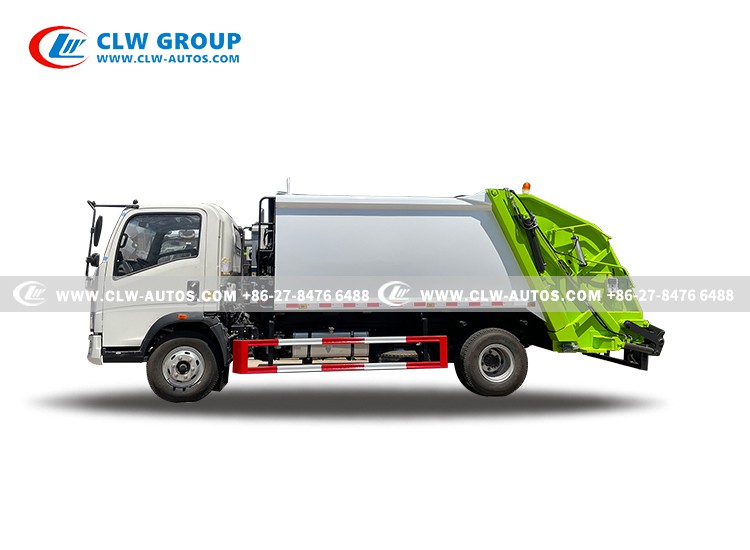

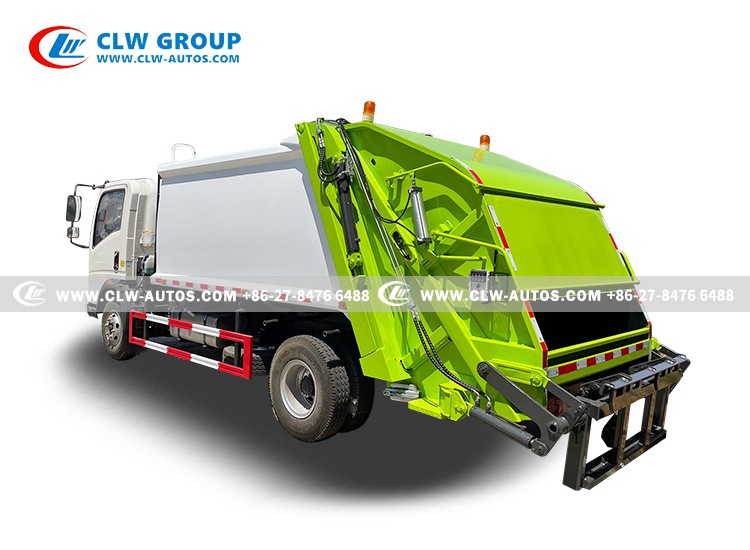

Reference picture
Specification
HOWO 8cbm Waste Collection truck | ||||
Condition | New condition/LHD or RHD /4x2 | |||
Chassis | Brand | HOWO | ||
Curb weight(kg) | 6095 kg | |||
Wheelbase(mm) | 3800mm | |||
Dimensions(mm) | 7000*2320*2900 mm | |||
Axle Load(kg) | 2400/4200 kg | |||
Max. driving speed(km/h) | 90 km/h | |||
Clutch | Reinforced diaphragm clutch | |||
Brakes | air brake | |||
Steering Gear | Power assistant | |||
Tire | Number | 6pcs with one spare tire | ||
Specifications | 7.50R16 nylon tire | |||
Transmission | 6 Forwards and 1 Reverses | |||
Cabin | It can accommodate three people, With Air conditioner | |||
Engine | Brand | Yunnei | ||
Power(kw)/Horsepower/(HP) | 85kw/116 HP | |||
Emission standard | Euro III | |||
Upper Body | ||||
Item No. | Parameters | |||
Volume Capacity(Garbage) | 8.0 CBM | |||
Thickness of the tank | 4mm for the bottom and 4mm for the side carbon steel | |||
Sewage tanker(L) | 200 L | |||
Tail gate volume(L) | 850 L-1000L(Filling structure) | |||
Specification | Rated Pressure of Hydraulic system: 16 Mpa Filling time of loading system: 8-10 s Working cycle of Loading system: 50-60 s Working cycle of the unloading system: 30-40 s Compress ratio:2.5:1 | |||
Equipment | ◆ Equipped with hermetic dustbin, hydraulic system and operating system. ◆ Automatic compress and uninstall, sewage can be collected by the sewage tank. ◆ PLC control system: Siemens brand operate system. | |||
Painting and Logo | As customer’s requirement | |||
Other detail | China Famous brand and quality hydraulic pump, Multiple way valve, Tilt plate oil cylinder, Tail gate cylinder, Scraper cylinder, Slide plate cylinder, Push plate cylinder. | |||
Diagram for compressed garbage truck
