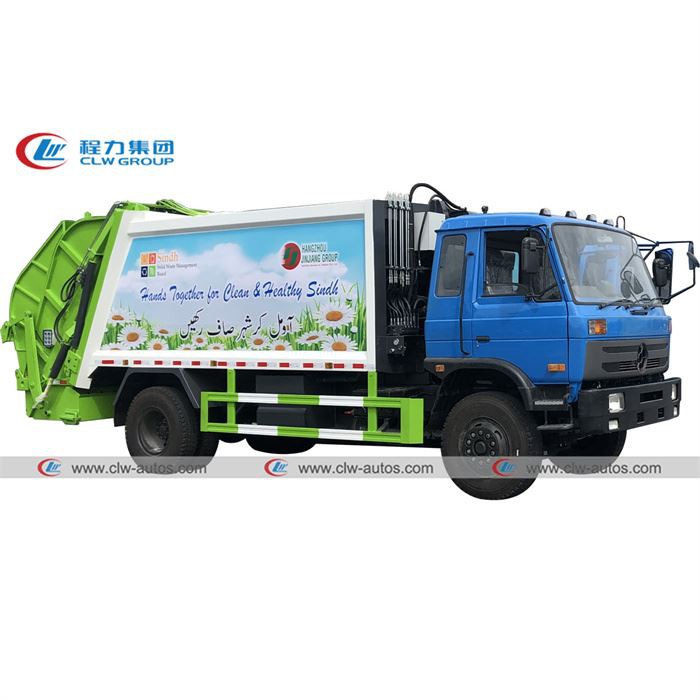

Dongfeng RHD 14cbm 14,000Liters Compactor Garbage Trucks
Garbage Tank Size:14cbm/14,000L
Chassis brand: Dongfeng
Gear box:8-speed forward and 2 reverse
Loading capacity: 8.4-9tons
Garbage Compact Ratio:1/3-1/4
Color and painting: Can be customized.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng rhd 14cbm 14,000liters compactor garbage trucks in China. If you're going to buy high quality dongfeng rhd 14cbm 14,000liters compactor garbage trucks, welcome to get more information from our factory. For price consultation, contact us.
Product Description
-1. Dongfeng 14,000 liter compactor garbage truck chassis configuration: adopting the Dongfeng153 4*2 special sanitation vehicle series chassis, equipped with Yuchai 190HP diesel engine, 8-gear box, air brake, dynamic rotation, clutch booster, 10.00R20 steel tire, cruise at fixed speed. The wheelbase is 4500-5000mm according to requirements.
-2. Compactor garbage truck is a special sanitation vehicle mainly used to collect household garbage and other compressible garbage of urban residents. Compactor garbage truck is composed of sealed garbage bin, hydraulic system and operating system. The whole truck is fully sealed, and all sewage from the compression, dumping, and compression process enters the sewage tank, which completely solves the problem of secondary pollution during the garbage transportation process. The key components are imported, which has high pressure, It has the advantages of good sealing, convenient operation, safety and labor saving.
-3. Volume : 3-20m3 garbage truck.
-4. Steering wheel: both left and right hand drive,meet the needs of different countries.
-5. Emission standard: Euro 1,Euro 2,Euro 3,Euro 4,Euro 5, etc.
-6. Truck chassis: Dongfeng, ISUZU, FAW, SINOTRUK HOWO, JAC, FOTON, etc.
Product Features

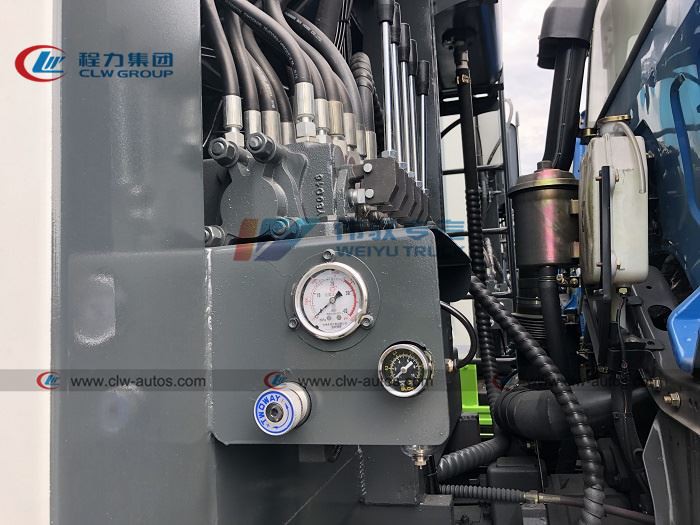

-1. Hydraulic system, including the control valve, oil cylinder, connecting pipeline and other key parts, has advanced structure, reliable performance, simple operation and convenient maintenance.
-2. Advanced electric control system adopts imported PLC integrated control, mechatronics-hydraulic integrated control, and high degree of automation.
-3. The pushing plate control valve is equipped with a back pressure valve, which can highly improve the loading efficiency.
-4. The beautiful streamlined appearance design, and the upper body adopts special high-strength anti-corrosion steel plate, which extends the service life of the truck.
-5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.

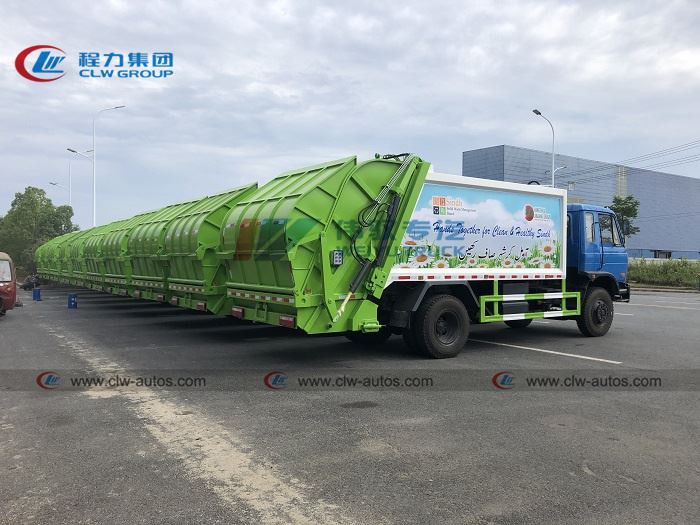

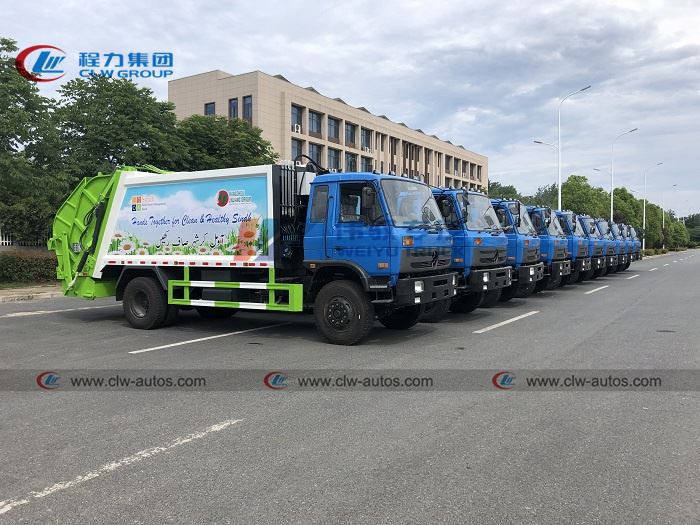

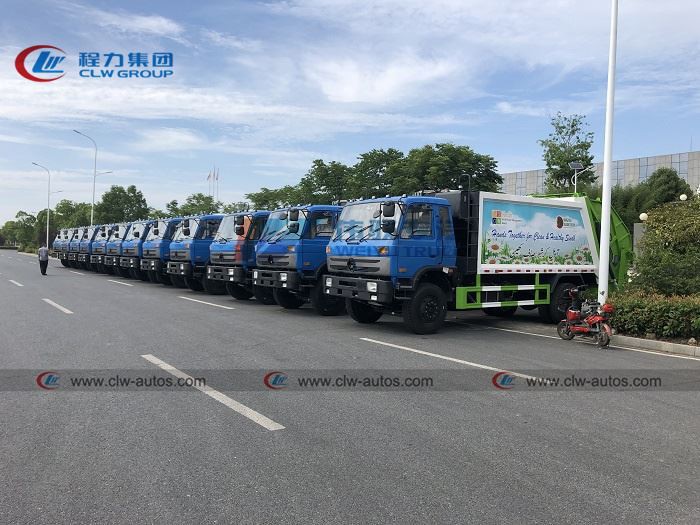

Reference Photos
Product Specification
| Dongfeng RHD 14CBM Garbage Compactor Truck | |||||
| Overall Dimension | 9900*2485*3020 mm | Gross Vehicle Weight | 18000 kg | ||
| Curb Weight | 9910 kg | Loading Weight | 8500 kg | ||
| Wheel Base | 4500 mm | Front / Rear Axle | 5000 kg / 10000kg | ||
| Cabin | Right Hand Drive, 3 Passengers Allowed, with Air Conditioner, Radio, etc. | ||||
| Engine | Yuchai | ||||
| Engine horsepower | 190HP, EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 8 Forward Gear, 2 Reverse Gear, | ||||
| Tire | 10.00R20 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 14CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 - 1/4 | ||||

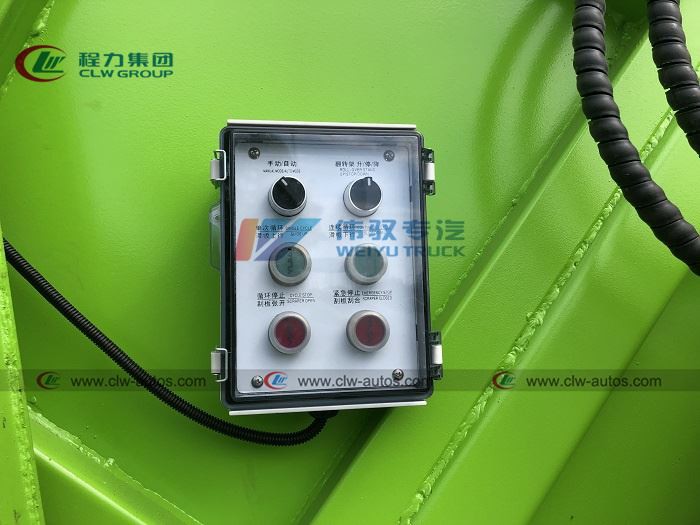

| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Structure Diagram
Main Details
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.
