Dominica ISUZU 4Ton Flatbed Tow Truck

Drive Type: 4x2
Engine Power: 120hp
Wheelbase: 3360mm
Max. Loading Capacity:4Ton
With 4Ton Winch
With 3Ton Rear Tow Bar
Can One Tow Two

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dominica isuzu 4ton flatbed tow truck in China. If you're going to buy high quality dominica isuzu 4ton flatbed tow truck, welcome to get more information from our factory. For price consultation, contact us.





ISUZU 4X2 KV100 120HP 4Ton One Tow Two Flatbed Tow Truck For Dominica



We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
Welcome to visit our factory!



Products Description

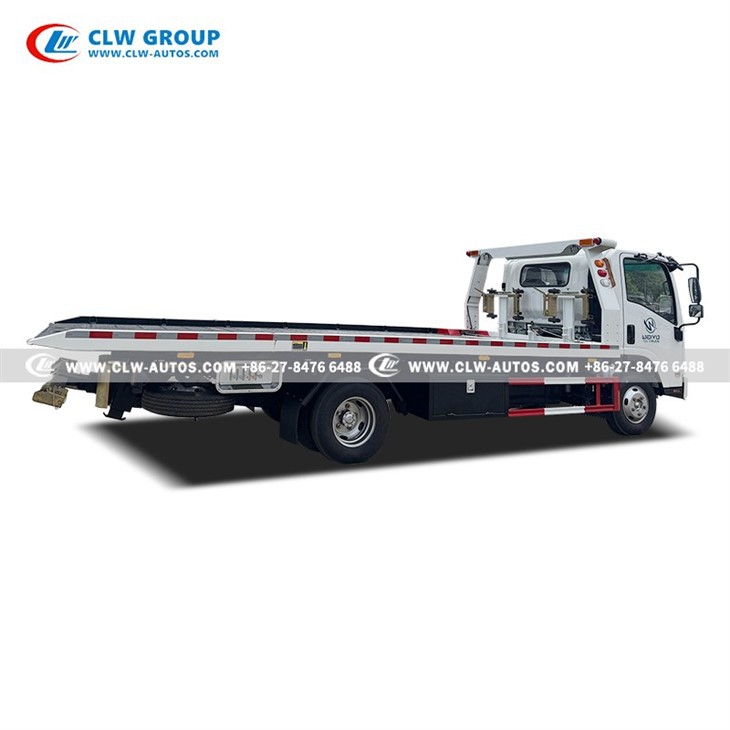

6ISUZU 120HP KV100 4Ton Flatbed Tow Truck
  1. Chassis and Powertrain: Isuzu's high reliability, adapted to local working conditions.



  • Mature Powertrain: Equipped with an Isuzu 120hp engine and a manual transmission, it is robust, durable, and fuel-efficient. It boasts a low failure rate in the high temperatures and complex road conditions of the Dominica. Local repair shops have extensive experience maintaining Isuzu engines, and parts are readily available at low cost.
  • Compact and Agile Body: The short wheelbase design of 3360mm results in a shorter overall length, providing excellent maneuverability in the narrow city streets, underground garages, and rural mountain roads of the Dominica. It can easily handle rescue scenarios inaccessible to other long-wheelbase vehicles.
3ISUZU 4Ton Flatbed Tow Truck
4ISUZU Flatbed Tow Truck
  • Sturdy Load-Bearing and Stability: The 4-ton class clearing body can carry mainstream vehicles such as cars and SUVs up to 5 tons. The rear outriggers and flatbed structure significantly improve operational stability, meeting the local needs for one-to-two towing and all-scenario urban/suburban rescue operations.

Products Operation Video




Products Detailed Photos



7ISUZU 4x2 KV100 4Ton Flatbed Tow Truck-Rear tow bar

3Ton Rear Tow Bar

With a rated lifting capacity of 3 tons, it can easily lift mainstream sedans, SUVs, and minivans (the most common types of vehicles in the Dominican Republic), and even some light pickup trucks/vans, covering more than 90% of daily rescue scenarios. Compared to a pure flatbed tow truck without a tow arm, its functionality and practicality are on a completely different level.

9ISUZU 4x2 KV100 4Ton Flatbed Tow Truck-winch

4Ton Winch

High-Wear-Resistant Anti-Slip Flatbed + High-Strength Winch: The patterned anti-slip flatbed features anti-slip holes for easy securing of disabled vehicles; a standard 4-ton hydraulic winch easily tows stuck or damaged vehicles, suitable for rescue scenarios involving muddy and damaged roads during the rainy season.

8ISUZU 4x2 KV100 4Ton Flatbed Tow Truck-operate control

Operation Control Level

Fully Hydraulic Control + Multi-Level Operation: 5-level hydraulic control lever (clearly labeled), allowing even beginners to quickly learn. The flatbed tilting, extension, and winch control logic is clear, adapting to local user habits and reducing training costs.

Products Parameters



Chassis Specification

Chassis model

QL104

Driving model

4x2

Dimension

7600×2300×2300 mm

Cab

  • Original ISUZU kv100 cabin
  • Single Row
  • Left Hand Driving
  • with air conditioner
  • Central lock
  • Steer Assistance
  • Electric Window

Wheelbase

3360 mm

Gross vehicle weight

4495 kg

Curb weight

5280 kg

Approach / Departure angle

23°/12°

Axle loading (front / rear)

2500 / 4800 kg

Axle number

2

Tire

7.00R16, 6 wheels, with one spare tire

Fuel tank

100 L / steel material

Engine

ISUZU, diesel engine

4 cylinders in a line,

Water cooled,turbocharged,after cooled , cold start.

Model: 4KH1CN6LB

Horse power: 120 HP

Displacement: 2999 m

Emission standard: Euro Ⅵ

Transmission

Manual type, 5 forward and 1 reverse

Max. speed

105 km/h

Platform Parameters

Platform material

4 mm thickness patterned one-piece board

Platform size (L*W)

5800×2300 mm

Max loading capacity

5000 kg

Winch rating pulling capacity

4000 kg

Under lift capacity

3000 kg

Optional parts

  • Backstop
  • Remote control
  • Valve
  • Warning light
  • Cylinder



Cost and Compliance: Outstanding Value for Money, Fitting Local Market Budgets

Advantages For Dominica


  • Significant Price Advantage: Compared to brand-new imported tow trucks from Europe and America, this domestically modified Isuzu KV100 is cheaper and in better condition than mainstream used tow trucks in the local market, creating a competitive advantage through price differentiation.
  • Compliance Compliance: The new vehicle meets the age restrictions for commercial vehicle imports in the Dominica and can complete emission and safety certifications according to local regulations, eliminating compliance risks. Compared to used tow trucks, it is easier to pass local vehicle inspections and transportation permit audits.
  • After-Sales Service and Parts Support: Isuzu has a mature parts supply chain in the Dominica, making chassis parts readily available. Domestically produced body parts have a high degree of compatibility, resulting in low maintenance costs and enabling rapid response to emergency maintenance needs of rescue users.
  • A "Traffic Magic Weapon" for Narrow City and Rural Roads: The old town of Santo Domingo in the Dominica features narrow streets and winding rural mountain roads. The rear tow arm adopts a foldable and telescopic design, which can be folded down and placed close to the rear of the vehicle when not in use, without increasing the overall length of the vehicle. This avoids the inconvenience of turning and U-turns caused by long tow arms, making it much more flexible than tow-and-lift integrated tow trucks in complex road conditions.
  • Self-Rescue and Extrication Capabilities on Muddy and Damaged Roads: The Dominica experiences frequent rain, and some rural roads are muddy and slippery. When the tow truck itself gets stuck, the hydraulic support function of the rear tow arm can be used to lift the vehicle out of the mud. When rescuing a stuck vehicle, the tow arm can also assist in lifting, reducing towing resistance and preventing secondary entrapment.
  • Suitable for rescuing vehicles with low chassis and those deformed in accidents. There are many old vehicles in the area, and the chassis of accident vehicles are prone to deformation. The 3-ton rear tow arm can adjust the lifting height and angle to adapt to vehicles with different ground clearances. The tire bracket of the tow arm can quickly fix the wheels, which is safer than traditional hard towing and does not require additional complicated binding tools.
