Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6Tons Wrecker Tow Truck With Crane in China. If you're going to buy high quality 6Tons Wrecker Tow Truck With Crane, welcome to get more information from our factory. For price consultation, contact us.

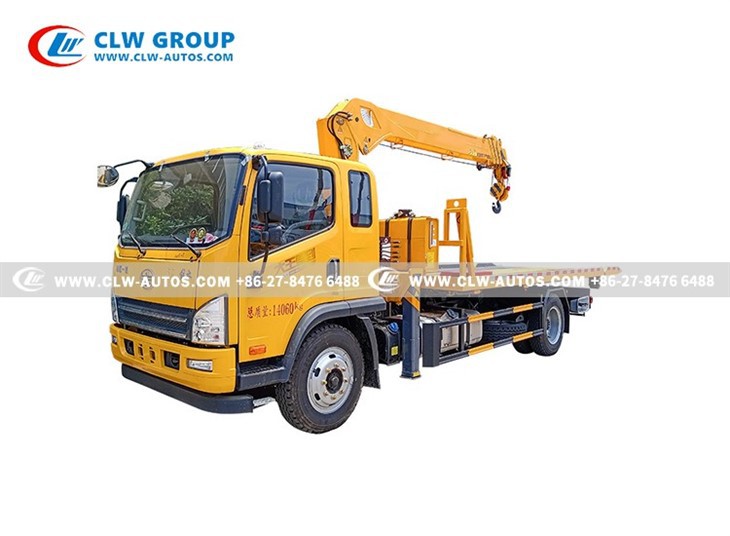

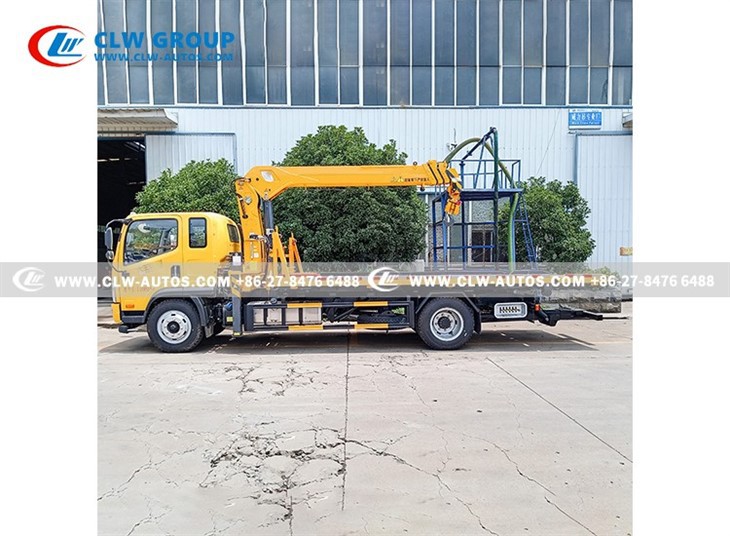

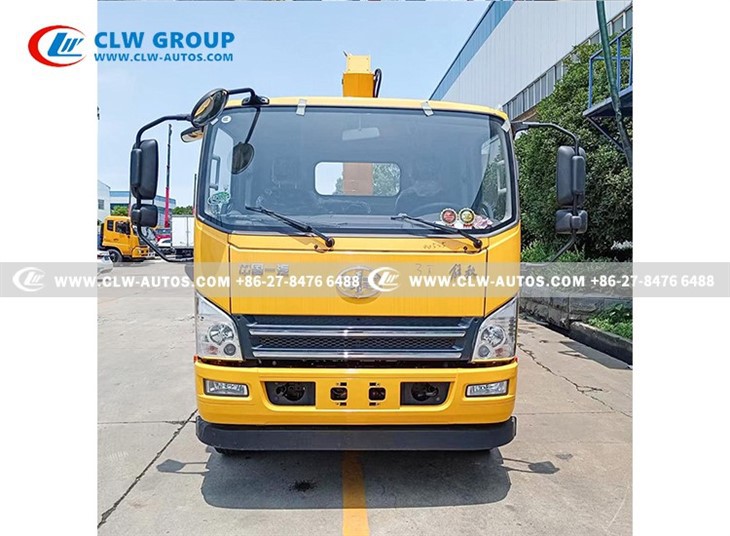

FAW 190hp 6-ton flatbed tow truck with crane
Powerful FAW 6-Ton Wrecker Towing Truck – Your Ultimate Solution for Heavy-Duty Towing & Recovery!
1. Chassis Performance
FAW chassis is powered by a 190hp Weichai engine and FAST 8-speed gearbox, delivering exceptional power for challenging Vehicle Rescue operations. With an 8.5-ton rear axle, air brake system, and a comfortable cab featuring power windows and A/C, this Recovery Truck is built for both performance and operator comfort.
2. Multi-Functional
This 6Tons Flatbed Wrecker Truck With Crane combines a 6-ton slide bed with a XCMG 3.2-ton straight boom crane for ultimate versatility. Ideal for rollback trucks operations, it handles everything from simple car transports to complex recovery scenes requiring a lift and tow truck.
3. Towing and Recovery Equipment
Equipped for serious Vehicle Rescue, this slide bed wrecker tow truck features a 6-ton winch with 25m steel cable and a 3.5-ton under lift towing arm. The Foldable Tailgate Rollback Flatbed design and Wheel-lift tow truck functionality make it a comprehensive one-to-two wrecker truck for professional-grade efficiency.
4. Complete Accessory Package
This Flatbed Platform Tow Truck comes ready to work with wheel dollies, tie-down straps, L-model tire hold-downs, and rotating torque pins.
Key Features:
6Tons Flatbed Wrecker Truck With Crane / One to two wrecker truck / 3.2Ton straight boom crane/ 6Ton Winch Wheel-lift tow truck
Product Name: FAW 6Tons Flatbed Wrecker Truck With Crane
Application: Transportation of breakdown cars
Cab: Single row and half cabin, LHD, A/C
Wheelbase: 4700 mm
Engine: WP4.1NQ190E50
Horsepower: 190HP
Emission standard: Euro V
Gearbox: 8 Forwards and 2 reverse
Gross Vehicle Weight: 14060 kg
Curb weight: 7060 kg
Loading weight: 6000 kg
Front/Rear Axle loading: 4t /8.5t
Tires: 8.25R16, 6 pcs with one spare
Fuel Tank: 200L aluminum alloy material
Brake System: Automatically Air-Cut Brake
|
Super Structure Specification |
|||||||
|
Flatbed Platform |
|||||||
|
Flatbed |
Width |
2480mm |
|||||
|
|
Length |
5m main platform+1m tailgate |
|||||
|
|
Thickness |
6mm manganese plate |
|||||
|
|
Loading Capacity |
6Tons |
|||||
|
Winch |
Pulling Capacity |
6Tons |
|||||
|
|
Length of the steel rope |
25m |
|||||
|
Under Lift |
Towing Capacity |
3.5Tons |
|||||
|
|
Length |
1.5m |
|||||
|
3.2Tons Telescopic Boom Crane |
|||||||
|
Brand/Model |
XCMG / SQ3.2SK2Q |
||||||
|
Extendable Boom Section |
1 Main boom + 3 Extendable boom |
||||||
|
Boom Type |
Straight boom |
||||||
|
Max.Lifting Capacity (kg) |
Effectively: 3,200 kg at 2.1meters |
||||||
|
Max Outreach (m) |
7.56 m |
||||||
|
Slewing Angle (°) |
Slewing continuous |
||||||
|
Hydraulic Outriggers |
2pcs |
||||||
|
Lifting Capacity Comparision Table |
|||||||
|
Working Radius (m) |
2.1 |
3.36 |
5.46 |
7.56 |
|||
|
Rated Load (kg) |
3200 |
1800 |
800 |
500 |
|||
Hook lifts truck are typically smaller and more versatile - and they can also be used in conjunction with flatbed trucks or dump trucks!

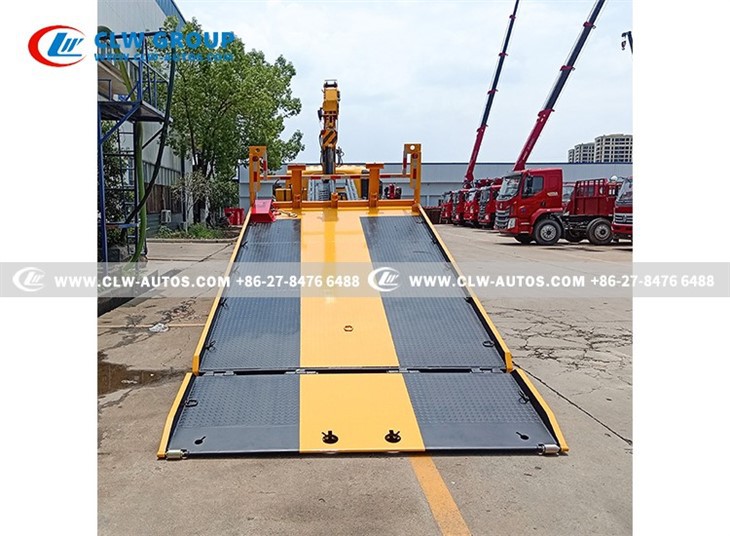

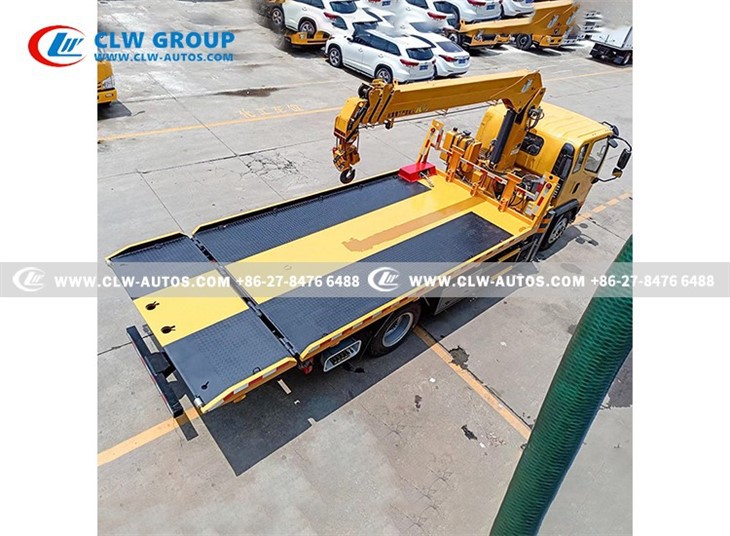

folding Rollback platform
Type: Tilt tray
Width: 2480mm
Length: 5m Main platform+1m tailgate
Thickness: 6mm Anti-slip pattern plate
Material: Manganese steel
With side fasten rings
Both side Flatbed control lever
Manual control lever
Optional remote control
Lever with operation instruction
Easy to operate and simple to use
Hydraulic under lift system
Length adjustable
Towing capacity is 6Tons
It can be extended and retracted
This truck has "one-to-two" function
Used in combination with the L-shaped drag fork
Crane Control Lever
Manual control lever
3 Sections straight boom crane
Lifting capacity: 3,200 kg at 2.1meters
With 2pieces hydraulic outtrigers
Make the wrecker truck multi-functional
6Tons Winch with 25m steel rope
Use in combination with auxiliary wheels
Automatic hydraulic hook retraction mechanism
Optional with winches of different tensions
All to ground flatbed wrecker truck
One-to-two tow truck
One-to-one integrated tow truck
There are various modes of transportation for you to choose from!
