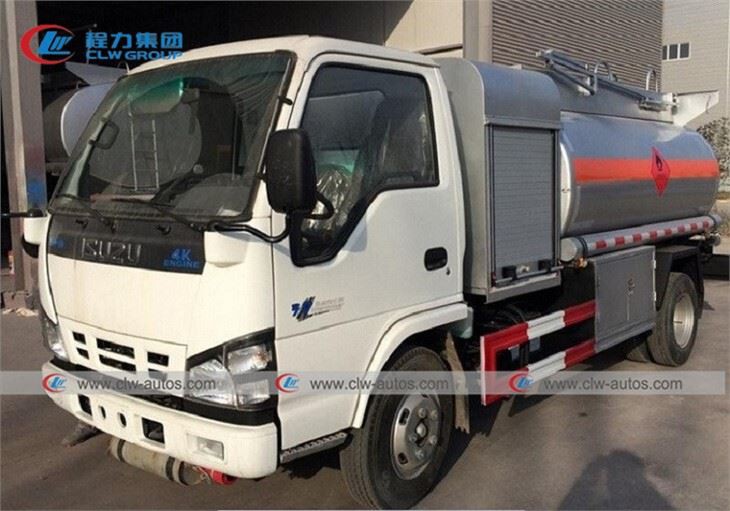

Isuzu 5cbm 5,000Liters Stainless Steel Oil Tanker Fuel Dispenser Truck
Tank Size:5,000Liters
Oil pump: Chinese Top brand
Oil Dispenser:Chinese famous brand, Digital Screen Display with Keyboard, Oil Filling Display in Liter, Price & Amount
Hose Reel with Filling Gun
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 5cbm 5,000liters stainless steel oil tanker fuel dispenser truck in China. If you're going to buy high quality isuzu 5cbm 5,000liters stainless steel oil tanker fuel dispenser truck, welcome to get more information from our factory. For price consultation, contact us.
Description
--Purpose: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
--Refueling System: Oil pump, Hose reel with filling gun/Oil dispenser machine
--Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
--Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
--Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
--Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

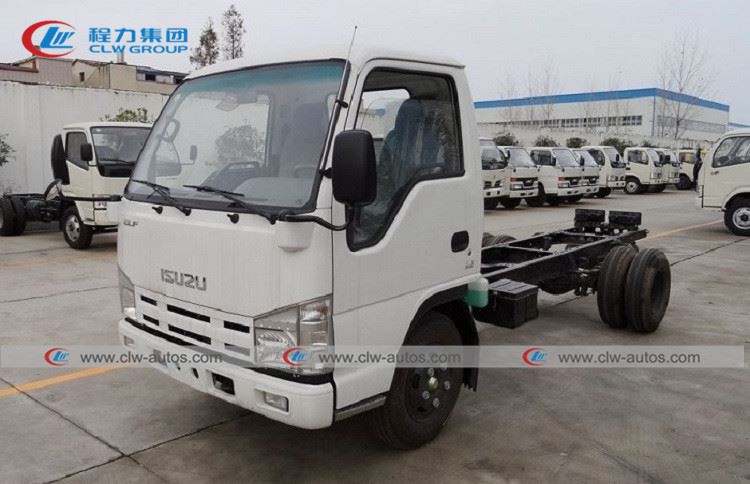

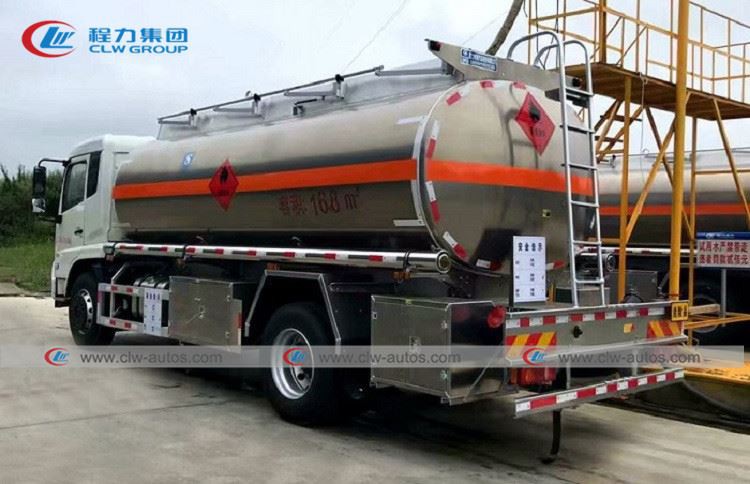

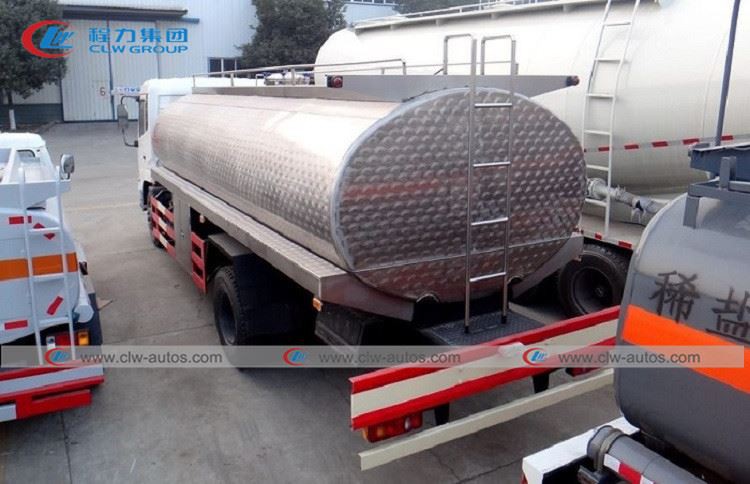

Reference Photos
Specification
General Technical Parameters | ||||
Overall Dimension | 5990×1960×2400 (mm) | |||
Gross Vehicle Weight | 8000kg | |||
Chassis Specification | ||||
Chassis Brand | ISUZU 100P | |||
Drive model | 4*2 | |||
Cabin | Single row, Cab reversible, Left-hand Drive, with air condition. | |||
Number of Passengers | 2. | |||
Engine | Model | 4HK1-TCG40/98HP, with ABS. | ||
Power | 72KW/98HP | |||
Emission standard | EURO 4 | |||
Displacement | 2770(ml) | |||
Fuel type | Diesel | |||
Gearbox | 5Forwards & 1Reverse, manual operation, with power steering. | |||
Brake System | Oil break, with vacuum booster pump. | |||
Wheel Base | 3360mm | |||
Front/Rear Axle Loading | 2500/4800(Kg) | |||
Overhang | Mechanical Suspension, 8/10+6. | |||
Tire | 7.00R16, steel wire tire, 6pc with 1 spare tire. | |||
Max Driving Speed | 80 km/h | |||
Upperstructure Specification | ||||
Fuel Tank | Tank Material | Q235B Carbon Steel (Stainless Steel and Aluminum Alloy for optional) | ||
Effective Volume | 5CBM | |||
Medium Type | Fuel(Gasoline, Diesel, etc.) | |||
Tank Thickness | 5mm | |||
Manhole cover | 1 unit. with breath valves. | |||
Emergency cut-off valve | 1 unit. | |||
Discharging valve | 1 unit. | |||
Lifting Ladder | 1 units. | |||
Color | According to customer's requirements. | |||

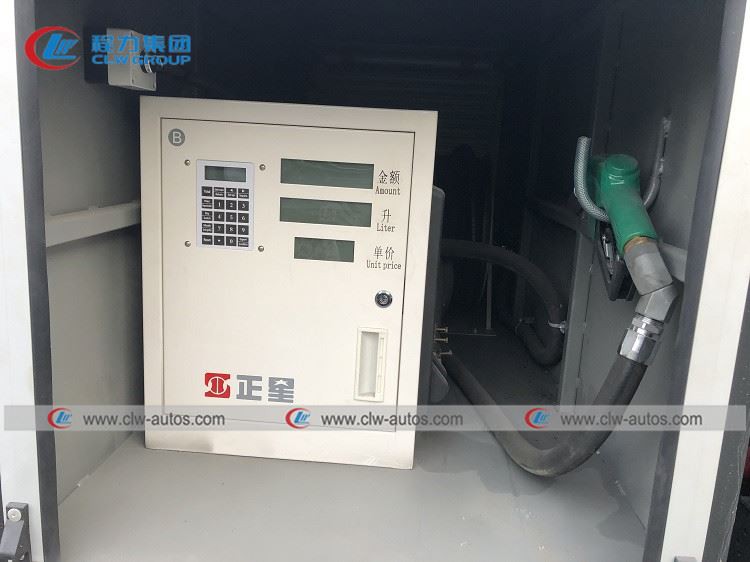

Dispenser System | 1, Dispenser machine; | |||
2, Refueling retractable rubber hose reel and filling gun, 2 units; | ||||
3, Pump. | ||||
