Dongfeng 6000Liters Fuel Dispenser Truck
Tank Size:6,000Liters
Oil pump: Chinese Top brand
Oil Dispenser:Chinese famous brand, Digital Screen Display with Keyboard, Oil Filling Display in Liter, Price & Amount
Hose Reel with Filling Gun
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6000liters fuel dispenser truck in China. If you're going to buy high quality dongfeng 6000liters fuel dispenser truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1.
Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2.
Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3.
High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4.
Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5.
Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6.
Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7.
Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8.
Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

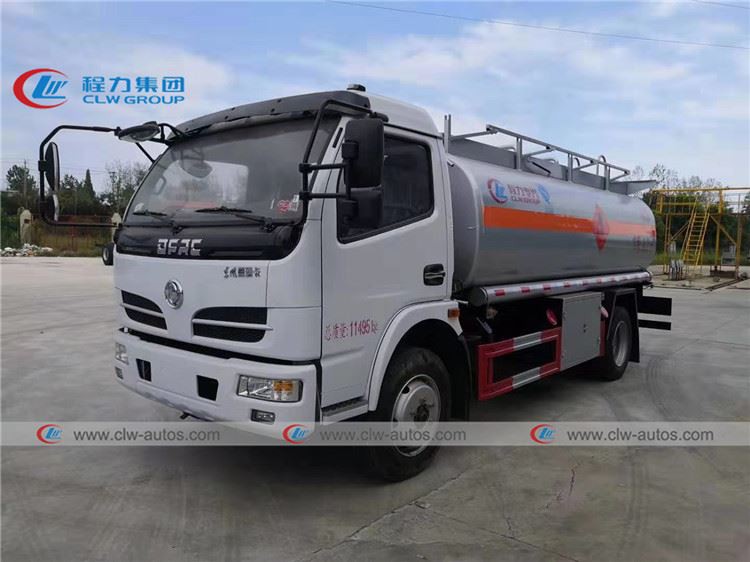

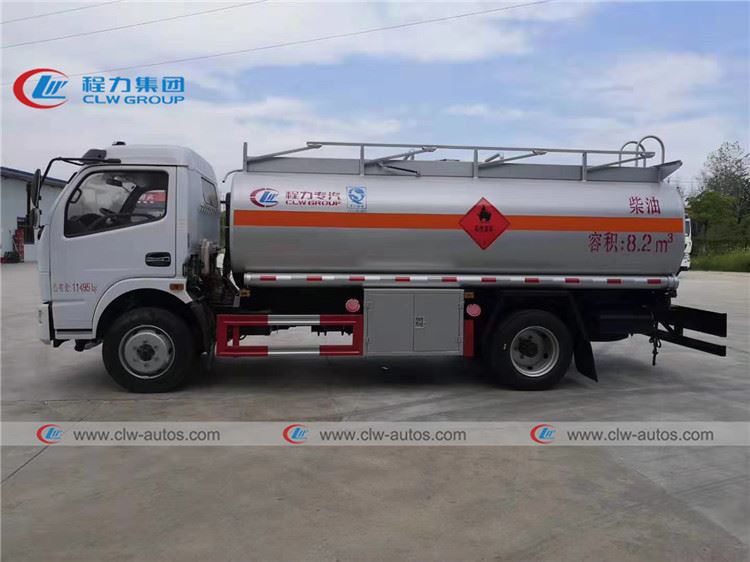

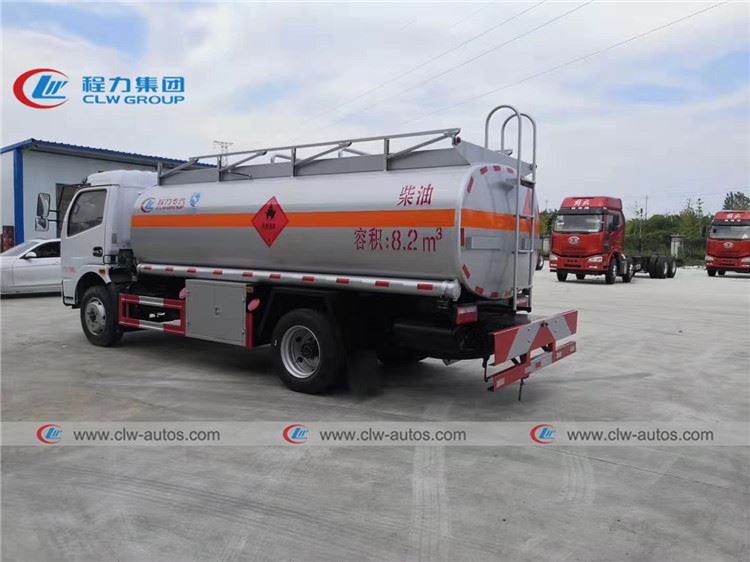

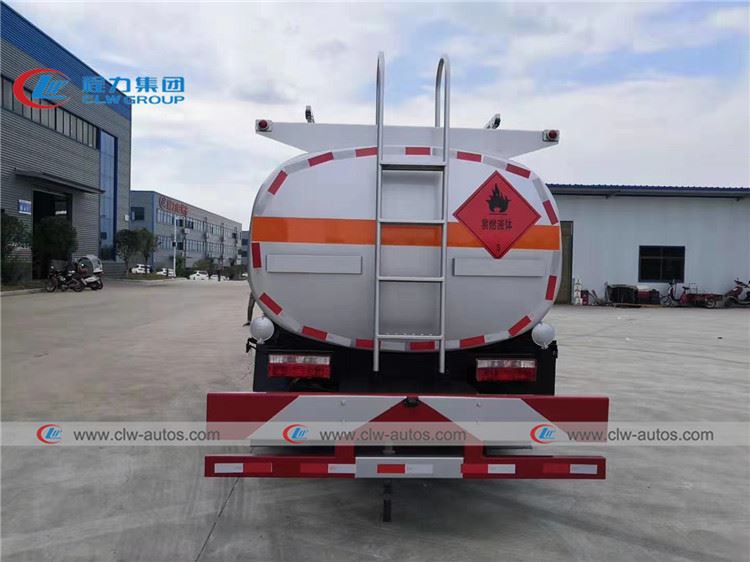

Reference picture
Specification
| ||||
Overall Dimension | 5990x2050x2500 (mm) | Gross Vehicle Weight | 7360(kg) | |
Curb Weight | 3765(kg) | Loading Weight | 3360(kg) | |
| ||||
Chassis parameters | Chassis Brand | DONGFENG | ||
Cabin | Single, Left Hand Driving | |||
Engine | Power | 102HP | ||
Emission standard | EURO II | |||
Displacement | 3.7L | |||
Fuel type | Diesel | |||
Gearbox | 5 Forward & 1 Reverse Gear | |||
Front and Rear Axle load | 3.5T rear axle | |||
Wheel Base | 3308(mm) | |||
Overhang( Front/Rear) | 1040/1647(mm) | |||
Angle(Approach/departure) | 16/14(°) | |||
Brake System | oil brake | |||
Steering Gear | Power Assistant | |||
Tire | 7.00R16, 6 Pieces | |||
Maximum speed | 80(km/h) | |||
| ||||
Fuel Tanker | Tank Volume |
| ||
Tank Material | Q235B Carbon Steel | |||
Tank Shape | Square Round | |||
Transport oil type | Diesel/Petrol | |||
| Oil Pump | 1pc, Chinese famous brand | ||
Oil dispenser | 1pc, Chinese famous brand, Digital Screen Display with Keyboard, Oil Filling Display in Liter, Price & Amount | |||
Hose Reel with Filling Gun | 6 Meter (Length can be longer as per request), Corrosion Resistant | |||
Equipment | Lifting fence, ladder, Manhole 1 Unit, Emergency cut-off valve 1 Unit | |||
Optional API standard system | Anti-overflow probe | |||
