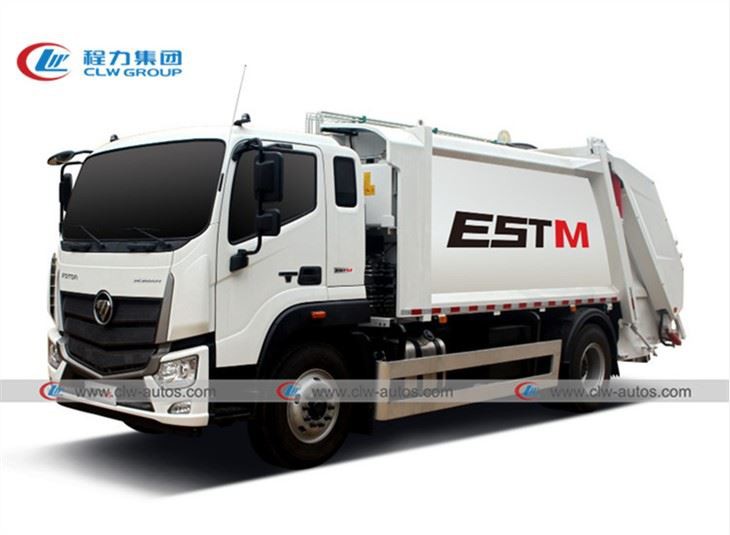

FOTON AUMAN 10-15M3 Compressed Garbage Truck
FOTON AUMAN Compressed Garbage Compactor Truck Garbage Box: 10-15M3 With Hydraulic system, Oil Cylinder.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton auman 10-15m3 compressed garbage truck in China. If you're going to buy high quality foton auman 10-15m3 compressed garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description:
1 foton Auman chassis with weichai engine
2 compactor garbage truck capacity 8-12 cubic meters
3 ISO 3C certification
4 one year warranty
Detailed Specification for FOTON AUMAN truck chassis with Cummins Engine:
Cabin | Left rudder/half row | |
Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 8325×2462×2750 |
Wheel base(mm) | 4800 | |
Weight data | Curb weight(kg) | 4770 |
Gross vehicle weight（kg） | 22000 | |
Persons in cab (persons) | 2 | |
Engine | Model | ISB220 40 |
Emissions standards | 欧IV | |
Displacement（L） | 5.9 | |
Rated Power | 162 | |
Max torque | 800 | |
Gearbox | Model | 8JS105TA |
Clutch | Type | Single dry diaphragm spring |
Front axle | Type | 5.5.T |
Rear axle | Type/Mainreducetion ratio | 10T/4.875 |
Suspension | Front suspension/Leaf spring number | Non-independent suspension longitudinal plate spring /10 |
Rear suspension/Leaf spring number | Non-independent suspension longitudinal plate spring /10+8 | |
Brake system | Service brake | Drum-type pneumatic brake |
Parking brake | Barely able to brake | |
Basic equipment | Hydraulic turn-over/cruising manual air conditioning/radial tire with inner tube 10.00R20/ manual door and window and rearview mirror/front + rear stabilizer bar /MP3 / power steering/knit shock absorber seat (air bag) | |
Foton compactor garbage truck with 12m3 container is also called garbage compactor truck, it's widely used for garbage delivery and disposal with features of no pollution, high efficiency. The truck include parts of truck chassis, garbage container, drain water tank, hydraulic system, oil pipeline system, garbage feeder, push plate, operation system and others.
Technical Parameters | Effective volume of trash bin | 10-15m³ |
Filler volume | 1.5m³ | |
Rated pressure of hydraulic system | 19（Mpa） | |
Loader working time | ≤25（mm） | |
Trash dumping time | ≤40（s） | |
Filler lifting time | ≤12（s） | |
Wastewater tank volume | ≥300（L） | |
Manipulator flip quality | ≥600（Kg） | |
Back flip form | Hanging bucket | |
Top material | Front box | 5mm bottom plate, 4mm side plate, 3mm top plate, Q345 steel plate |
Dozer | Q345B steel plate | |
Stuffer | Q345B steel plate | |
Scraper skateboard assembly | Q345B steel plate | |
Rear flip device | Q345B steel plate and profile | |
Subframe material | Made of Q345 manganese plate | |
Hydraulic system | Cylinder | Foshan naval power |
Oil pump | Hefei Changyuan | |
Multi-way valve | Hefei Changyuan | |
Process requirements | Corrosion inside the tank | Industrial grade anti-corrosion |
Welding and spraying requirements | Execute in accordance with "Fukuda Overseas Compression Garbage Truck Top Installation Specification" | |
Glue requirements | The tank body, mudguard, sub-frame welded joints and side lights need to be treated with sealant |

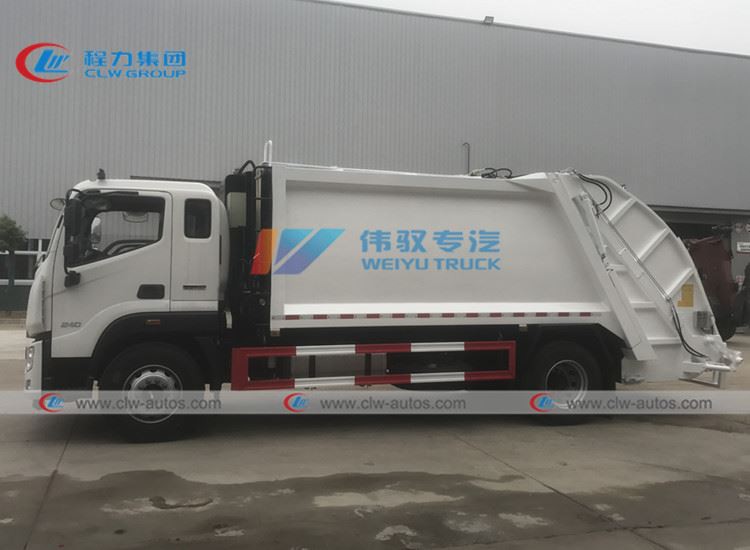

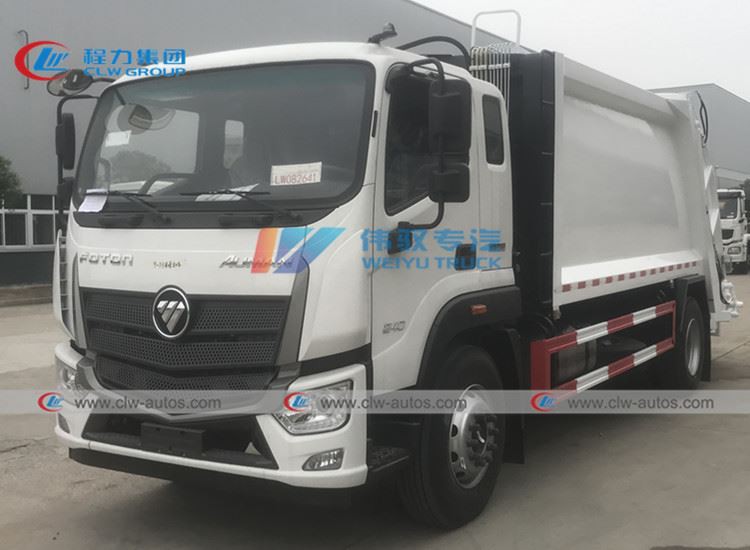

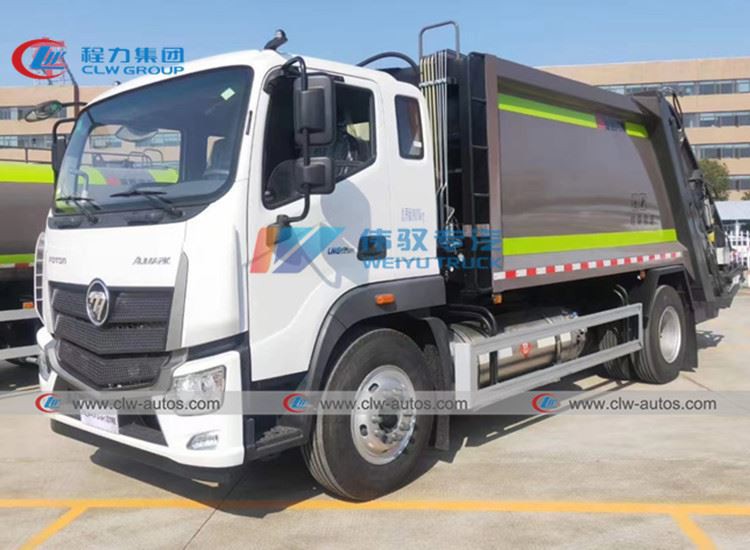

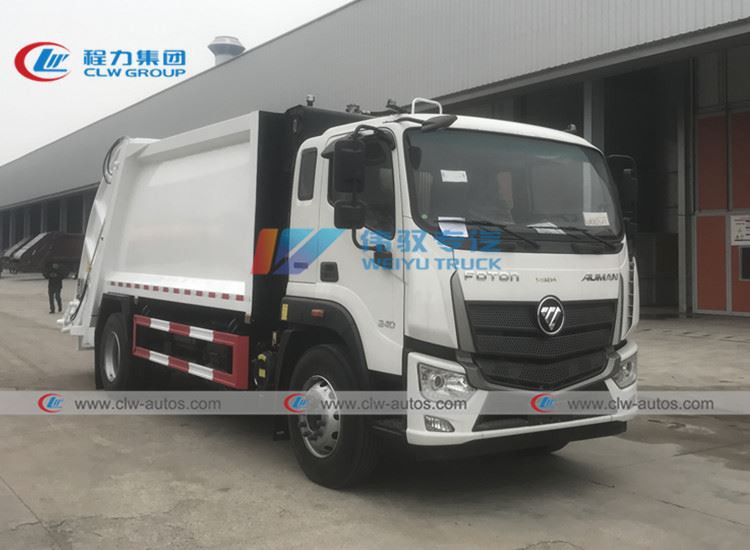

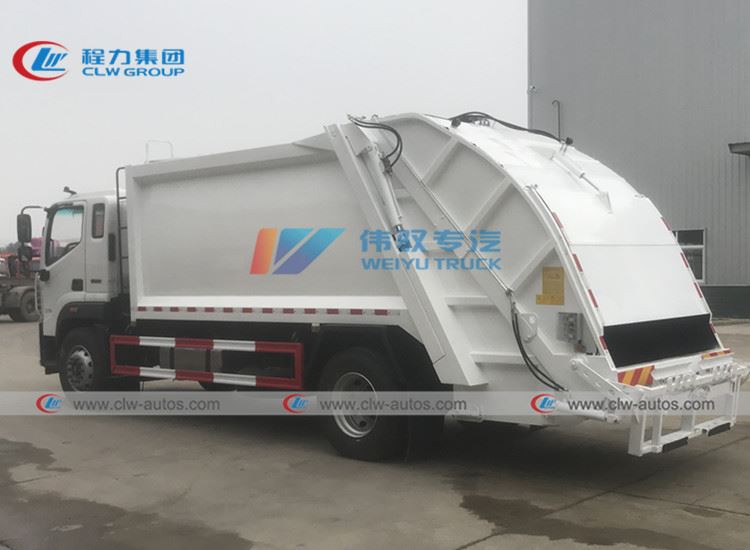

More pictures for FOTON Garbage Compactor Truck:
