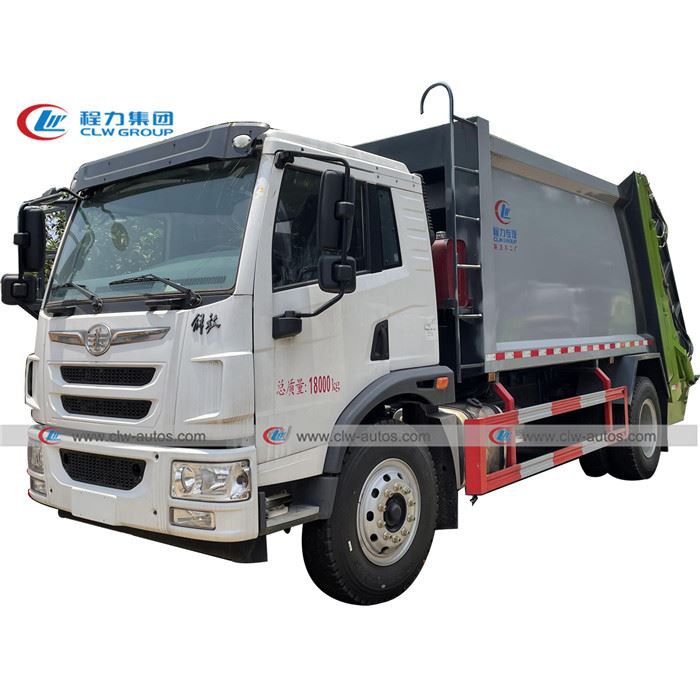

FAW 12, 000 Liters 12 Cbm Compactor Garbage Truck
Loading capacity: 12cbm/7.2tons
Gear box:8-speed forward and 2 reverse
Tank Size:12 CBM
Garbage Compact Ratio:1/3-1/4
Remote control Panel for option
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 12, 000 liters 12 cbm compactor garbage truck in China. If you're going to buy high quality faw 12, 000 liters 12 cbm compactor garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. FAW 12,000 liter compactor garbage truck chassis configuration: adopting the FAW Qingdao Dragon V special sanitation vehicle series chassis, the cab can be turned forward, chassis equipped with Huaichai 180 HP diesel engine, 8-gear box, ABS, air brake, dynamic rotation, clutch booster, 10.00R20 steel tire , cruise at fixed speed, GB7258-2017 new regulations chassis. The wheelbase is 4600-5050mm according to requirements.
2. Compactor garbage truck is a special sanitation vehicle mainly used to collect household garbage and other compressible garbage of urban residents. Compactor garbage truck is composed of sealed garbage bin, hydraulic system and operating system. The whole truck is fully sealed, and all sewage from the compression, dumping, and compression process enters the sewage tank, which completely solves the problem of secondary pollution during the garbage transportation process. The key components are imported, which has high pressure, It has the advantages of good sealing, convenient operation, safety and labor saving.
3. Volume : 3-20m3 garbage truck.
4. Steering wheel: both left and right hand drive,meet the needs of different countries.
5. Emission standard: Euro 1,Euro 2,Euro 3,Euro 4,Euro 5, etc.
6. Truck chassis: FAW, ISUZU,DONGFENG,SINOTRUK HOWO,JAC,FOTON,etc.
Product Feature
1. Hydraulic system, including the control valve, oil cylinder, connecting pipeline and other key parts, has advanced structure, reliable performance, simple operation and convenient maintenance.
2. Advanced electric control system adopts imported PLC integrated control, mechatronics-hydraulic integrated control, and high degree of automation.
3. The pushing plate control valve is equipped with a back pressure valve, which can highly improve the loading efficiency.
4. The beautiful streamlined appearance design, and the upper body adopts special high-strength anti-corrosion steel plate, which extends the service life of the truck.
5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.

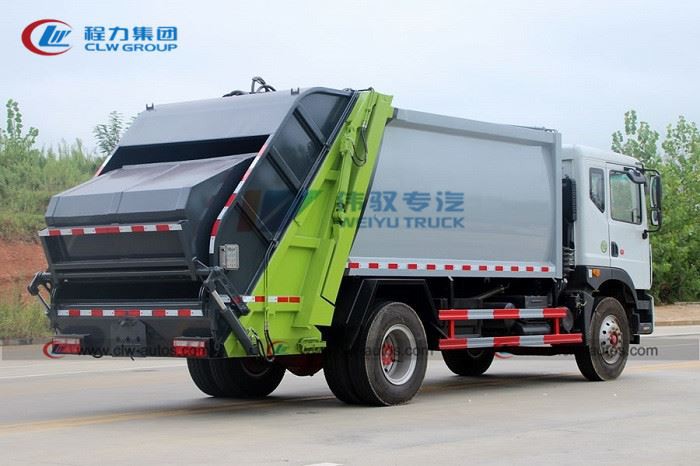

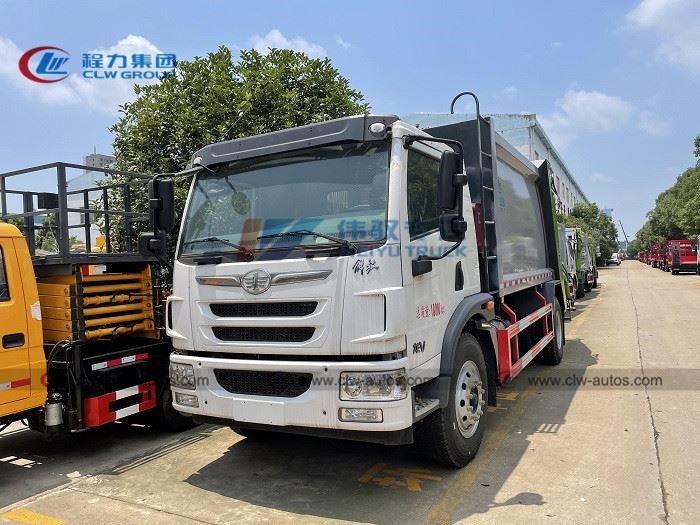

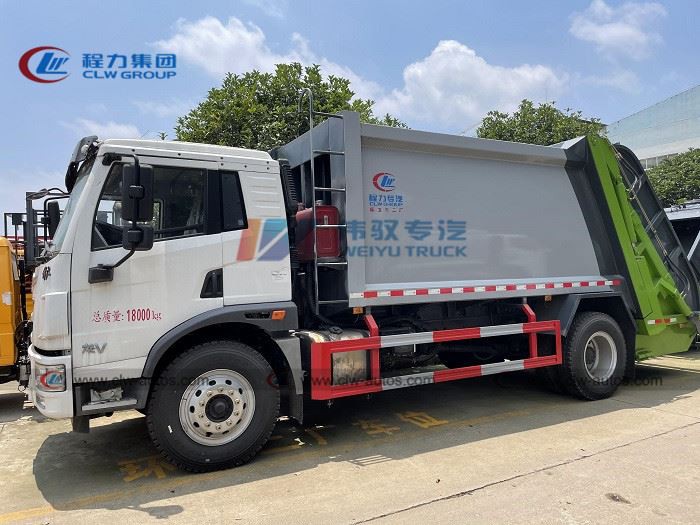

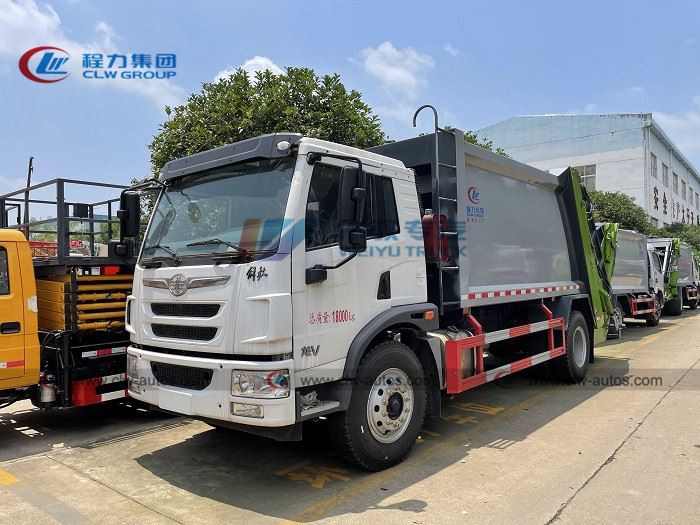

Reference Photos
Product Specification
| FAW 12cbm Compactor Garbage Truck | |||
Overall Dimension | 9850×2450×3020 mm | Gross Vehicle Weight | 18000 kg |
Curb Weight | 9910 kg | Loading Weight | 8500 kg |
Wheel Base | 5050 mm | Front / Rear Axle | 6500/13000 kg |
Cabin | Left or Right Hand Driving, 2 Passengers Allowed, with Air Conditioner | ||
Engine | Huaichai brand | ||
Engine horsepower | 180HP, EURO 2/3/4 | ||
Max Driving Speed | 90 km/h | ||
Gear Box | 8 Forward Gear, 2 Reverse Gear. | ||
Tire | 11.00R20, 6 pieces with 1 spare | ||
Garbage Bin | Capacity | 12 CBM | |
Material | 4mm Carbon Steel for Garbage Bin Body | ||
Design | Whole unit with Leakage Proof Design | ||
Ways of Loading | Rear Loading with optional Bucket Lifting System | ||
Garbage Compact Ratio | 0.6-0.7 | ||
Control System | One control Panel on the back, One Control system in back of Cabin | ||
Other Configuration | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||
2. Automatic loading, compressing and discharging, all handled by 1 person | |||
3. Sewage water collection tank to avoid any pollution during handling. | |||
4. Large Pressure, Good Leakage Proof, Convenient Operation | |||
Dependable Security | |||
5. Electrical Control Panel for compacting system. | |||
6. Cycling time<14~18s | |||
Remarks | Logo and color can be customized. | ||
Structure Diagram
Main Parts
