Forland 3Tons ~4Tons Small Refuse Collection Garbage Compacting City Waste Delivery

3Ton to 4Ton Loading
Forland with Yunei Engine
Small Overall Size

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of forland 3tons ~4tons small refuse collection garbage compacting city waste delivery in China. If you're going to buy high quality forland 3tons ~4tons small refuse collection garbage compacting city waste delivery, welcome to get more information from our factory. For price consultation, contact us.

Forland 3Tons ~4Tons Small Refuse Collection Garbage Compacting City Waste Delivery

Product Description

1. Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution

2. Easy Full Automatic Operation: computer control system for loading and unloading operations.

Chassis configuration:

Foton Era small Star 3 chassis,
2850mm wheelbase, front-turning cab,
Full diesel 88 horsepower engine,
5-speed gearbox,
6.50R16 steel wire tires,
5 tons rear axle,
adjustable steering wheel,

Compacting System

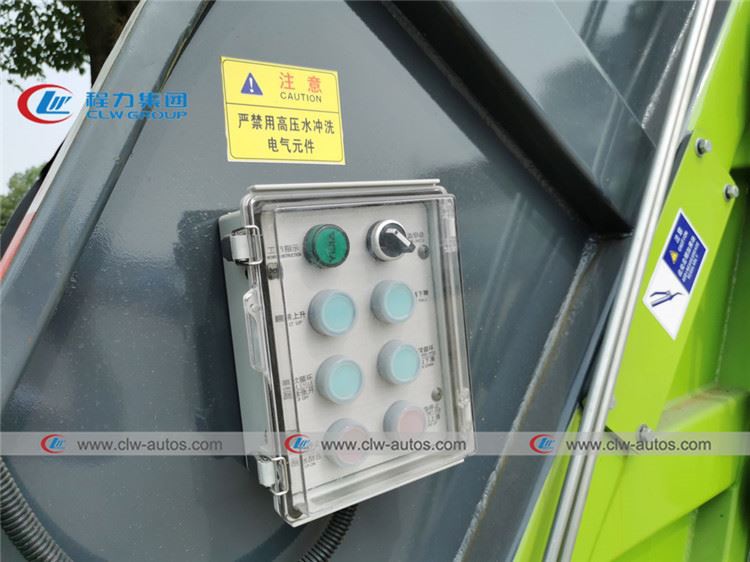

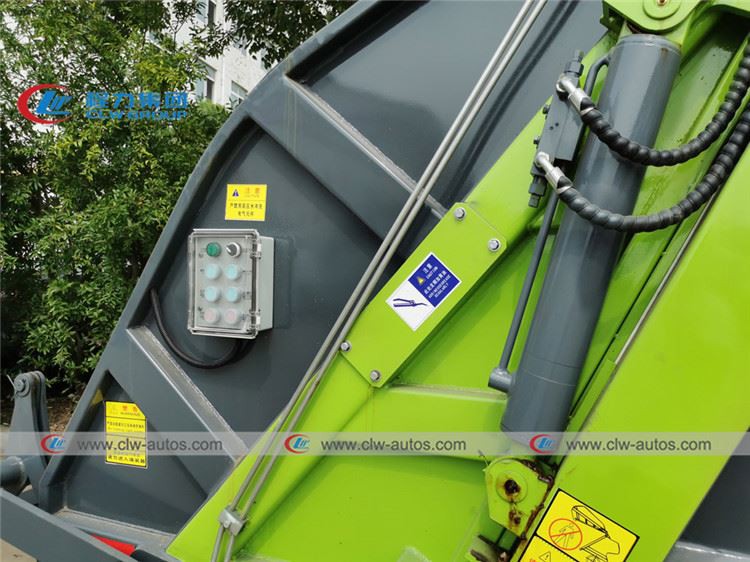

Electronically controlled manual dual manipulators,
4 cubic fully sealed trash bins, dual control mechanisms for the cab and rear of the car,
A compression push plate inside the bin, which can compact the trash and increase the loading rate,
Compression ratio is 3-4 times, and the life after compression The garbage changes from 0.3 to 0.9 or more, the tailgate is hydraulically opened, and the push plate pushes out the garbage.
With a sewage collection box equipped with a turning bucket or hanging bucket device.

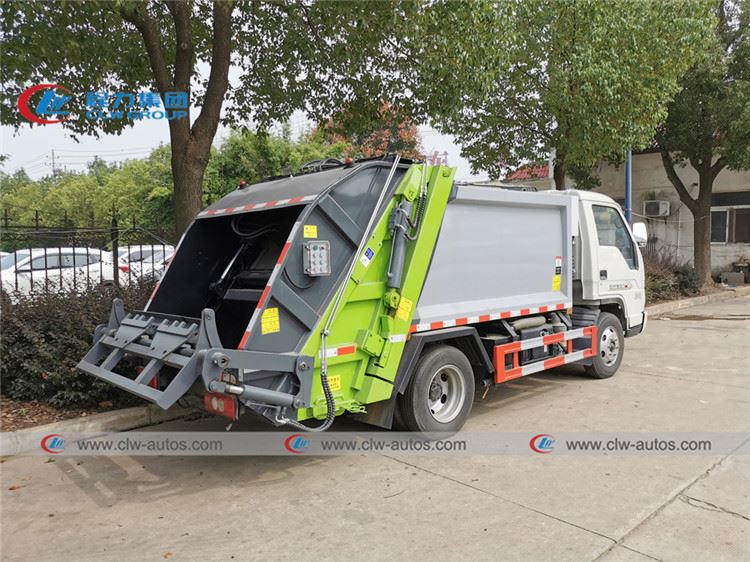

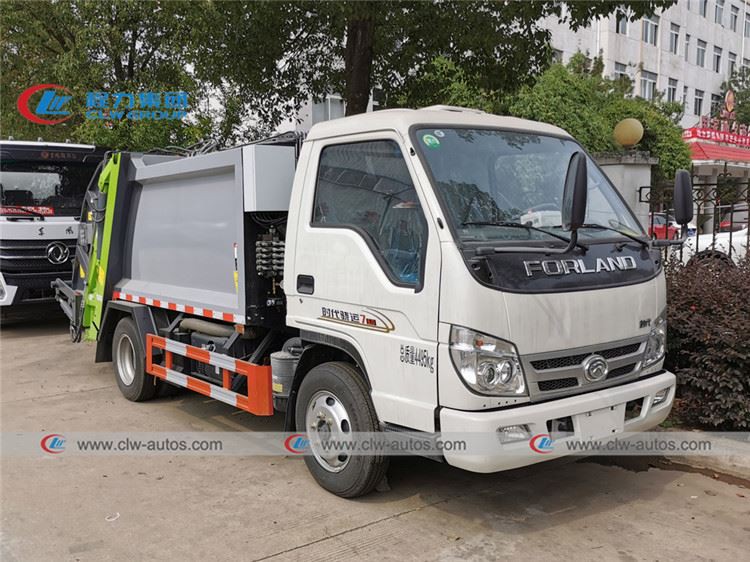

Small 4CBM Forland Inner City Garbage Compactor Truck 1

Small 4CBM Forland Inner City Garbage Compactor Truck 3

Small 4CBM Forland Inner City Garbage Compactor Truck 4

Small 4CBM Forland Inner City Garbage Compactor Truck 5

Small 4CBM Forland Inner City Garbage Compactor Truck 6

Specification Forland 3Tons ~4Tons Small Refuse Collection Garbage

Cabin	Driving type 4x2
	With A/C. Left Hand Drive.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		622020502570
	Wheel base (mm)		3308
	Wheel track (front/rear) (mm)		1504/1425
	Approach/Departure angle(°)		24/16
Weight in KGS	Tare Weight		5400
	Front axles loading capacity		1800kg
	Rear axles loading capacity		3500kg
Max. driving speed(km/h)			110
Engine	Brand		YUNEI
	Type		4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		102 HP
	Emission standard		Euro III
Gearbox	5 forwards &1 reverse
Clutch	Diaphragm spring clutch
Steering Gear	Power steering
Tire	7.00R16 All radial tires with one spare, 7 pieces
Compression garbage box body system
Body Volume		6m3
Material Thickness		4mm
Cycle Time of Filling(S)		≤40
Lifting Time of Filler(S)		8-10
Time of Discharging		≤60
Working Pressure(MPA)		16

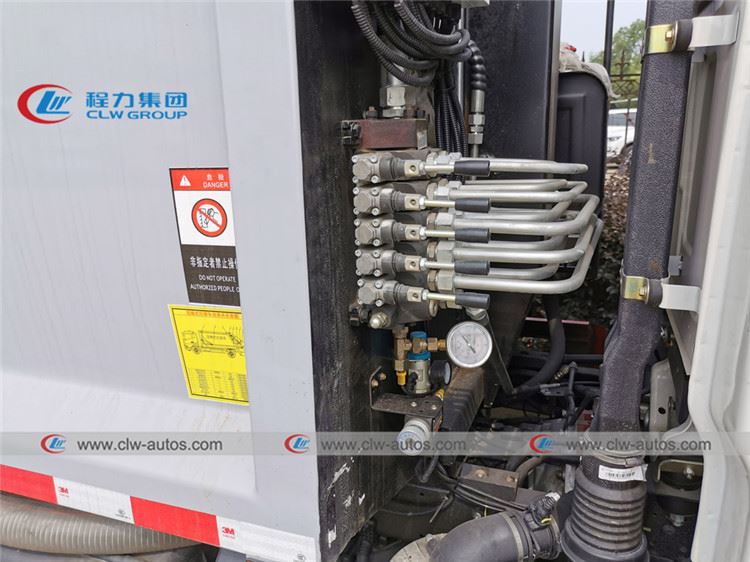

Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.
