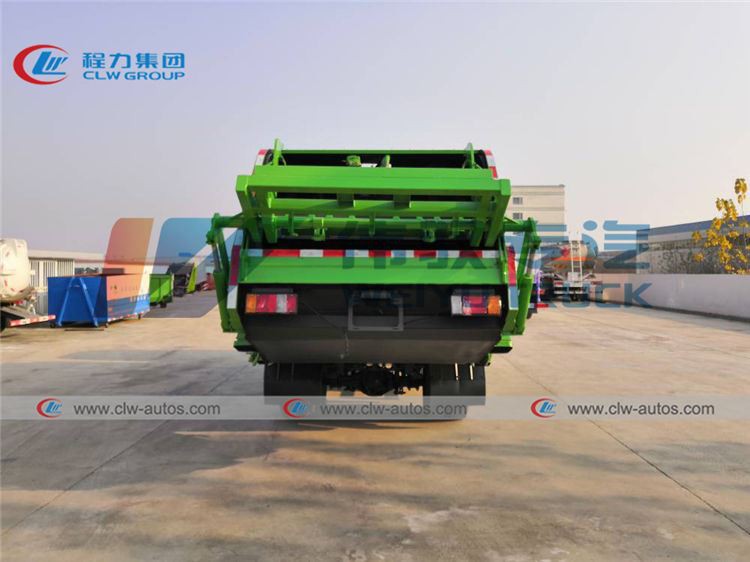

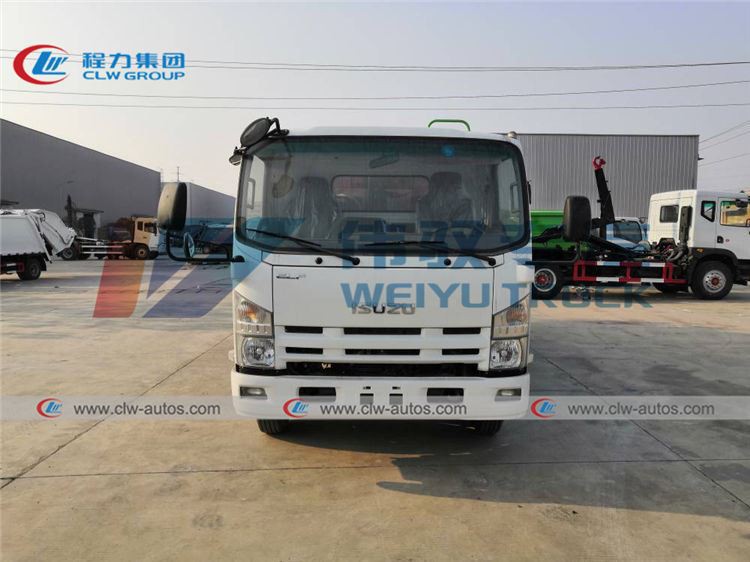

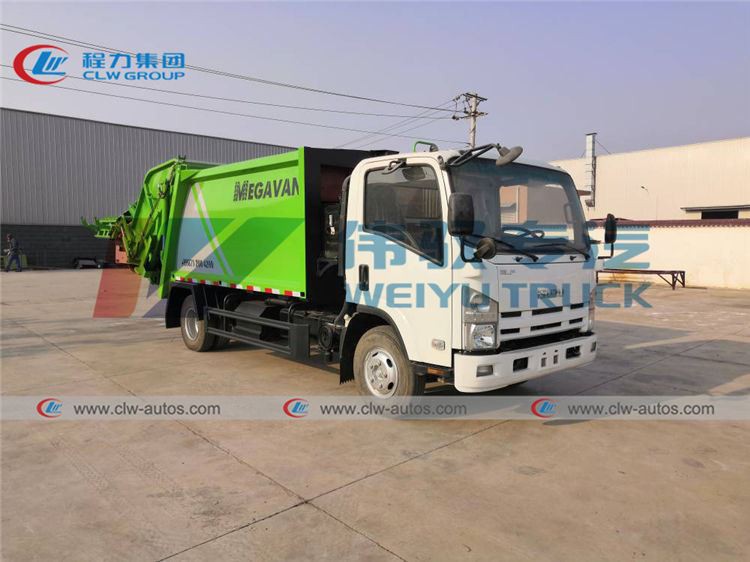

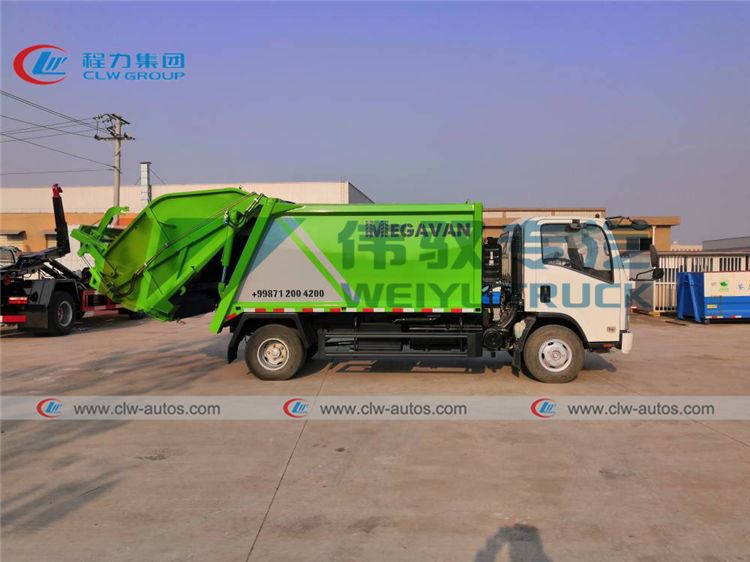

ISUZU 700P 4X2 8cbm 5Tons 6Tons Rear Loader Compressed Garbage Truck
Engine:Diesel engine,190HP
Garbage box size:6cbm,8cbm
Loading capacity:4tons,5tons,6tons
Thickness:Bottom 4mm And Side 4mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 700p 4x2 8cbm 5tons 6tons rear loader compressed garbage truck in China. If you're going to buy high quality isuzu 700p 4x2 8cbm 5tons 6tons rear loader compressed garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Description

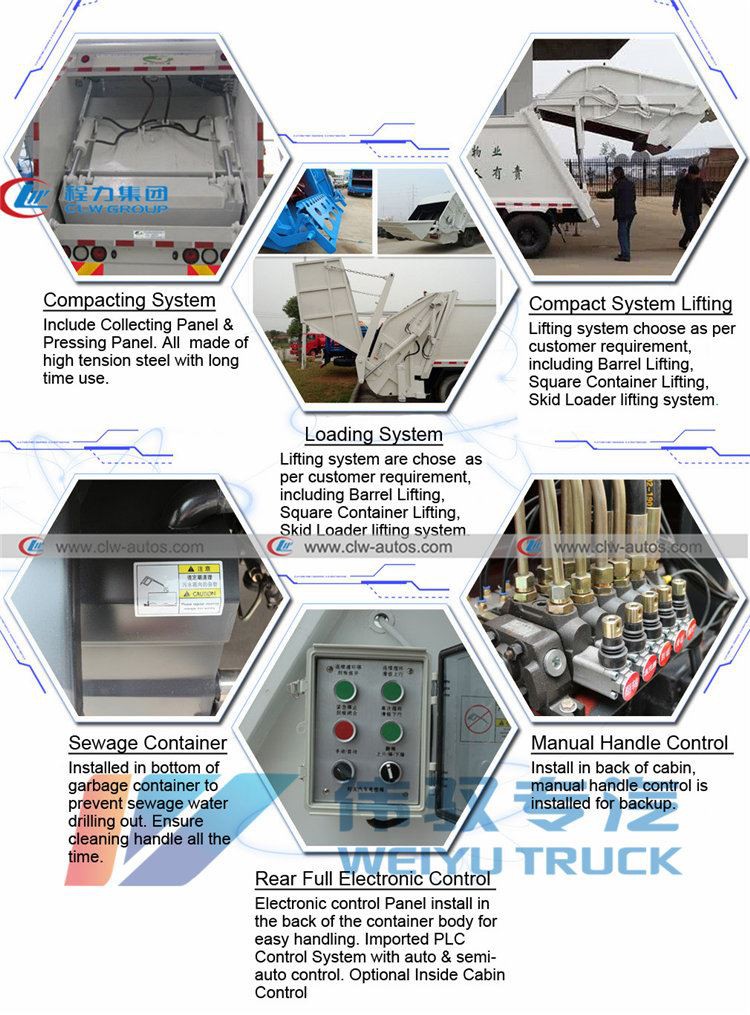

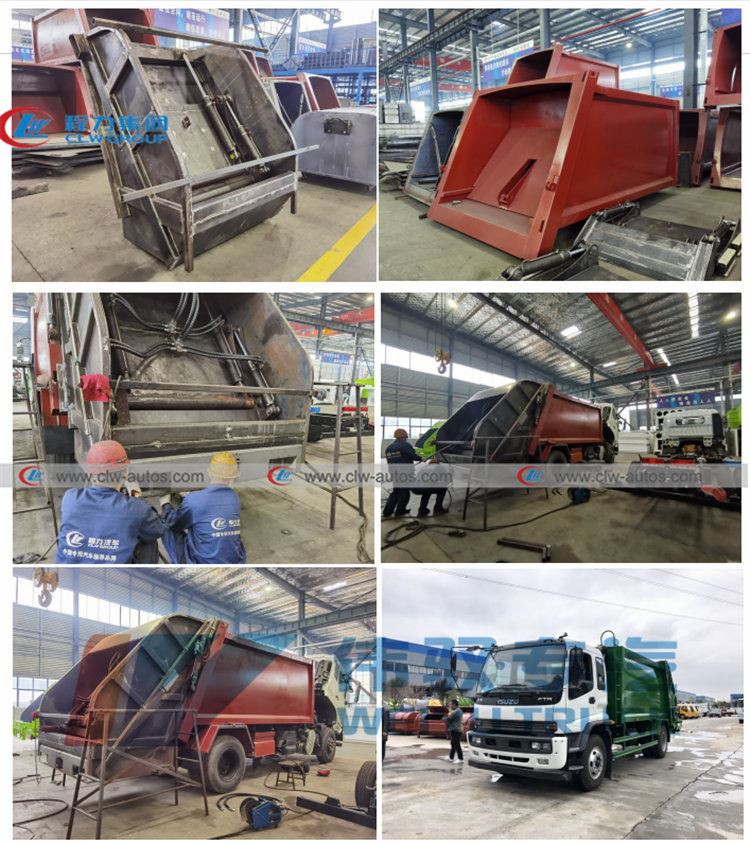

The ISUZU compressed garbage truck(also called ISUZU garbage compressed truck,ISUZU garbage compactor truck,ISUZU compactor garbage truck,ISUZU waste recycling truck,garbage collect truck) is composed of a sealed garbage box, a hydraulic system and an operating system. The garbage box is sealed and it's self-compression and self-dumping.And hydraulic control systems are Siemens PLC electric control and manual control. The lower part of the compression box is equipped with a sewage collection box to compress the sewage in the garbage and the liquid sewage can flow into it and unload it. Garbage can be discharged, reducing secondary pollution. It adopts domestic well-known brand hydraulic cylinders, Guangdong Tianhe hydraulic oil pipes, Zhongmei Duolu valve, and Hebei national oil pump. The compressed garbage truck is with the advantages of high pressure, good sealing, convenient operation and safety.
Compactor garbage truck are suitable for waste management companies which using for city
garbage collection & transport: the loaded garbage can be compressed and crushed to increase the density and reduce the volume, which greatly improves the efficiency of garbage collection and transportation.Our garbage truck has the characteristics of reliable quality, low failure rate, convenient maintenance and low operating cost
--The thickness of the dustbin is 4 mm, the thickness of the bottom plate is 4 mm
--The effective volume is 4-6 cubic meters.

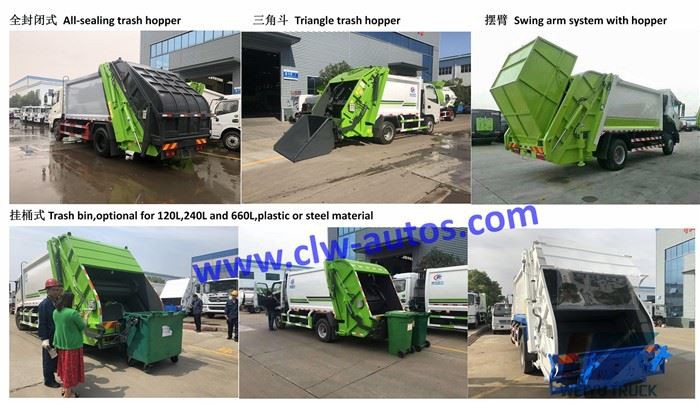

--The arc-shaped or square box is available.
Parameters of ISUZU 6TONS 8CBM COMPRESSED GARBAGE TRUCK
Truck Specification | ||
Cab | Single row cab | |
Driving Type | 4*2 Left hand driving | |
Max Speed (km/h) | 115 | |
Overall dimension（mm） | 7865×1870×2200 | |
GVW（ kg） | 8200 | |
Mass in working order（ kg） | 2460 | |
Wheelbase（mm） | 3815 | |
F/R track base（mm） | 1569/1530 | |
F/R overhang（mm） | 1068/1997 | |
Approach/Departure Angel | 22/25 | |
Tire | 235/75R17.5 | |
Clutch | Single-plate dry diaphragm spring clutch | |
Steering | Hydraulic steering with power assistance | |
Gear box | 6-speed forward and 1 reverse | |
Bridge | Front axle | 4T |
Rear axle | 7T | |
Enging | Model | 4HK1-TCG51 |
Fuel Type | Diesel fuel | |
Type | Water-cooled four-stroke,, direct injection, turbocharged | |
Exhaust（ml） | 5190 | |
Max output power/rotate speed (hp /rpm ) | 190/2600 | |
Braking system | Service Brake | Compressed air brake |
Park Brake | Spring energy | |
Auxiliary brake | engine exhaust brake | |
Electric system | 24v | |
Upper-Body specification | ||
Material of tank | material : Q235，Thickness :4(mm) side /4(mm) rear | |
dirty tank volume | 8m³ | |
filler volume | 500L | |
filing time(s) | 8~10s | |
filling cycle time(s) | 50~60s/once | |
Discharge type | Dumping | |
Time for dumping | 30-40S | |
Hydraulic pressure | 16mpa | |
Controlling way | Manualy and electrical control | |

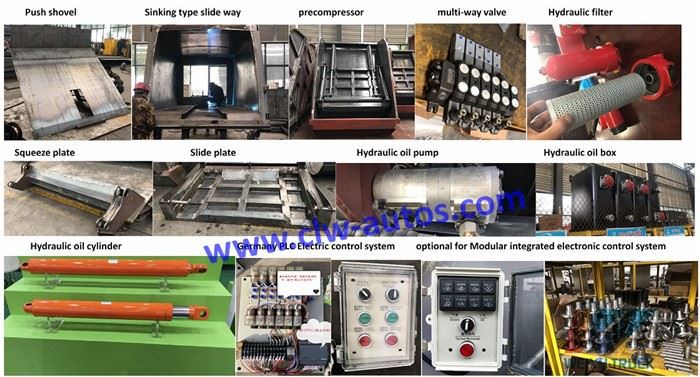

Hydraulic pump | 532model | 1 set |
Multi-way valve | DL-15B-6 | 1 set |
Flap cylinder | 80/45-410*180 | 2 set |
Lifting cylinder | 80/45-900*580 | 2 set |
Scraper cylinder | 80/45-700*415 | 2 set |
Skateboard cylinder | 90/50-980*670 | 2 set |
Push plate cylinder | YSTB-1180*2420 | 1 set |
The electromagnetic valve | UZCT-115/24V | 2 set |
Service
Pre sale service--- Technical communication with engineer
--- Factory and workshop visit
--- Designed drawings
After Sale Service
--- Overseas installation and commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
TruckAccording to your request, choose good chassis and refit it to truck.
Upper Body
Supply only upper body without chassis. According to your chassis drawing,design function parts.
Customization
Communicate with engineer,making drawings and produce customized products.
Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main partson trucks as tank and box.
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied garbage truck to any overseas companies?
A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?

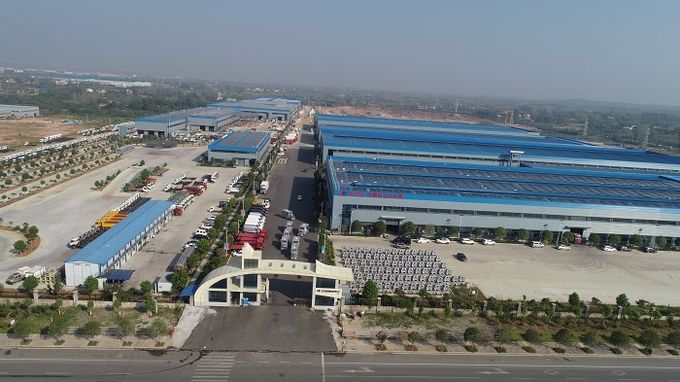

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
