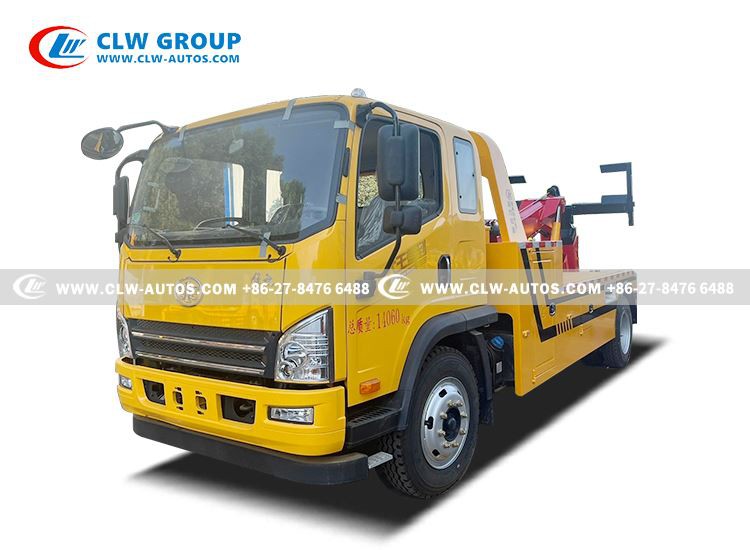

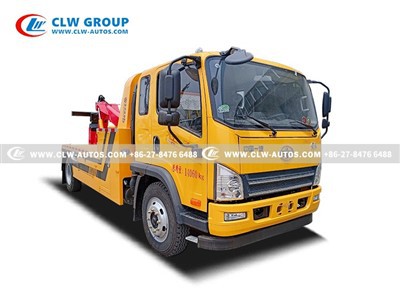

FAW 3 Tons Integrated Wrecker Tow Truck
FAW Tiger VH 6 Wheels Small Wrecker Tow Truck 3 Tons Winch 3 Tons Underlift Capacity. Breakdown Car Towing in Underground garage
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 3 tons integrated wrecker tow truck in China. If you're going to buy high quality faw 3 tons integrated wrecker tow truck, welcome to get more information from our factory. For price consultation, contact us.
Products Description
FAW 3 Tons Small Wrecker Tow Truck is mainly used for rescue & wrecker, clearing, lifting and traction of major vehicles in expressway and other road accidents or failures, emergency road rescue, so as to ensure smooth roads and tow the failing vehicles away from the scene.
It is also used as the "Zombie car" towing and clearing in underground garage.
Features for our Wrecker Tow truck:
1. The road wrecker truck is applied American technology, with strong practicability and good price. The sales volume is increasing fast in recent years.
2. Our road wrecker trucks are divided into several series, Tilt Tray Flatbed Tow Truck, Flatbed Tow truck with crane, mini ones for underground garage rescue, and heavy Integrated Wrecker Tow Truck, Rotator Boom Wrecker Tow Truck. They have adopted world advanced technology and cater for many world clients from American, African, Europe, Russia etc.
3. Main parts of the vehicle like underlift and booms are adopted HG70 high strength wielding steel.
4. Truck chassis brand could have different options, Such as Sinotruk HOWO, FAW, SHACMAN, DONGFENG, FOTON, JAC, JMC, ISUZU etc.
Advantages:
(1). Ensure the intensity and strength of these.
(2). Decreasing the curb weight so that reduce the fuel consumption.
(3). OEM Services to meet the different demands from the customers.
For more detailed information, please contact:
WhatsApp: +8613554195719
Email： helen@clw-autos.com
Mob: +86 135 5419 5719

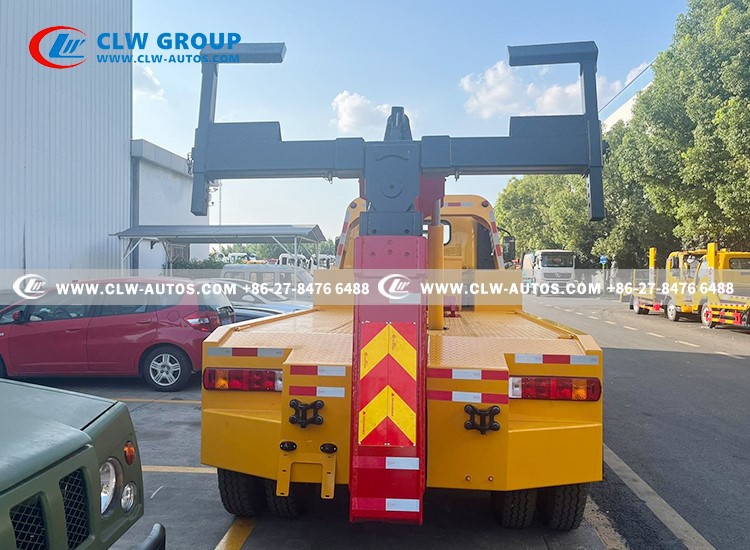

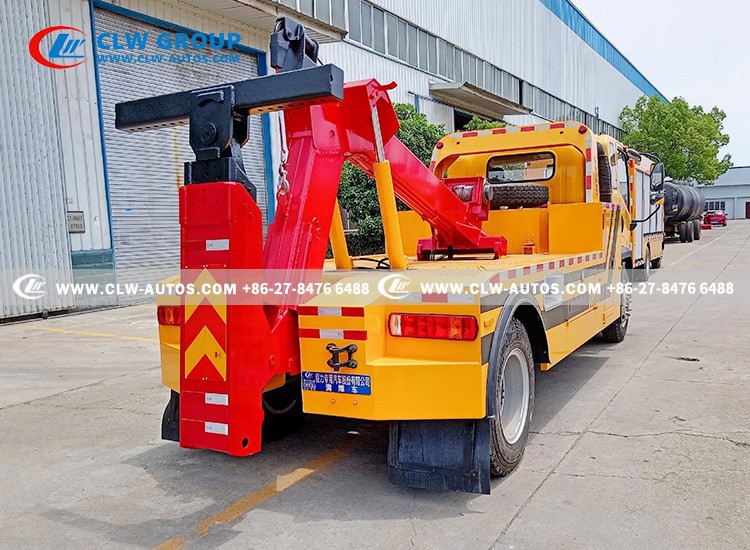

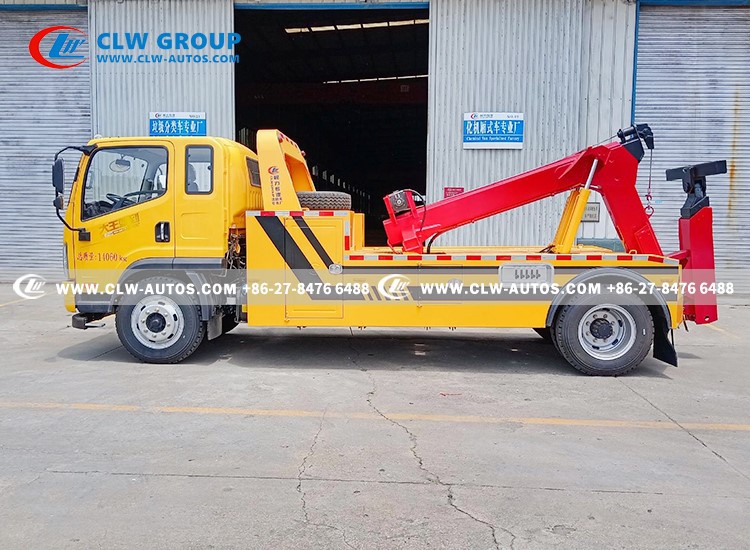

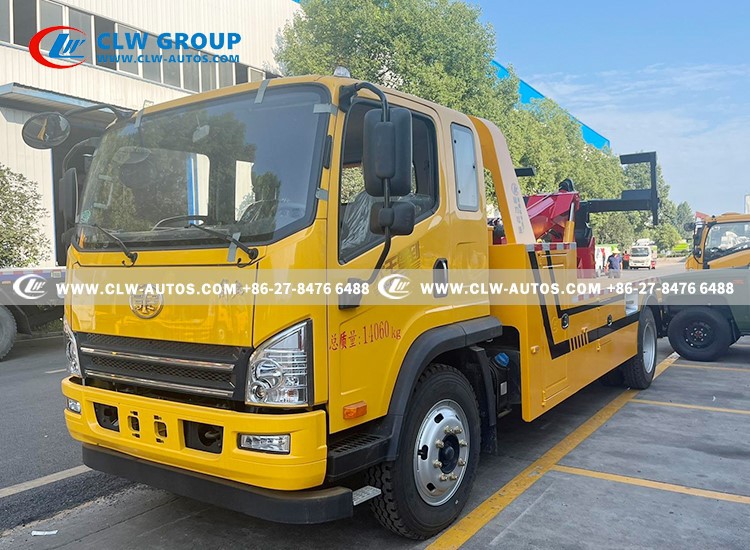

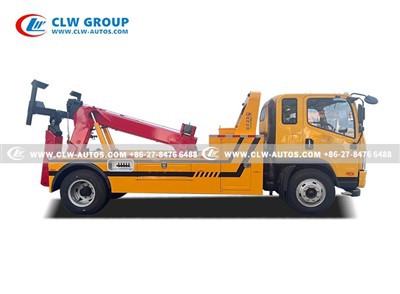

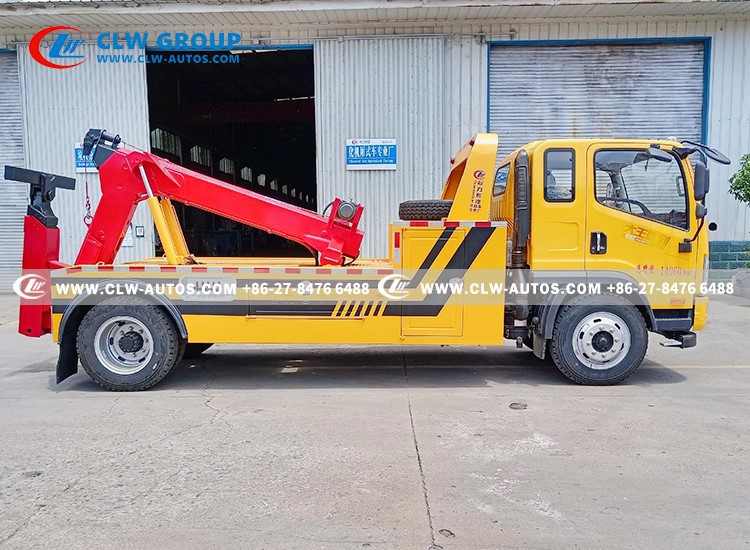

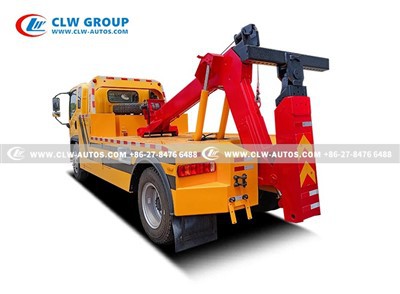

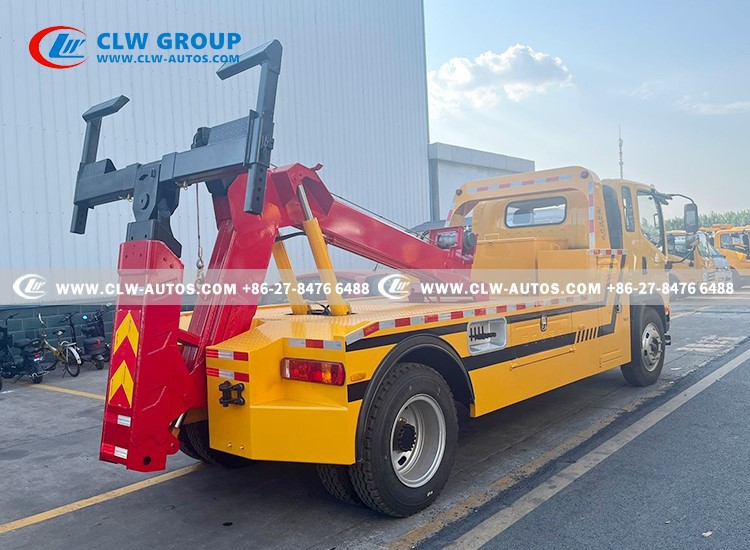

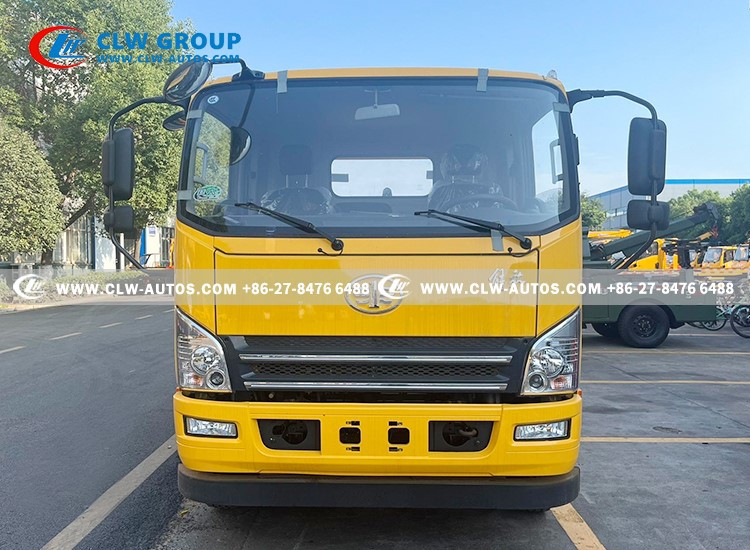

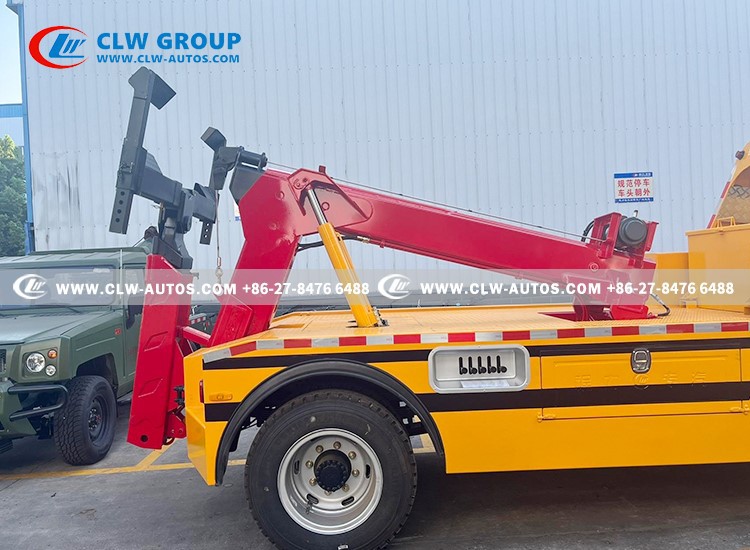

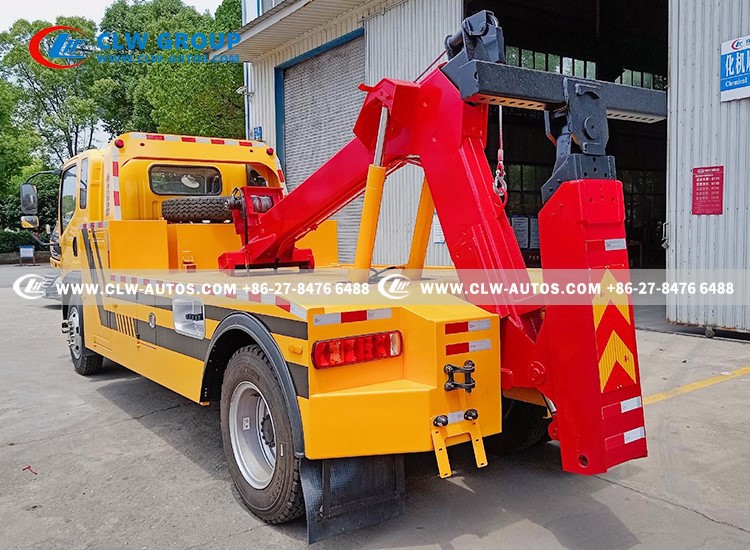

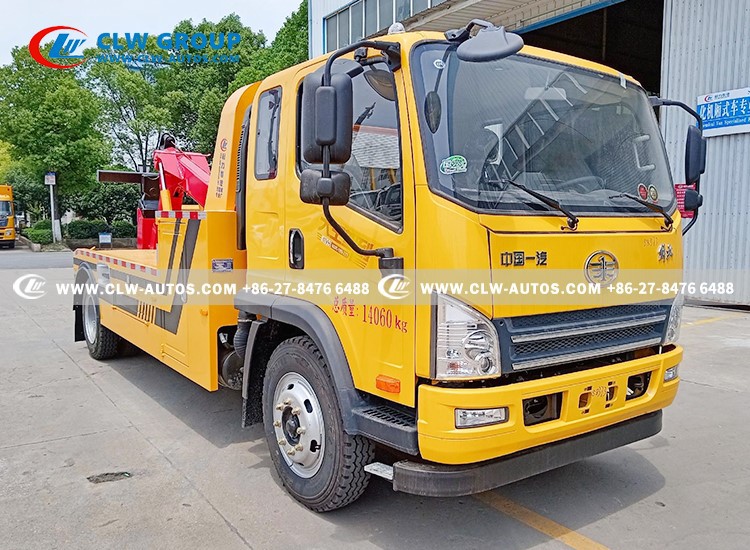

More Product Pictures
Product Parameter
|
General Technical Parameters |
|||
|
Overall Dimension |
5995x2150x2530 (mm) |
||
|
Gross Vehicle Weight |
10695kg |
||
|
Curb Weight |
4695kg |
||
|
Chassis Specification |
|||
|
Chassis Parameters |
Chassis Brand |
FAW Tiger VR |
|
|
Cabin |
3 persons, Left Hand Driving for Senegal market, with air conditioner |
||
|
Engine |
Engine Brand |
WEICHAI brand |
|
|
|
Model |
WP2.3NQ110E20, 4 Cylinders |
|
|
Power |
81KW/110HP |
||
|
Emission Standard |
EURO III |
||
|
Displacement |
2290ml |
||
|
Fuel Type |
Diesel |
||
|
Gearbox |
WLYMG85B, Manual, 5 Forward & 1 Reverse Gear |
||
|
Front and Rear Axle Load |
2T/5T |
||
|
Wheel Base |
3360(mm) |
||
|
Overhang( Front/Rear) |
1160/1475(mm) |
||
|
Wheel track (front/rear) (mm) |
1605/1520 |
||
|
Angle(Approach/departure) |
24/18(°) |
||
|
Brake System |
Air Brake |
||
|
Steering Gear |
Power Assistant |
||
|
Tire |
7.00R16, 6 pieces+1 spare tire |
||
|
Maximum Speed |
95(km/h) |
||
|
Fuel tank |
80L |
||
|
Superstructure |
|||
|
Maximum Towing weight(KGS) |
4495 |
||
|
Under Lifting System |
Max. Under-lifting Weight(KGS) |
1500 |
|
|
Max. Under-lifting Weight Full extension(KGS) |
1160 |
||
|
Lifting weight not extension(KGS) |
3000 |
||
|
Underlifting arm length(mm) |
1000-1520 |
||
|
Telescopic stroke(mm) |
600 |
||
|
Upward inclination angle |
11.6(°) |
||
|
Downward inclination angle |
-4.5(°) |
||
|
Fold angle |
-3-92(°) |
||
|
Maximum distance from the surface of the fully retracted cross arm to the ground(mm) |
630(mm) |
||
|
Hoist Lifting system |
Max. Lifting Weight (KGS) |
4000 |
|
|
Oil Cylinder Telescopic Stroke(mm) |
1540 |
||
|
Max. Lifting Height (mm) |
2600 |
||
|
Lifting angle |
3.3-19.3(°) |
||
|
Winch |
Quantity |
1pc |
|
|
Rated traction force(KN) |
40 |
||
|
Steel Rope Diameter(mm) |
Φ11 |
||
|
Steel Rope Length(m) |
25 |
||
|
Minimum linear speed(m/min) |
3.23 |
||
