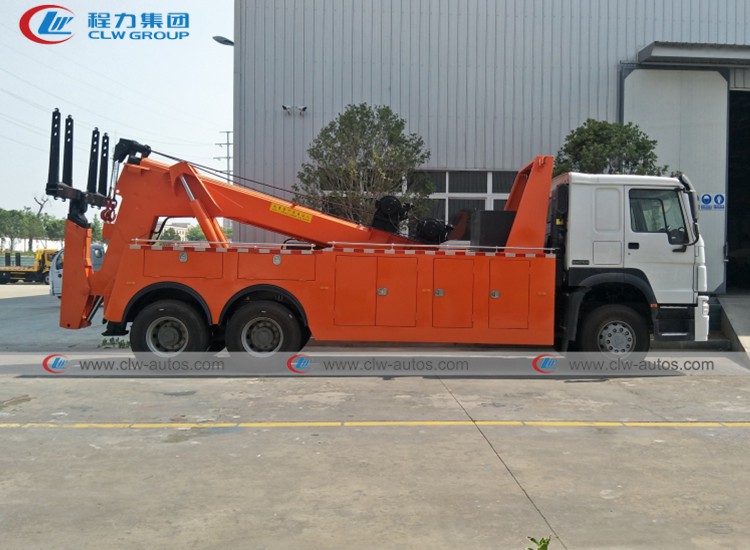

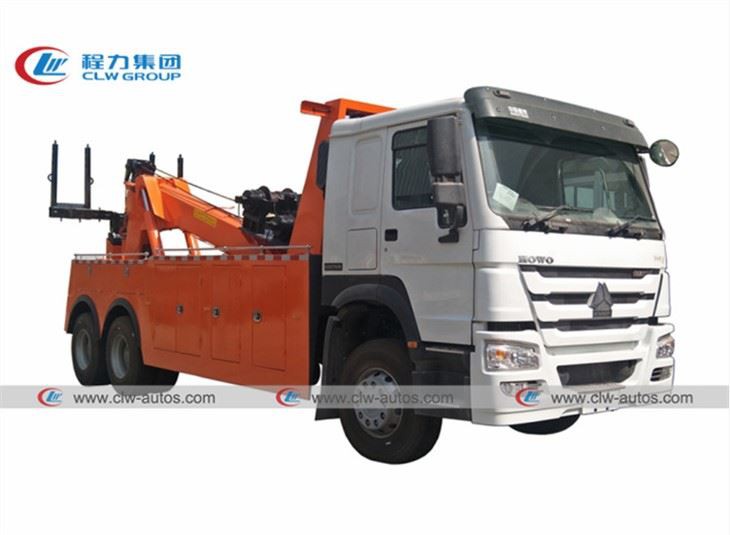

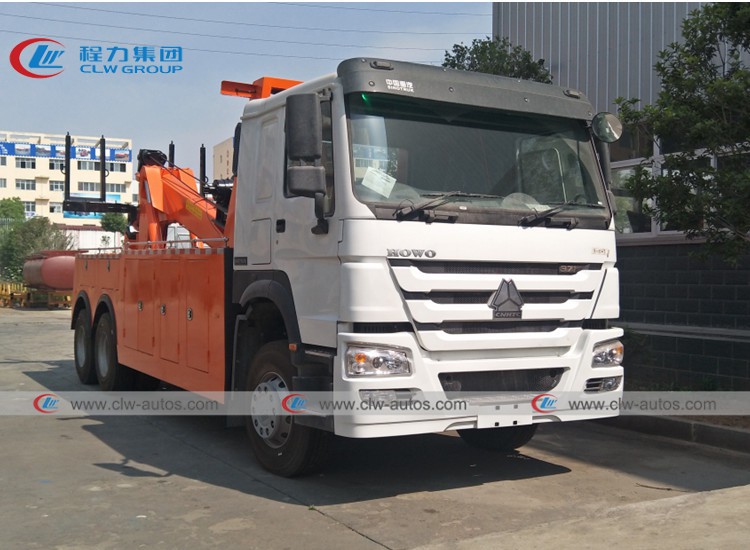

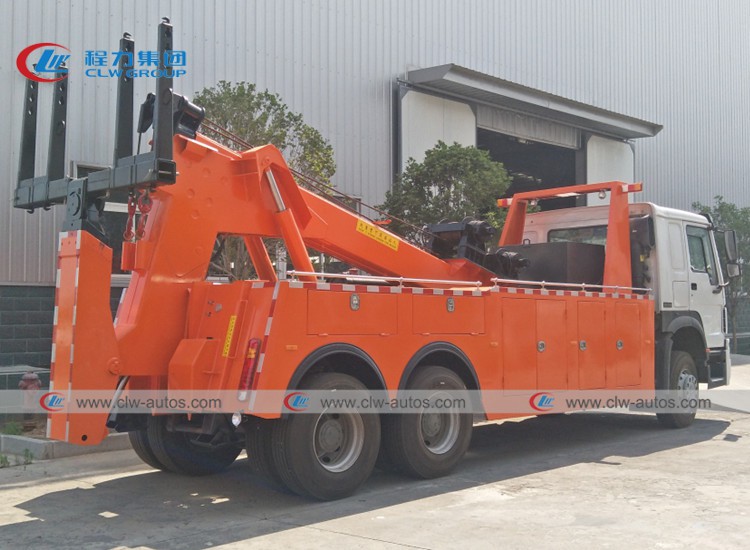

Sinotruk HOWO 6x4 371hp 20Tons Road Wrecker Rescue Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 6x4 371hp 20tons road wrecker rescue truck in China. If you're going to buy high quality sinotruk howo 6x4 371hp 20tons road wrecker rescue truck, welcome to get more information from our factory. For price consultation, contact us.



The Truck chassis:

It adopts heavy truck HOWO chassis, HW76 cabin with one sleeper bed, original cold and warm air conditioner in the cab, HOWO 371HP EURO-2 engine, ten speed forward & 2 reverse gearbox, wheel base 5825 + 1350mm, 12.00R20 original steel tire, air brake and with ABS system.

The truck specification:

Cabin	Driving type 6x4, Right hand drive
	HOWO 76 cab, with air condition and one bed, 70°hydraul`ically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H) mm		10695×2500×3800
	Wheel base  (mm)		5800+1350
	Wheel track  (front/rear) (mm)		1830/1830
	Approach/Departure angle(°)		16/18
Weight in KGS	Tare Weight		21000
	payload		25000
	Front axles loading capacity		1x9000
	Rear axles loading capacity		2x16000
Engine	Brand		Sinotruk
	Model		WD615.47
	Type		4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power（HP)		371
	Emission standard		Euro Ⅱ
Gearbox	HW19710, 10 Forwards gear & 2 reverse gear
Tire	12R22.5  tubeless tire with one spare
Clutch	Reinforced diaphragm clutch, diameter 430 mm
Steering	ZF8098
Oil tank	400L
Special Device For Wrecker System
Towing		Max Towing Weight (kg)		25000
Hoisting Organ		Rated under-pulling capacity(kg)		12000
		Max Under-hoisting Capacity with all extension (kg)		6000
		Max Under-hoist length (mm)		1728
		Under hoisting work angle		-10~85°
Lifting Organ		Max lifting capacity(kg)		16000
		Max lifting high(mm)		4782
		Telescope length(mm)		8172
		Winch		10000kgs×2
		Steel rope		40M，Φ18
		Crane luffing angle		5°~  23°
Landing Leg		Distance between front legs(mm)		0
		Distance between rear legs(mm)		1450

Upper configuration:

Heavy duty double axle obstacle removal vehicle of SINOTRUK HOWO, 20 ton conjoined top mounted,

two-section hexagonal boom, three supporting arms, split carriage, imported hydraulic system,

bilateral linkage operation device, and counterweight is installed on the front bumper. Two 10Tons electro-hydraulic winches, 45m steel wire rope, 18mm in diameter,

equipped with 4 sets of steel forks, 1 set of trailer set, 1 set of steel plate lifting lug towing fork, 1 set of tire holding device, 1 set of onboard tools,

1 set of auxiliary lamp assembly, 1 set of auxiliary air pipe assembly.

1 set of yellow long row LED engineering alarm lamp.

Our company's obstacle removal vehicle adopts foreign advanced and skilled product technology and production technology, all imported seals and reinforced beam fixation, which enhances the bearing capacity.
