ISUZU 8000Liters 8Tons Water Bowser Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 8000liters 8tons water bowser truck in China. If you're going to buy high quality isuzu 8000liters 8tons water bowser truck, welcome to get more information from our factory. For price consultation, contact us.



Function

--water bowser truck(also called water truck,water cart,water sprinkler truck,water sprayer truck,water tanker truck,portable water truck,water delivery truck,water transport truck,drinking water truck) is used for transporting and supplying water for industrial,agriculture,construction or sanitation use.

--The water bowser tank material can be carbon steel or stainless steel.If you need to transport drinking water,

the tank material has to be food degree 304-2B stainless steel or carbon steel with non-toxic treatment inside to ensure human's health.

--with water pump,rear platform and water cannon,water bowser is widely used for tree irrigation,road cleaning,or act as emergency fire fighting truck.

-- Water boswer truck can be divided into various types as follows,

1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc water bowser truck;

2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 water bowser truck;

Feature

--Square or round shape tank shape;

-ISUZU truck chassis,durable with perfect working performance;

--powerful and reliable ISUZU engine,easy to get spare parts in local;

--Chinese brand weilong brand water pump;

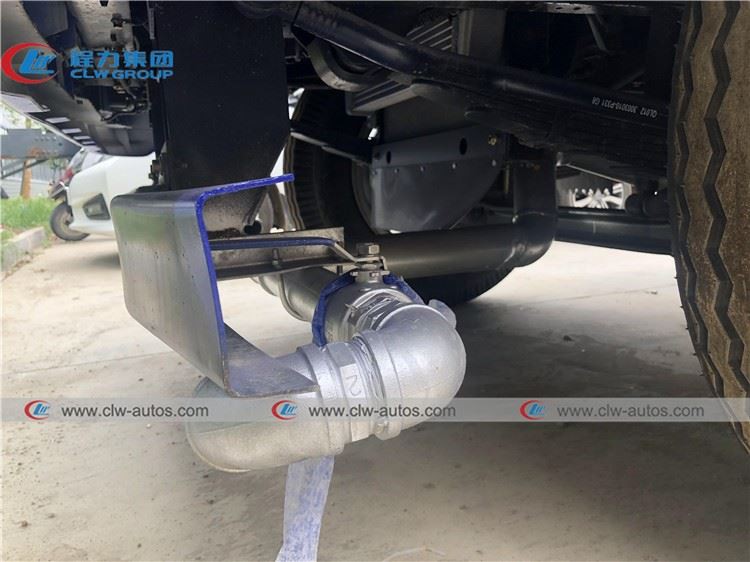

--Front flush,rear and side sprinkler;

--360 ° rotation adjustable green water cannon;

--Vertical suction distance ≥7 meters;

--Width of front flush and sprinkling ≥14 meters;

--Range of water cannon ≥35 meters;

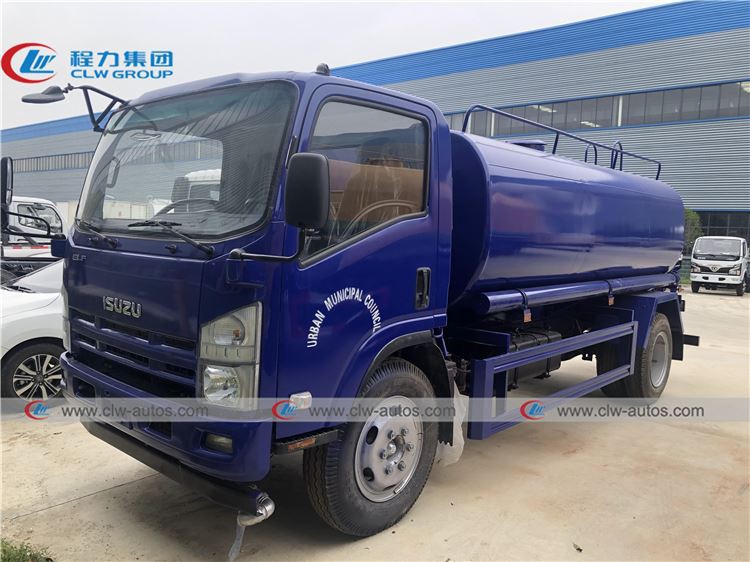

Reference picture

Specification

Condition	New condition/Left hand drive /4X2
Main details	Brand		ISUZU
	curb weight(kg)		4560 kg
	Wheelbase(mm)		3815
	Dimensions(mm)		7430*2200*2410 mm
	Front/Rear Axle loading(kg)		4000/7000kg
	Wheel track (front/rear) (mm)		1923/1865 mm
	Front/Rear overhang(mm)		1500/3350 mm
	Approach/Departure angle(°)		18/8 °
	Max. driving speed(km/h)		90
	Clutch		Dry single plate with diaphragm spring, Φ250, vacuum assistance
	Brakes		Service brake: dual circuit compressed air brake                 Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Suspension		Front/rear leaf spring
	Tire	Quantity	6 pcs with one spare tire
		Specifications	235/75R17.5 or 8.25R20
Transmission	ISUZU Manual type,6  Forwards and 1 reverses
Cabin	three persons allowed. With Air Conditioner
Engine	Brand		ISUZU
	Model		4HK1-TC51 or 4HK1-TC50
	Type		Turbocharged
	Max power/Horsepower)KW/HP)		141/190;151/205
	Max torque(N·m/rpm)		510N.m/1600rpm
	Displacement (cc)		6700 cc
	Fuel type		Diesel
	Emission standard		Euro V

Key word: water truck,water cart,water tanker truck,isuzu water truck,8000liters water truck,8tons water truck,8000L water truck,water bowser
