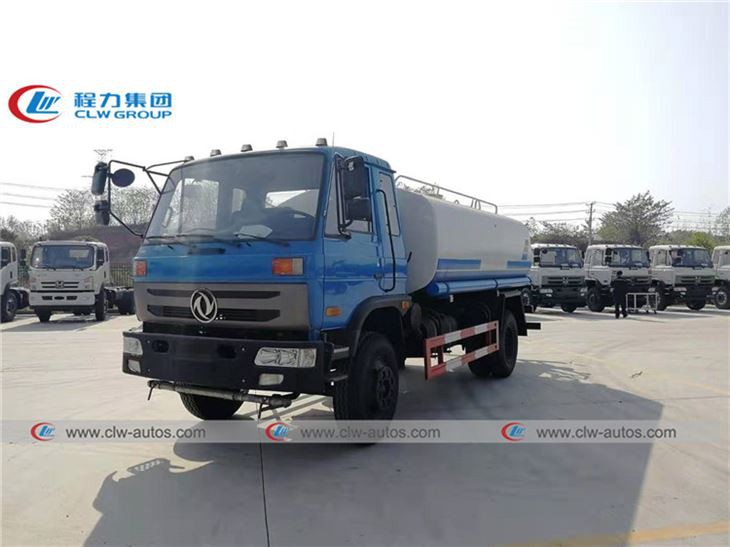

Dongfeng 12ton Water Bowser Truck
Water tank: 12ton/12,000liters
Water pump:Chinese Top brand
water cannon range of Water Sprinkler:≥28M
Sprinking Width of Water Sprinkler:≥14M
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 12ton water bowser truck in China. If you're going to buy high quality dongfeng 12ton water bowser truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman,
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Reliable and high quality water pump
Truck diagram

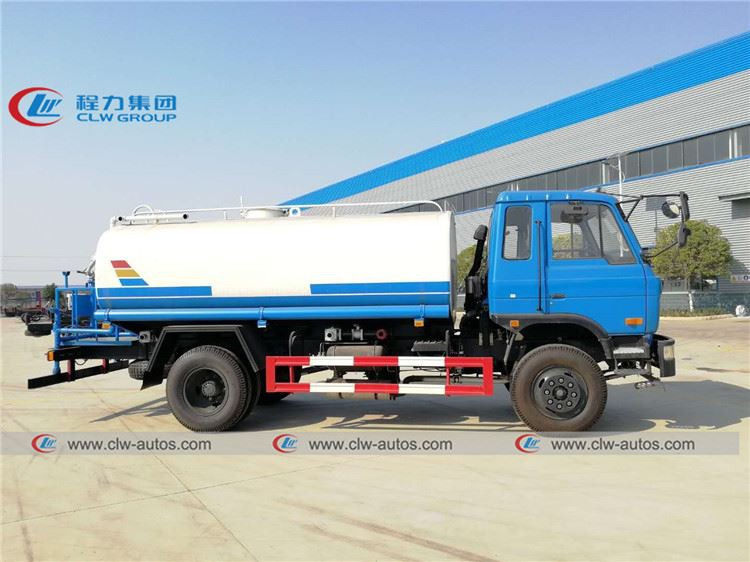

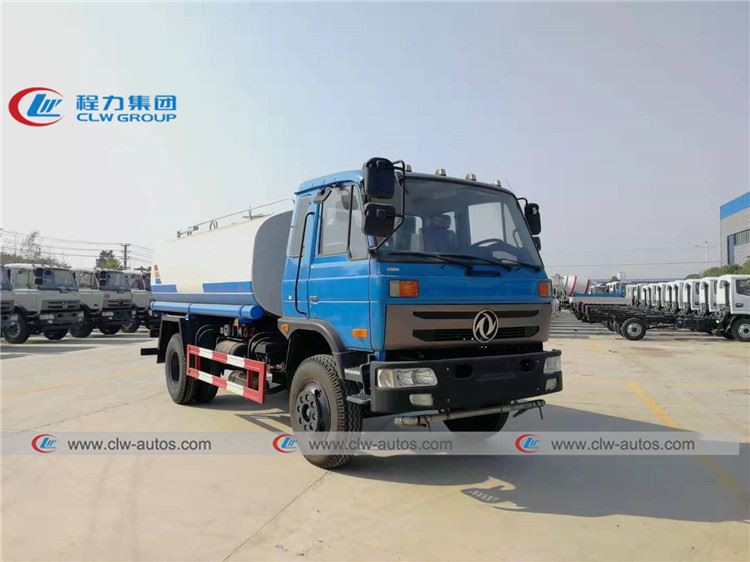

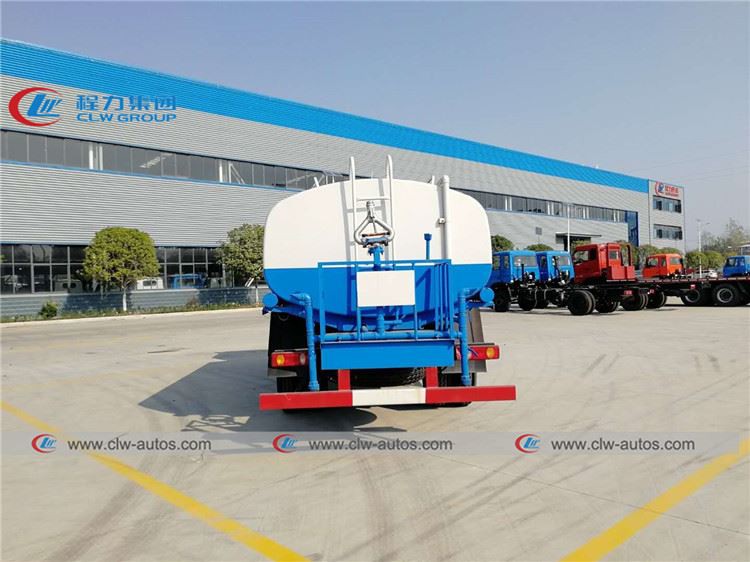

Reference picture
Specification
Condition | New condition/Left hand drive/4x2 | ||
Chassis | Brand | Dongfeng | |
Curb weight(kg) | 6840 kg | ||
Loading weight(kg) | 8965 kg | ||
Gross weight(kg) | 16000 kg | ||
Wheelbase(mm) | 4500 mm | ||
Dimensions(mm) | 7000*2500*3200 mm | ||
Front Loading Capacity (Ton) | 4.5 | ||
Rear Loading Capacity (Ton) | 9 | ||
Max. driving speed(km/h) | 90 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
Auxiliary brake: engine exhaust valve brake | |||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6 pcs with one spare tire | |
Specifications | 9.00-20 | ||
Transmission | Manual type,5 Forwards and 1 reverse | ||
Cabin | Single row seat, Tiltable. It can accommodate three people. With air conditioner. | ||
Engine | Brand | Weichai | |
Fuel type | Diesel | ||
Power(kw) | 118 kw | ||
Horsepower(HP) | 160 | ||
Cylinder number | 4 | ||
Emission standard | Euro 2 | ||
Upper | |||
Water tank | Capacity(cbm/tons) | 12tons | |
Tank Dimension(mm) | 3500*1700*1100 | ||
Tank material | Q235 carbon steel | ||
Thickness(mm) | 4 | ||
Water pump | China local brand | ||
Suction Height | 7M | ||
Function | 1, Front Side Rear Sprinkling width≥14m | ||
2, Water cannon range≥28m | |||
Remarks | 1. AM/FM radio | ||
2. 2pcs water hose. | |||
3. Color is optional | |||
