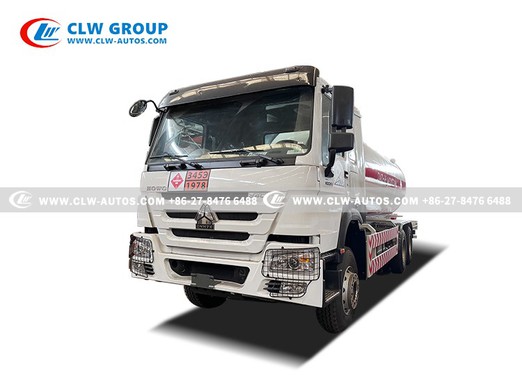

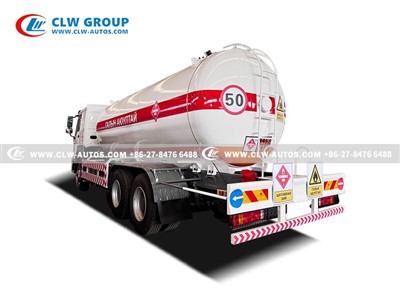

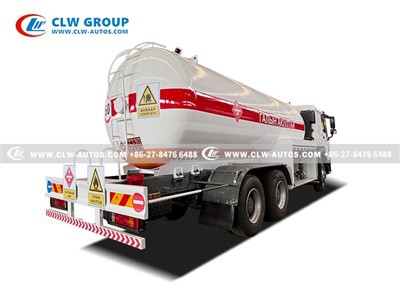

SINOTRUK HOWO 10tons Propane Tank Truck
10tons LPG Bobtail Truck
10tons Propane Tank Truck
10tons LPG delivery Truck
10tons LPG Transport Tank Truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 10tons propane tank truck in China. If you're going to buy high quality sinotruk howo 10tons propane tank truck, welcome to get more information from our factory. For price consultation, contact us.
Truck Description
HOWO 10tons Propane Tank Truck, is also known as LPG dispenser truck, LPG gas refiiling truck, LPG tank truck with pump,LPG bobtail tanks, butane bobtail truck, lpg truck, Which are popular used by oil and gas companies for small tank or cooking cylinder refilling. CLW Group has more than 20 year experience in design and producing LPG product which including LPG storage tank, LPG skid station, LPG bobtail truck, LPG tank semi trailer, underground tank etc.
CLW Factory supplied bobtail trucks;
- Truck brand: HOWO, dongfeng, Shacman, Foton, Faw, ISUZU, JAC, JMC etc.
- The tank capacity varies from 5000L, 6000L, 8000L, 10000L, 12000L, 15000L, 16000L, 20000L, 25000L, 30000L, 35000L etc.
- LPG Pump brand: Chinese brand, or US corken Z2000 or US blackmer LGLD2.
- Level gauge: Chinese brand or Rochester brand.
- Flow meter: volume flow meter or mass flow meter (Chinese brand or US brand)
- Filling system one: LPG pump with flow meter for fast discharging, rego adapter for small tank refilling.
- Filling system two: LPG pump with LPG dispenser for home cooking cylinder refill. Factory can also combined two function to support multi purpose.
- Filling hose 15m, 20m, 25m, 30m, can be customized.
CLW Factory has supplied LPG products to more than 50 countries, which including Afircan countries such as Ghana, Kenya, Zambia,Udanda, Burundi, Tanzania, Ethiopia, Zambabwe, Nigeria, Niger, Ghana, Cote d'Ivoire, Guinea, Angola, Somalia, Haiti, Uzbekistan, Kazakhstan, Tajikistan,Kyrgyzstan, Mongolia etc.
Conact Alice +86 18071542196 for a quick offer
email : alice@clw-autos.com

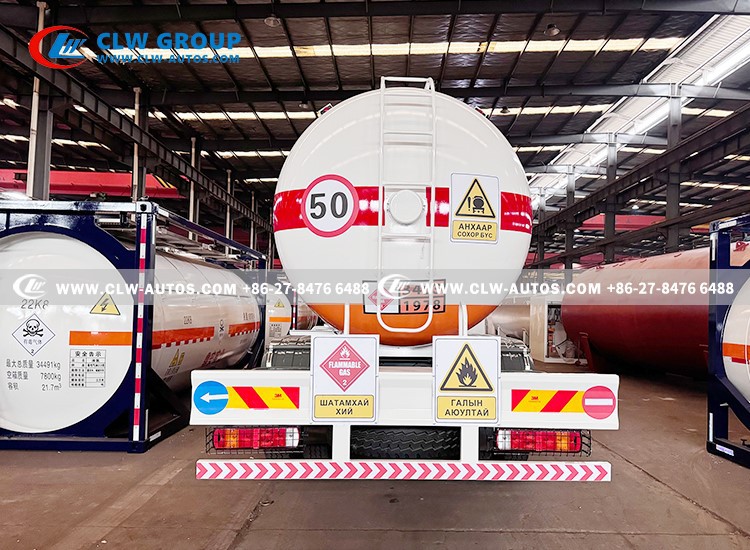

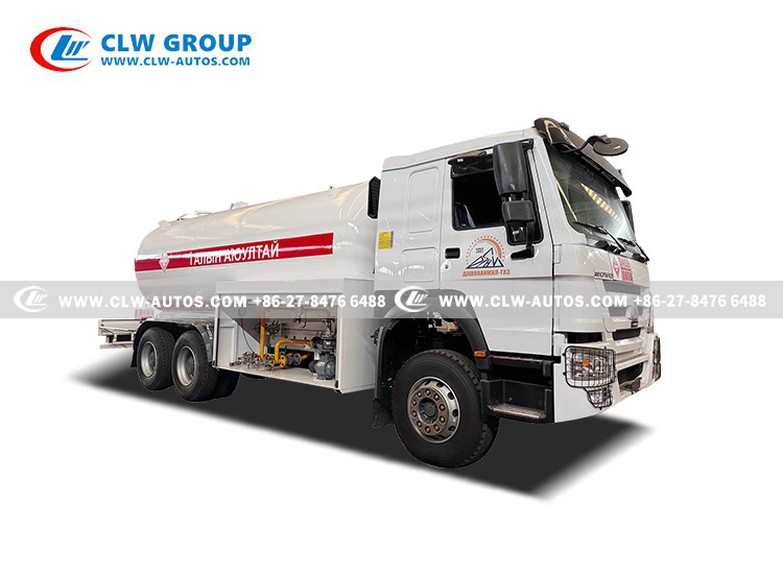

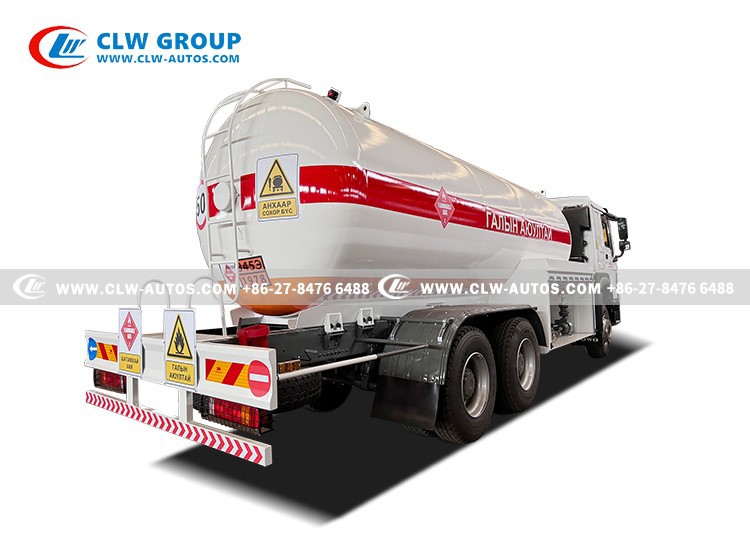

More photos
|
Specification of Truck Chassis |
||||
|
Chassis Brand |
SINOTRUK HOWO | |||
|
Driving Model |
6X4 |
|||
|
Cab |
HOWO, HW76 cabin, with one sleeper. Left or Right Hand Driving with air conditioner, suitable for 3 passengers. |
|||
|
Wheel Base |
4600+1350mm |
|||
|
Axle Loading (front/rear) |
9500/16000/16000 kg |
|||
|
External Dimensions (L x W x H) |
9500X2500X3500mm |
|||
|
Max. driving speed |
90 km/h |
|||
|
Engine |
Model |
Weichai brand, WP12.400E201 | ||
|
Type |
6-cylinders in a line, turbo-charging and inter-cooling |
|||
|
Horse Power |
400Hp |
|||
|
Max output power |
296 kW |
|||
|
Emission standard |
Euro 2 |
|||
|
Displacement |
11.596 L |
|||
|
Min. Fuel consumption at full load |
≤185g/kw.h |
|||
|
Gearbox |
Manual type, HW19710, 10 forwards & 2 reverse |
|||
| PTO | HW70 | |||
|
Clutch |
Reinforced diaphragm clutch |
|||
|
Tire |
12.00R20, 10 pieces with 1 spare tire. |
|||
|
Fuel box |
400L /steel material |
|||
|
LPG tank |
||||
|
|
||||
|
Filling Medium |
Liquefied Petroleum Gas |
|||
|
Working temperature |
-40~50 ℃ |
|||
|
Volume: |
20,000Liters |
|||
|
Tank material: |
Q345R |
|||
|
Tank diameter: |
2050mm |
|||
|
Tank thickness: |
12mm |
|||
|
End plate thickness: |
12mm |
|||
|
Tank length: |
As designed |
|||
|
Gas phase |
Flange type,DN50/2" or according to customer request |
|||
|
Liquid Phase |
Flange type,DN50/2" or according to customer request |
|||
|
Filling gas |
Propane(LPG) |
|||
|
Working Pressure: |
1.61Mpa |
|||
|
Design Pressure |
1.71 Mpa |
|||
|
Testing pressure |
2.21Mpa |
|||
|
Corrosion Allowance |
1.0 mm |
|||
|
Refilling Accessory |
||||
|
Directly driven by PTO(easy for future maintenance) |
||||
|
LPG Pump |
Chinese brand CLW 15-5 |
|||
|
Inlet 2" NPT and Outlet 2" NPT |
||||
|
Flow rate :15.5 m3/h |
||||
|
780 r/min for rotation speed |
||||
|
LPG Flow meter |
TSC-50 model Showing filling volume Inlet/Outlet 2"/DN50 Maximum Capacity:76~380lpm With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve with Ticket Printer. |
|||
|
Filling hose |
15 meter,retractable with REGO adapter for small tank refilling |
|||
|
Level Gauge |
Rochester level gauge or Chinese brand |
|||
|
Safety Valve |
Model No. |
A412F-25-16 |
||
|
Type |
Built-in |
|||
|
Nominal Pressure |
2.5 Mpa |
|||
|
Safety return valve |
1 PC |
|||
|
Pipeline safety valve |
1 PC |
|||
|
Equipment and Valve Box |
Located at side of LPG bobtail (opposite driver's side) Strong design with rolling off cabinet |
|||
|
Manhole |
DN450 |
|||
|
Thermometer |
1 pc WTQ-280 |
|||
|
Pressure Gauge |
2 pc YN-100T |
|||
|
Emergency shut off Valve |
2 pcs with switch inside valve box and at rear of truck |
|||
|
Fender |
Steel |
|||
|
Fire Extinguisher Holder |
1 set |
|||
|
Static conductive tape |
1 pc |
|||
| Painting and logo | can be customized | |||
Truck design component

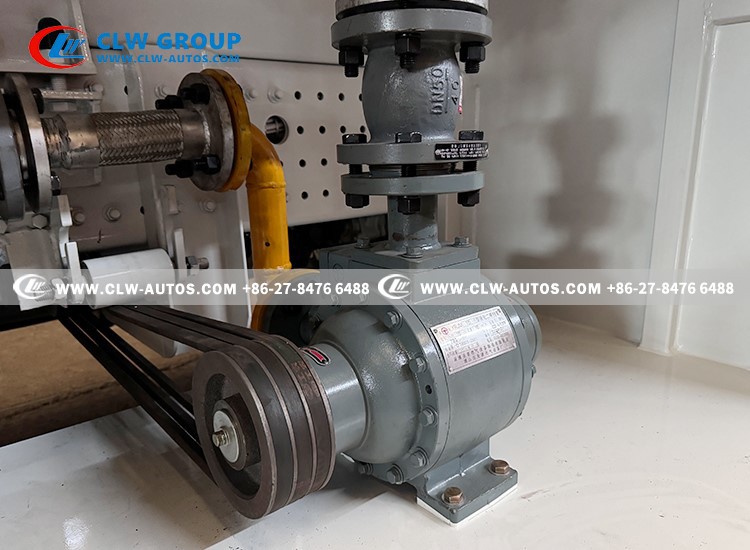

LPG Vane pump
Chinese brand LPG pump or US brand Corken Blackmer for fast discharging from LPG truck to Gas station tank.

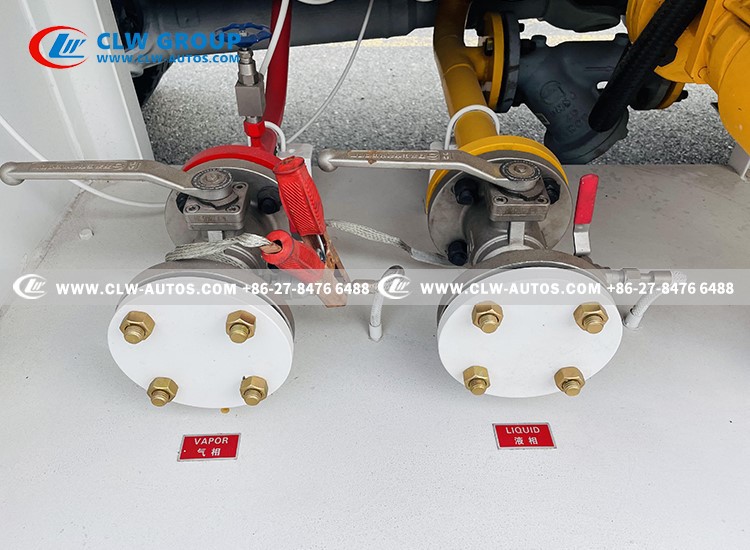

Flange design liquid gas inferface
Quick loading and unloading: Through the flange interface, gas trucks can be quickly connected to gas stations or storage tanks to improve gas filling efficiency.

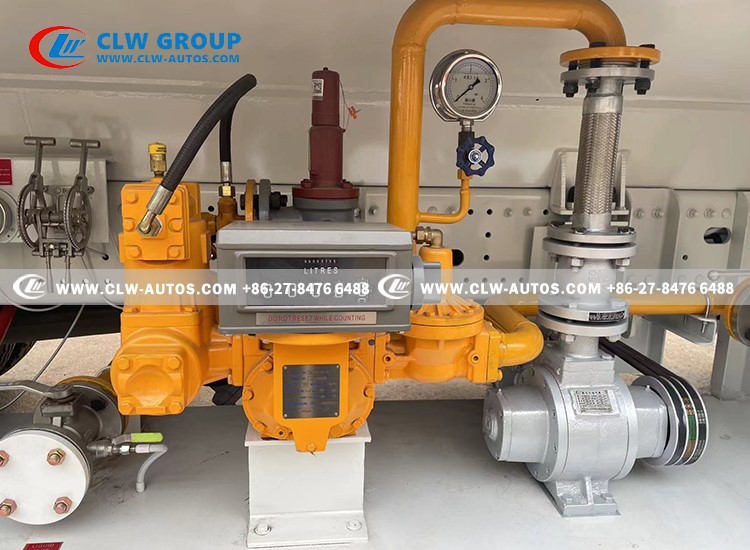

Mechnical LPG volume Flow meter
The flow meter is used to measure the volume of LPG added to the vehicle or tank in real time to ensure the accuracy of the gas addition amount.
