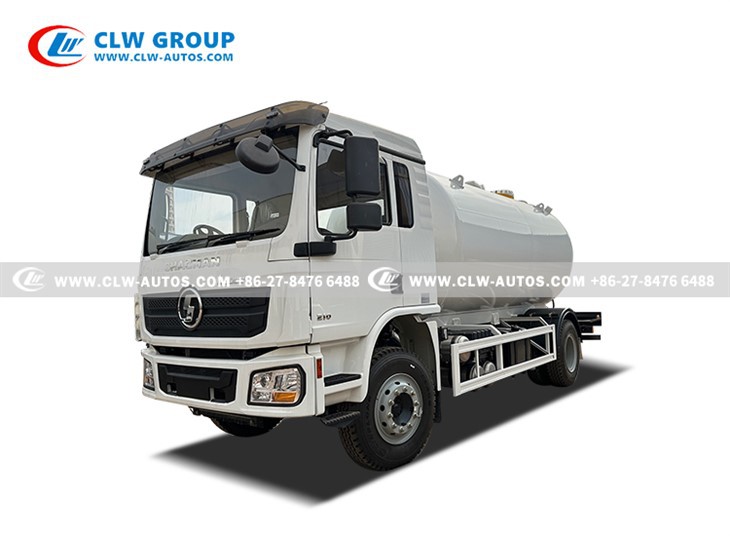

7 Metric Tons 15000 L LPG Bobtail Truck SHACMAN

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 7 metric tons 15000 l lpg bobtail truck shacman in China. If you're going to buy high quality 7 metric tons 15000 l lpg bobtail truck shacman, welcome to get more information from our factory. For price consultation, contact us.







Production Introduction



7 Metric Tons LPG bobtail truck/Shacman 15m3 lpg gas tanker truck/RHD 8 tons LPG bobtail  is customized for Zimbabwe client, and it's used for rough road in Africa and for transporting,delivering and refueling propane/lpg gas/liquid petroleum gas into smaller lpg tanks and home use lpg cylinders.







For quick inquiry



Our design

Main equipment

• 2" Flowmeter or single nozzle filling dispenser machine

• 2" USA corken pump Z2000 or Chinese brand vane Pump YQB15-5

• 15/30/40 meters Filling Hose Reel

• REGO Filling nozzle

• Radiator(optional)

• hydraulic oil box(optional)

• Stainless steel tool box (optional)





Check video of RHD Shacman L3000 15,000L LPG Bobtail Truck



Optional gas bottling truck brand:

SINOTRUK HOWO,DONGFENG,ISUZU,FAW,FOTON,SHACMAN and other Chinese brands.



Optional size of China HOWO LPG bobtail truck

• 5000liters,5000L,5 cbm

• 8000liters,8000L,8 cbm

• 10,000liters,10000L,10cbm,

• 12,000liters,12,000L,12cbm,

• 15000 Liters,15000L,15cbm,

• 20cbm,20,000liters,20,000L

• 25cbm,25,000liters,25,000L

• 35cbm 35,000liters,35,000L





Available options for pump drive

• from truck’s PTO by hydraulic drive

• From truck’s PTO by shaft

• Electric motor-usually for lpg trailer



Main Truck Spec.

• Stable Shacman L3000 chassis

• with one sleeper

• Left hand drive/Right hand drive

• Wheelbase 4700mm

• Weichai Diesel Engine WP6.210E32,210HP

• FASt Gear box:8 speed forward and 1 reverse

• Front axle 4.8 tons,Rear axle 10Tons

• 10.00R20 tires,6 pcs with one spare

• Mounted with 15,000 liters LPG tank

• 10 mm thickness tank

• Q345R,one of ASME standard material

• Safety relief valve

• 2"  vapour and liquid phase

• Float ball Level gauge

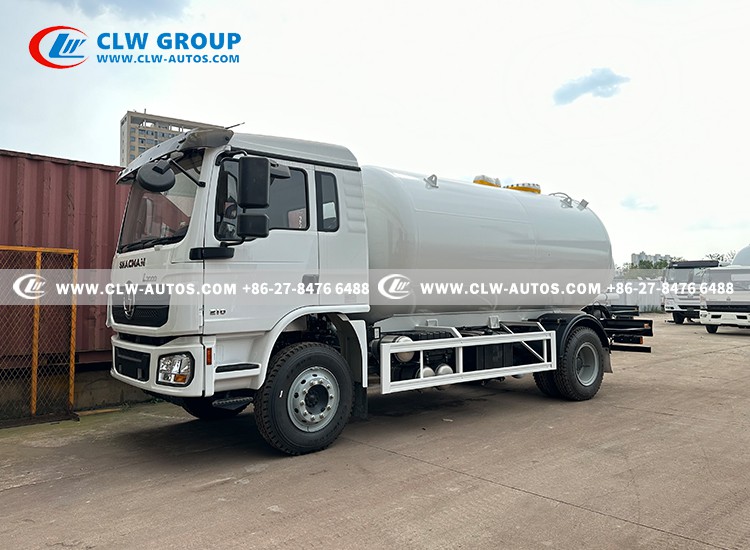

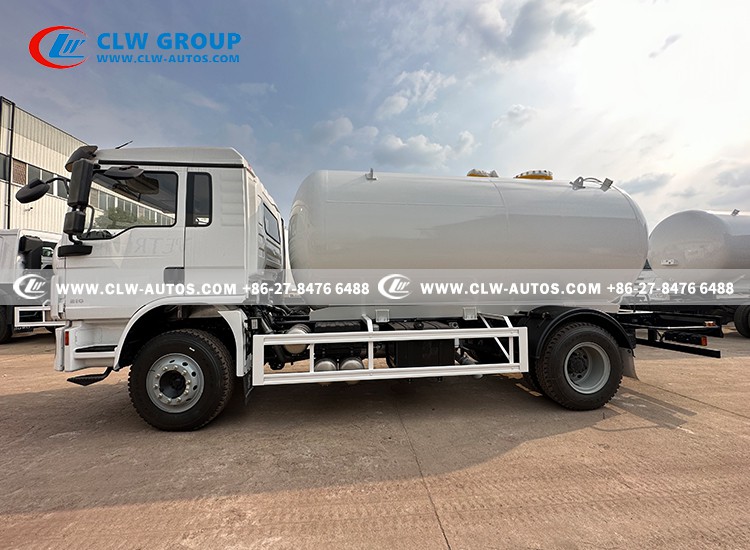

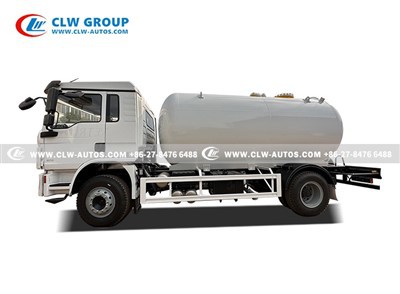

Reference picture











Specification of Shacman L3000 15 m3 LPG bobtail Truck



Item No.	Parameters
Overall Dimension	8000x2500x3450 mm
Driving Model	Right hand drive for Zimbabwe
Gross Vehicle Weight	18,000 kg
Curb Weight	10,500 kg
Payload	7,500 kg
Wheel Base	4500 mm
Front Axle	4,800kg
Rear Axle	10,000kg
Engine	Model	WP6.210E32
	Type	WEICHAI diesel engine,6-cylinders in a line,Water cooled,turbocharged,after cooled , cold start.
	Horse Power	210Hp
	Max output power	155kW
	Emission standard	Euro III
	Displacement	6230ml
	Rated Speed	1400~1600 rpm
Gearbox	Manual type, FAST 8JS85TM, 8 forward gears & 2 reverse

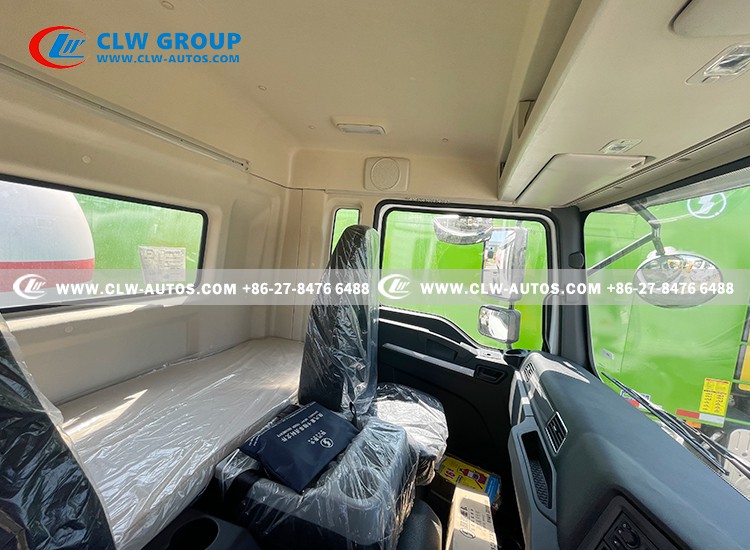

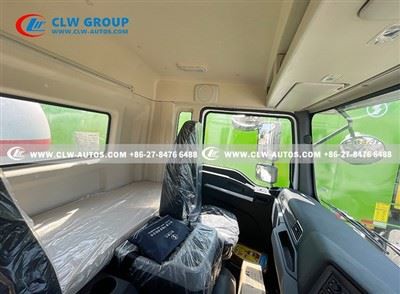

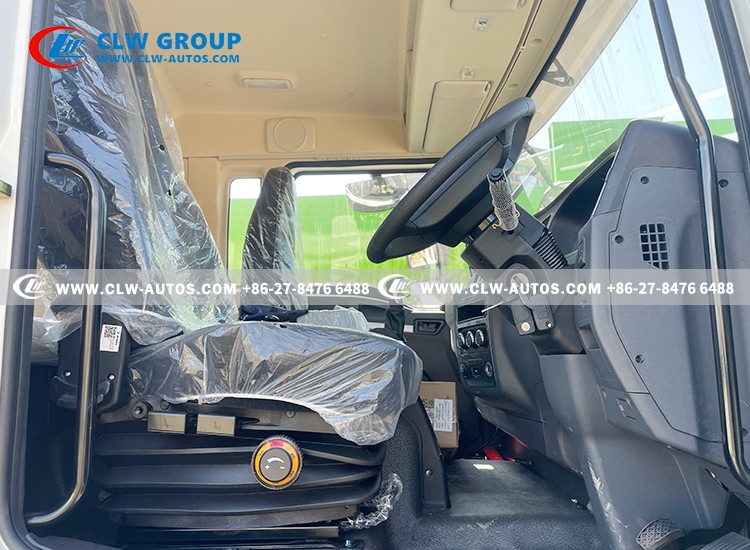

Cabin	Original SHACMAN L3000 cabin with one sleeper Right Hand Driving for Zimbabwe with air conditioner Central lock Electric window
Clutch	Reinforced diaphragm clutch
Tire	10.00R20, 6 pieces with 1 spare tire.
Fuel box	200L /steel material
Exhaust Pipe	At front of Cabin for safety
LPG tank
Filling Medium	Liquefied Petroleum Gas
Working temperature	-40~50 ℃
Volume:	15,000Liters
Tank material:	Q345R
Tank diameter:	1900mm
Tank thickness:	10mm
End plate thickness:	10mm
Tank length:	As designed
Gas phase	Flange type,DN50/2” or according to customer request
Liquid Phase	Flange type,DN50/2” or according to customer request
Filling gas	Propane(LPG)
Working Pressure:	1.61Mpa
Design Pressure	1.71 Mpa
Testing pressure	2.21Mpa
Corrosion Allowance	1.0 mm
Refilling Accessory
Directly driven by PTO(easy for future maintenance)

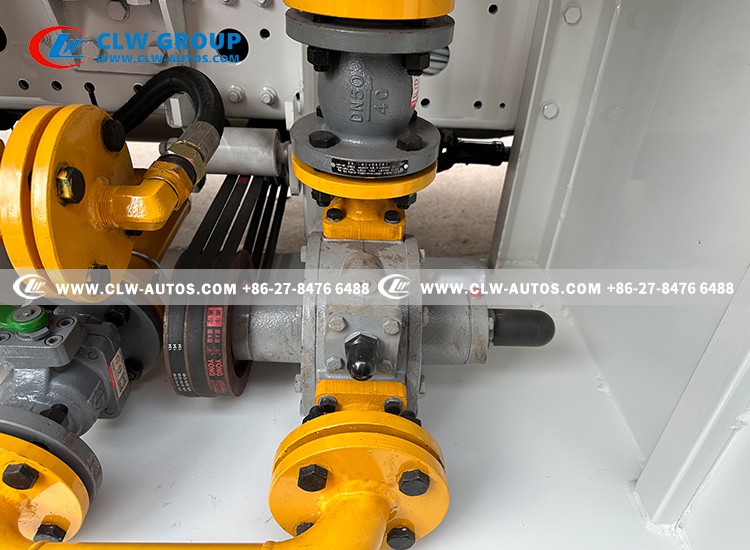

LPG Pump	Chinese brand YQ15-5
	Flow rate:15.5M3/H
	10 Mpa inlet pressure
	780 r/min for rotation speed
LPG Flow meter	TSC-50 model Showing filling volume Inlet/Outlet 2”/DN50 Maximum Capacity:76~380lpm With Mechanical Register, strainer, air eliminator, Diff. Valve and Back Check Valve with Ticket Printer.
Filling hose	15M,retractable with REGO adapter
Level Gauge	Chinese brand YWJ-25 Float Ball type at the rear of tank Nominal Pressure 2.5 mpa Showing in percentage
Safety Valve	Model No.		A412F-25-16
	Type		Built-in
	Nominal Pressure		2.5 Mpa
Safety return valve	1 PC
Pipeline safety valve	1 PC

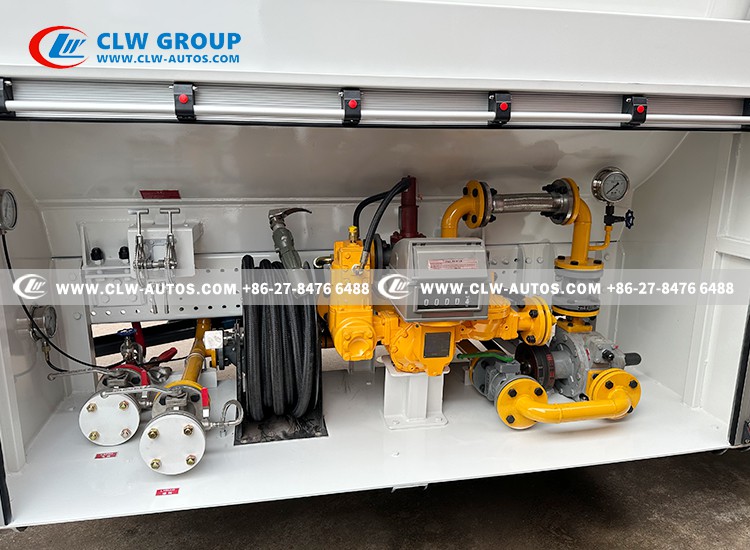

Equipment and Valve Box	Located at side of LPG bobtail (opposite driver’s side) Strong design with rolling off cabinet
Manhole	DN450
Thermometer	1 pc WTQ-280
Pressure Gauge	2 pc YN-100T
Emergency shut off Valve	2 pcs with switch inside valve box and at rear of truck
Fender	Steel
Fire Extinguisher Holder	1 set
Static conductive tape	1 pc
