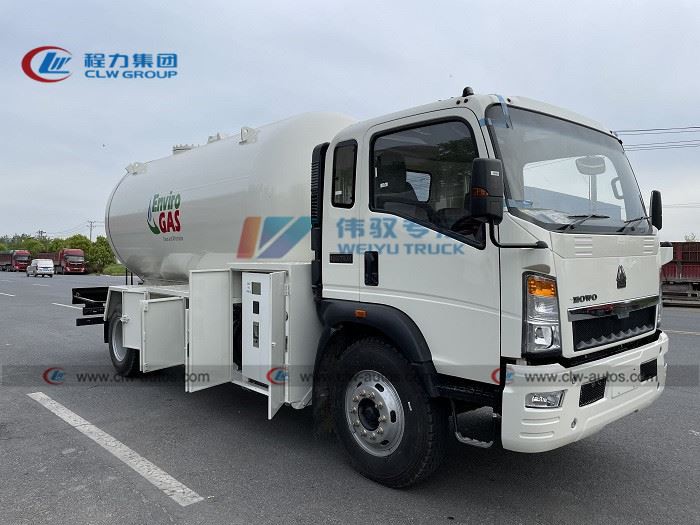

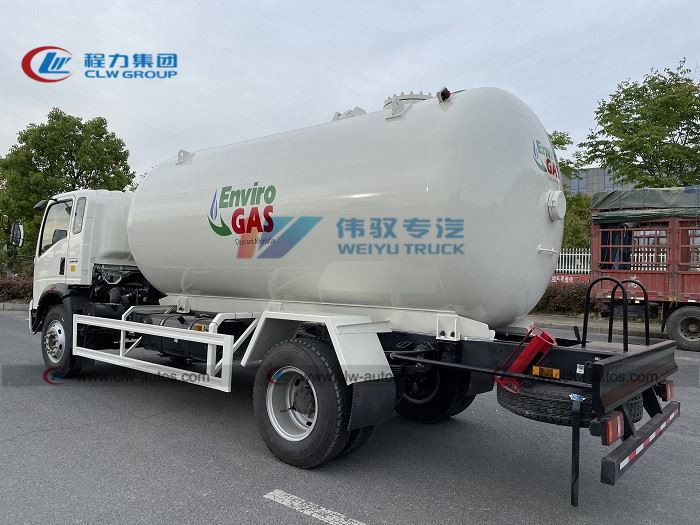

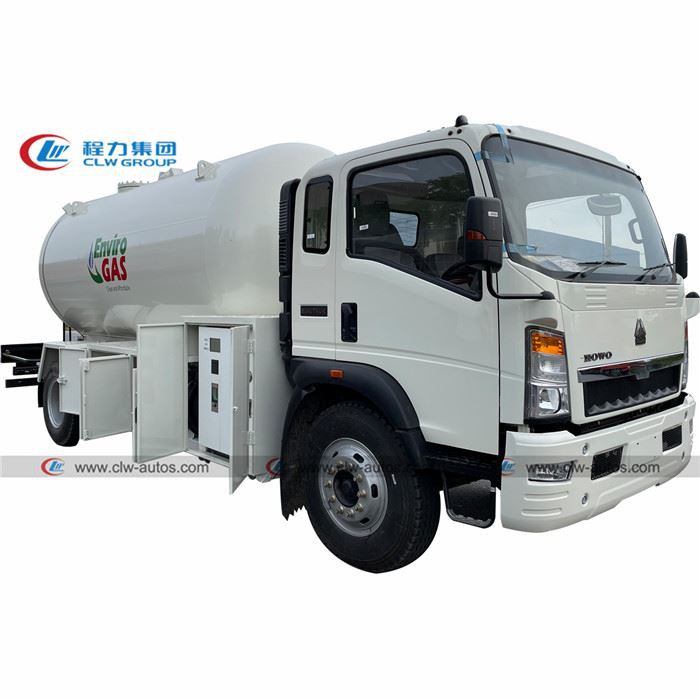

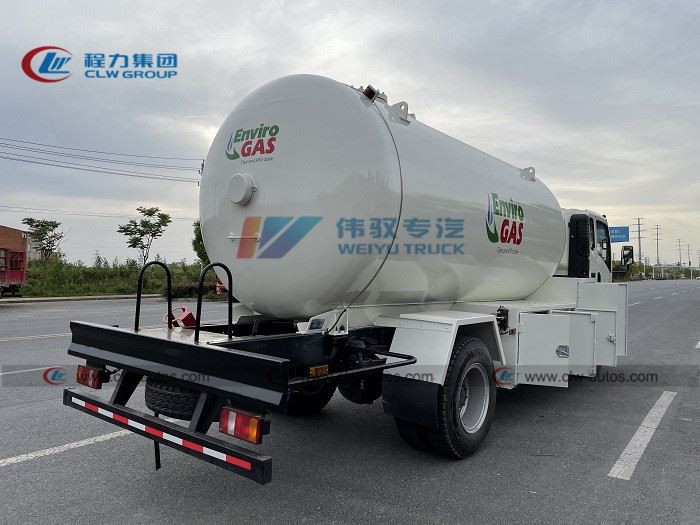

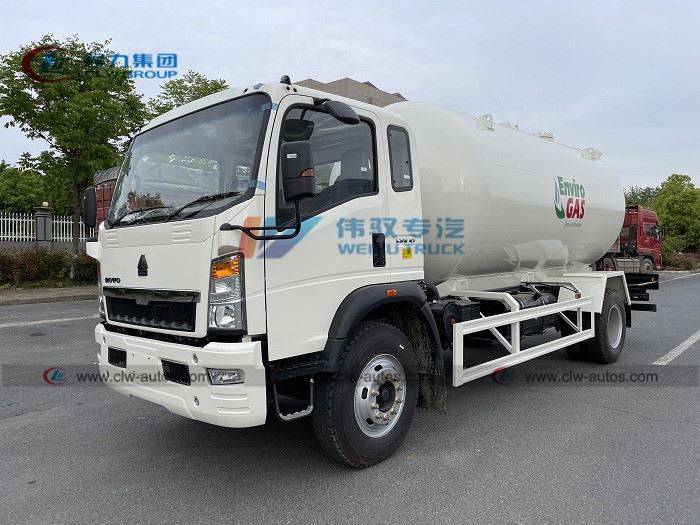

Sinotruk HOWO 4*2 15m3 7.5ton LPG Tanker Truck
Tank size:15000Liters;
Tank material:Q345R
Thickness:10mm
Tire:9.00R20
Medium:Propane/LPG/Butane
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 4*2 15m3 7.5ton lpg tanker truck in China. If you're going to buy high quality sinotruk howo 4*2 15m3 7.5ton lpg tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
LPG bobtail truck is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.
With different design,you can choose volume flow meter or lpg dispenser for your truck. The lpg dispenser is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.
Features
1. Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2. Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,
3. Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

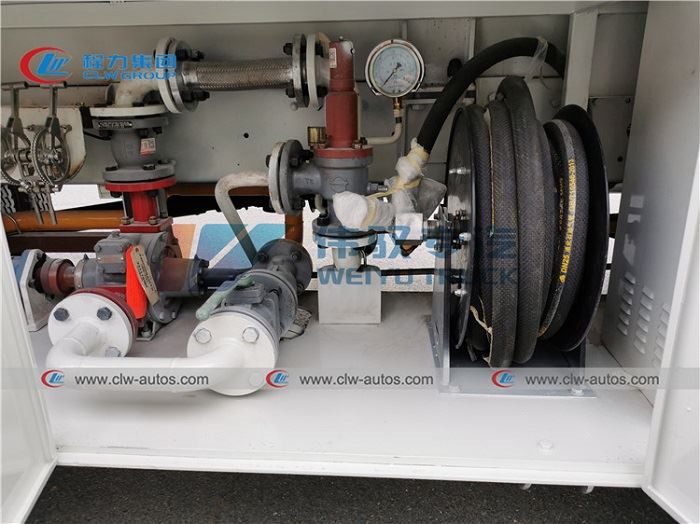

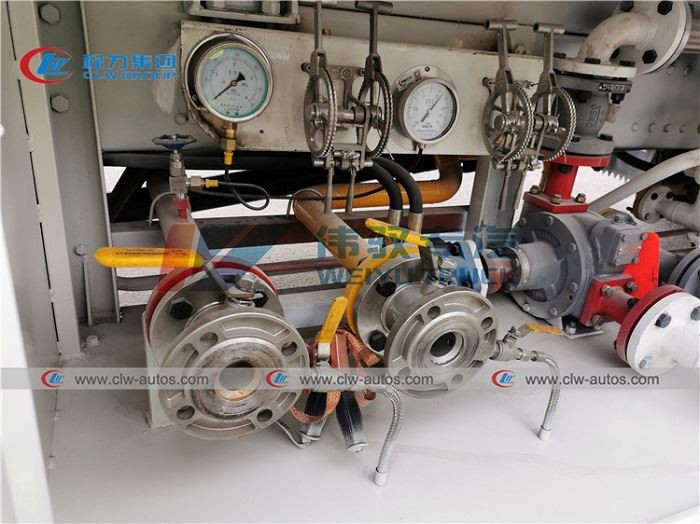

4. Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5. Truck Spec of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.
whatsapp +86 13971508969 Flora WongReference Photos
Product Specification
Item No. | Parameters |
Overall Dimension | 7600x2300x2980 mm |
Driving Model | Left hand drive or right hand drive |
Gross Vehicle Weight | 11460 kg |
Curb Weight | 6460 kg |
Payload | 5000 kg |
F/R Axle Loading | 3200/8000 kg |
Wheel Base | 4200 mm |
Front/rear Tread | 1886/1845 mm |
Approach/Departure Angle | 27/20 degree |
Engine | Yuchai 4110,YC4E160-33 |
Engine horsepower | 160 HP EUROIII |
Displacement | 4260mL (Diesel) |
Max Driving Speed | 95 km/h |
Gear Box | DC6J65TC,6 forward& 1 reverse |
Cabin | 2~3 Passenger allowed,with A/C |
Tire | 9.00R20 (6 pc with 1 spare) |
LPG tank | |
Volume: | 8~10cbm |
Tank material: | Q345R |
Tank diameter: | 1800mm |
Tank thickness: | 10mm |
End plate | 10mm |
Tank length: | As designed |
Gas phase | DN50 |
Liquid Phase | DN50 or DN80 for option |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
Accessory | |
Level Gauge | Manual rotation type,at the rear of tank |
Safety Valve | 1,DN80 |
Tool and Valve Box | 1 |
LPG pump | 1 |
LPG Volume Flow Meter | 1 |
Filling Hose | 15 meters |
Filling Nozzle | 1pc,Standard for 12.5kg cylinder |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher holder | 2 |
Exhaust shaft | At the front of truck for safety |
