LHD 5Tons 10,000L LPG Refilling Tanker Truck
Tank material:Q345R
Tank size:10,000L/10,000liters/10m3
Other equipment:LPG pump,Flow meter,filling hose
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of lhd 5tons 10,000l lpg refilling tanker truck in China. If you're going to buy high quality lhd 5tons 10,000l lpg refilling tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
LPG Refilling truck(also called lpg truck, lpg bobtail truck,lpg dispenser truck,lpg refill truck,lpg tanker truck,lpg dispensing truck,lpg delivery truck,lpg bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.
With different design,you can choose volume flow meter or lpg dispenser for your truck. LPG refilling truck is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg refilling truck,you can start lpg filling business easily.
1) Truck Brand optional for lpg refilling truck :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2) Tank Size of lpg refilling truck : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L..
3) Function of lpg refilling truck: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck
4) Refiling System of lpg refilling truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5) Truck Spec. of lpg refilling truck: Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.

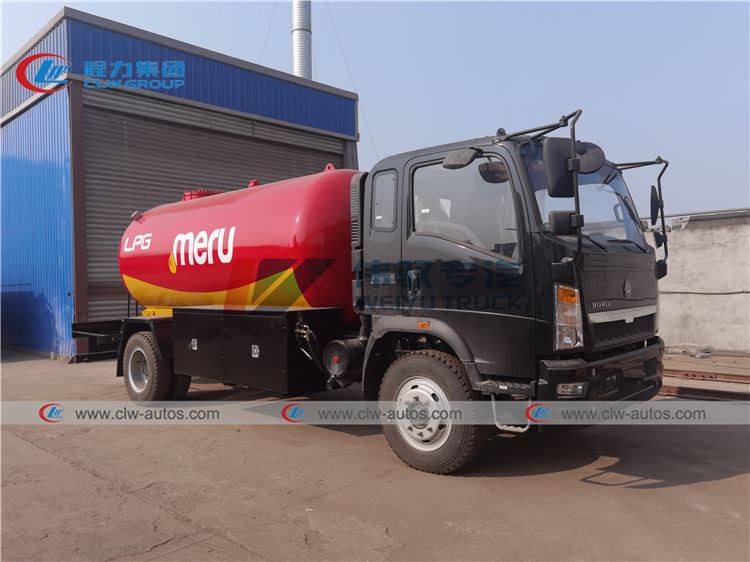

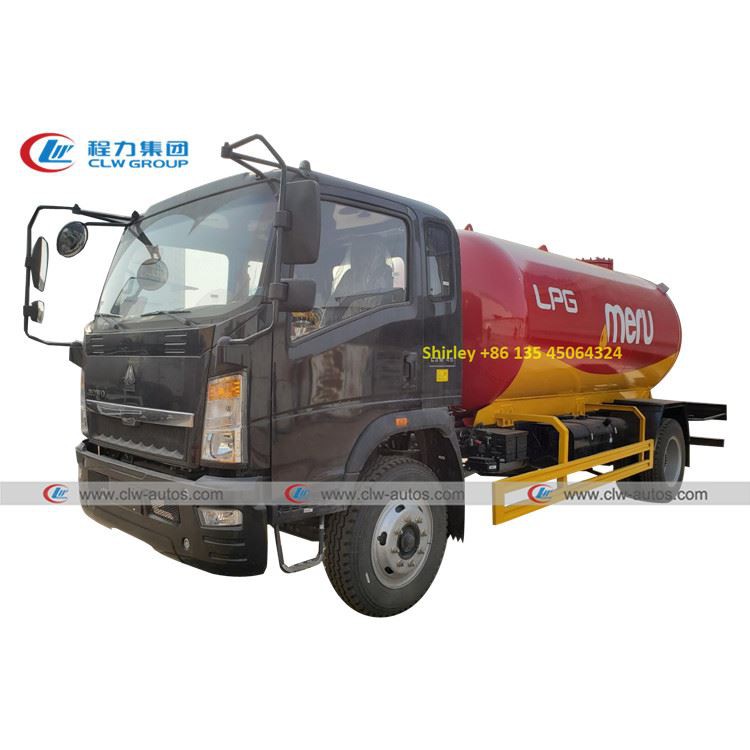

Reference picture of 5tonnes lpg refilling truck for Mount Meru

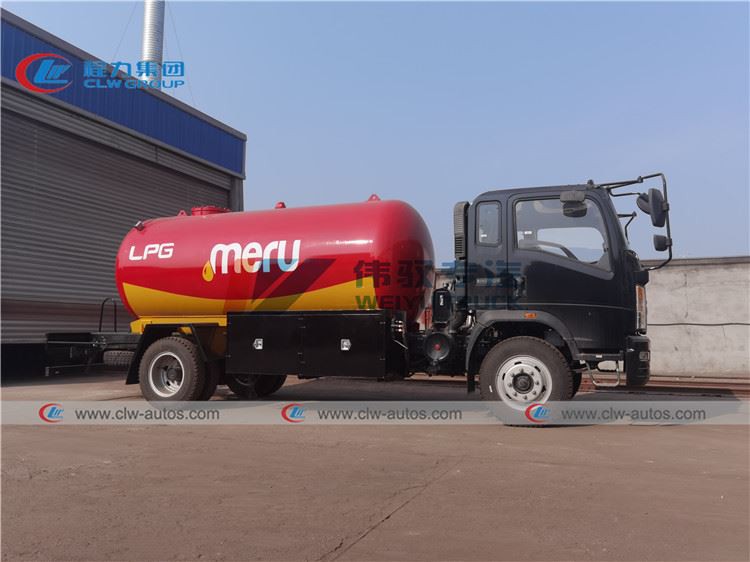

(side view of howo 5tons lpg refilling truck)
(Rear view of howo 5tons lpg refilling truck)
Specifications
Item No. | Parameters |
Overall Dimension | 7600x2300x2980 mm |
Driving Model | Left hand drive |
Gross Vehicle Weight | 11460 kg |
Curb Weight | 6460 kg |
Payload | 5000 kg |
F/R Axle Loading | 3200/8000 kg |
Wheel Base | 4200 mm |
Front/rear Tread | 1886/1845 mm |
Approach/Departure Angle | 27/20 degree |
Engine | Yuchai 4110,YC4E160-33 |
Engine horsepower | 160 HP EUROIII |
Displacement | 4260mL (Diesel) |
Max Driving Speed | 95 km/h |
Gear Box | DC6J65TC,6 forward& 1 reverse |
Cabin | 2~3 Passenger allowed,with A/C |
Tire | 8.25R20 (6 pc with 1 spare) |
LPG tank | |
Volume: | 10cbm |
Tank material: | Q345R |
Tank diameter: | 1800mm |
Tank thickness: | 10mm |
End plate | 10mm |
Tank length: | As designed |
Gas phase | DN50 |
Liquid Phase | DN50 or DN80 for option |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
Accessory | |

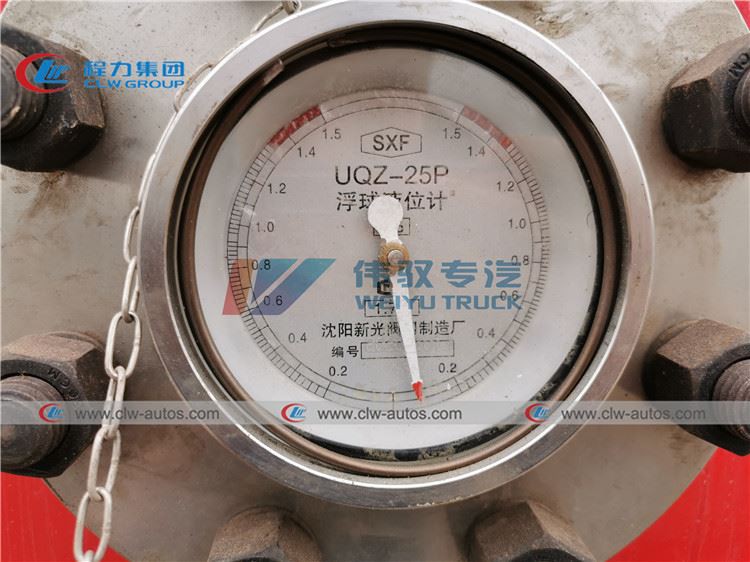

Level Gauge | Manual rotation type,at the rear of tank |
Safety Valve | 1,DN80 |
Tool and Valve Box | 1 |
LPG pump | 1 |
LPG Volume Flow Meter | 1 |
Filling Hose | 15 meters |
Filling Nozzle | 1pc,Standard for 12.5kg cylinder |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher holder | 2 |
Exhaust shaft | At the front of truck for safety |
Different design of howo lpg refilling truck as follows,
Type 1-with volume flow meter,lpg pump and 15 meters filling hose.
Type 2-with lpg dispenser machine,lpg pump and 15 meters filling hose.
Type 3-with lpg filling scales,lpg pump and 15 meters filling hose.
Production Process
Steel plate cutting
Tank rolling
Longitudinal welding
Circle welding
Baffle welding
X-ray testing for every welding line and ensure 100% qualified;
Heat treatment at 620 ℃
Hydraulic testing at pressure 2.21Mpa
Sandblasting before painting
Two layers of Anti-corrosion painting before final painting
Assembly of lpg tank and truck chassis
FAQ:
Q1: What is your product name?
A: Howo lpg bobtail truck
Q2: What size of howo lpg bobtail truck can you supply?
A: We can supply howo lpg bobtail truck from 5cbm to 35.5cbm,the most popular size is 5000liters,10,000liters,15000liters and 20,000liters.
Q3: What’s the production standard of your howo lpg bobtail truck?
A: GB-150.1~4-2011 or optional for ASME VIII Division I U STAMP
Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City, Hubei Province, central China,which is famous for special vehicles. You can take high speed train to Wuhan railway station,Hankou railway station or Wuhan Tianhe International Airport.
Q5: What’s your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.
Q6: How many days can I get my the howo lpg bobtail truck after paying deposit?
A: Only 10 working days is needed when material is ready.Usually our delivery time is 20~25 days.
Q7: What other truck brands do you supply for choice?
A: There are dongfeng,isuzu,faw,jac,foton and so on.
