Howo 10-wheel 24000L Propane Tank Truck
Tank size:24000Liters;
Tank material:Q345R
Thickness:10mm
Tire:12.00R20
Medium:Propane/LPG/Butane
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 10-wheel 24000l propane tank truck in China. If you're going to buy high quality howo 10-wheel 24000l propane tank truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Propane tank truck(also called propane truck,propane gas truck,propane tanker truck,propane delivery truck,propane transport truck,lpg bobtail,lpg tanker truck,lpg bobtail tanker,lpg dispenser truck,lpg refueler truck,lpg refilling truck) is used to transport liquid petroleum gas/propane gas/cooking gas/LPG for a short distance.
--propane tank truck from our company is optional for 5000L,10,000L,15,000L,20,000L,24,000L and 35500L. Above howo 6X4 290hp propane tank truck we supplied for NIPCO PLC is 24,000L/24000liters/24cum/6300 gallons.
--Design standard: Chinese GB-150, ASME U STAMP, CCC, ISO9001 : 2008
--Propane tanke truck is optional for accessories :ROCHESTER float-ball/magnetic level gauge or rotator level gauge,chinese or corken lpg pump,flow meter or lpg dispenser.
--Optional truck chassis brands: DONGFENG/HOWO/ISUZU/FAW/SHACMAN propane tank truck
Feature
--high quality steel specialized for pressure vessel production from chinese top steel company;
--Reliable design for rough road with reliable performance;
--X-ray testing for every welding line of tank body;
--Hydraulic testing for every propane tanker;
--Heat treatment 600~640 ℃ to relief stress;
--Gas leakage test;
--customized painting and logo design;
whatsapp
Reference picture

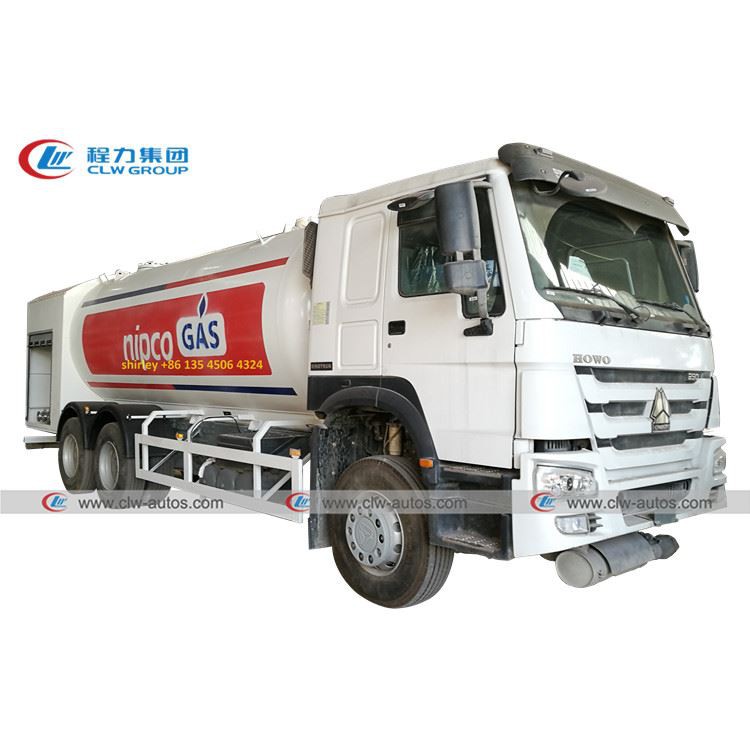

(front side view of 24000L propane tank truck)

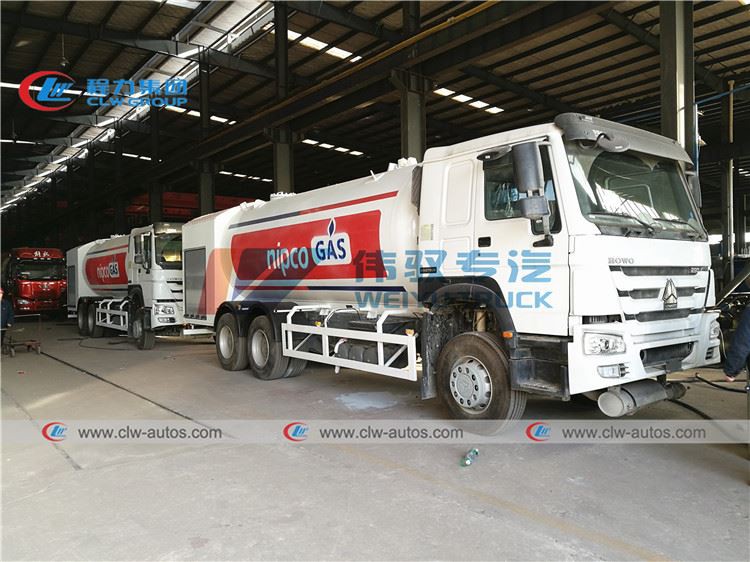

(3 units of 12mt propane tank truck for NIPCO PLC)

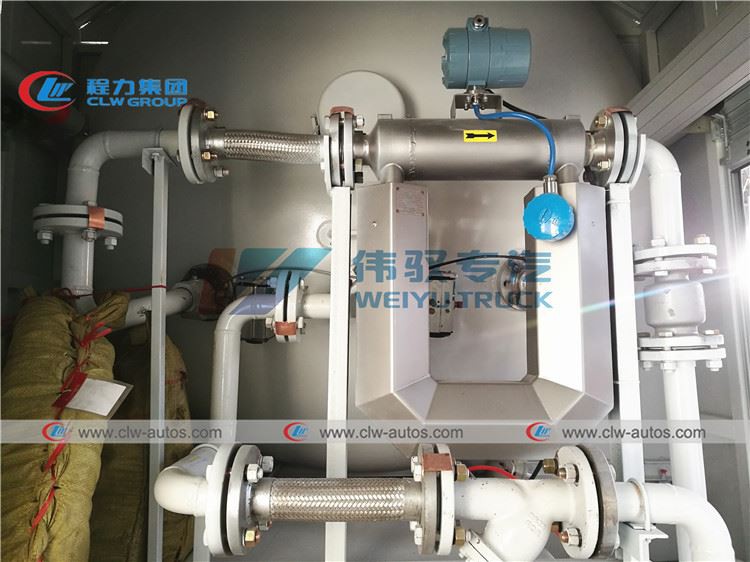

(Optional for mass flow meter and refilling nozzle of 24000Liters propane tank truck)

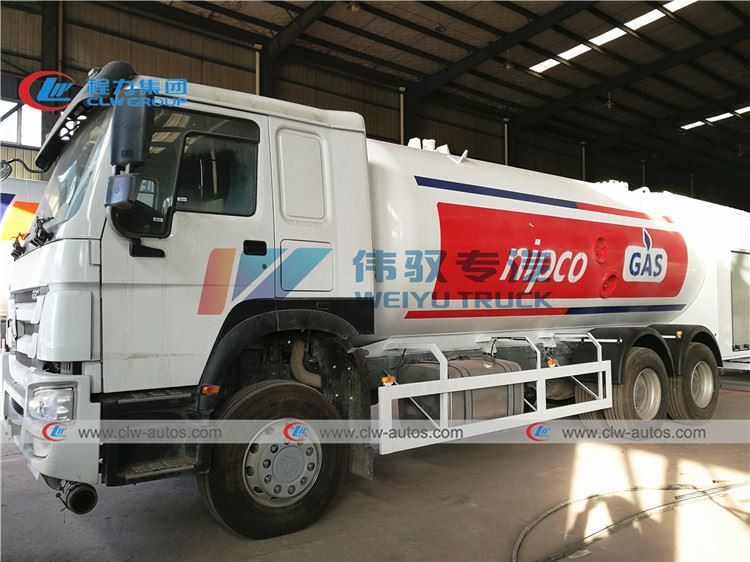

(Right side view of 24cbm propane tank truck)

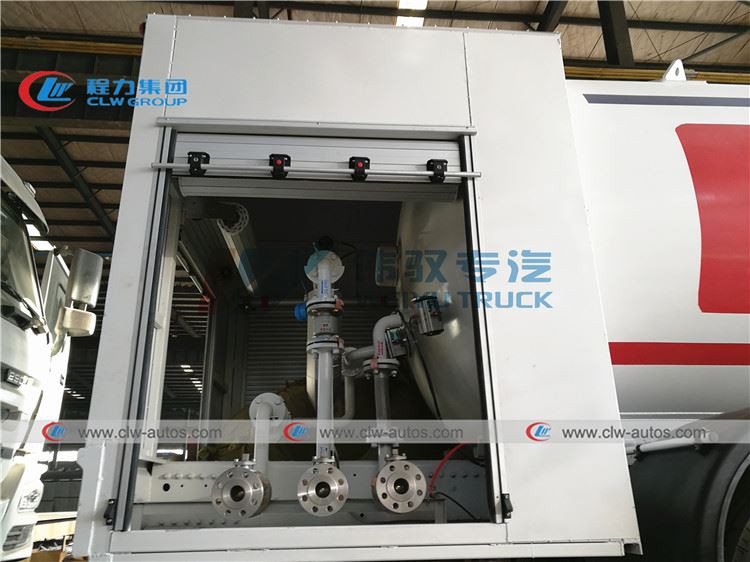

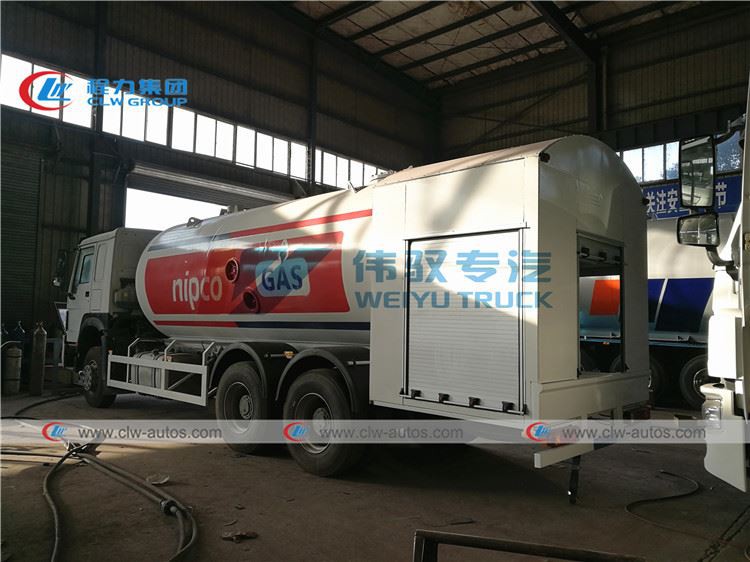

(Rear side view of 10 metric tons propane tank truck with filling room)

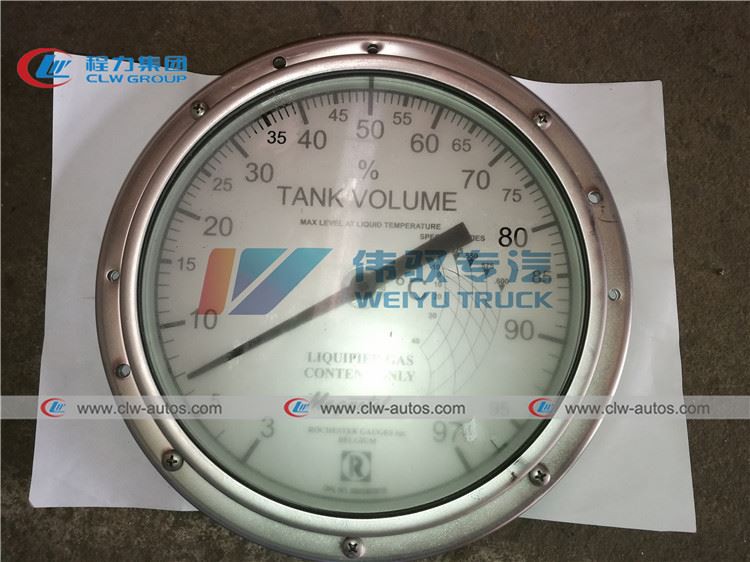

(10 metric tons propane tank truck equipped with Rochester level gauge at tank side)
Specification
Item No. | Parameters |
Overall Dimension | 10720x2480x3420mm |
Driving Model | left hand drive |
Gross Vehicle Weight | 25000 kg |
Curb Weight | 14240kg |
Payload | 10630kg |
Wheel Base | 5200+1350 mm |
Front/rear Tread | 2022/1830 mm |
Approach/Departure Angle | 16/12 degree |
Front Axle | HF9,9000kg |
Rear Axle | HC16,16000kgX2(Heavy duty design) |
Engine | WD615.87,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
Engine horsepower | 290HP EUROII |
Displacement | 9760mL (Diesel) |
Max Driving Speed | 95 km/h |
Gearbox | HW19710 |
Cabin | Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner |
Tire | 12R22.5 (10 pcs with one spare) |
LPG tank | |
Volume: | 24,000liters |
Tank material: | Q345R |
Tank diameter: | 2050mm |
Tank thickness: | 12mm |
End plate | 12mm |
Tank length: | 8060mm or as designed |
Gas phase | DN50 or according to customer request |
Liquid Phase | DN80 or according to customer request |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
Accessory | |
LPG Pump | 1 pc,Chinese brand |
radiator | 1 pc |
LPG dispenser | 1 pc,English remarks with printer for receipt,Chinese brand |
Filling hose with filling nozzle | 15M |
Level Gauge | Rochester Float Ball type/located at side or rear of lpg tanker |
Safety Valve | 1,DN80 |
Tool and Valve Box | 1 |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher Holder | 2 |
Exhaust shaft | At the front of truck for safety |
