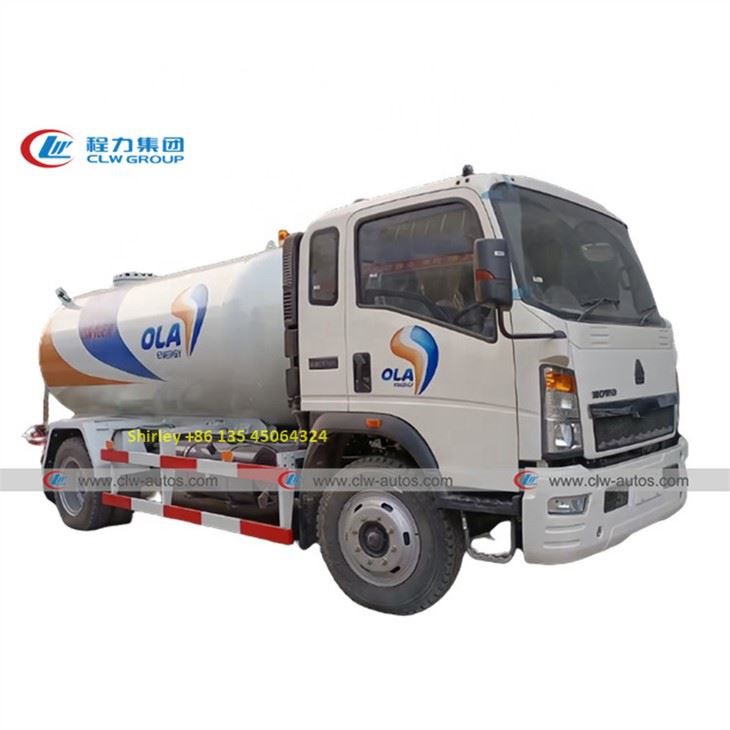

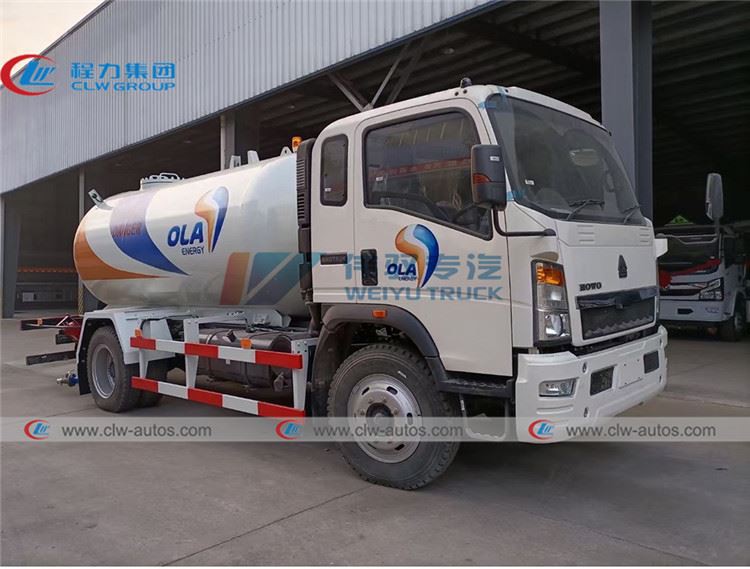

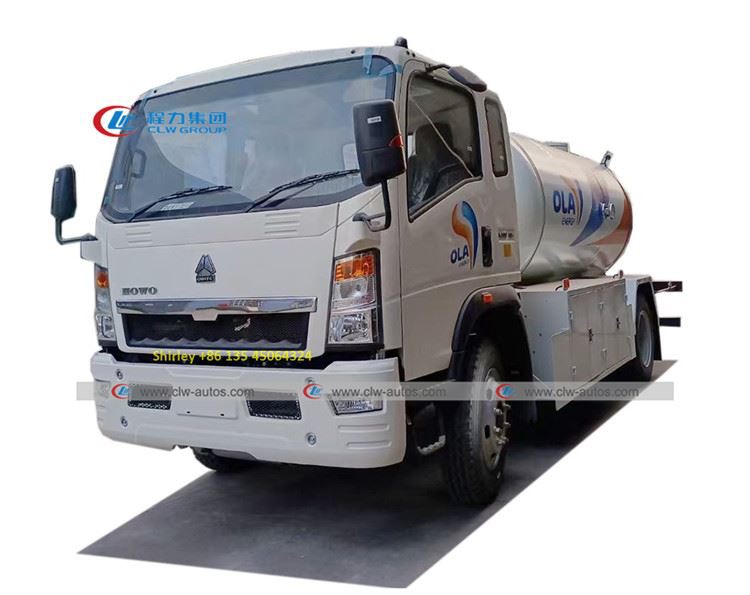

RHD Howo 2000 Gallons LPG Gas Delivery Truck
Tank capacity:4Tons/8000L
Filling system: pump,flow meter,filling nozzle
Chassis brand:Howo/Dongfeng/ISUZU
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of rhd howo 2000 gallons lpg gas delivery truck in China. If you're going to buy high quality rhd howo 2000 gallons lpg gas delivery truck, welcome to get more information from our factory. For price consultation, contact us.
LPG delivery truck(also called gas delivery truck,lpg truck, lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck,propane delivery truck,propane bobtails,propane gas truck,gas dispensing truck,propane refilling truck) is designded and used for transporting,delivering and refueling propane/lpg gas/liquid petroleum gas into smaller lpg tanks and home use lpg cylinders.
With different design,you can choose volume flow meter or lpg dispenser for mobile gas delivery truck. propane truck.With above lpg delivery truck,you can start lpg business easily.
1) Optional lpg delivery truck brand:Sinotruk Howo,dongfeng,faw,isuzu,foton and other brands.
2) Popular lpg delivery truck size: 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,20cbm,20,000liters,20,000L
3) Function of lpg delivery truck: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck
4) Main equipment of lpg delivery truck : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5) Truck Spec of propane truck : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.

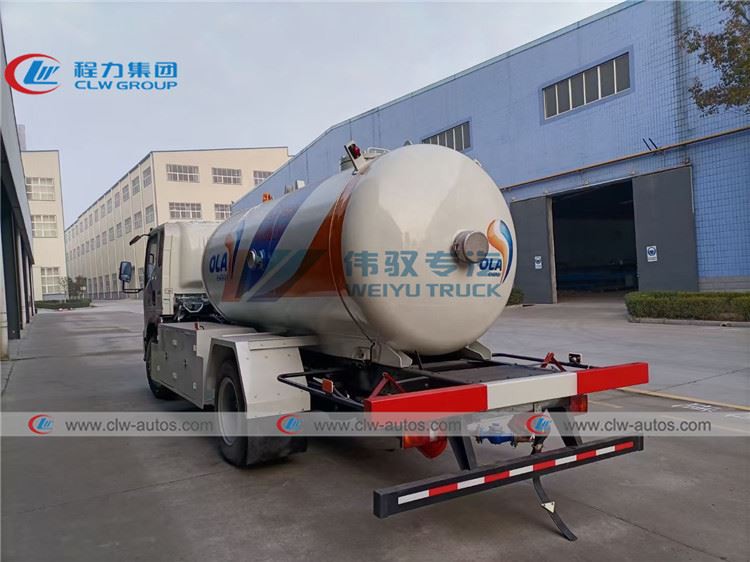

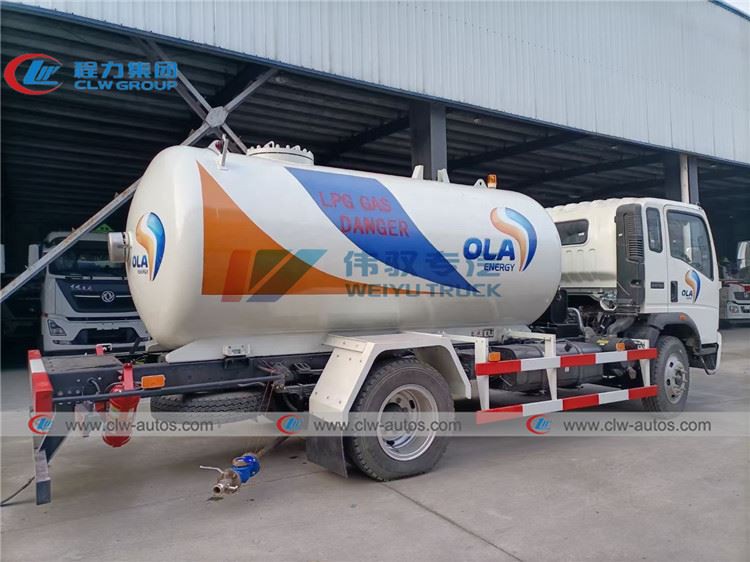

(Rear side view of 2000 gallons 4t lpg delivery truck for OLA Energy)
(Rear view of 2000 gallons 4tons lpg delivery truck for OLA Energy)
Item No. | Parameters |
Overall Dimension | 7600x2300x2980 mm |
Driving Model | Left hand drive or right hand drive |
Gross Vehicle Weight | 11460 kg |
Curb Weight | 6460 kg |
Payload | 5000 kg |
F/R Axle Loading | 3200/8000 kg |
Wheel Base | 4200 /4500mm |
Engine | Yuchai 4110,YC4E160-33 |
Engine horsepower | 160 HP EUROIII |
Max Driving Speed | 95 km/h |
Gear Box | DC6J65TC,6 forward& 1 reverse |
Cabin | 2~3 Passenger allowed,with A/C |
Tire | 8.25R20 (6 pc with 1 spare) |
LPG tank | |
Volume: | 8~10cbm |
Tank material: | Q345R |
Tank diameter: | 1800mm |
Tank thickness: | 10mm |
End plate | 10mm |
Tank length: | As designed |
Gas phase | DN50 |
Liquid Phase | DN50 or DN80 for option |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |
Accessory | |
Level Gauge | Manual rotation type,at the rear of tank |
Safety Valve | 1,DN80 |
Tool and Valve Box | 1 |
LPG pump | 1 |
LPG Volume Flow Meter | 1 |
Filling Hose | 15 meters |
Filling Nozzle | 1pc,Standard for 12.5kg cylinder |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher holder | 2 |
